Frain Industries carries several types of chuck capper machines covering a wide range of plastic and metal caps including flat caps, oval caps, flip top caps, pull spouts, safety caps, child proof caps, sport caps, and caps with over-caps or induction seals. Additionally Frain offers chuck capping machines from single head to 24 head rotary depending on your line speed requirements. Frain Industries offers chuck cappers in semi-automatic and automatic configuration, intermittent or continuous motion, as well as inline and rotary. The Frain engineering team can design a chuck capping solution based on your product, application, line speed, and line integration requirements.
Chuck cappers are ideal when very accurate torque is required, especially in the highest and lowest ranges of torque requirements. Additionally chuck cappers in a rotary configuration are ideal in high speed applications.
Frain Industries carries used chuck cappers from many OEM’s including Accutek, Aidlin, Akra Pak, Alcoa, Anderson, Autoprod, Axon, Bausch & Strobel, Consolidated, Cozzoli, Culbro, Del Packaging, Donahower, E Pak, Elf, Enercon, Filamatic, Filma-Seal, Fuju, Groninger, Holmatic, Hoppmann, Hypak, Kalish, Kaps All, King, Kinsley, Kiss Packaging, Krones, Lepel, Marburg, McKenna, Mengibar, Meyer, MRM Elgin, New England, New Jersey, Newman, Owens, Pack West, PDC International, Perry, Pillar, PMC, Pneumatic Scale, PPS, Reed, Resina, SureKap, Swan-Matic, Thiele, US Bottlers, Universal Machine, Weco, West, White Cap, Zalkin , and many others.

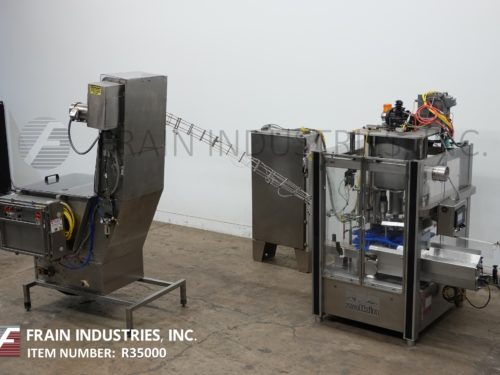

Resina, Model NRS-51HES LH, Left to right, single head chuck capper and cap feeder rated up to 60 containers per minute – depending on materials and application. Cap size range: 70mm to 120mm, with proper change parts. Equipped with 4½" wide x 120" long container conveyor, 39" wide x 24" long x 30" deep Model HES bulk cap hopper and feeder has 17½" wide elevator belt conveyor with cleats set on 5" centers. Control panel has touch screen HMI with start, stop and e-stop controls. Mounted on heavy duty frame with safety guarding and adjustable leveling legs.
OAD: 126" L x 44" W x 80" H Capper 56" L x 53" W x 82" H Feeder
Fowler, Model CAPD-4/432, (4) head rotary chuck capper. Rated from 50 to 200 containers per minute – depending on materials, application and machine configuration. Equipped with rotary pocket cap sorter, 5" wide belt conveyor with dual worm screw to star wheel indexing, (4) head chuck cappers set on 12" centers. Control panel has AB controller and touch screen HMI. Mounted on heavy duty frame with safety guarding.
OAD: 90"L x 75"W x 114"H

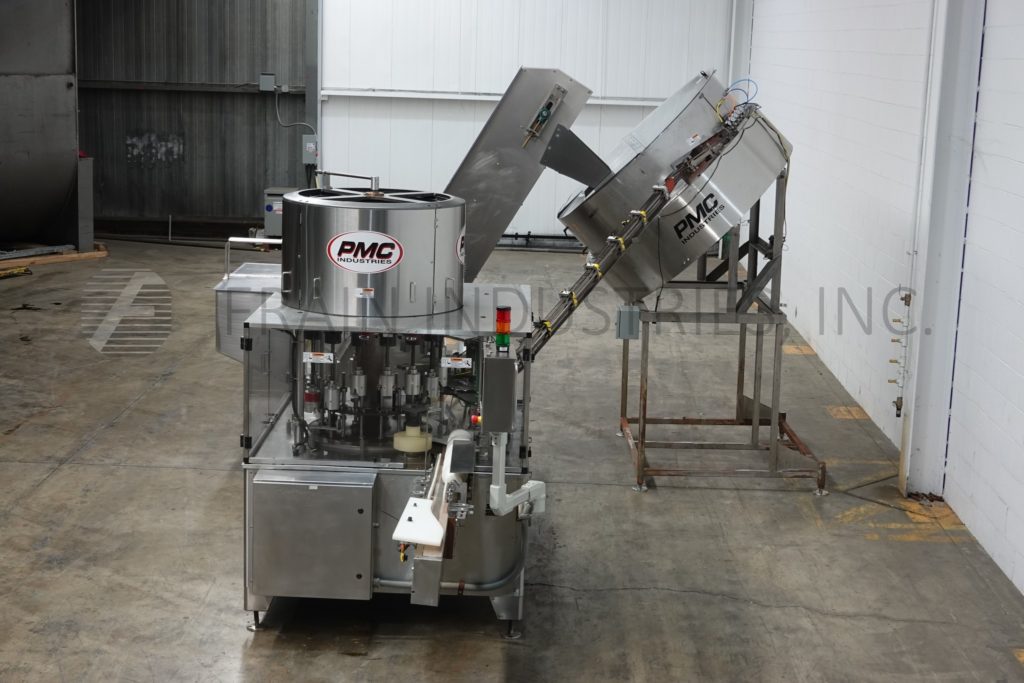

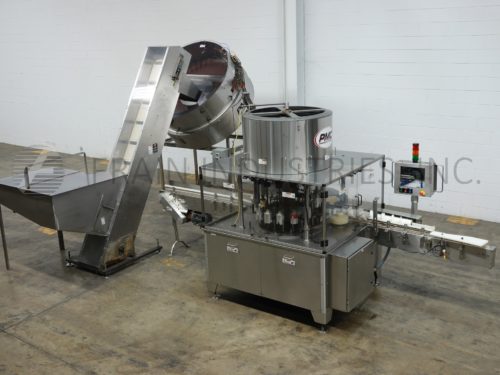

PMC, Models RC1600, MSL-60, PS2100, 16 head stainless steel, rotary pump placer and capper with 60" OD unscrambling bowl and incline cleated feeder with cap hopper rated up to 150 placements per minute – depending on materials and application Container size per application. Equipped with Model MSL-60, a 60" OD cap unscrambling bowl. Model PS2100 incline cleated cap feeder with 112" long x 15" wide belt with 3" high cleats set on 12" centers and 48" x 44" x 32" cap hopper with 88" discharge height. Model RC1600, 16 head rotary pump placer and capper with 24" OD cap hopper and has (16) capping heads set on 7" centers with 192" long x 3½" long container conveyor and has 36" infeed and discharge height. Control panel has start, stop, reset and e-stop push buttons with HMI readout. and statis light bar. Mounted on stainless steel frames with height adjustable leveling legs.
OAD: 192" L x 64" W x 88" H Capper 68" L x 56" W x 130" H Unscrambling Bowl 128" L x 64" W x 108" H Incline Feeder

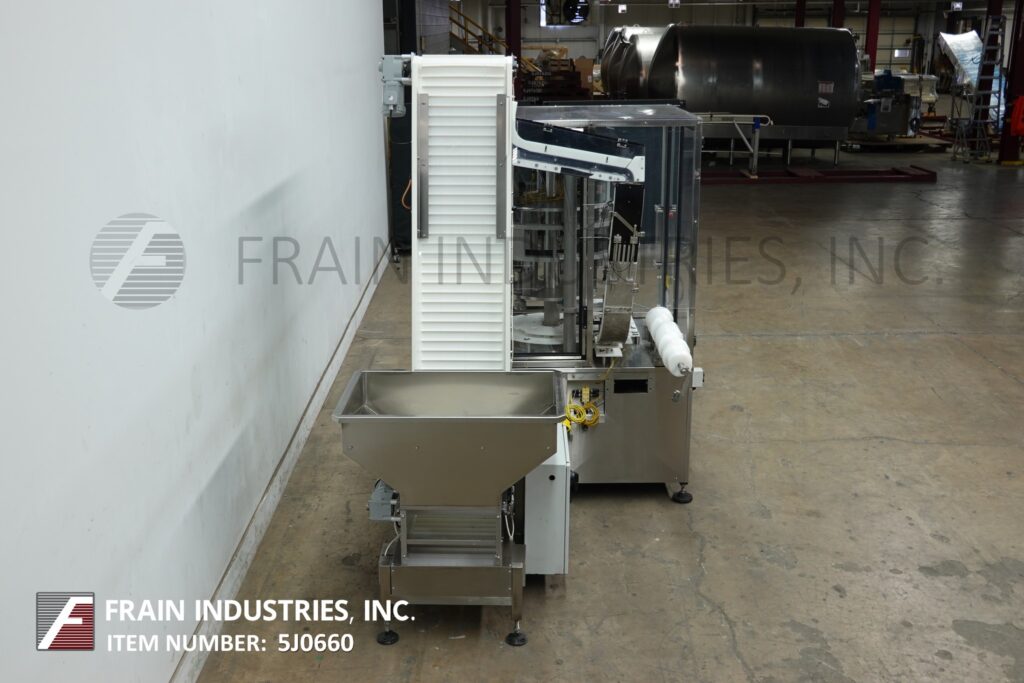

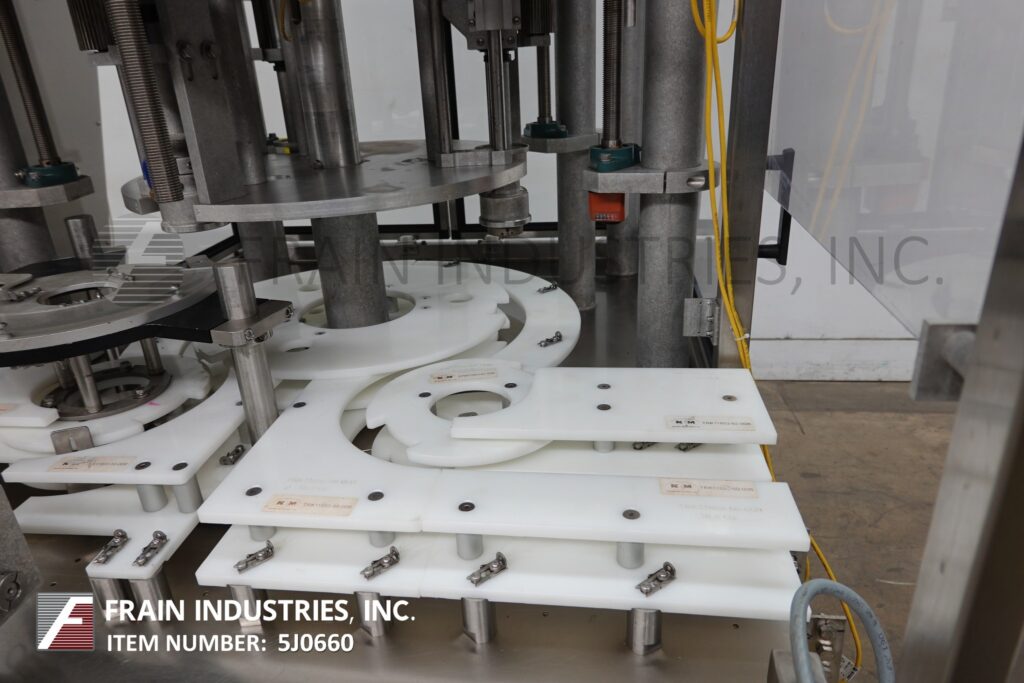

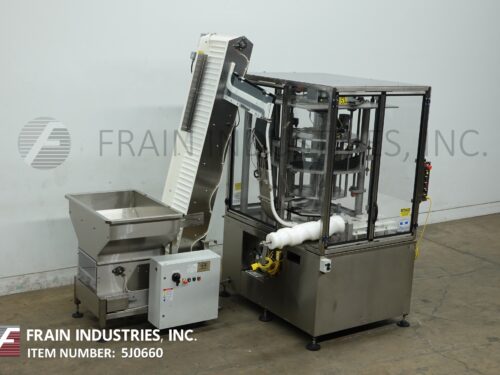

New England, (3) head, stainless steel, rotary chuck capper with number of caps and containers per minute – depending on materials, application, cap and container size. 304 stainless steel and anodized aluminum construction. Cap size up to 120mm and capable of handling CT, CR,TE, flip-top, sports and other style caps and various type of containers with proper change parts. Equipped with waterfall style cap feeder, 24" rotary turret with (3) servo driven pneumatic chuck capper heads set on 18" centers with pull pins for quick release of change over size and is adaptable to a wide variety of caps and containers. Electronic torque control for consistent applied torque of +/- 1.5 inch per pound and adjustable discharge height of 36" +/- 2". Control panel has auto / manual switch with start, stop, reset, jog and e-stop push buttons. Mounted on stainless steel frame with interlock safety door guarding and leveling legs.
OAD: 68" L x 48" W x 84" H
Zalkin, Stainless steel, 3 head rotary chuck capper and feeder. with number of containers per minute and hour – depending on materials, application and machine configuration. Equipped with waterall style cap sorter and feeder with 36" long x 42" wide x 36" deep cap hopper, 22" wide belt conveyor with cleats set on 5¾" centers and has 85" discharge height. Capper equipped with 4½" wide plastic delrin belt conveyor, worm screw to star wheel in feed, (3) head chucks set on 6" centers and star wheel discharge. Control panel has A/B controller and A/B touch screen HMI and start, stop, e-stop push buttons. Mounted on heavy duty frames. Designed to apply aluminium roll-on caps to carbonated or non-carbonated beverages of plastic or metal pre-threaded press-on or push-in caps, pourrers, stoppers, overcaps, stopper corks,rubber plugs and more..
OAD: 82" L x 60" W x 97" H Capper 62" L x 55" W x 107" H Feeder

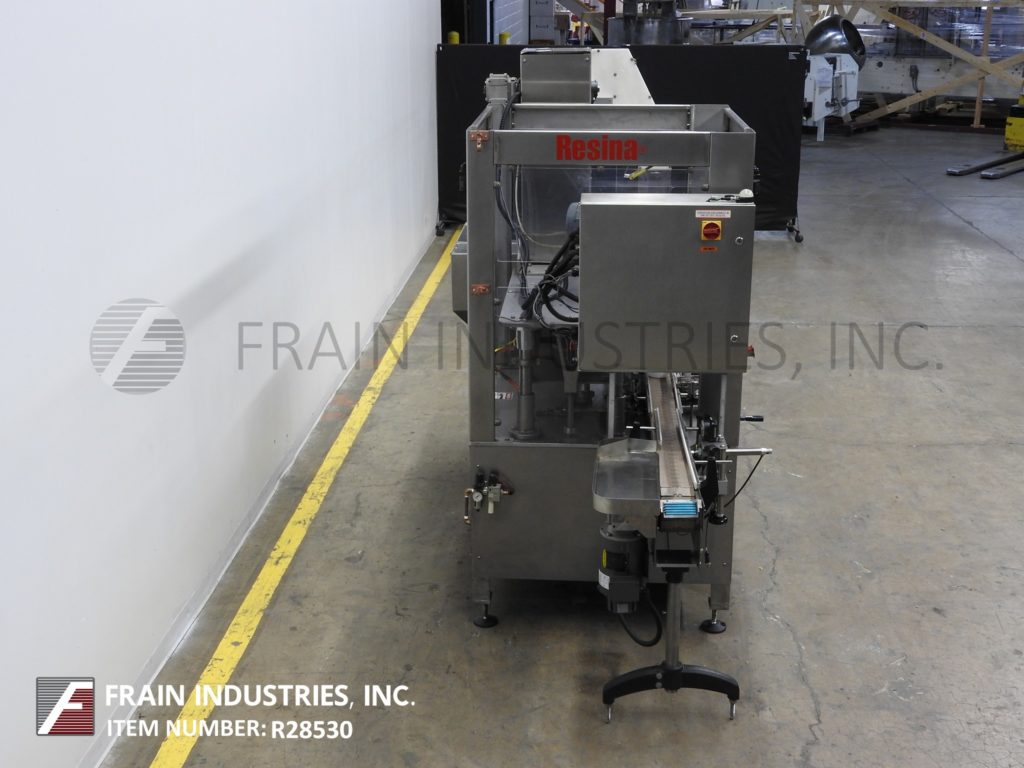

Resina Model N51HES-12, single head, stainless steel, right to left, chuck capper with cap elevator. Rated from 10 to 40 container per minute – depending on materials and application. All stainless steel construction. Cap size range: 70mm to 120mm. Container size: capable of handling a wide variety of size and shape containers up to 1 gallon (both with proper change parts). Equipped with Model HES cap hopper and feeder has 30" long x 26" wide x 30-1/2" deep cap hopper with flip-up cover and 60" long x 12" wide incline cap feed conveyor with 1/2" high lugs set on 6" centers. 120" long x 4-1/2" wide plastic delron tabletop container conveyor with adjustable guide rails. Capper has cap chute, transfer shoe, double side belt container grippers, single head, air actuated chuck, no container / no cap and camera induction vision sensors, hand crank height adjustable and interlock safety guarding. Control panel has PLC controller with touch pad controls, operator interface with start, stop, and e-stop push buttons. Mounted on heavy duty stainless steel base frame with leveling legs.
OAD: 128" L x 70" W x 80" H

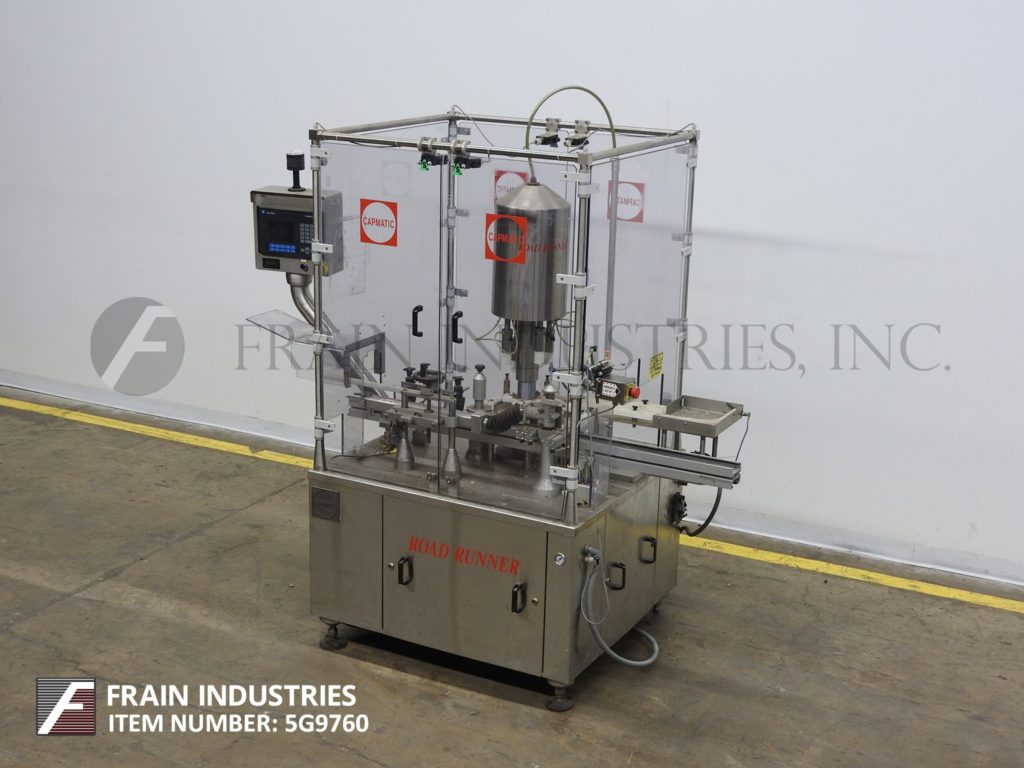

Capmatic, Model Road Runner, 4 head, stainless steel, rotary capper. Rated from 20 to 100 containers per minute – depending on materials and application Cap size range: 10mm to 45mm. Container size range: 1(3/16)" to 3(1/8)" in diameter; 1(3/8)" to 9¼" in height with proper change parts. Equipped with 64" long x 3¼" wide product conveyor, 10" rotary turret with pneumatic chuck capper heads set on 5" centers with no container / no cap, crooked cap reject and interlock safety guarding. Control panel has an AB controller with AB PanelView 600 touch screen display. Mounted on stainless steel base frame.
OAD: 64"L x 40"W x 78"H
