PMI, Model VXL2-15, automatic, inline, servo driven, case packer. Rated from 5 to 13 cases per minute with number of product – depending on materials, application and pack pattern. Case size range: 5" to 10" in Length x 4" to 7" in Width x 3" to 6" in Height. Equipped with product infeed conveying section, 64" long blank case magazine, fixed case pockets set on 7½" centers, hot melt glue system, bottom case sealer with bottom compression, 12" x 10" product accumulation table with sweeping arm loader, top case sealer and 8" wide x 58" long discharge conveyor. Control panel with AB PLC and touch screen HMI.
OAD: 180"L x 137"W x 94"H
Kodiak Model 710RSC, automatic, case erector, packer, hot melt glue sealer rated from 3 to 20 cases per minute – depending on material and application. Case size range: 6" to 22" in length: 6" to 20 " in width; 9" to 14" in depth. Equipped with 96" long extended powered blank case magazine (4) head vacuum pick-off system, 80" long pre-collating in feed conveyor with upstacking, set on 27" centers and Nordson H/M glue system. Control panel has A/B PLC controls. Mounted on heavy duty base frame with interlocking lexan guarding with seco gauges for quick change over.
OAD: 228" L x 72" W x 120" H
Combi America, Model 2EZHS, Ergopack. Case size range: 8" to 24" in Length; 6" to 16" in Width; 5" to 18" in Height. Equipped with 72" long blank case magazine, suction cup reciprocating pick and place, minor and major flap closers, mechanical pusher bar, 2" tape head, 12" wide x 214" long product conveyor and 104" long packing station running parallel to 8" wide x 118" long case conveyor. Top case taper equipped with minor flap closer, major flap plows, 3" wide dual side gripper belts, 2" top / bottom tape heads, hand crank adjustable with Siko gages and interlocking Lexan safety guarding. Control panel with tough screen HMI. Speed dependent on materials, application and machine configuration.
OAD: 305"L x 142"W x 76"H
Combi America, Model Ergopack HS. Rated from 5 to 20 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length; 6" to 16" in Width; 5" to 18" in Height. Equipped with 72" long blank case magazine, suction cup reciprocating pick and place, minor and major flap closers, mechanical pusher bar, 2" tape head, 12" wide x 192" long product conveyor and 80" long packing station running parallel to 12" wide x 92" long case conveyor. Top case taper equipped with minor flap closer, major flap plows, 3" wide dual side gripper belts, 2" top / bottom tape heads, hand crank adjustable with Siko gages and interlocking Lexan safety guarding. Control panel with tough screen HMI. Mounted on heavy duty frame.
OAD: 292"L x 140"W x 76"H
Bosch, Model Elematic, Automatic, inline, servo driven, wrap around case packer. Rated from 10 to 24 cases per minute with number of product – depending on materials, application and pack pattern. Blank case size range: 5.5" to 35.4" in Length x 10.2" to 47.2 " in Width. Case size range: 7.9" to 23.6" in Length x 3.1" to 15.7" in Width x 3.1" to 11.8" in Height. Capable of packing cartons, bottles, cans, jars, jugs and more with proper change parts. Equipped with 4" wide x 187" long product infeed conveying section, smart belt product indexing with (4) w" wide x 11" long conveyors, 4" wide x 76" long transfer conveyor section into product buckets, 90° transfer arm, down stacker, robotic pic clamp transfer arm thru former, 50" long powered blank magazine and Nordson hot melt glue system.
OAD: 519"L x 86"W x 110"H
Massman Model BLCP, Automatic, stainless steel, knockdown case erector, product down stacker, bottom load case packer and hot melt glue sealer with number of product and cases per minute – depending on materials and application. Case size range: Per application. Equipped with 96" long x 11-3/4" wide product in feed conveyor, 60" long (2) chain automatic blank case magazine, (2) suction cup reciprocating pick n place, case transfer conveyor with product down stack and bottom up product load design, Nordson ProBlue hot melt glue unit and flap closers with Seko and hand wheel adjustment, dual 36" long x 3" wide compression and discharge conveyor. Control panel has an A/B PLC and A/B swing arm panel view touch screen contoller with HMI and start, control power, cycle stop and e-stop push buttons with statis light bar. Mounted on powder coat polyester resin finish tubular frame with safety door guarding.
OAD: 310" L x 84" W x 104" H
Focke Model 486, Automatic, RSC, case erector, packer, hot melt glue sealer. Rated from 5 to 15 cases per minute – depending on materials and application. Case size range: 8" to 24" in Length x 6" to 24" in Width x 6" to 15" in Depth. Equipped with 105" long x 1/2" wide (2) belt powered blank case magazine, reciprocating pic-n-place, 43" long x 12" wide bottom product in feed conveyor with (1) 3" wide x 24" long and (1) 3" wide x 36" long top hold down conveyors, product up stacker and single arm product ram loader, Nordson hot melt glue system, flap closers and dual roller compression discharge section. Control panel has PLC controller and swing arm touch pad controls with readout, start, stop, e-stop push buttons and seko gauges, interlock safety guarding with statis light bar. Mounted on heavy duty frame.
OAD: 252" L x 132" W x 109" H

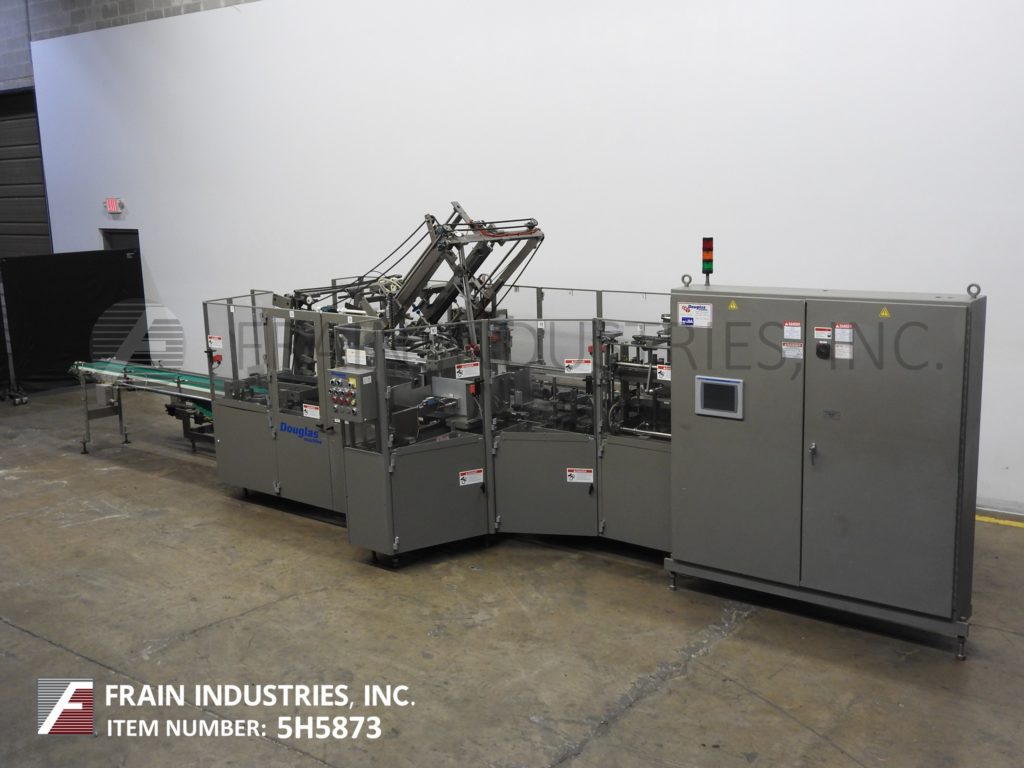

Douglas, automatic, knockdown case packer. Rated from 5 to 30 cases or trays per minute – depending on materials and application. Case size range: 8" to 27" long; 4" to 16" high; 8" to 30" deep. Equipped with (4) chains adjustable set on 30" centers with 4" high lugs. 15" wide x 120" long product in feed conveyor with upstacking and product sweep loader. 96" long automatic blank case magazine, with (3) suction cup reciprocating pick n place, case flap traps, Nordson hot melt glue unit, minor flap tuckers with wrap over station and hand wheel machine adjustment. Remote control panel has an A/B controller and A/B panel view touch screen HMI. Mounted on heavy duty stainless steel tubular frame with safety guarding.
OAD: 370"L x 123"W x 103"H
Focke Model 486, Automatic, small footprint, RSC, case erector, packer, hot melt sealer. Rated from 5 to 15 cases per minute – depending on materials, application and machine configuration. Case size range of: 7.1" to 29.8" in Length x 4" to 24.3" in Width x 4" to 17.2" in Depth. Equipped with Siko gages, 60" long powered blank case magazine, reciprocating pic-n-place, up stacker and single arm ram case loader. Flap closing section with Nordson hot melt glue system. Control panel has A/B controller and A/B PanelView Plus 1000 touch screen HMI with e-stop and interlocking safety guarding. Mounted on a heavy duty base frame.
OAD: 190"L x 124"W x 98"H

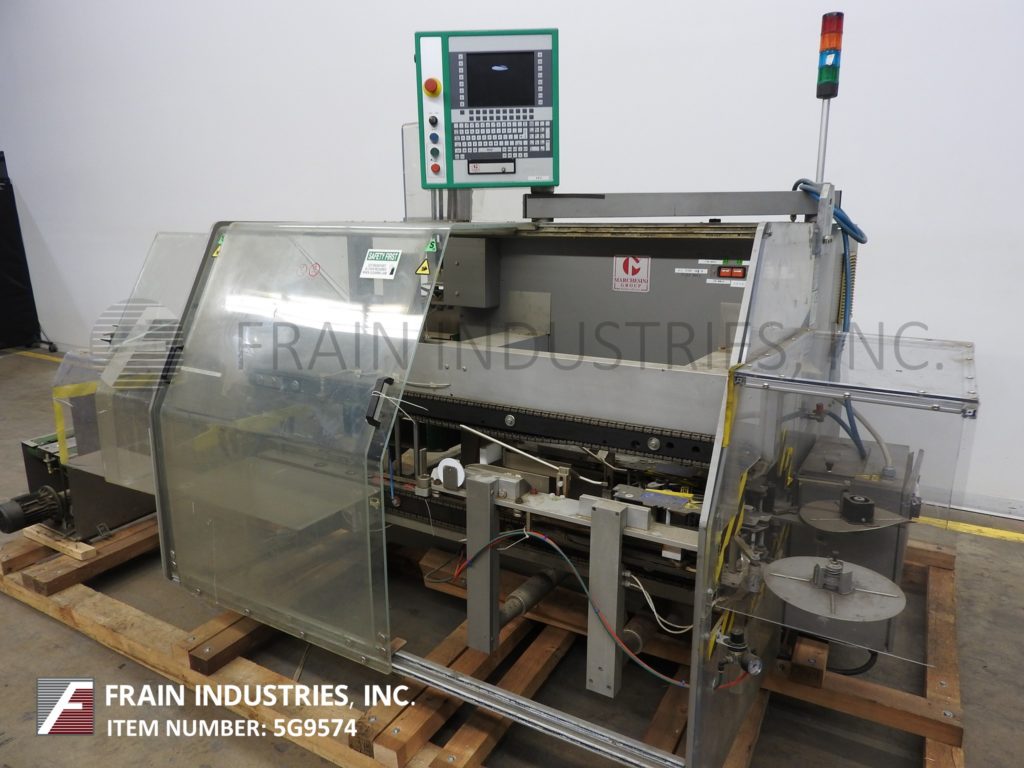

Marchesini, Model MC820, automatic, horizontal case packer. Rated from 1 to 10 cases per minute and number of product – depending on materials, application and machine configuration. Case size range: 5½" to 20" in Length; 4¾" to 13¾" in Width; 4¾" to 13¾" in Height. Product size range: 0.78" to 10.2" in Length; 0.39" to 5.9" in Width; 1.9" to 9.8" in Height. Equipped with right angle 102" long x 4½" wide product in feed belt conveyor with adjustable guide rails, powered blank case magazine, suction pic-n-place, product collator and upstacker with (2) side tape heads, safety guarding and statis light bar Control panel has touch pad controller with readout and start / stop / e-stop push buttons. Mounted on heavy duty base frame. Designed for rigid and semi-rigid containers in single or multipacks.
OAD: 180" L x 75" W x 90" H
Focke Model 486, Automatic, small footprint, RSC, case erector, packer, tape sealer, rated from 5 to 15 cases per minute – depending on materials and application. Case size range of: 7.1" to 29.8" in Length x 4" to 24.3" in Width x 4" to 17.2" in Depth. Equipped with 64" L x 40" H, powered blank case magazine and reciprocating pic-n-place, 80" long x 11-3/4" wide in feed conveyor with up stacker and single arm ram case loader. Flap closing section with 2" wide top and bottom case tapers, dual 30" long x 3" wide product discharge conveyors each with 32" discharge height. Control panel has A/B controller, with e-stop and interlocking safety guarding. Mounted on heavy duty frame.
OAD: 180" L x 128" W x 126" H
Focke Model 486, Automatic, RSC, case erector, packer, hot meltglue sealer. Rated from 5 to 15 cases per minute – depending on materials, application and machine configuration. Case size range of: 7.1" to 29.8" in Length x 4" to 24.3" in Width x 4" to 17.2" in Depth. Equipped with Siko gages, 60" long powered blank case magazine, reciprocating pic-n-place, up stacker and single arm ram case loader. Flap closing section with Nordson hot melt glue system. Control panel has A/B controller and A/B PanelView Plus 1000 touch screen HMI with e-stop and interlocking safety guarding. Mounted on a heavy duty base frame.
