Arpac Models TS2212 / TS60 / 45TW-28, Complete, automatic, continous motion, servo driven, tray forming, packing, upstacking and shrink bundling line rated from 5 to 45 trays per minute with number of product per tray – depending on materials and application. Tray Size per application. System consists of Arpac Model 2212 tray former, packer and hot melt glue sealer with 120" long x 18" wide product in feed conveyor with (4) lane dividers to (4) 48" long x 2-1/2" wide product grouping conveyors side mounted 68" wide x 32" high blank tray magazine with (2) suction cup pic n place to tray forming, packing and sealing section with (4)106" long x 1/2" wide lugged compression and discharge conveyor belt section set on 12" centers with Nordson hot melt glue unit with major and minor flap closers. Arpac Model 45TW-28 shrink bundler and tunnel with (1) 36" x 19" wide and (1) 36" wide x 72" long in feed conveyors thru bundler, top and bottom film rolls with maximum film roll width of 27" and 14" OD has 29" wide seal jaws x 13" high total clearence, to single zone shrink tunnel with 36" wide x 19-1/2" high total aperture x 72" long shrink chamber with 29" wide x 108" long product conveyor thru shrink tunnel with top discharge cooling fan. Control panels have A/B controllers with touch pad controls. and readout. All mounted on heavy duty frames with safety guarding and statis light bars.
OAD: 280" L x 72" W x 70" H Tray Erector/Packer 189" L x 60" W x 120" H Bundler/Tunnel 72" L x 25" W x 41" H Transfer Conveyor 100"L x 24" W x 46" H Slip Torque Conveyor
Arpac Model TS-2200, Automatic continous motion, servo driven, tray former, loader and hot melt glue sealer rated from 20 to 50 trays per minute – depending on materials and application. Trayer: Size range: 9" to 30" in Length; 7" to 18" in Width; 1½" to 4" in Height with proper change parts. Equipped with 27" wide x 154" long flexlink product in feed conveyor with lane dividers, rotary flight bar indexing feed system with 26" wide flight bar set on 36" centers. 120" long x 16½" wide extended powered blank tray feed conveyor has end lift section to side mounted blank tray magazine with vacuum suction cup pick n place, 96" long lugged tray forming, sealing, discharge conveyor, Nordson hot melt glue system, major / minor flap closers and side rail compression section. Control panel with AB controller and touch screen HMI. Mounted on heavy duty frame with safety door guarding and statis light.
OAD: 432"L x 151"W x 113"H
Arpac Model EL2111, automatic, intermittent motion, tray erector / packer / hot melt sealer rated from 5 to 25 trays per minute – depending on material and application. Tray size: Per application. Equipped with 128" long x 19" wide flexlink product in feed conveyor, with lane spacers and side guards, 48" long (2) chain automatic blank tray magazine, with single arm reciprocating pic n place, collation area with product stop, dead plate, product hold down with single over head product ram loader, 4 chain adjustable indexing conveyor set on 24" centers, with 3" wide x 5" high lugs, Nordson hot melt glue system with tray setup / squaring assembly and compression section. Control panel has A/B, controls with Arpac touch pad controller and panel view, interlocking safety guarding and statis light bar. Mounted on heavy duty base frame Capable of handling a wide range of product configurations and applications including: plastic bottles, cans, boxes, folding cartons, bags and glass jars.
OAD: 231" L x 76" W x 95" H
Arpac roller conveyor upstacker. Equipped with 60" long slip torque roller in feed conveyor with 21" wide x 1¼" OD rollers and 58" long x 21" wide upstack section with pneumatic closing fingers upstacker capable of stacking trays or cases up to 14½" high.
OAD: 130"L x 59"W x 74"H
Thiele, Model ZB20A, Automatic, case and tray erector packer, hot melt glue sealer. Rated from 5 to 10 cases per minute – depending on materials and application. Case size range: 6" to 12" long x 10¾" to 19¾" wide x 2" to 6" deep. Equipped with (4) chains adjustable set on 33¾" centers with 5" high lugs, 36" long blank case magazine with (6) suction cup reciprocating vacuum pic n place, single push arm product loader, mechanical flap closers, Nordson hot melt glue system, case compression section Control panel has A/B PLC with A/B touch screen HMI. Mounted on heavy duty frame with interlocking plexy glass safety guarding and statis lights.
OAD: 225" L x 125" W x 101" H
Arpac, model TS-2100, continuous motion wraparound tray former and packer. Rated from 5 to 35 trays per minute – depending on product and machine configuration. Tray size: 9" to 23" in length; 7" to 18" in width; 1½" to 4" wall height. Product size: 2" to 10" in height. Equipped with 20" wide x 204" long product infeed conveyor with adjustable lane guides, top pin grouper, 120" long overhead lugged product carrier set on 36" centers, 32" high adjustable blank tray magazine and Nordson hot melt system. Control panel with AB controller and touch screen HMI.
OAD: 385"L x 90"W x 94"H

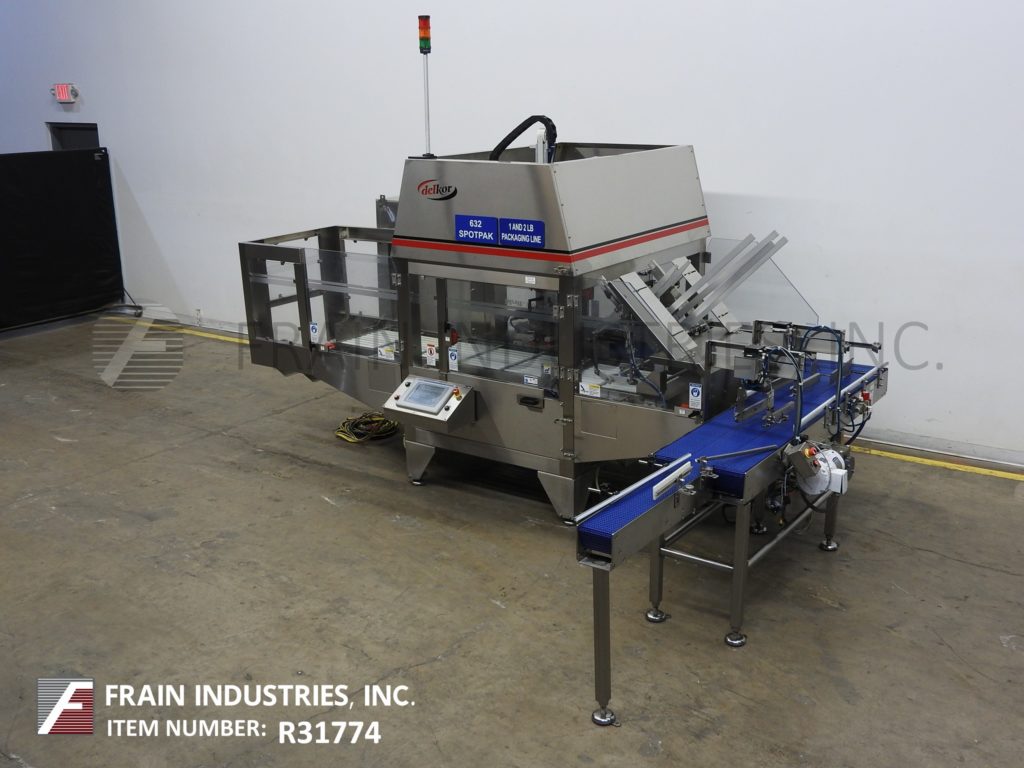

Delkor Model SP500i Spot-Pak, Automatic, stainless steel, flat pad product loader with number of products and flat pads per minute – depending on materials, application and pack pattern. Equipped with 36" long flat pad magazine with single head (6) suction cup recipercating pic place, with 84" long x 22" wide flat pad transfer conveyor. Nordson hot melt glue applicator which applies spots of glue to secure and stablize containers to the flat blank to maintain package integrity during transfer. 96" long x 18" wide flexlink product conveyor, with (2) axis (6) suction cup single head product pick and place loading arm which picks from product conveyor to load the flat blank. Remote control panel has A/B on board touch pad with panelview controller, has start, stop, reset and e-stop push buttons with main and remote mode switch with statis light bar. Mounted on (4) leg adjustable height frame with interlock safety guarding.
OAD: 180" L x 84" W x 82" H Machine 39" L x 16" W x 63" H Control Cabinet
Douglas Model DLT, Automatic, continous motion, horizontal, trayformer, loader and hot melt glue sealer, rated from 5 to 75 cycles per minute with the number of product and trays – depending on materials and application. Equipped with (4) chains adjustable set on 24" centers, with 4" wide x 3" high plastic lugs, 27" wide x 104" long flex link product in feed conveyor with (2) sets of 48" long dual product metering worm screws and (4) product lane dividers. (2) chain blank tray vacuum suction cup recipicating pic-n-place, (blank tray magazine per application). Bottom lugged chain blank tray conveyor set on 24" centers, with product collation, tray lift wrapround load section with Nordson hot melt glue unit and side tray closers. Control panel, with A/B PLC controller has A/B swing arm controls and panel view, main drive run / jog, vacuum and metering on / off switches, with start, stop, reset and e-stop push buttons with statis light bar. Mounted on heavy duty frame with leveling legs and interlock safety guarding.
OAD: 280" L x 144" W x 108" H
Arpac Models TS2212 / TS60 / 45TW-28, complete, automatic, continous motion, servo driven, tray forming, packing, upstacking and shrink bundling line rated from 5 to 45 trays per minute with number of product per tray – depending on materials and application. Tray Size per application. System consists of Arpac Model 2212 tray former, packer and hot melt glue sealer with 120" long x 18" wide product in feed conveyor with (4) lane dividers to (4) 48" long x 2-1/2" wide product grouping conveyors side mounted 68" wide x 32" high blank tray magazine with (2) suction cup pic n place to tray forming, packing and sealing section with (4)106" long x 1/2" wide lugged compression / discharge conveyor belt section set on 12" centers with Nordson hot melt glue unit with major / minor flap closers. Arpac Model TS60 double upstacker 60" long roller in feed conveyor with 21" wide x 1-1/4" OD rollers set on 1-1/2" centers with 1/8" gaps. collation system has 70" long roller section with 22" wide x 1-3/4" OD rollers set on 2-1/2" centers with 1/2" gaps, 54" long x 16" wide upstack section to 72" long x 17-1/4" wide canvas transfer conveyor to Arpac Model 45TW-28 shrink bundler and tunnel with (1) 36" x 19" wide and (1) 36" wide x 72" long in feed conveyors thru bundler, top and bottom film rolls with maximum film roll width of 27" and 14" OD has 29" wide seal jaws x 13" high total clearence, to single zone shrink tunnel with 36" wide x 19-1/2" high total aperture x 72" long shrink chamber with 29" wide x 108" long product conveyor thru shrink tunnel with top discharge cooling fan. Control panels have A/B controllers with touch pad controls. and readout. All mounted on heavy duty base frames with safety guarding and statis light bars.
OAD: 280" L x 72" W x 70" H Tray Erector/Packer 144" L x 55" W x 72" H Upstacker 72" L x 25" W x 41" H Transfer Conveyor 189" L x 60" W x 80" H Bundler/Tunnel
Thiele Model Automatic, intermittent motion, tray erector, end load tray packer capable of speeds from 5 to 30 trays per minute – depending on material and application. Tray size range of: 8" to 15" in Length x 4" to 21" in Width x 1-1/2" to 6" in Depth blank tray magazine with reciprocating pic in place feeder, leaflet magazine, 48" Long x 3" Wide product in feed conveyor currently set on 6" centers, mechanical pusher tray loader, Nordson hot melt glue system, with compression section discharge. A/B PLC controller with A/B Dataliner and Eletrocam 5000 PLS controls and statis light bar. Mounted on heavy duty frame with safety guarding.
OAD: 21′ L x 8′ W x 7′ H
