Cutter Slicer Chopper Processor is a classification of equipment that is used to size reduce a wide variety of materials. Cutter, slicer, chopper processing operations can be either done in a batch or continuous manner. This operation can cut the material in several directions to achieve the desired effect in size reduction and consistency. Some machinery has specific operations and has this operation classified to meet a specific operation for size reduction such as a mince master.

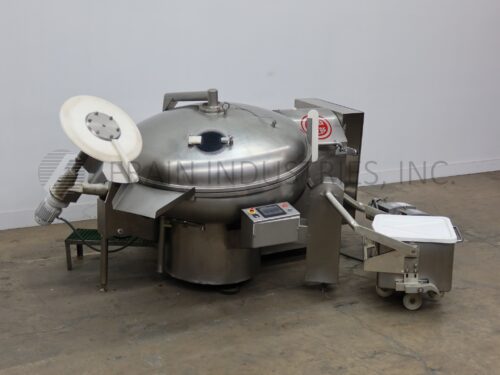

Kramer Grebe / Convenience Foods Systems, vacuum bowl chopper and mixer, for cutting, mixing and emulsifying product up to 325 liters per batch – depending on materials and application. All 304 stainless steel construction. Equipped with 70" OD x 40" high (to top of cover) mixing chamber, 9-1/2" top port, with hydraulic lift. Spiral cutting head is capable of using from 2 to 12 blades, currently set-up with 8 blades which can be positioned at angles of both 30 and 60 deg of each other and has hydraulic loading station for standard product carts. (carts not included). Two speed mixing bowl, and spiral knife motor drives, 28" Diameter hydraulic product un-loader with knife speed and portion controls. Mounted on heavy duty frame.
OAD: 130" L x 90" W x 76" H
Urschel, Model RAA, Stainless steel USDA approved cutter. Capable of slices, dices, and strip cuts at speeds from 2500 to 5000 lbs. per hour. Equipped with 14" x 15" product infeed and 7" wide product discharge with 26" discharge height. Unit is capable of cutting up to a 3½" diameter log of product. Unit consists of slicing knife capable of 1/16" to 3/8" cuts, circular knife capable of 1/8" to 1" cuts, and crosscut knives capable of 1/16" to 1½" cuts. To cut different size pieces change parts are needed per application. Slicing also requires a change part. Unit mounted on stainless steel base. Last running in a bread operation. Change parts required to accommodate size range.
OAD: 58"L x 45"W x 68"H
Urschel, Model Diversacut 2110, stainless steel, dicer, slicer, strip cutter with inclined feeder used for a variety of food products with number of pounds of product per hour – depending on materials and application. Equipped with 35" x 27" product charge with a 84" high charge, swing open locking access door with safety interrupt switch, crosscut and circular knifes that accept product up to 10" in any dimension and 10" x 14" discharge chute with 32" floor clearence. Control panel has start, stop and e-stop push button controls with 5 Hp stainless steel motor drive. Mounted on stainless steel base frame.
OAD: 60"L x 55"W x 84"H

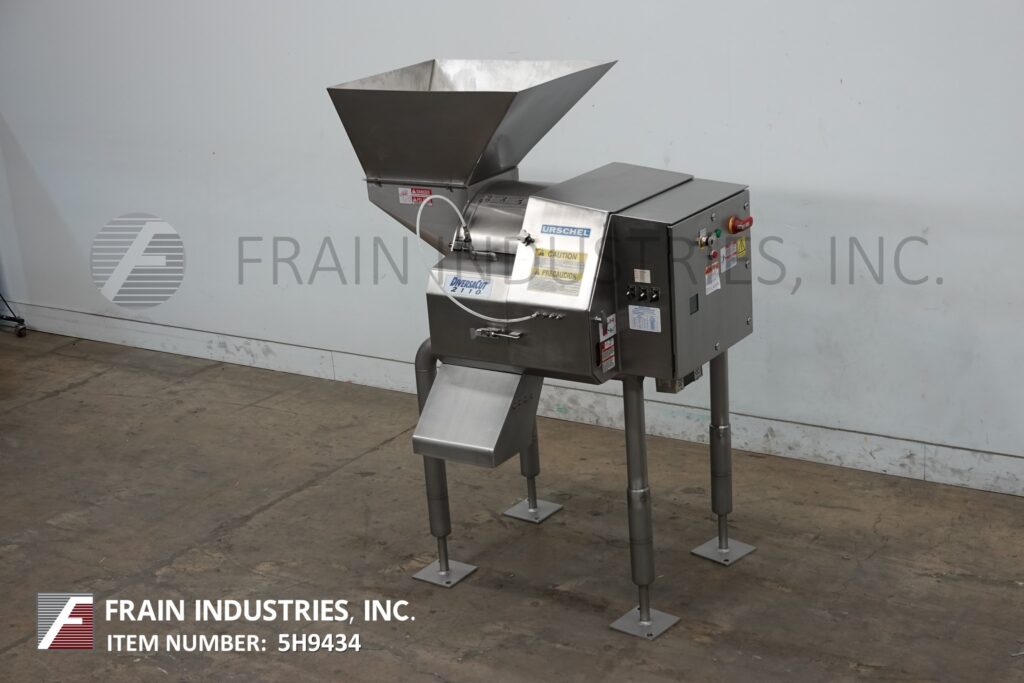

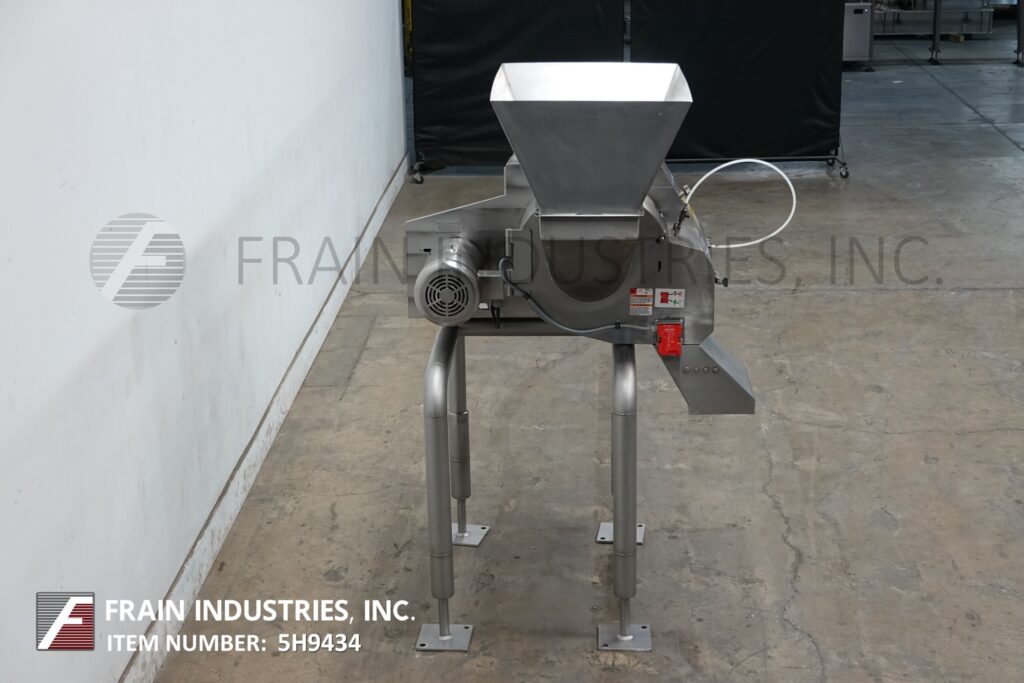

Urschel, Model Diversacut Sprint, Stainless steel, dicer, slicer, strip cutter with inclined feeder used for a variety of food products with number of pounds of product per hour – depending on materials and application. Equipped with 16" x 17" product hopper with 61" high in feed, swing open locking access door with safety interrupt switch, crosscut and circular knifes that accept product up to 6½" in any dimension and 10" x 20" discharge chute with 15½" floor clearence. Control panel has start, stop and e-stop push button controls. Mounted on stainless steel (4) leg frame with locking casters.
OAD: 55"L x 55"W x 65"H
Urschel Model RAA, USDA approved dicer speeds vary depending on type of product used. Unit is capable of slicing 8000 Lbs/Hr of Pineapple at high speeds and 5000 Lbs/Hr of Macadamia nuts at high intermediate speeds. Unit will cut pieces as small as 1/16" x 1/8" x 1/16" and as large as 3/8" x 1/2" x 3/4". To cut different size pieces change parts are needed. Capable of cutting raw, cooked, or tempered frozen beef1/8, 5/32, 3/16, 1/4, 5/16 or 3/8" (3.2, 4.0, 4.8, 6.4, 7.9, or 9.5 mm) cubes and strips, and pieces such as 1/8 x 3/8 x 3/8" (3.2 x 9.5 x 9.5 mm) or 1/4 x 1/4 x 1/2" (6.4 x 6.4 x 13 mm).Unit is all stainless steel USDA approved. Change parts required to accommodate size range.
Urschel, Model Affinity, Stainless steel dicer, has the ability to process high-fat, coldtemperature, and otherwise normally difficult products, with the amount of product per hour – depending on materials, application and machine configuration. Slice thickness 1/8 – 3/4" (3.2 – 19.1 mm), crosscut 1/8 – 2" (3.2 – 50.8 mm) and circular knife spindles 1/8 – 3" (3.2 – 76.2 mm) for a full range of dices, crumbles / granulations. Equipped with a 10½" x 14" x 17" deep infeed hopper that accepts products up to 7" (178 mm), built-in feed assists in feeding and orientation of product with 25 HP drive and 12" x 13" discharge chute with 24" ground clearance. Control panel has push button start / stop and variable speed dial. Mounted on stainless steel frame with casters.
OAD: 68"L x 60"W x 69"H

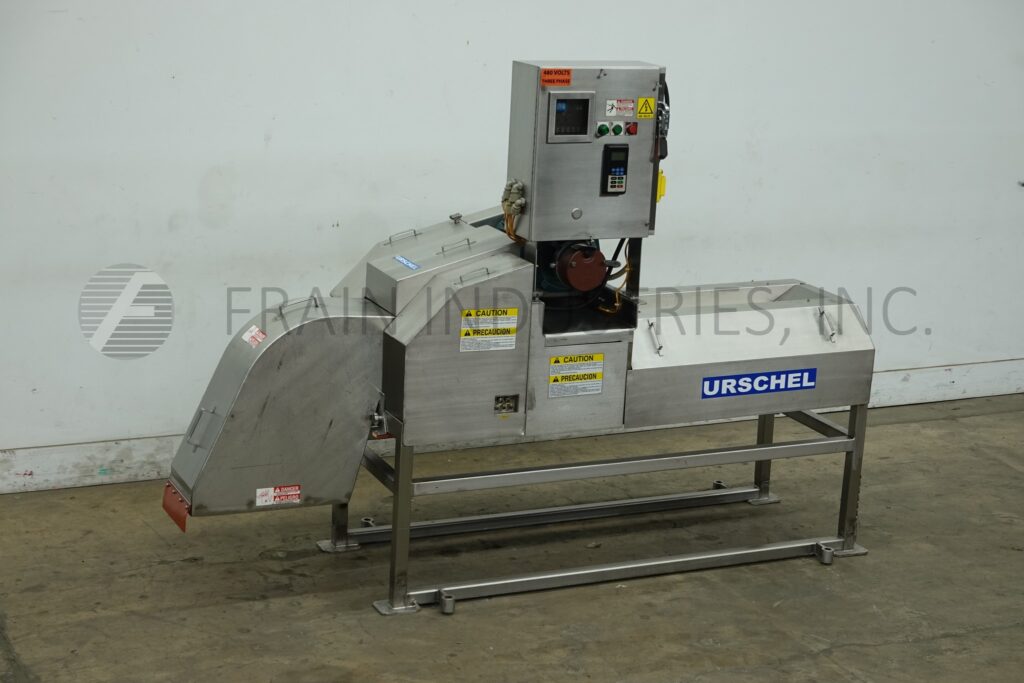

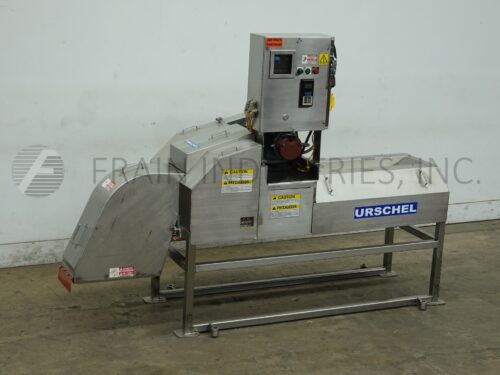

Urschel, Model M, stainless steel, belt fed, dicer, shredder and strip cutter. Capable of production rates from 500 to 4,500 Ibs per hour – depending on materials and application. Capable of strip cuts from 3/16″ to 3″ and cross cuts from 1/8″ to 4″. Equipped with 29″ x 9 1/2″ …
Urschel, Model M, stainless steel, belt fed, dicer, shredder and strip cutter. Capable of production rates from 500 to 4,500 lbs per hour – depending on materials and application. Capable of strip cuts from 3/16" to 3" and cross cuts from 1/8" to 4". Equipped with 29" x 9½" load area on feed belt and 11½" x 16" discharge chute with 16" ground clearance. Control panel with start and stop push buttons controls. Mounted on (4) leg stainless steel frame with casters.Change parts are needed to accommodate size range changes.
OAD: 106"L x 43"W x 55"H

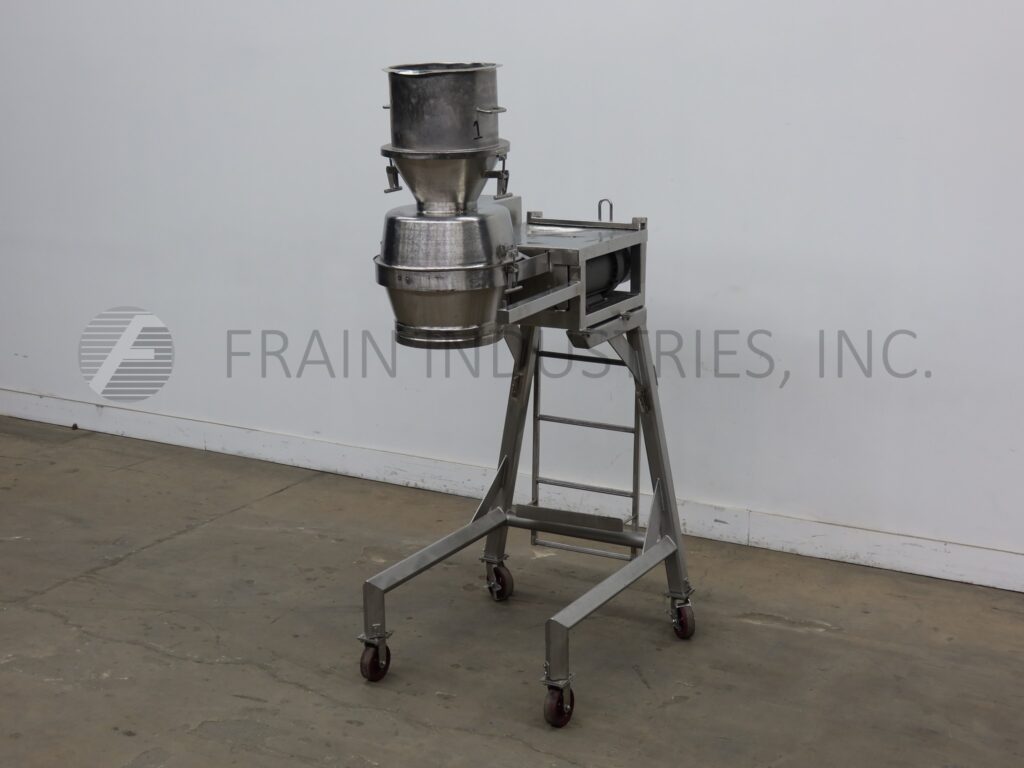

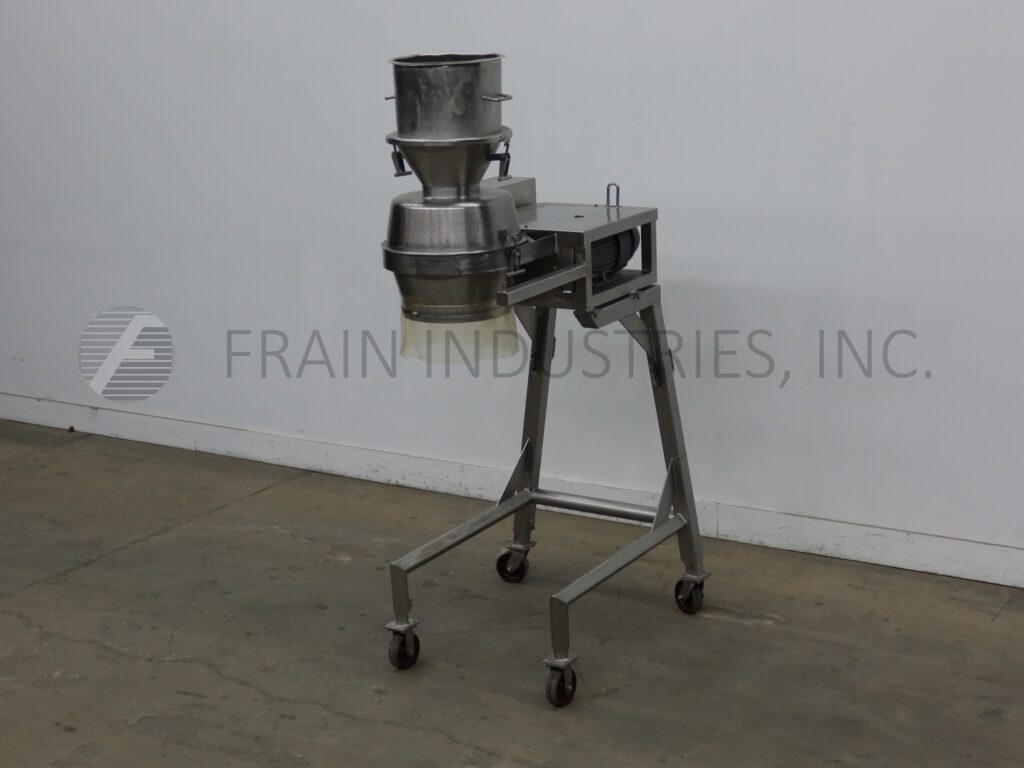

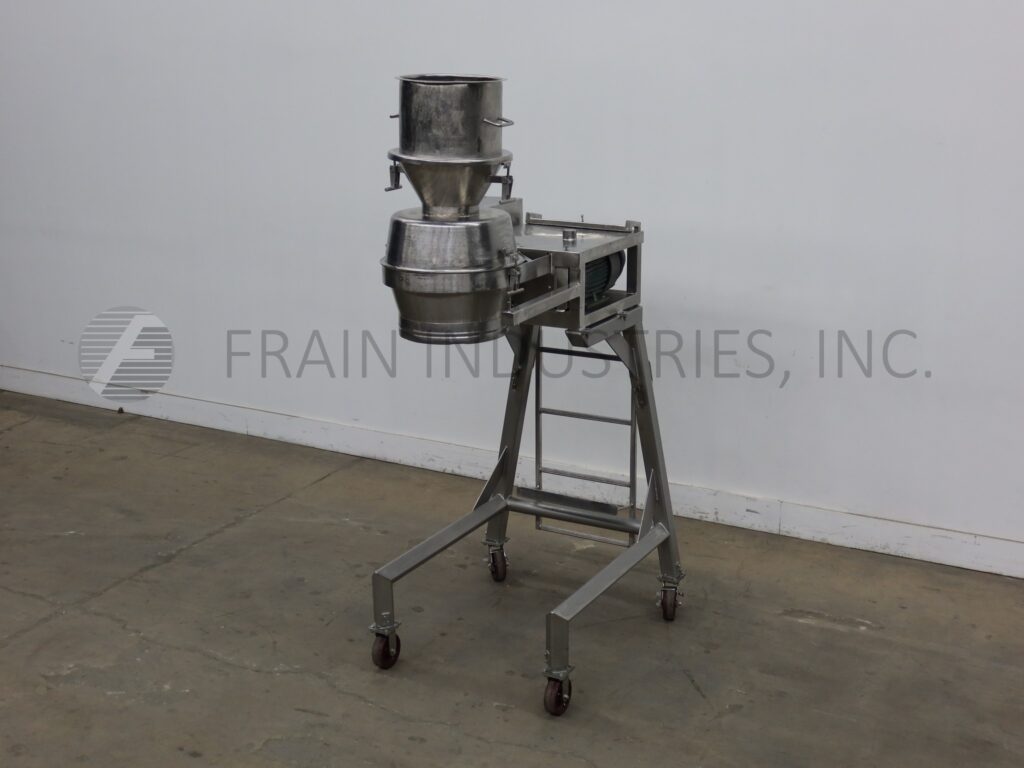

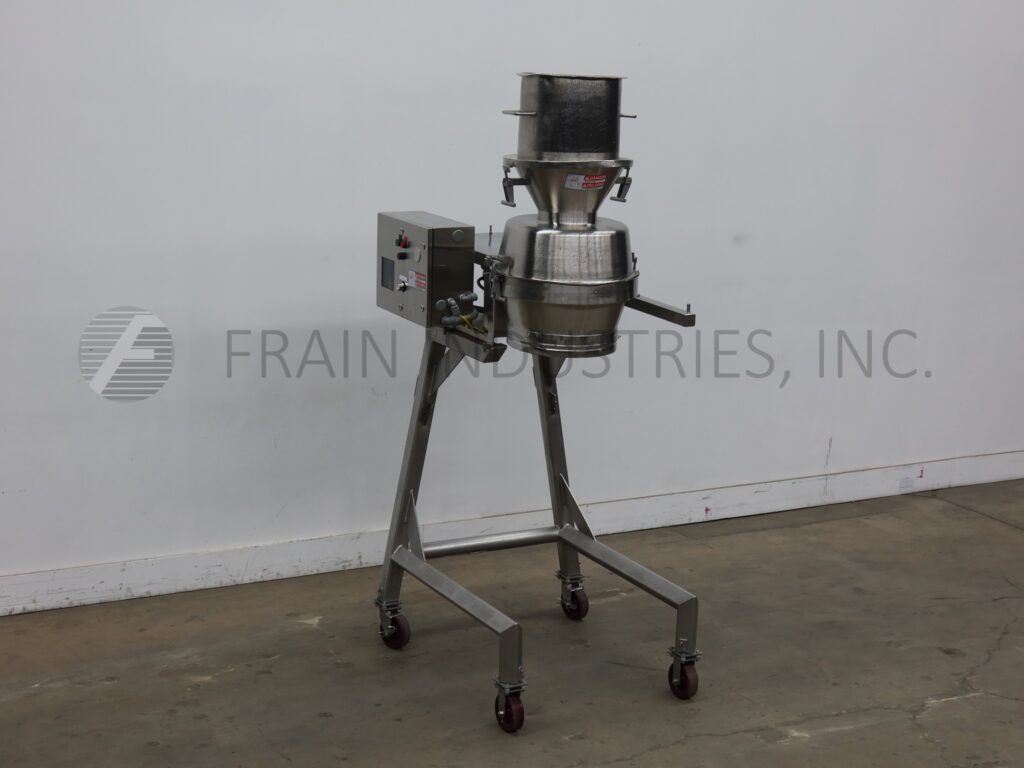

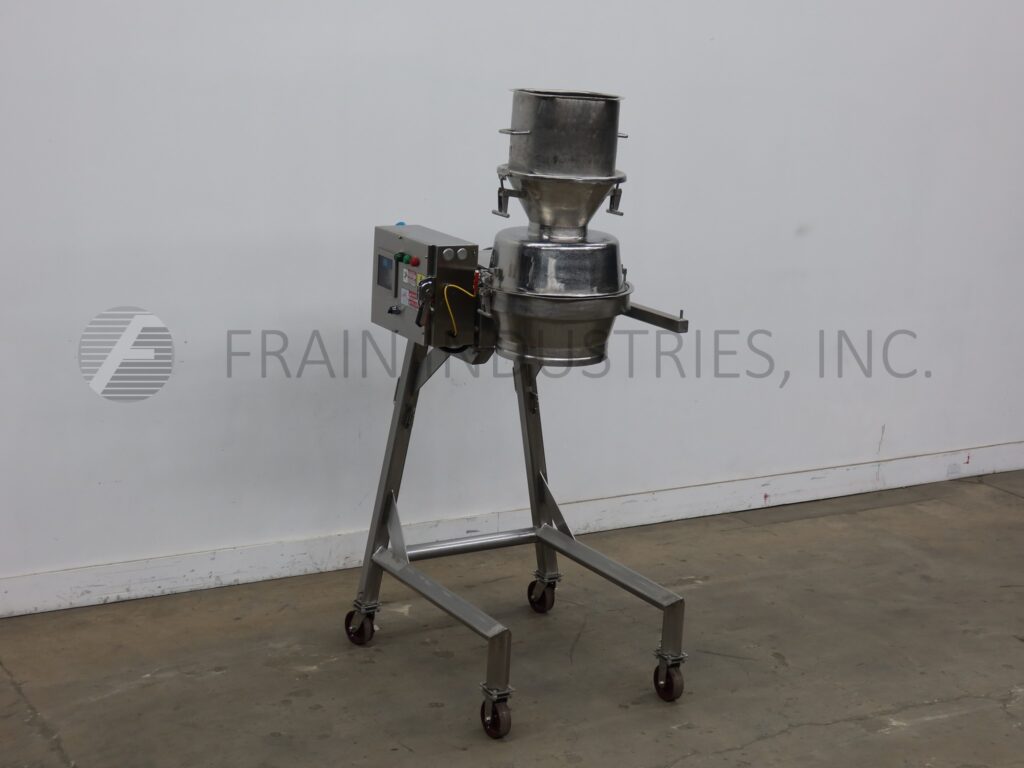

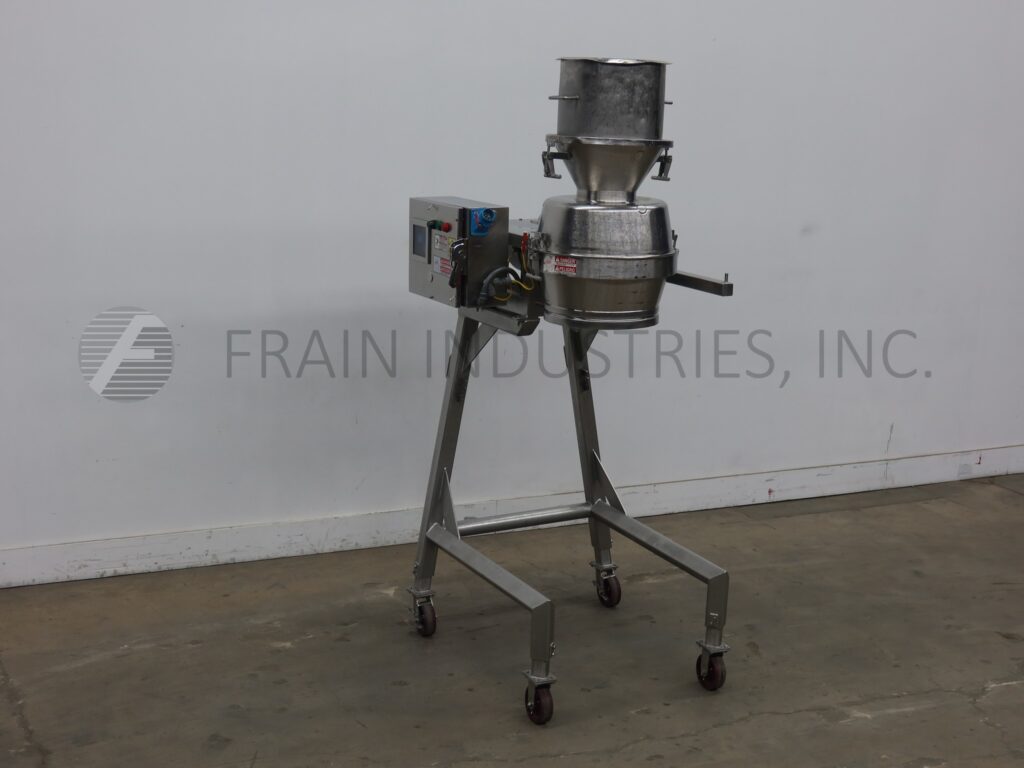

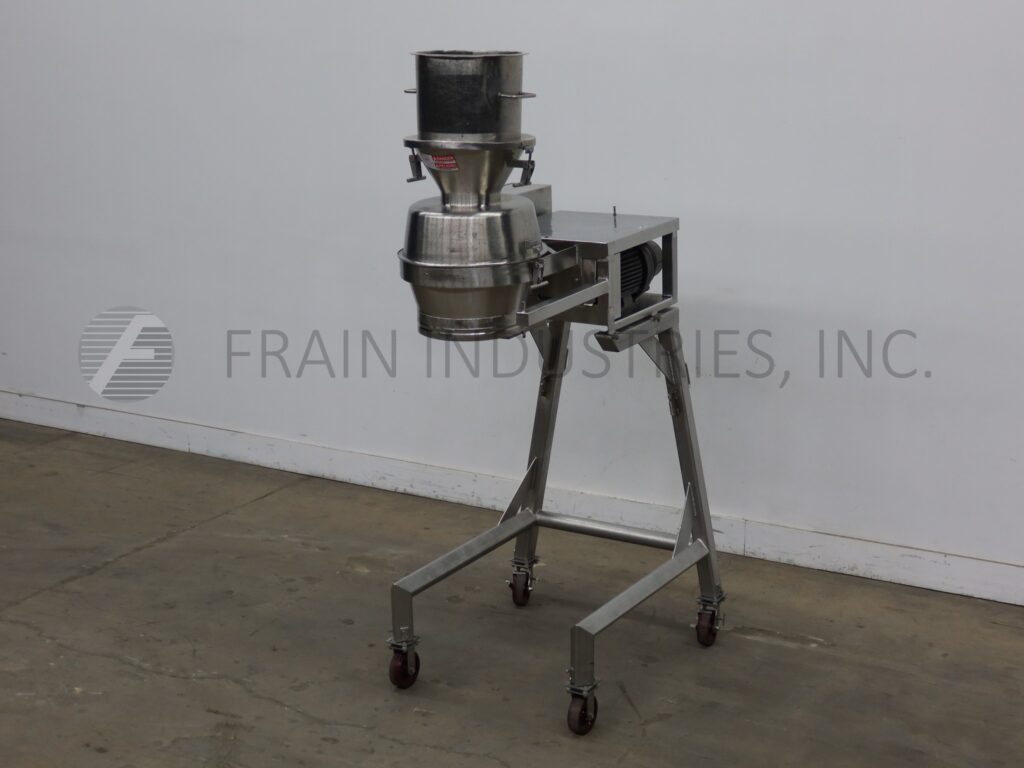

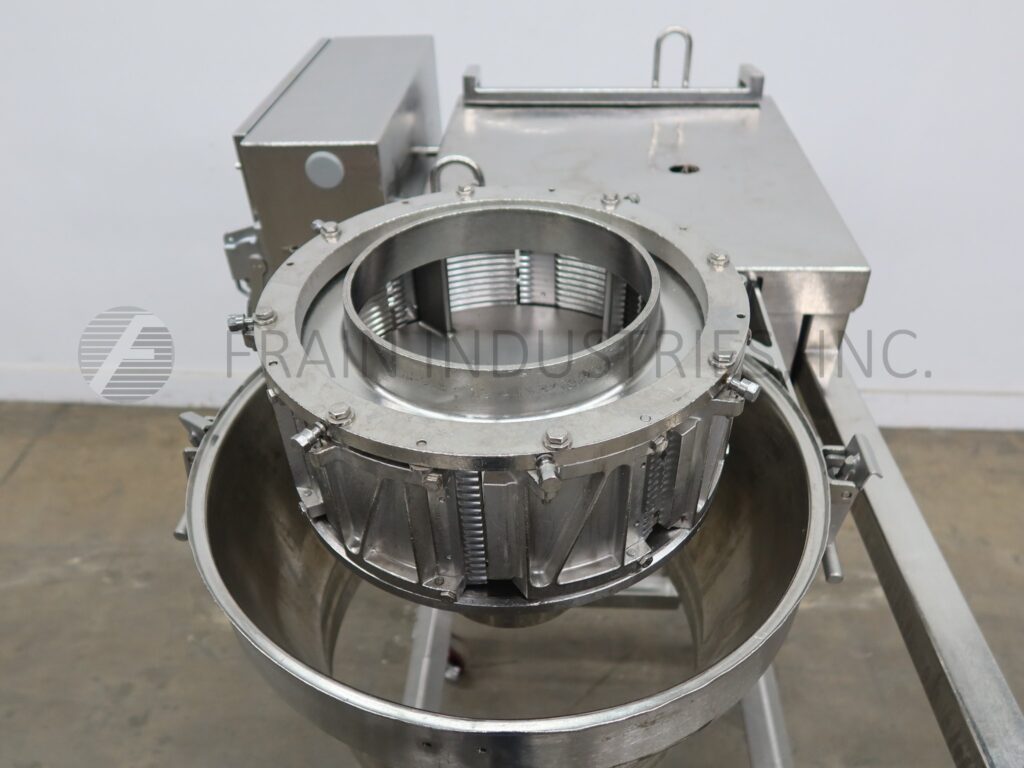

Urschel, Model 1700 Comitrol, stainless steel, reduction mill for free flowing dry and semi-dry product with number of pounds of product per hour – depending on materials and application. Equipped with 12" ID x 16" Deep double cone product hopper with 5"diameter feed throat, 6" diameter x 3" deep milling chamber with (4) 2½" dog leg style high-speed rotating impeller and cutting head with vertical blades, 20" diameter product discharge with 25" floor clearance. Powered by a 15 Hp motor drive. Control panel has push botton start / stop controls. Mounted on stainless steel base frame with casters. Operations include communiting, granulating, milling, slicing, liquifying, dispersing, and pureeing. Change parts required per application.
OAD: 45"L x 36"W x 28"H
Urschel Model RA, stainless steel dicer and slicer for a variety of food products with volumes per hour -depending on materials, application and machine configuration. Size range: 1/16" to 3/8" Slicing Knife; 1/8" to 1" Circular Knife; 0.05" to 3" Crosscut Knife. Accepts products up to 3-1/2" in any dimension. Equipped with feed hopper, discharge chute and lift off safety guarding. Able to "strip cut" with removal of crosscut knife. Mounted on (4) leg frame. Change parts required per application.
OAD: 48" L x 48" W x 60" H
Urschel, Model 2100, Stainless steel Comitrol, with feeder and processor unit. Equipped with 30" long x 22" wide x 28" deep product hopper and 8" straight wall. 27" long x 14" diameter beater bar with (10) 5" long x 3" wide paddles powered by a 2 Hp drive, 6" diameter auger feeder with 6" centers powered by a 3 Hp drive, stationary cutting head and rotating impeller powered by 40 Hp drive. Mounted on a stainless steel frame with 35" ground clearance for product discharge.
OAD: 84"L x 80"W x 82"H
