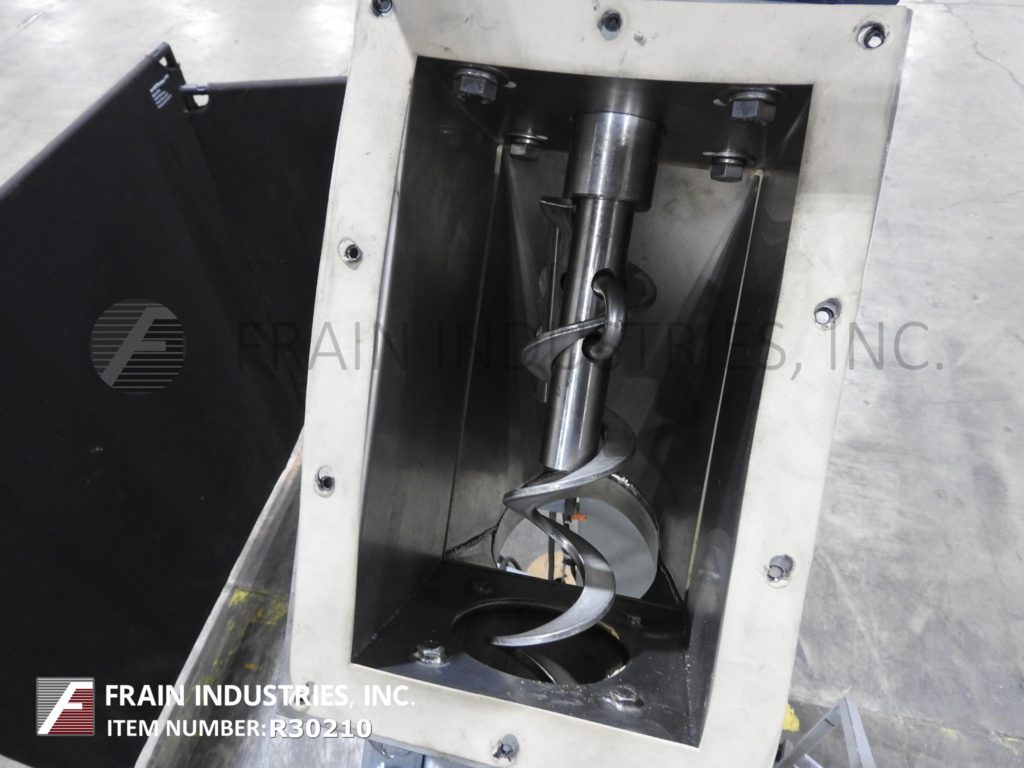

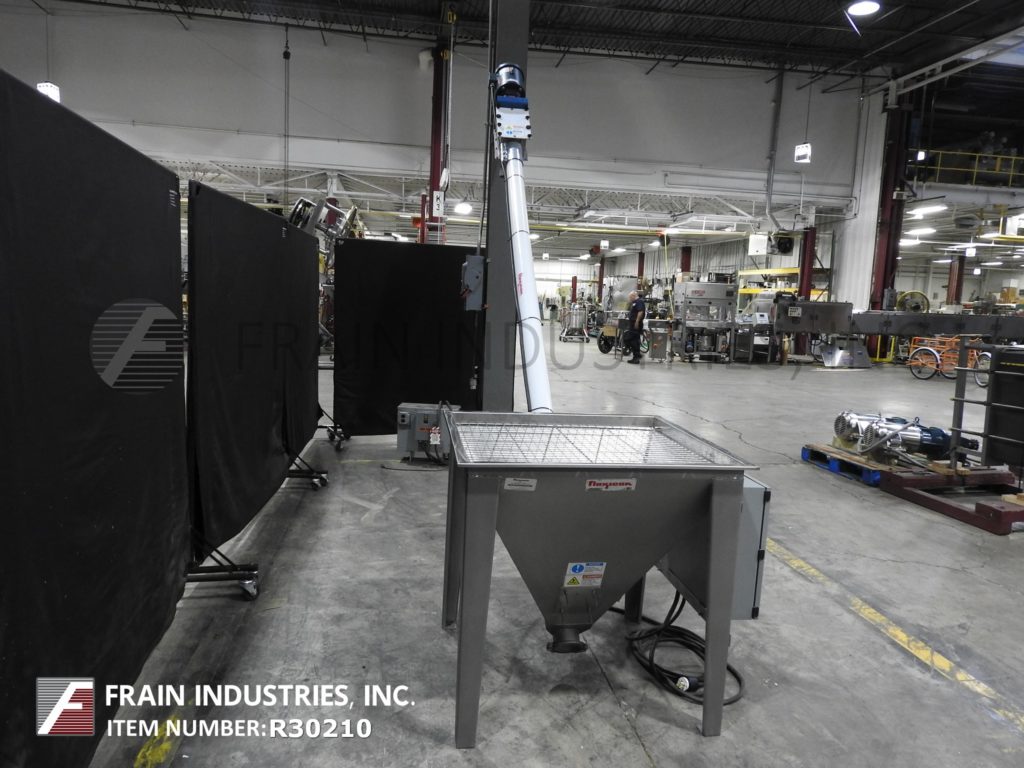

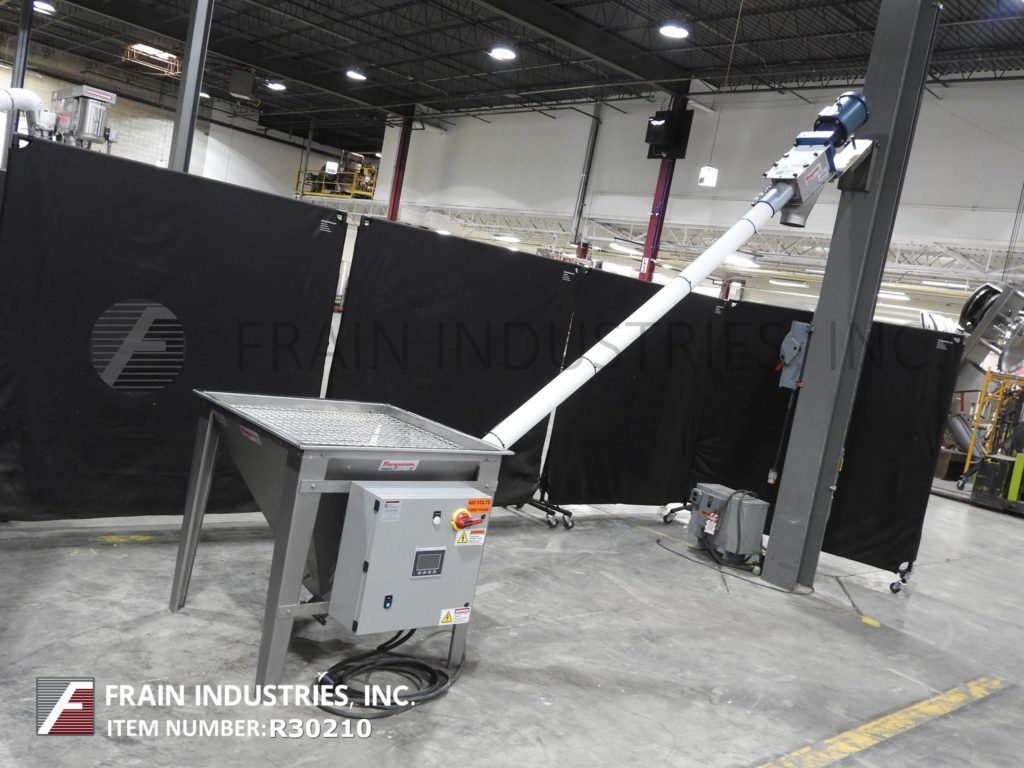

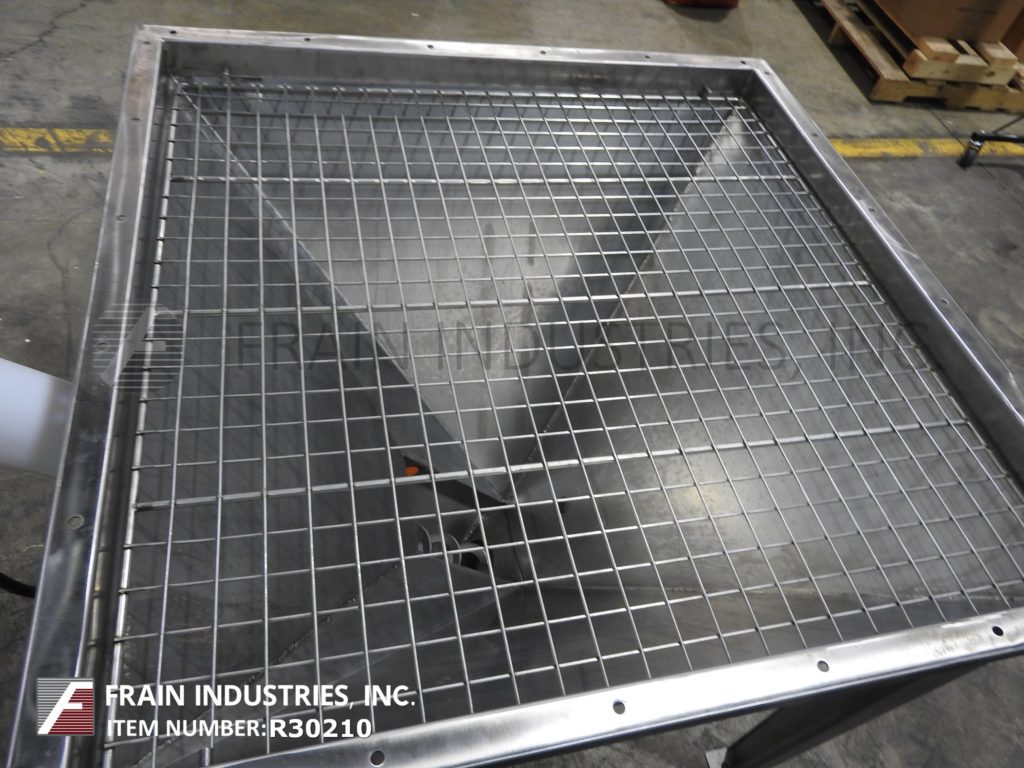

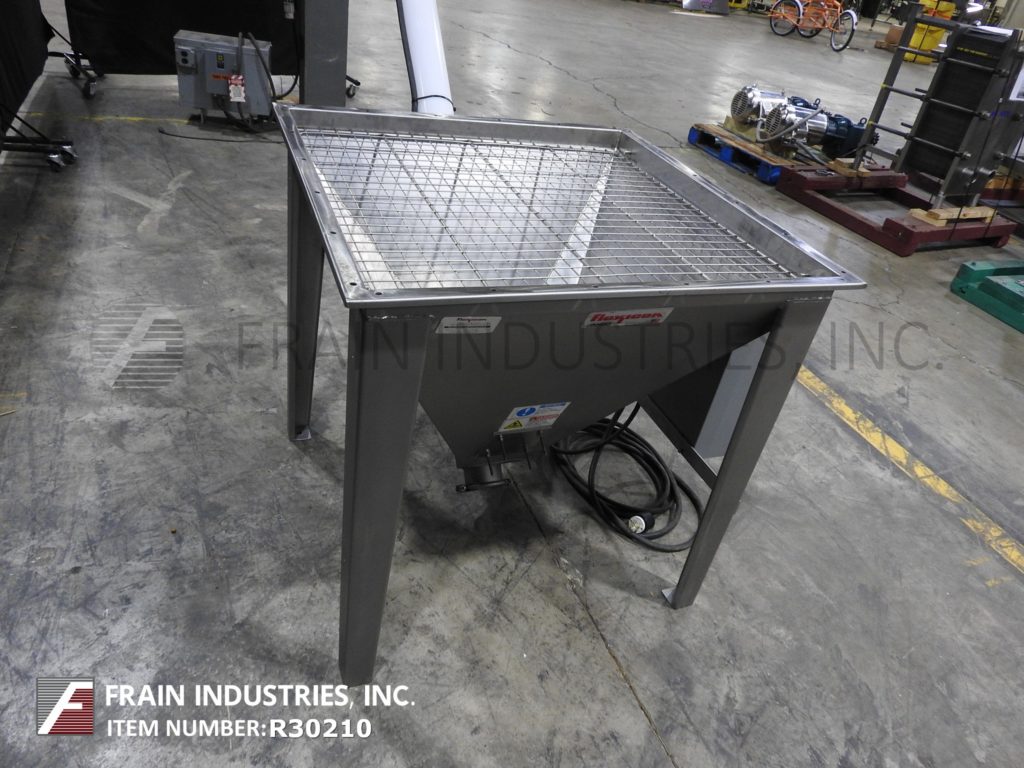

Flexicon, Model 1450, 4" diameter x 120" long screw conveyor. Capable of transferring up to 140 ft³ of product per hour – depending on materials, application, and product density. Equipped with a 36” long x 36” wide x 27” deep product hopper with grated cover, 3" diameter x 151" long stainless steel product conveying screw, 4" diameter x 120" long flexable poly tube, top 3 Hp motor drive with 6” inside diameter product discharge port.
Vanmark, 304 stainless steel tote dumper and live bottom hopper. Rated from 21ft³/Hr to 1018 ft³/Hr. Maximum lifting capacity: 3,000 lbs. Tote chamber is 54" wide x 39" deep with height adjustable top bar. Dumps into 60" wide x 90" long x 32" deep hopper with bottom 15" diameter auger feeder with a 17" x 11" discharge and 54" ground clearance. Control panel has start, stop and e-stop controls with 2 Hp hydraulic power pack. Mounted on heavy duty base frame.
OAD: 106"L x 65"W x 164"H

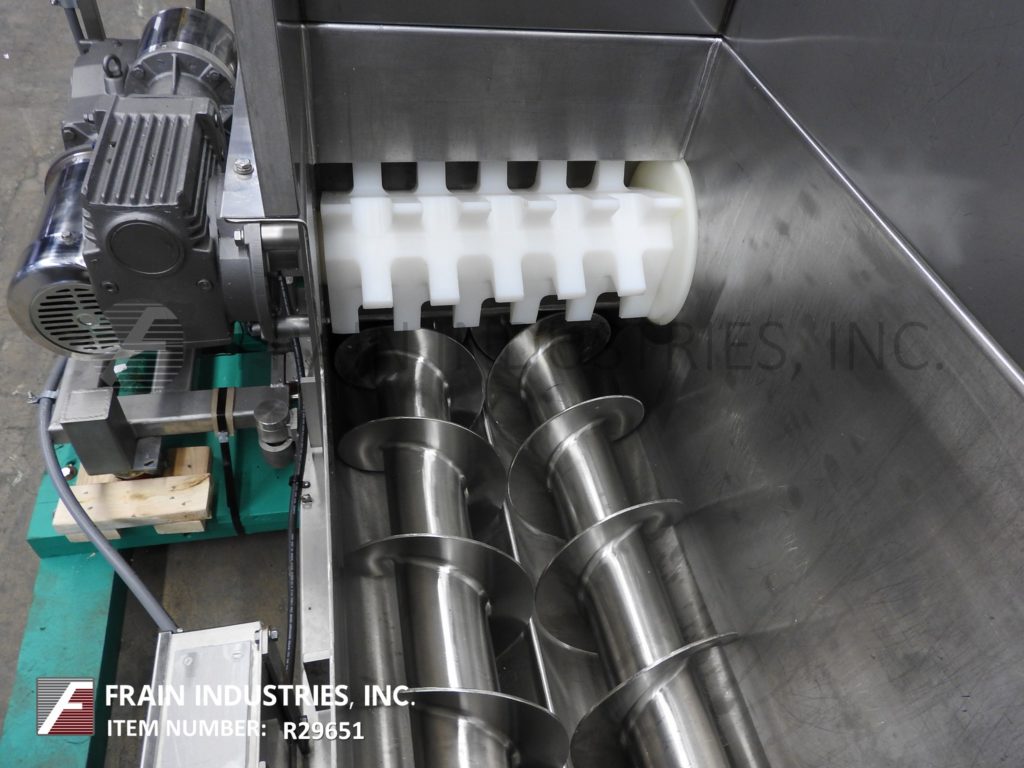

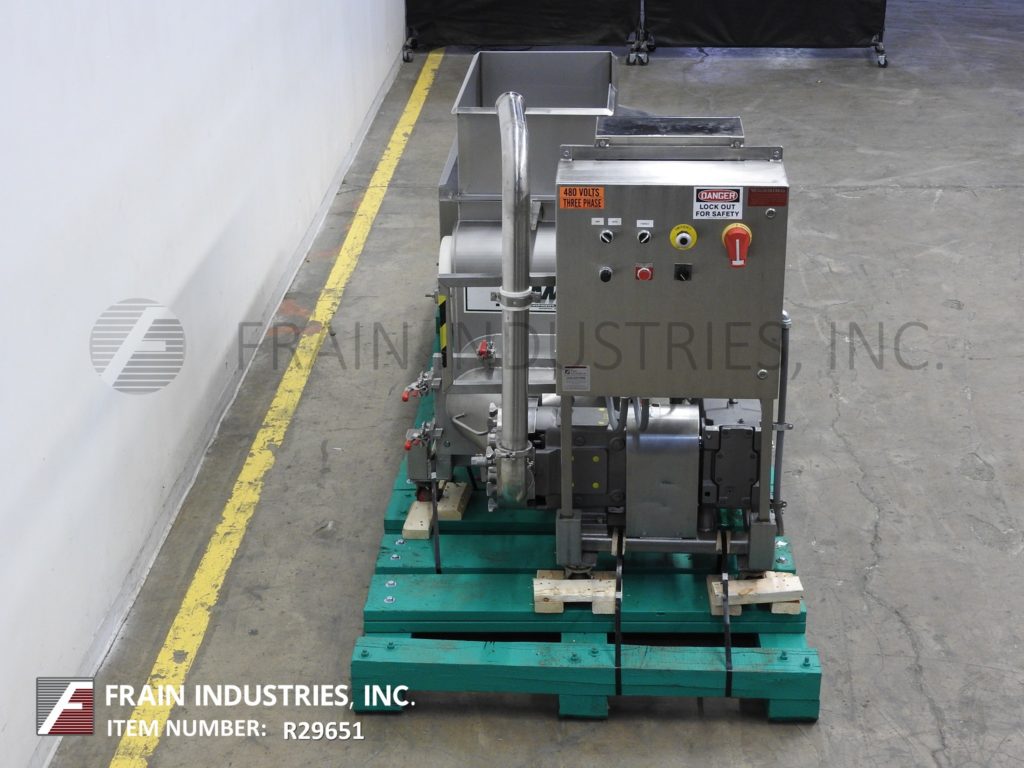

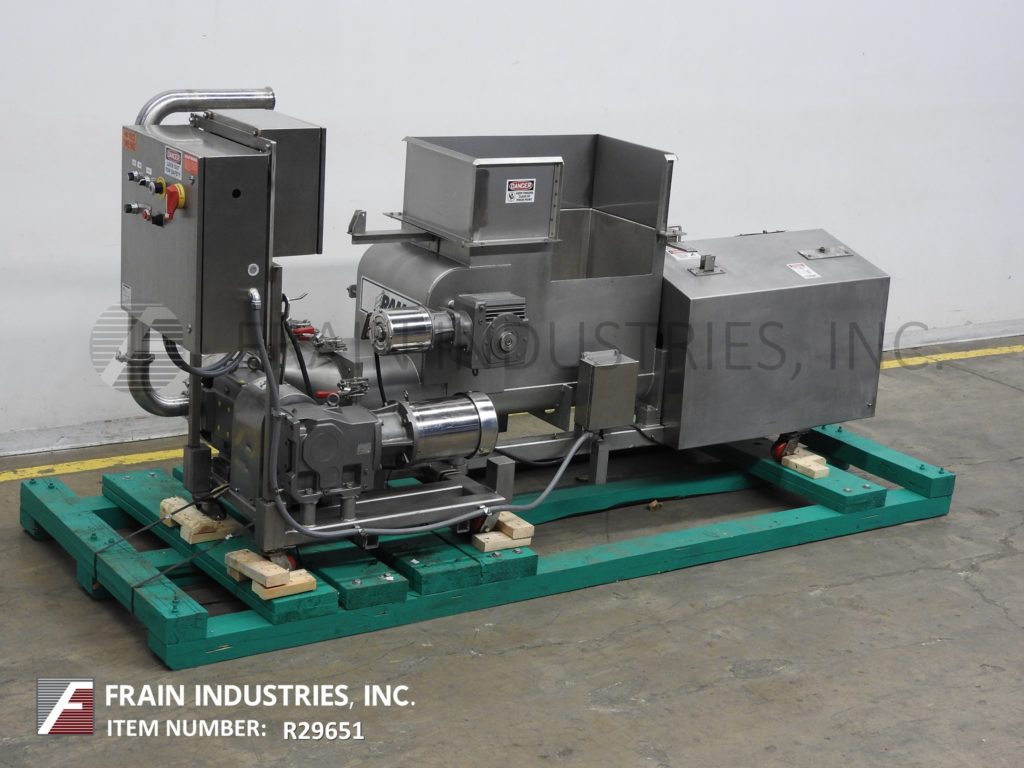

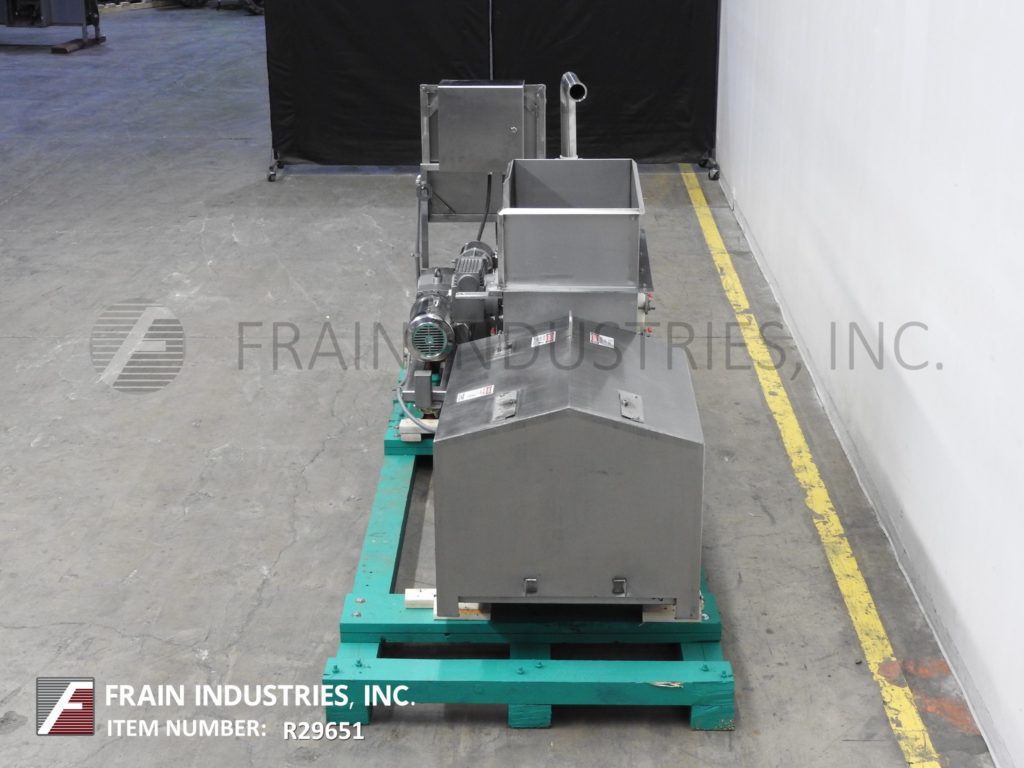

Doering, Model 3PFL, 3 ft³, stainless steel, twin screw pump feeding system. Product viscosity: up to 1,000,000 CPS. Equipped with a stainless steel product hopper (Hopper dimensions: Top 47" x 31"; Bottom 20" x 11"; 17" Deep), two 5½" diameter by 30" long stainless steel feeding screws and transition rotors powered by a common 3 hp drive. Discharge is through a 10 hp lobe pump with a 3" OD ( 2.87" ID & 3.579" Furrule)Tri-Clamp port. Mounted on a stainless steel frame with locking casters. Rates dependent on materials, application and machine configuration.
OAD: 68"L x 42"W x 44"H
Mepaco, Model 105, 2,500lb capacity, stainless steel, single auger and pump feeding system with gallons and pounds of product per hour – depending on materials and application. Equipped with 120" in Length; 50" in Width; 32" in Depth product mixing chamber with 9" OD x 136" long stainless steel feeding screw powered by 5 Hp motor drive with a 47:1gearbox for final revolutions of 37 per minute. 20 Hp Waukesha Model 224 positive displacement pump with 4¾" OD / 4" ID Tri-Clamp style discharge with a 15.66:1 gear ratio for 57 GPM. Control cabinet with push button start / stop / reset and forward / reverse switch. Mounted on a stainless steel frame.
OAD: 182"L x 69"W x 44"H
150 FT³, stainless steel, quad screw, pump feeding system. Vessel dimensions: 84" in Length; 72" in Width; 48" in Depth. Product viscocity: up to 1,000,000 CPS. Pressure rating: up to 160 psi. Equipped with a stainless steel product hopper with a powered flip top cover, four 12" diameter x 84" long stainless steel feeding screws, 10 hp drive currently geared to 4.1 revolutions per minute, 10 hp positive displacement pump, and a 4.5" Tri-Clover discharge. Mounted on a stainless steel frame with locking casters.
OAD: 126" L x 96" W x 79" H
Flexicon, Model 1450, 4" diameter x 120" long screw conveyor. Capable of transferring up to 140 ft³ of product per hour – depending on materials, application and product density. Equipped with a 36” long x 36” wide x 27” deep product hopper with grated cover, 3" diameter x 151" long stainless steel product conveying screw, 4" diameter x 120" long flexable poly tube, top 3 Hp motor drive with 6” inside diameter product discharge port.
Ram Equipment Industries / Moline, jacketed, stainless steel, auger and pump feeding system. Equipped with 18" in Length; 15-1/4" in Width; 16" in Depth, jacketed hopper (rated to MAWP of 150psi @ 300°F and MDMT of -20°F @ 150psi), with two 4" diameter feed screws powered by 1/2 Hp motor drive. Waukesha model 34 jacketed head PD pump with 2½"OD / 1-3/4"ID sanitary in feed and discharge ports with 3 Hp motor drive. Control panel has system power on, pump and auger / roller start and stop, auger forward / reverse and speed controls. Mounted on a stainless steel frame with casters. Pounds of product per hour dependent on materials, application and machine configuration.
OAD: 68" L x 55" W x 58" H
Ram Industries, 8 ft³ stainless steel, auger and pump feeding system. Hopper dimensions: 36" in Length; 20" in Width; 20" in Depth. Equipped with a stainless steel product hopper, (2) 10" diameter x 54" long stainless steel feeding screws powered by a ½ hp drive with a 605:1gearbox for final revolutions of 2.8 per minute.Waukesha model 134 positive displacement pump with a 3½"OD / 3"ID Tri-clamp style discharge with a 59.38:1 gear ratio for 7.25 GPM.
OAD: 132"L x 48"W x 55"H
Stainless steel auger and pump feeding system. Hopper dimensions: 65" in Length; 32" in Width; 35" in Depth (approx 9 ft³). Equipped with a stainless steel product hopper, 5" diameter x 64" long stainless steel feeding screw powered by a 1 hp drive. 1½ Hp Waukesha model 40 positive displacement pump with a 2½"OD / 2"ID Tri-Clamp style discharge with a 29.31:1 gear ratio for 4.5 GPM. Control cabinet with an AB controller, AB PanelView Plus 700 touch screen HMI and variable speed controls. Mounted on a stainless steel base frame with casters.
OAD: 100"L x 60"W x 68"H
Commercial Manufacturing, 304 stainless steel delumper. Equipped with a 96" long x 48" wide x 76" deep, 175 ft³, bulk stainless steel product hopper with lift out safety grate, 84" long pin bar agitation with14 – 12" long x 1 1/4" dia pins, 84" long x 12" diameter bottom auger. Pin bar and auger powered by a common 7½ hp drive. Product discharges from a 13" x 13" chute with 40" ground clearance. Mounted on a stainless steel frame.
OAD: 120"L x 67"W x 136"H
Polar Process / Advanced Stainless, Model PP352HU3, stainless steel, twin screw extruder and feeder, with pounds of product per hour – depending on materials and application. Hopper dimensions: 12½" in Length; 7½" in Width; 9" in Depth. Equipped with (2) 3½" OD x 26" long stainless steel screws and cross direction corrugated feed roller. 3½" OD / 3" ID Tri-clamp style discharge. Control panel with push button start / stop and touch pad speed controls. Mounted on a stainless steel base with locking casters.
OAD: 53" L x 29" W x 52" H
Process System, Model V-PD, stainless steel auger and pump feed system. Volumes of product per hour – depending on materials, application, environment and machine configuration. Equipped with 18" long x 12" wide x 18" deep (1 ft³) dry product hopper with safety grid and side vibrator, 3" diameter x 13" long screw with ¾ Hp motor drive, 8" diameter x 9" deep (2 gal.) mixing hopper and (2) Jabsco positive displacement pumps powered by (1) 2 hp and (1) 3 hp drives. Mounted on stainless steel base frame.
OAD: 58"L x 22"W x 50"H
