Viking Masek, Model 8S-235, Automatic, rotary, intermittent motion, 8-station, pre-made pouch filler and sealer. Pouch size range: 3½" to 9¼" in Width x up to 12½" in Length. Equipped with 84" long automatic (3) belt pre-made pouch magazine, reciprocating suction cup pic-n-place, 8 stations for pouch loading, zipper open, spare station bag open, bag filling, gas flush, pouch heat sealing, pouch cooling and discharge, with 40" long x 10¼" wide discharge belt conveyor, 72" long x 11¾" wide take away conveyor. Control panel has A/B PLC with touch screen controller and HMI with statis light bar. Mounted on stainless steel frame with interlock safety guarding and leveling legs. Speed dependent on material, application and machine configuration.
OAD: 152" L x 137" W x 85" H
PSG Lee Model RP 8TZ-30, Automatic, rotary, intermittent motion, pre-made pouch monobloc, filler, sealer with zipper attachment rated up to 50 pouches per minute – depending on materials and application. 316 stainless steel contact parts. Pouch size range: 6" to 12" in Width x 4.8" to 14" in Length. Weight Range: up to 20lb. Designed for pouches with gusset, stand-up bottom and zipper seal. Pouch material: Laminated film and is capable of handling a variety of pre-made heat seal pouches with or without press to close zippers. Pouch styles flat and stand-up (with proper change parts}. Equipped with automatic (3) belt pre-made pouch magazine, reciprocating suction cup pic-n-place, (8) stations for pouch loading, zipper open, bottom gusset opening, pouch open detector, product filling, gas flush, pouch heat sealing, pouch cooling and discharge. (16) sets of easy adjust pouch grippers, piston fill station with no pouch / no opening / no fill / no seal, (2) top constant heat sealing bars with temperature range from 0 to 572 Deg F and (1) top cooling bar with 40" long x 11" wide neophreme discharge belt conveyor and operation temperature range of 41 to 104 Deg F with top mounted Rencor liquid cooling system. Control panel has A/B PLC controller with touch screen interface and readout with run RST, set-up, bag supply on / off, driving on, postion stop, power on, e-stop controls and statis light bar. Mounted on stainless steel frame with interlock safety guarding.
OAD: 144" L x 88" W x 85" H
Cloud / Roberts Model IMP 1500, Automatic, intermittent motion, stainless steel, 10 station rotary, pre-made pouch filler and sealer rated from 10 to 50 pouches per minute – depending on materials and application. Pouch size range: 4" to 12" in Width; 6" x 15" in Height, Gusset: 0" to 5" and is capable of handling various pouch styles with proper change parts. Fill range: per product and application. Equipped with 108" long x 1" wide (3) Eagle belt automatic pre-made pouch magazine, destacking belt, (2) suction cup recipecating pic-n-place, single transport chain with (10) pouch clip stations set on 15" centers and has pouch placement, top opener with air blast, pouch detecting and rotary filling stations with (1) 12" long x 12" wide x 20" deep stainless steel product feed funnel and (4) 14" long x 9-3/4" wide x 12" high stainless steel pouch filling funnels, with no pouch / no fill, product settler, gas flush and 146" long x 6" wide flexlink belt conveyor has top heat seal and cooling stations with dual reject chutes. Control panel has A/B controller and A/B touch screen interface controls with readout, start, stop, reset and e-stop push buttons with statis light bar. Mounted on stainless steel frame with interlock safety guarding, casters and leveling legs.
OAD: 230" L x 90" W x 71" H

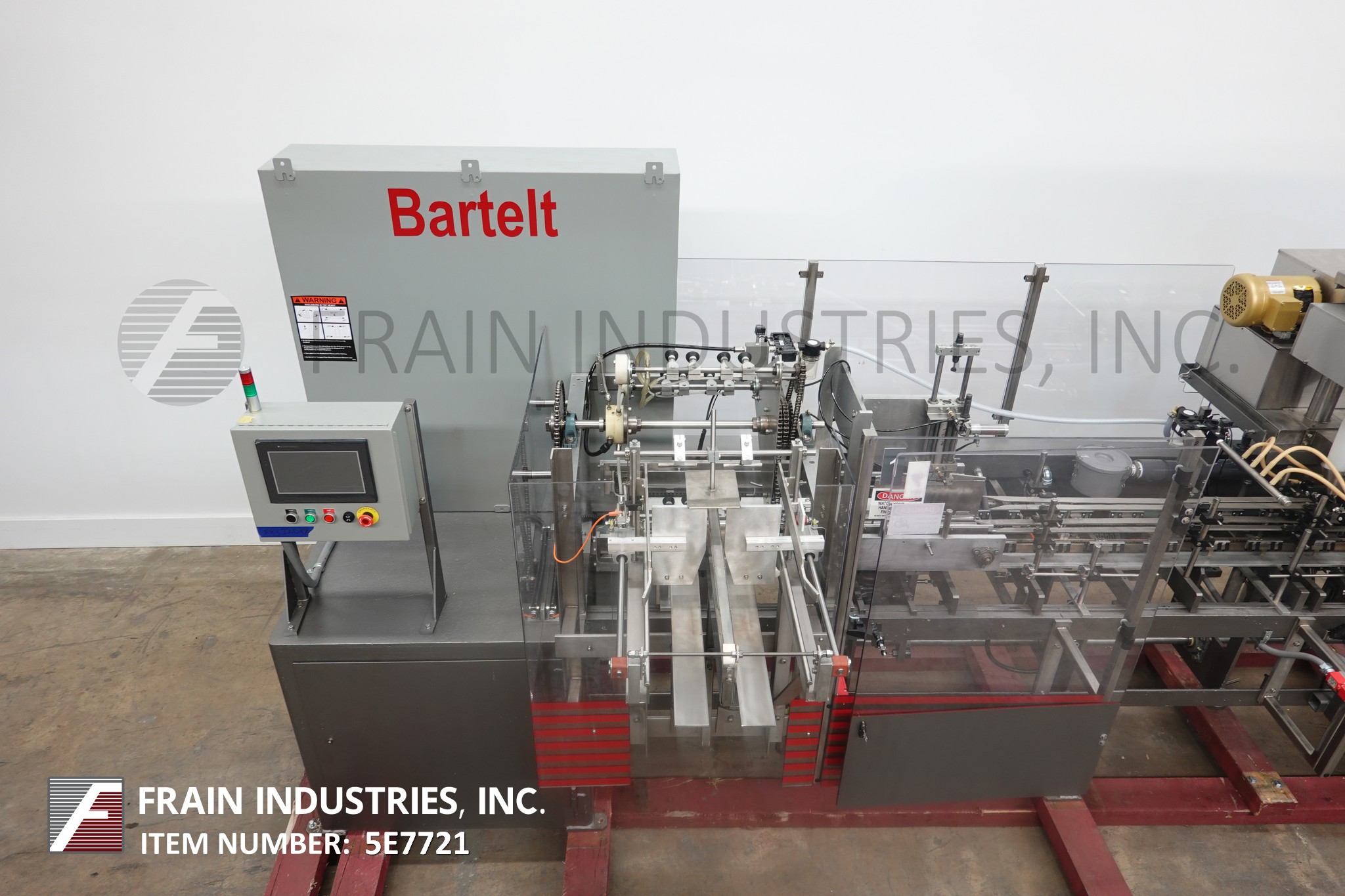

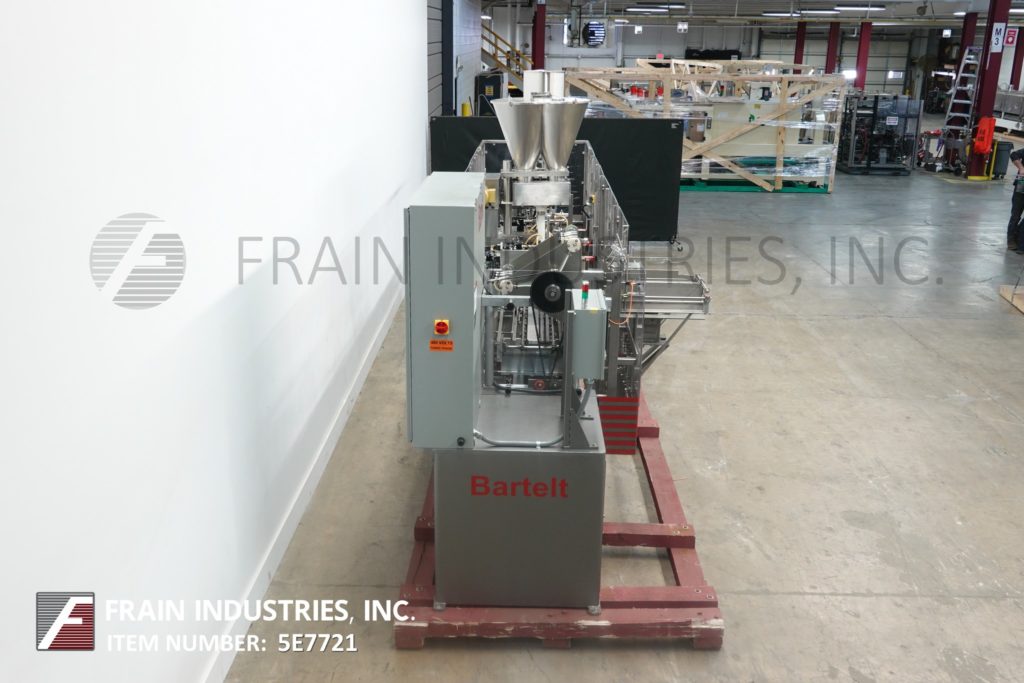

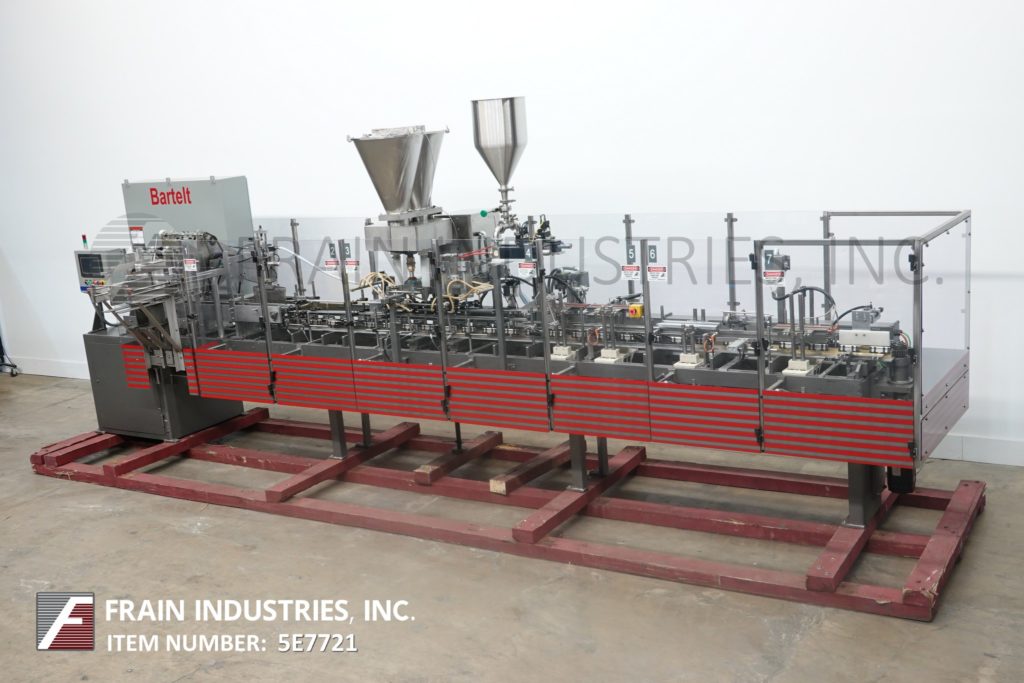

Bartelt Model, Pre-made microwave popcorn bag or pouch filler and sealer with number of bags per minute – depending on materials and application. Equipped with dual lane magazine has a (3) head rotary pick and place, bottom clip transport conveyor with 20 stations set on 7" centers, suction cup style pouch opener, pre-heat seal bar and heat seal bars. Mechanical drive. PLC controller has touch pad controls, with digital readout, pre-heat and heat seal temperature controllers. Last running microwave popcorn bags.
OAD: 250" L x 65" W x 77" H
Bartelt Model, Pre-made microwave popcorn bag or pouch filler and sealer with number of bags per minute – depending on materials and application. Equipped with dual lane magazine has a (3) head rotary pick and place, bottom clip transport conveyor with 20 stations set on 7" centers, suction cup style pouch opener, pre-heat seal bar, heat seal bars. Servo drive with PLC and touch pad controller, digital readout with pre-heat and heat seal temperature controllers. Last running pre-made microwave popcorn bags.
OAD: 279" L x 64" W x 92" H
