Freezers are processing equipment designed for the freezing of product. Freezers can use many different types of freezing media such as nitrogen, carbon dioxide, ammonia, or specialized refrigerants. Freezers can also be batch or continuous. Batch freezers take a certain amount (batch) of product and process it for a certain amount of time. Once the product is processed, the batch is removed from the freezer and another batch can be placed in the freezer. Continuous freezers move the product through the freezer so that many pieces of product are being processed at the same time, but each piece is at a different stage of processing. Continuous freezers discharge product at a steady (continuous) rate. Spiral freezers and tunnel freezers are continuous freezers. Box freezers are batch freezers. Plate freezers can be either continuous or batch.
CES, model CES-LT-LIN-50FTx38IN-HOTL liquid nitrogen freeze tunnel with amount of product per hour – depending on materials and application. Equipped with 38" wide x 713" long stainless steel mesh belt with 38" to 42" infeed and discharge height powered by 1½ Hp motor drive, 640" long cooling chamber with 10" high aperture, (2) 15"OD / 12"ID flanged exhaust connections, (18) 1 HP motor circulation fans and lifting hood. Control panel has A/B controller with touch screen HMI. Mounted on multi-leg frame.
OAD: 723"L x 88"W x 76"H
Cryogenics Systems, Model CES-LT-LIN-20FTx2FT-PODB, liquid nitrogen freeze tunnel. Equipped with a 25" wide x 282" long belt with a 33" infeed / discharge height, 240" long freeze chamber with a 29" wide x 8½" high aperture, (5) fans powered by 1 HP drives and drop down guarding. Control cabinet has AB PLC and touch screen HMI.
OAD: 300"L x 70"W x 88"H

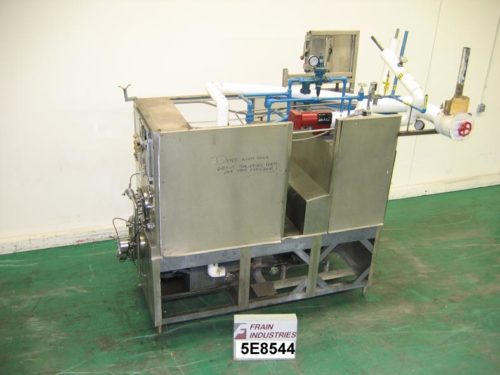

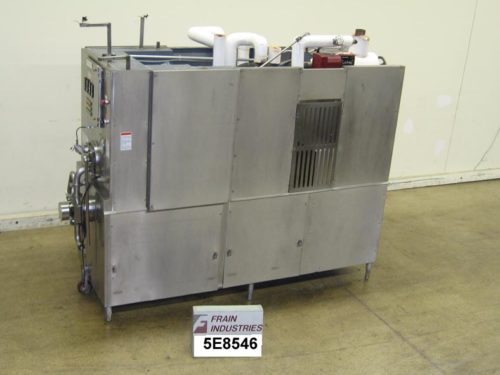

WCB / Anderson, Continuous, ammonia cooled, (3) tube nickel chrome plated freezing tubes rated from 20 to 75 gallons of mix per hour and 40 to 150 gallons of ice cream at 100% overrun per tube. Equipped with independent operation of tubes, (3) motor load gauges to determine product stiffness and stainless steel dashers with scraper blades. (3)10 Hp dasher motors, (3) 3 Hp mix pump motors, 1" Quick Clamp sanitary in feed and 1-3/8" out feed connections, three ammonia flow control dials with ammonia pressure gauges, and a clean-in-place switch selection. Requires 6-1/2 tons of refrigeration (19.5 for all three tubes) at 2 pound back pressure. Mounted on stainless steel frame.
OAD: 79"L x 73"W x 89"H
West Coast Cryogenic, 20′ long, CO2 freeze tunnel with amount of product per hour – depending on materials and application. Equipped with 42" wide x 312" long flat top belt with 38" to 42" infeed and discharge height powered by ½ Hp motor drive, 240" long cooling chamber with 42" wide x 8½" high aperture, (2) 16"OD / 11"ID flanged end exhaust hood connections, (4) CIP spray balls supplied by 2½"OD / 2"ID Tri-Clamp fittings and (4) 1½ HP motor circulation fans. Control panel has A/B controller with touch screen HMI. Mounted on multi-leg frame.
OAD: 322"L x 68"W x 90"H
Cryogenic Systems Equipment Inc, Stainless steel CO2 spiral freezer with amount of product per hour – depending on materials and application. Equipped with 27½" wide stainless steel mesh belt has 36" high infeed and 10" high discharge, 14 tiers with 2-7/8" clearance between each tier and the drum is 108" in diameter from outside to outside of belt and has inside box dimensions of 120" long x 120" wide x 92" tall and has (9) fans, 24" and 16" in diameter with (4) access doors 36" wide x 96" tall x 6" thick, can rapidly chill, crust and fully freeze a wide variety of products that moves through the freezer on a continuous spiral conveyor and uses CO2 as freeze medium. Stainless steel control panel has A/B PLC with A/B PanelView Plus and 10" touch screen controls, with Honeywell Truline chart recorder and (7) A/B PowerFlex VFD’s. Mounted on multi-leg stainless steel frame.
OAD: 194" L x 133" W x 130" H
Liquid Carbonics, Model JE-U4 inline, stainless steel freeze tunnel. Equipped with 40" wide by 292" long stainless steel mesh product conveyor (33" in feed and discharge height), 256" long chamber with flip up access doors each side, 40" wide by 9" high product aperture. five banks of spray nozzles and top mounted circulation fans. Rated dependent on materials, application and machine configuration. Controls to be upgraded to AB PLC with touch screen. Currently configured for CO2. Can be converted to Nitrogen.
OAD: 300"L x 60"W x 101"H
DSI Dantech Model CES-MP-LIN-30ft x 4ft-HOTL-PLC, 3-pass liquid nitrogen freeze tunnel with amount of product per hour – depending on materials, application and machine configuration. Stainless steel construction. Equipped with 48" wide stainless steel wire rod product conveyor belt, 55" high infeed, 32" high discharge, with 7" clearance between belt levels. (10) top mounted circulation fans and drives with top belt 33 feet long, middle belt 32 feet long and bottom belt 34 feet long. Remote control panel has A/B PLC with touch screen HMI. and A/B 525 Powerflex with statis light and e-stops. Mounted on heavy duty frame.
OAD: 475" L x 86" W x 90" H
Frigoscandia Model AGA, in line, stainless steel, cryogenic, nitrogen gas, belt style freeze tunnel with temperatures and number of product per hour – depending on materials, application and machine configuration. Equipped with 47" wide x 8" high aperature x 250" long stainless steel nitrogen freeze chamber with access covers and 47" wide x 286" long stainless steel mesh conveyor belt with 40" in feed and discharge heights, has nitrogen freeze zone and nozzles, with (7) top mounted turbulation circulation fans, spray header, gas exhaustion manifold and temperature probes. Control panel has temperature and freeze time, evacuation and belt speed controllers with e-stops. Mounted on stainless steel (4) leg frame. Model AGA, is a continuous in-line belt freezer designed for gentle product and minimum loss of product weight during freezing.
OAD: 324"L x 68" W x 70" H
Air Products, Model Freshline Quick Start, Stainless steel, liquid nitrogen freeze tunnel. Equipped with 278" long (3 section) tunnel chamber, 40" wide x 4" high aperture with adjustable height shield, flip-up access doors, side hand cranks for lowering the bottom section of tunnel and 8" OD exhaust duct. Link belt conveyor 38" wide x 315" long. Quick Freeze system with liquid nitrogen spray nozzles for direct contact with product. Controller with operator interface, digital readout for freezer and exhaust temperature, product retention time and conveyor speed controls. E-stops on each end of the tunnel. Mounted on height adjustable legs. Rates dependent on materials, application, and machine configuration.
OAD: 331" L x 66" W x 63" H
Praxair / Liquid Carbonics / Cryogenic Systems Equipment, compack, stainless steel, cryogenic, LN2 (liquid nitrogen) freeze tunnel with amount of product per hour – depending on materials and application. Equipped with 107" long freeze tunnel and has 36" wide x 3-1/2" high total aperture with dual 107" long flip up side access doors one each side with (2) sets of (7) liquid nitrogen inner chamber spray nozzles and (2) inner chamber circulation fans with a 107" long x 34" wide stainless steel solid flat band product conveyor belt with 36" high in feed and discharge chutes and top mounted LN2 (liquid nitrogen) injection panel. Control panel has ABB controllers with spray system and fan on / off switches, pressure gauge with 0 to 210 psi and 0 to 30 Hg vacuum ratings. Mounted on a heavy duty stainless steel base frame.
OAD: 200" L x 80" W x 94" H
PART OF COMPLETE LINE 5H1360AI J White Systems (9)-tier, stainless steel, spiral, descending, ambient air cooling system with number of product per hour – depending on materials, application, belt width and speed. All stainless steel contact parts. Equipped with 30" wide total, 28" wide usable, 1" x 1" flex mesh stainless steel product belt with overall length of 640′ and 582′ of usable cooling length has 6" tier pitch with maximum product height of 2-1/4". Overall 20′ 7" OD aluminum frame has 9 tiers descending with 11′ 10" product in feed and 6′ 10" product discharge heights both with cleat track transfer conveyors. Low tension bottom motor drive and chain-driven north to south travel carousel providing even cooling and consistent product quality. Remote control panel has power on start, stop and e-stop controls with A/B inverter. Mounted on multi-leg heavy duty base frame.
OAD:
