Meat grinders are used to reduce fresh or frozen meats or poultry down to a size using a cutting and compression screw in a fluted barrel and build up the required pressure to force the product through a die plate assisted with an internal cut off knife. Meat grinder equipment uses a continuous process and ground product is reduced and cut to a required size and consistency.
Rietz Model RE24K7E333, Stainless steel extructor, designed for grinding frozen, partially frozen, or fully thawed 40 lb pound blocks of product rated from 40 to 30,000 lbs per hour – depending on materials and application. Equipped with 30″ long x 27″ wide x 34″ ID stainless steel crevice free product hopper with (6) 10″ long x 7″ high hammer blades on 8″ OD shaft and (6) 5″ long x 8 high stationary anvils (no knives / no sharpening, low maintenance), 24″ ID rotary product reduction port, with swing open, bolt down cover, reduction screen (change part per application) with 47″ floor clearance, chain to sprocket 30 Hp motor drive with safety guarding. Mounted on (4) leg base frame. Reduction screen is change part per application.
OAD: 95″ L x 45″ W x 111″ H
Rietz, Model RE15-K5E328, stainless steel extructor designed for grinding frozen, partially frozen, or thawed 40 lb. blocks of product. Equipped with 28" x 21" OD (23" x 15" ID) crevice free product hopper, with 6" OD shaft and 4" x 2" stationary anvils, with 15" ID product reduction port. Chain to sprocket 40 Hp motor drive with safety guarding. Mounted on heavy duty (4) leg base frame. Reduction screen is change part per application. Rates dependent on materials, application and machine configuration.
OAD: 82" L x 34" W x 75" H
Rietz Model RE24K7E,Stainless steel, extructor, designed for grinding frozen, partially frozen, or fully thawed 40 lb blocks of product and is rated from 40 to 30,000 lbs per hour – depending on materials and application. Equipped with 30" long x 27" wide x 34" deep stainless steel crevice free product hopper with (6) 10" long x 7" high hammer blades on 8" OD shaft and (6) 5" long x 8 high stationary anvils (no knives / no sharpening, low maintenance), 24" ID rotary product reduction port, with swing open, bolt down cover, reduction screen (change part per application) with 75" floor clearance, chain to sprocket 40 Hp motor drive with safety guarding, start / stop push button controls, with e-stop. Mounted on (4) leg bolt down base frame. Reduction screen is change part per application.
OAD: 90" L x 48" W x 107" H
***Part Of Complete Line 5G8538A***

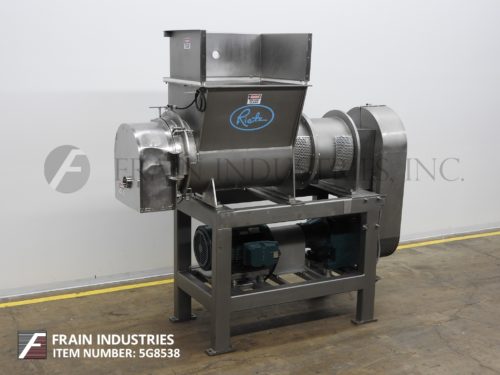

Rietz, Model RE-24, Stainless steel extructor designed for grinding frozen, partially frozen, or fully thawed 40 lb blocks of product and is rated from 40 lbs to 30,000 lbs per hour – depending on materials, application and machine configuration. Equipped with 37" long x 32" wide x 37" deep stainless steel product hopper, (9) 3" wide x 10" high hammer blades on 7" OD shaft and (8) 5" long x 7" high stationary anvils, 24" ID rotary product reduction port, with swing open, bolt down cover, reduction screen (change part per application) and (6) blade cut off knife with 55" floor clearance, chain to sprocket 60 Hp motor drive with safety guarding. Mounted on (4) leg bolt down stainless steel base frame. Reduction screen is change part per application.
OAD: 109" L x 53" W x 112" H

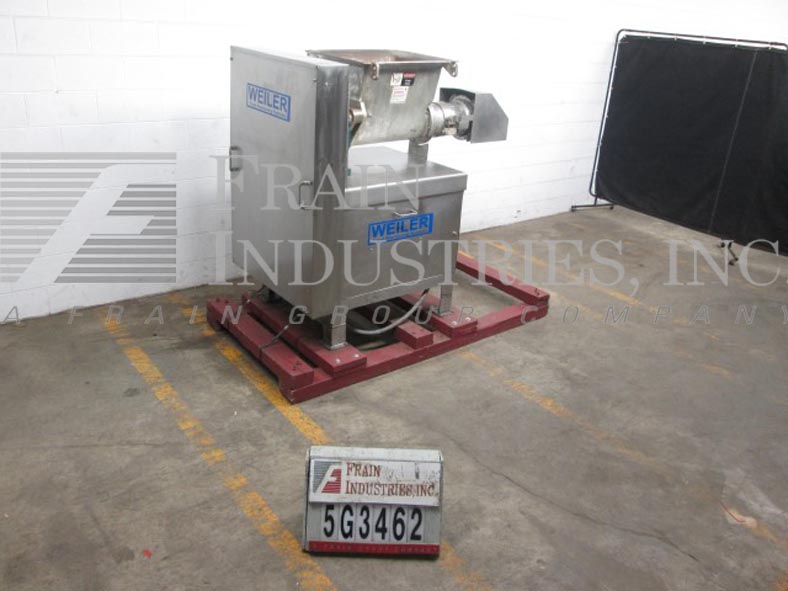

Weiler, Model 878, heavy duty grinder. Equipped with 22" in Length; 17" in Width; 18" in Depth product chamber with 40" Long x 7" OD grinding screw with 8" OD self-sharpening cut off blades, 7½"ID threaded product discharge port with 8-5/8" diameter plate and has 42" floor clearance. Powered by 15 Hp motor with start, stop and e-stop push button controls. Mounted on (4) leg base frame.Capable of doing fresh or pre-broken frozen product.Rate dependent on raw material, material temperature, machine configuration and reduction size.
OAD: 75"L x 38"W x 64"H
Weiler, Model 1167, Heavy duty, stainless steel grinder. Equipped with 22" long x 17" wide x 20" deep product hopper, 42" long x 7" OD grinding screw with 10" OD self-sharping cut off blades and 11" 0D, 10" ID threaded product discharge port with reduction screen holder and 48" floor clearance. Drive: 40 Hp Product per hour dependent on materials, application and machine configuration.
OAD: 104" L x 74" W x 88" H
Rietz Model RE24K7E333, stainless steel extructor, designed for grinding frozen, partially frozen, or fully thawed 40 lb pound blocks of product and is rated from 40 to 30,000 lbs per hour – depending on materials and application. Equipped with 30" long x 27" wide x 34" ID stainless steel crevice free product hopper with (6) 10" long x 7" high hammer blades on 8" OD shaft and (6) 5" long x 8 high stationary anvils (no knives / no sharpening, low maintenance), 24" ID rotary product reduction port, with swing open, bolt down cover, reduction screen (change part per application). Chain to sprocket with 30 Hp motor drive with safety guarding. Mounted on (4) leg base frame.Reduction screen is change part per application.
OAD: 87" L x 50" W x 126" H
Rietz Model RE-10-K5427, Stainless steel, extructor, designed for grinding frozen, partially frozen or thawed blocks of product with amount of product per hour – depending on materials and application. Equipped with 17" x 14" x 14" deep feed chute, 17" x 14" x 17" deep crevice free product hopper, 2-1/2" shaft, 4" high x 1" wide stationary anvils, 10" discharge at 31" floor clearance. Mounted on stainless steel base frame with casters. Rates dependent on materials, application and machine configuration. Reduction screen is change part per application.
OAD: 60" L x 40" W x 74" H
