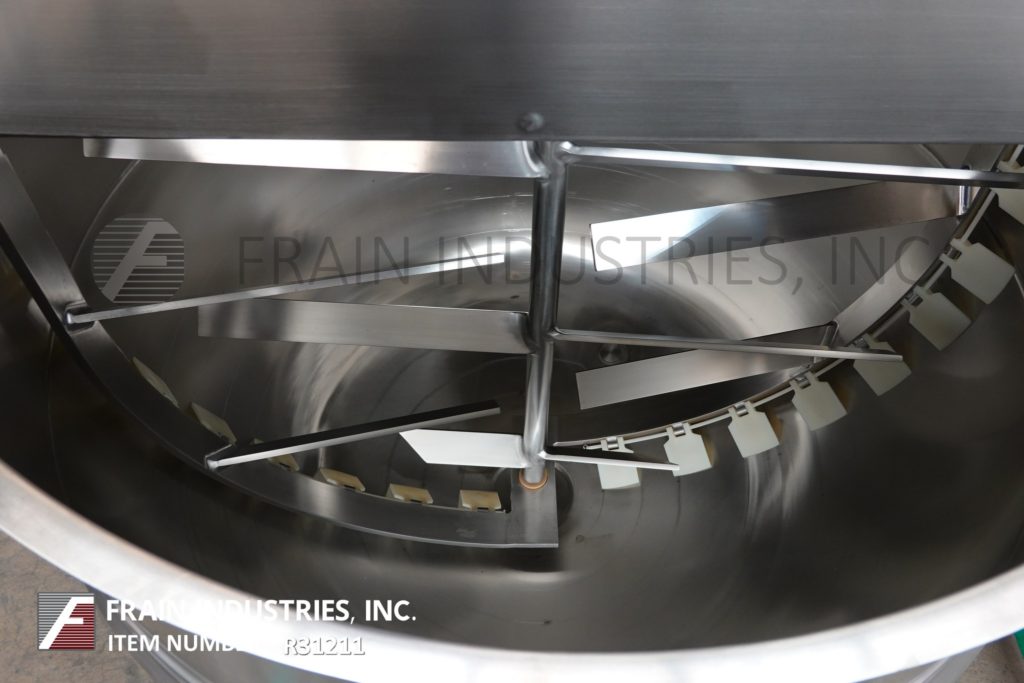

The Frain Group engineers can assist you with your double motion kettle needs no matter how big or small your kettle project Kettles with double motion agitation have agitators moving in two different directions for greater mixing action than a single motion kettle.
Lee, Model 300D9MS 300 gallon capacity, 316 stainless steel, jacketed double motion kettle. Vessel dimensions: 54" diameter x 40" deep with 20" straight wall. Equipped with lift up covers, 5 Hp bridge mounted scrape agitator, flush mounted sensor and 3½" OD / 3" ID Tri-Clamp style bottom discharge with ball valve and 16" ground clearance. Mounted on (3) leg frame.
Jacket Ports: (2) 1½" NPT
Nat’l Brd: 14855MAWP: 90 PSI @ 332°FMDMT: -20°F @ 90 PSI
OAD: 74"L x 59"W x 79"H
Nat’l Brd: 14856MAWP: 90 PSI @ 332°FMDMT: -20°F @ 90 PSI
Nat’l Brd: 14854MAWP: 90 PSI @ 332°FMDMT: -20°F @ 90 PSI
Lee, Model 150D9MS 150 gallon capacity, 316 stainless steel, jacketed double motion kettle. Rated to 150,000 cps. Vessel dimensions: 42" diameter x 39" deep with 20" straight wall. Equipped with lift up covers, 3 Hp bridge mounted scrape agitator, flush mounted sensor and 3½" OD / 3" ID Tri-Clamp style bottom discharge with ball valve and 16" ground clearance. Mounted on (3) leg frame.
Nat’l Brd: 14852MAWP: 90 PSI @ 332°FMDMT: -20°F @ 90 PSI
OAD: 64"L x 48"W x 77"H
Lee, Model 25D9MT, 25 gallon, 304 stainless steel jacketed kettle with amount of product per hour – depending on materials and application. Vessel Dimensions: 23" diameter x 20" deep with 10" straight wall. Equipped with tilt out bridge mounted scrape agitator powered by single ¾ Hp motor drive and 2½"OD / 2"ID Tri-Clamp discharge with 16" clearance to frame. Control panel with start, stop push buttons.
Jacket Fittings:(2) ¾" NPT
MAWP: 40 PSI @ 287° F Nat’l Brd: 3214
OAD: 60"L x 30"W x 68"H
Lee, Model 100D7T, 100 gallon, 316 stainless steel jacketed and insulated double motion kettle. Vessel Dimensions: 36" diameter x 30" deep with 15" straight wall. Equipped with tilt out bridge mounted scrape surface agitation powered by a 1 hp drive and prop agitation powered by a ¼ hp drive, fixed baffle, 2"OD / 1½"ID Tri-clamp bottom discharge with 15" ground clearance. Mounted on (3) stainless steel legs.
MAWP: 90 psi @ 332°FMDMT: -20°F @ 90 PSINational Board: 12231
Top Access Ports:(3) 2½"OD / 2"ID Tri-clamp
Jacket Ports:(2) 1" NPT(1) ¾" NPT
OAD: 62"L z 43"W x 75"H
Lee 500 gallon, stainless steel, double motion, jacketed kettle. Equipped with variable speed, double motion (scrape surface & counter rotation) agitation, dual flip top covers and 3" OD center bottom discharge with flush-bottom ball valve and sanitary tri-clamp connection at 16" floor clearance. Contact parts are 316 stainless steel with #4 finish and non-contact parts are 304 stainless steel. Pounds of product per hour dependant on materials and application.
Vessel dimensions: 62" Diameter; 51" in DepthJacket MAWP: 90 psi @ 332°FJacket MDMT: -20°F @ 90 psiJacket in/outlets: Threaded, 2" OD / 1-1/2" IDViscosity Rating: up to 100,000 cps
OAD: 90" L x 70" W x 90" H
Feldmeier Model 150-44-TMIX, 150 gallon, jacketed double motion kettle. 316 Stainless steel contact materials and 304 stainless steel non-contact materials, Vessel dimensions: 44" ID; 39" in Depth. #4 Finish inside and outside with all welds ground flush, polished and buffed. Equipped with bridge mounted counter rotating 3 Hp side and bottom scrape surface agitator, 3 Hp secondary turbine impeller, (4) 3" OD top ports and CIP spray ball. 1.5" NPT jacket in / outlets. 3" Center bottom discharge with 16" floor clearance. Rated up to 100,000 Cps. Number of gallons of product per hour dependent on materials and application.
Jacket rating:MAWP of 150 psi @ 350 Deg FFVMDMT -20 Deg F @ 150 psi
NB #: 10737
OAD: 57" L x 54" W x 98" H
Jacket rating:MAWP of 150 psi @ 350 Deg FFVMDMT -20 Deg F @ 150 psi.
N/B #: 10736
N/B #: 10735.
Lee Model 500D9MT, 500 gallon, 316 stainless steel interior, 304 stainless steel external, double motion, scrape surface, 1/2 jacketed kettle with pounds of product per hour – depending on materials and application. Vessel dimensions: 61" ID x 51" in Depth. Equipped with bridge mounted scrape surface tilt out agitation with dual flip top covers. 1/2 jacket, with MAWP of 90 psi @ 322 Deg F and MDMT of -20 Deg F @ 90 psi with (2) 2" OD 1-1/2" ID side and bottom threaded jacket in / outlet ports. 3" OD center bottom discharge has flush-bottom ball valve and 16" floor clearence. Mounted on (3) stainless steel legs
OAD: 96" L x 70" W x 92" H
