Labeler Front Back and Wrap is a pressure sensitive labeler capable of applying a label to the front of the container or package, a label to the back of the container or package, and a label that wraps around a circular container or package all on one machine. (Front and back labels can be applied simultaneously, but if applying a wrap label, only a wrap label can be applied.) Pressure sensitive labels have a film backing which needs to be removed prior to application to uncover the adhesive on the back of the label.

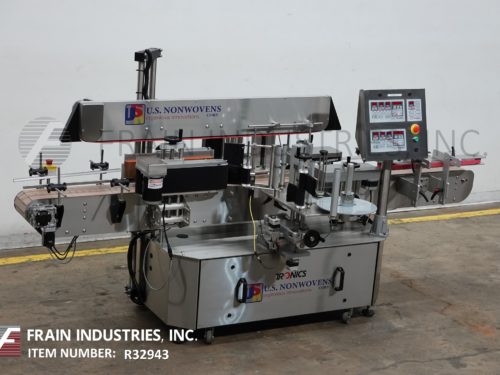

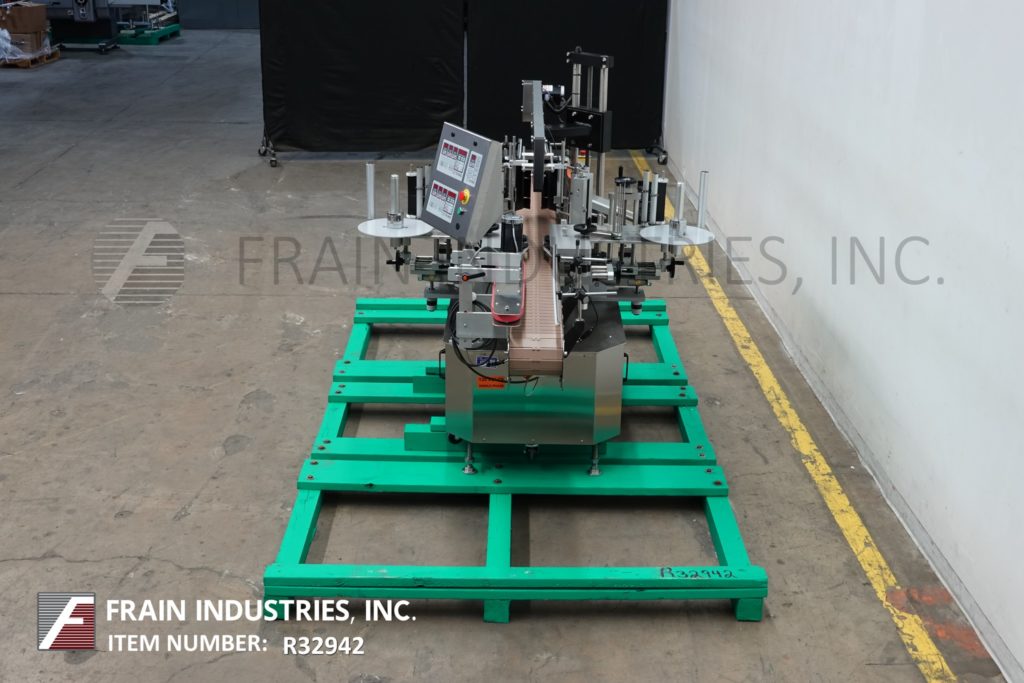

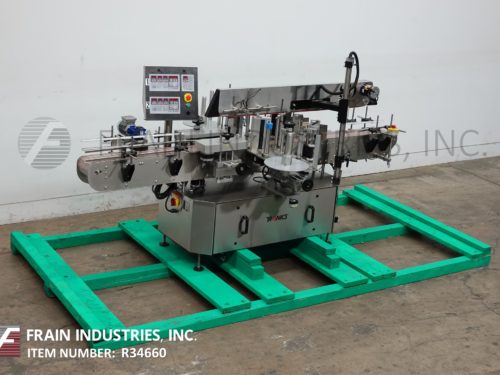

Tronics Model 3S3, stainless steel, right hand, front, back and wrap, pressure sensitive labeler rated from 100" to 1,200" on front and back labels and 50" to 600" on wrap labels per minute with number of product – depending on materials and application. Label size range: 1" to 8-1/2" in Height; 12" in length and can handle containers up to 8" in diameter. Equipped with 120" long x 7-1/2" wide plastic Delrin product in feed conveyor with adjustable guide rails, 60" long x 1" wide top hold down conveyor, spacing wheel, aligning chains for container squaring, dual label heads with 9" high peeler plates and 16" long x 6" high side wrap conveyor all hand crank adjustableControl panel has touch pad controls with read out and e-stop. Mounted on stainless steel base frame with casters and leveling legs.
OAD: 120" L x 72" W x 72" H

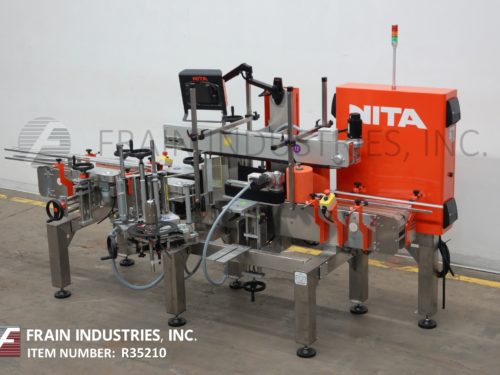

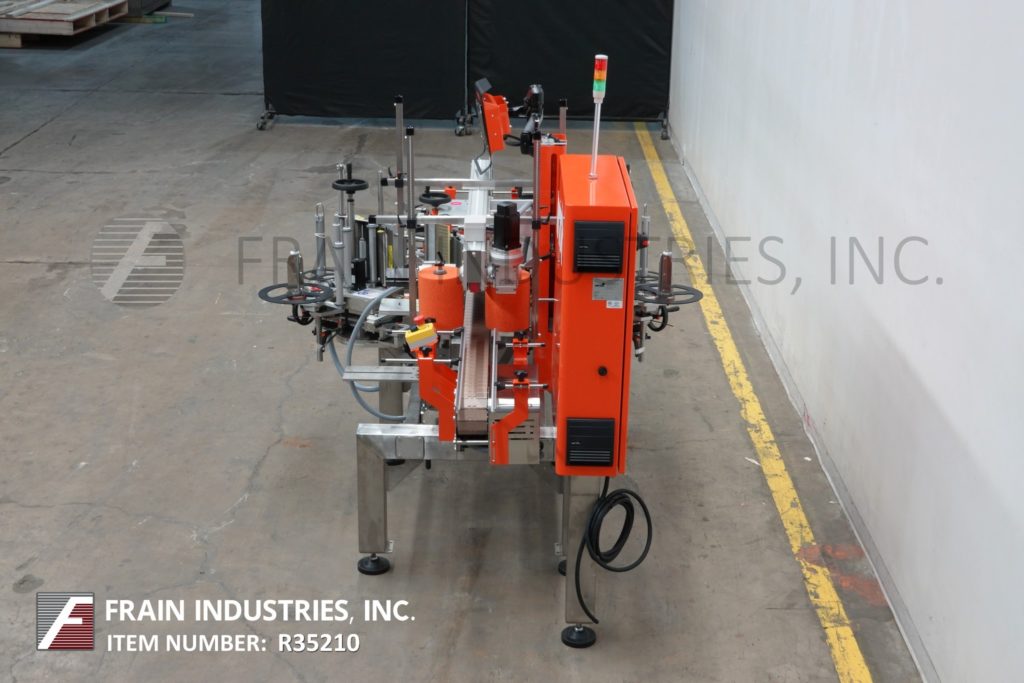

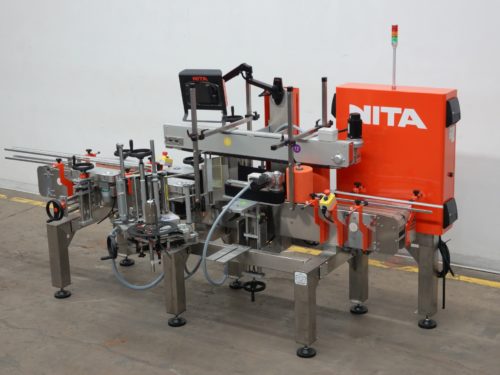

Nita, Model XP200T, front / back and wrap labeler with number of labels and containers per minute – depending on materials, application and machine configuration. Equipped with 144" long x 4" wide container conveyor with dual container metering and spacing belts, belt aligner, top hold down belt, servo driven pressure sensitive label applicators with label range of ½" to 9" high and 1" to unlimited in length and 14" long x 6" high wrap belt station. Swing arm touch screen HMI and status light bar. Mounted on stainless steel and anodized aluminum frame with leveling legs.
OAD: 148" L x 84" W x 80" H

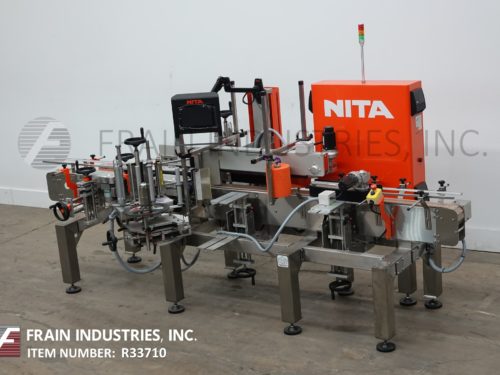

Nita, Model XP200T front, back and wrap labeler with number of labels and containers per minute – depending on materials and application. Equipped with 120" long x 4" wide stainless steel container conveyor with dual container metering and spacing belts, chain aligner, top hold down belt, servo driven pressure sensitive label applicators with label range of 1/2" to 9" high and 1" to unlimited in length and 14" wrap belt station. Swing arm touch screen controls and status light bar. Mounted on 304 stainless steel and anodized aluminum frame with leveling legs.
OAD: 120" L x 65" W x 84" H

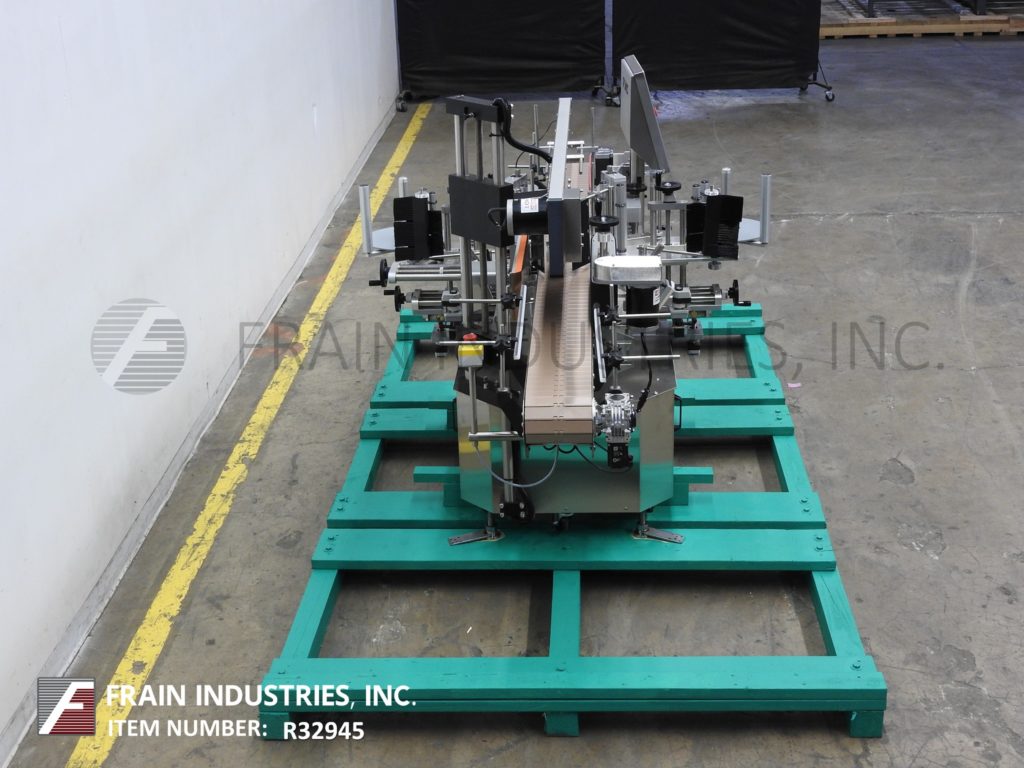

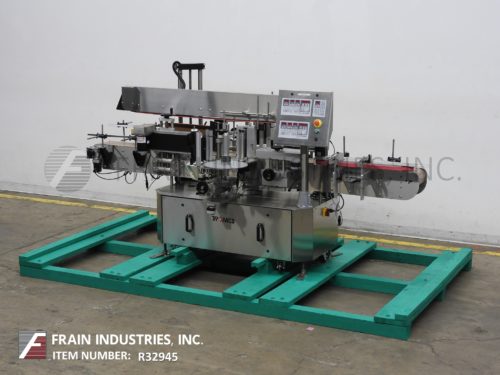

Tronics, Model 3S3, stainless steel, front, back and wrap, pressure sensitive labeler. Rated from 100" to 1,200" on front / back labels and 50" to 600" on wrap labels per minute with number of product – depending on materials and application. Label size range: 1" to 8½" in Height; 18" in length and can handle containers up to 8" in diameter. Equipped with 120" long x 4½" wide plastic Delrin product in feed conveyor with adjustable guide rails, 60" long x 1" wide top hold down conveyor, spacing wheel, aligning chains for container squaring, dual label heads with 9½" high peeler plates and 16" long x 5½" high side wrap conveyor all hand crank adjustable. Control panel has touch pad controls with read out and e-stop. Mounted on stainless steel base frame with casters and leveling legs.
OAD: 120"L x 68"W x 64"H
Nita, Model XP200T front, back and wrap labeler with number of labels and containers per minute – depending on materials and application. Equipped with 144" long x 4" wide stainless steel container conveyor with dual container metering and spacing belts, chain aligner, top hold down belt, servo driven pressure sensitive label applicators with label range of 1/2" to 9" high and 1" to unlimited in length and 14" wrap belt station. Swing arm touch screen controls and status light bar. Mounted on 304 stainless steel and anodized aluminum frame with leveling legs.
OAD: 144" L x 65" W x 84" H

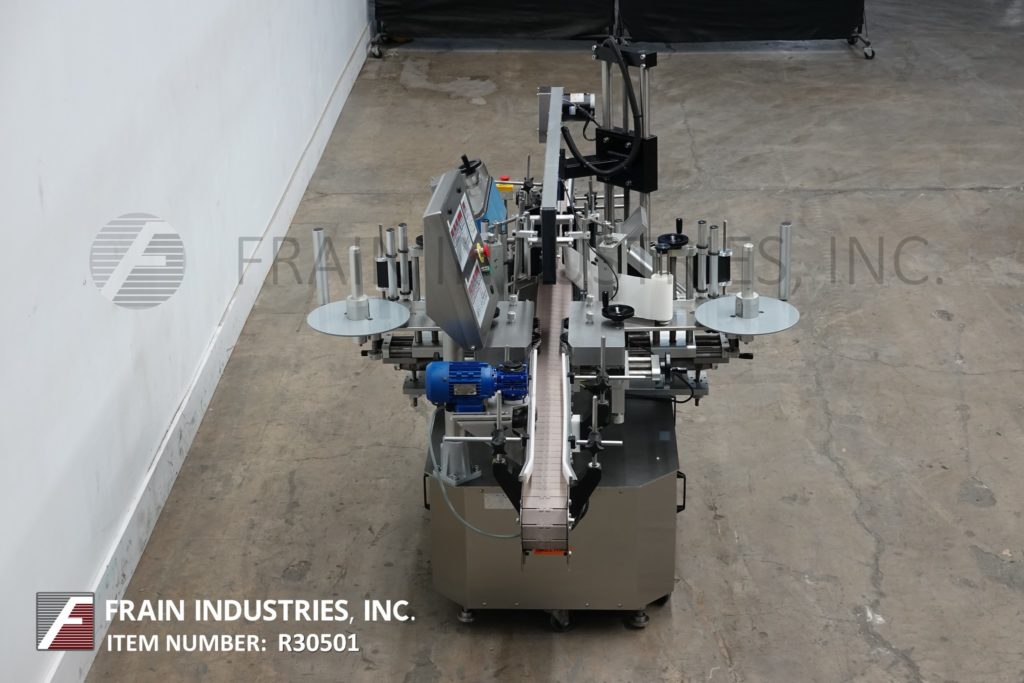

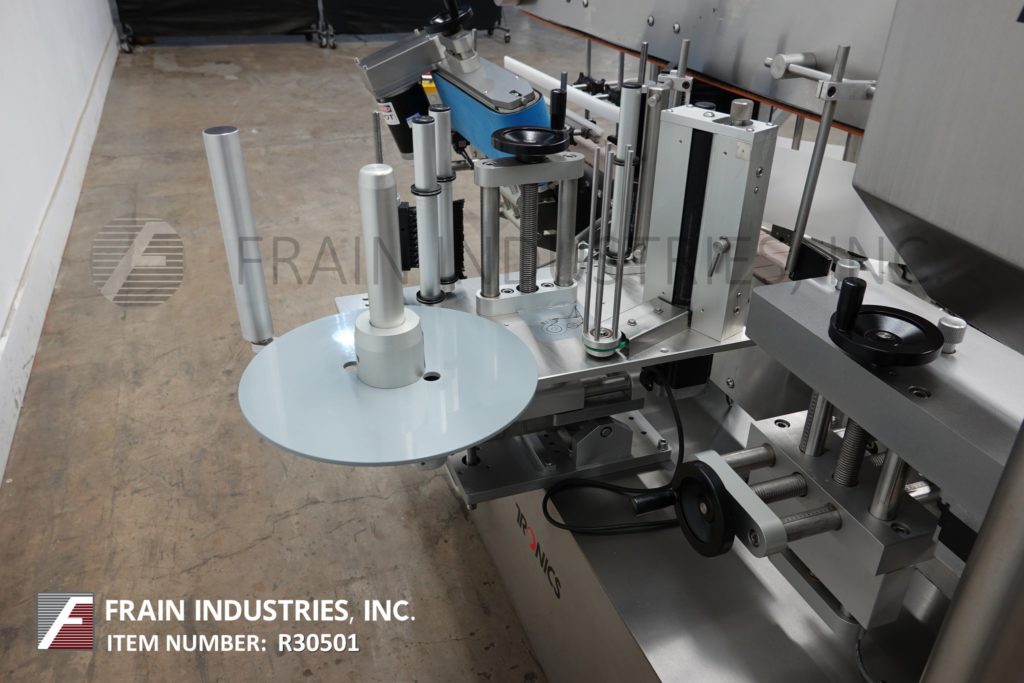

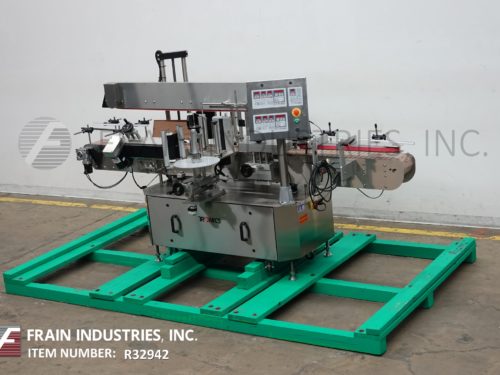

Tronics Model 3S3, stainless steel, right hand, front, back and wrap, pressure sensitive labeler. Rated from 100" to 1,200" on front and back labels and 50" to 600" on wrap labels per minute with number of product – depending on materials and application. Label size range: 1" to 8-1/2" in Height; 12" in length and can handle containers up to 8" in diameter. Equipped with 120" long x 7-1/2" wide plastic Delrin product in feed conveyor with adjustable guide rails, 60" long x 1" wide top hold down conveyor, spacing wheel, aligning chains for container squaring, dual label heads with 9" high peeler plates and 16" long x 6" high side wrap conveyor all hand crank adjustableControl panel has touch pad controls with read out and e-stop. Mounted on stainless steel base frame with casters and leveling legs.
