Frain Industries can help you with your P S front and back labeler project no matter how big or small your labeling needs. Labeler P S Wrap is a pressure sensitive labeler which applies a wrap-around label to circular containers and packages. Pressure sensitive labels have a film backing which needs to be removed prior to application to uncover the adhesive on the back of the label.

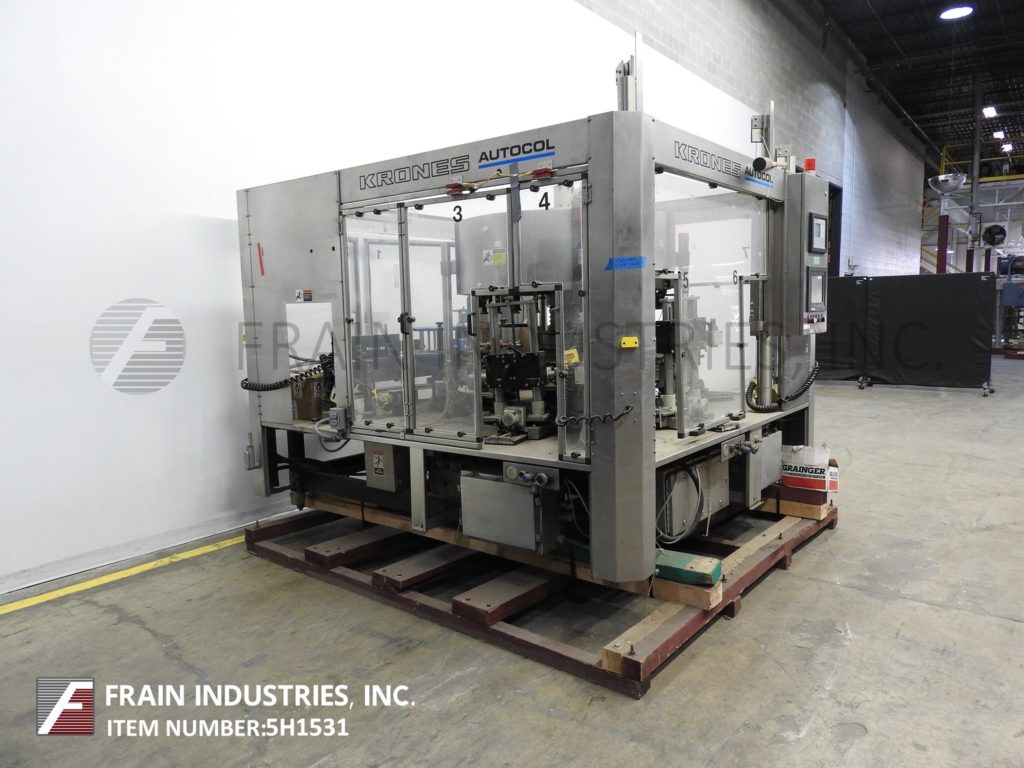

Krones Autocol 389 fully automatic pressure sensitive front and back labeler 50 to 350 cpm. Label size range: 1-6" in height; 1 – 10" in length. Equipped with 3-1/4" wide by 16′ long conveyor, worm screw in-feed, top hold down and dual side compression stations. Oversize label spools 16" diameter with a 3" core. All s/s construction.
OAD: 16′ x 7′ x 5′
Tronics Labeler, Model 3TDSC 31 CDE,front/back wrap, pressure sensitive labeler with number of product per minute – depending on materials and application.Equipped with 120" long x 7½" wide plastic Delrin product in feed conveyor, left and right label heads, and 9½" high peel plates on both sides. Wrap conveyor, 14" long x 3½" high, 60" long x 1" wide Overhead conveyor. Mounted on stainless steel frame with a touch pad controller.
OAD 126" L x 62" W x 64" H
PE USA, Model Modular Fix M 770-16-5P-0-4, four station, pressure sensative, rotary labeler. Rated up to 250 containers per minutre depending on materials, application and machine configuration. Label head spead: up to 90m/min. Reel size: up to 395mm diameter x 200mm high. Label size from 15mm to 480mm long. Equipped with a 3¼" wide conveyor through labeler, dual worm screw into star wheel indexing, 16 head rotary table set on 6" centers, (4) M90 DX 200 label heads and star wheel discharge. Control panel has PLC with a touch screen HMI.
OAD: 208"L x 114"W x 94"H
Aesus, Model Premier, Top and bottom, high speed, pressure sensitive carton labeler. Rated from 1.600" to 4.700" with 0.08" to 0.12" gap width range and up to 280 cartons per minute – depending on materials and application. Equipped with 124" long infeed conveyor and 206" long thru labeler carton conveyor with a combination of (6) Herma Model 400 wipe on label heads (4) on top and (2) on bottom that apply pressures sensitive labels to the product (size of labels per application) with a redundancy system that allows you to manually switch to second label head when principal label head is low or did not apply label and has 12" OD label reel on 3" OD core and 64" long discharge conveyor with 16" long dual side belt compression section and has operating temperatures of 32 Deg F to 176 Deg F with a maximum humidity rating of 35% to 85% free of condinsation and has IP66 type protection system with vision cameras, high speed rejection and confirmation. Control panel has A/B PLC controller with A/B swivel HMI touch screen controls. and start, stop, reset, e-stops buttons and statis light bars. Mounted on heavy duty frame with interlock safety door guarding.
OAD: 206" L x 64" W x 94" H Labeler 124" L x 17" W x 40" H Infeed Conveyor 90" L x 36" W x 80" H Discharge Conveyor
Tronics, Model 3SM front and back, stainless steel, pressure sensitive labeler with number of container per minute – depending on materials and application Label size range; 1" to 8" in Height; up to 12" in length; up to 8" in diameter. Equipped with 112" long x 7½" wide product conveyor, 60" long by 1" wide top container hold down belts, with dual label heads. Swivel head touch panel controls. Label roll diameter of 12" on 3" core, with up to 8" web width. Mounted on stainless steel frame with casters and leveling legs.
OAD: 115" L x 65" W x 62" H
Tronics Model 3S3, stainless steel, right hand, front and back, pressure sensitive labeler rated from 100" to 1,200" on front and back labels and 50" to 600" on wrap labels per minute with number of product – depending on materials and application. Label size range: 1" to 8-1/2" in Height; 12" in length and can handle containers up to 8" in diameter. Equipped with 120" long x 7-1/2" wide plastic Delrin product in feed conveyor with adjustable guide rails, 60" long x 1" wide top hold down conveyor, spacing wheel, aligning chains for container squaring, dual label heads with 9" high peeler plates and 16" long x 6" high side wrap conveyor all hand crank adjustableControl panel has touch pad controls with read out and e-stop. Mounted on stainless steel base frame with casters and leveling legs.
OAD: 120" L x 72" W x 72" H

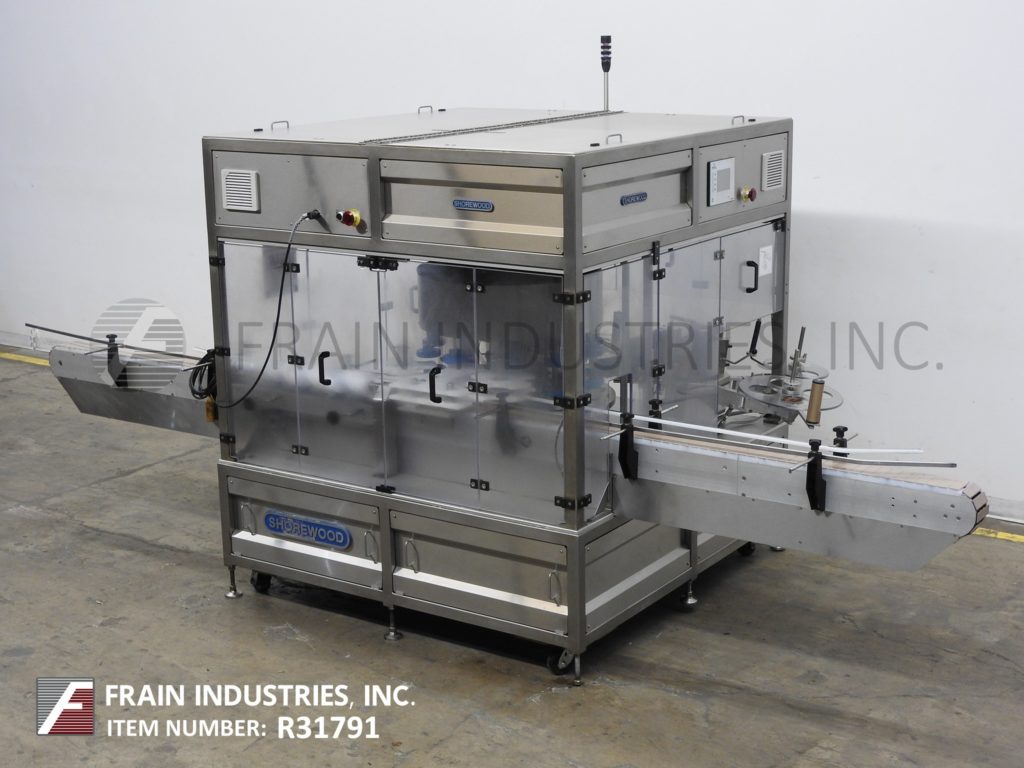

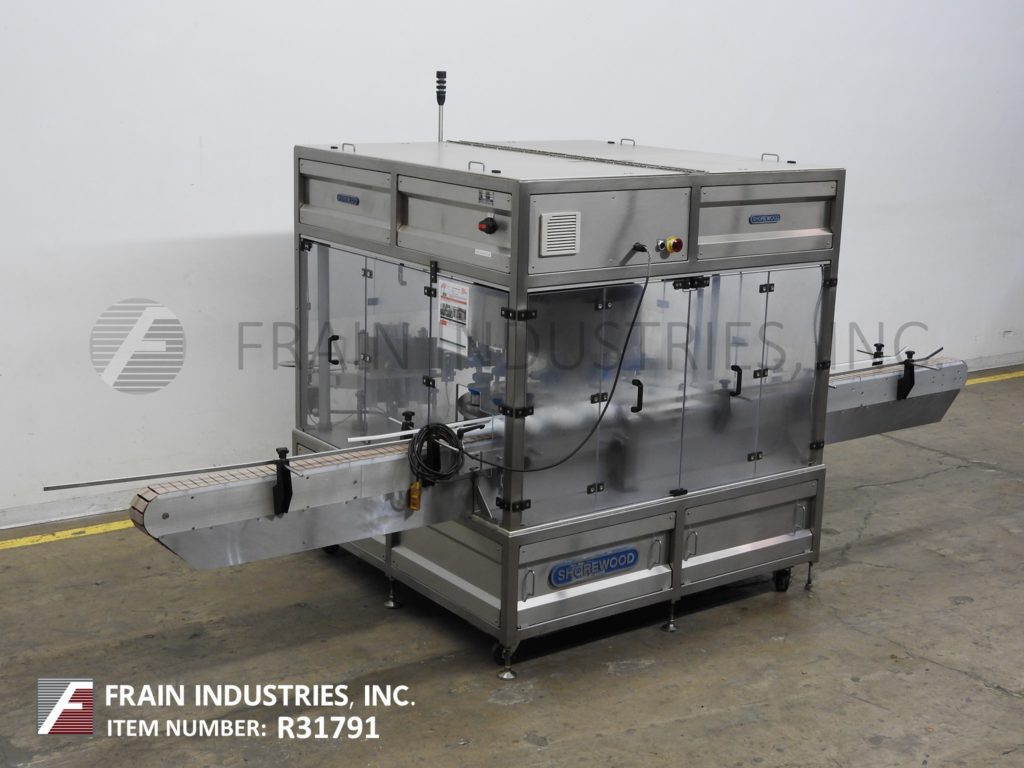

Shorewood Model 560-0L,10-head, rotary, stainless steel, pressure senstive labeler for complete wraparound of ovals and rounds, or front and back labeling with number of labels and containers per minute – depending on materials and application. Label / Container size: per application. Equipped with 192" long x 4-1/2" wide plastic delron product feed conveyor with adjustable guide rails, worm screw to star wheel in feed and discharge, 36" OD rotary turret with (10) 4" OD container pedistal heads set on 10" centers, with (2) pressure senstive label station and (2) 18" OD and (2) 12" OD label reels and rewinds. Control panel has touch pad controller and panel view with on / off guard bypass switch, power on and e-stop controls. Mounted on a stainless frame with interlock safety guarding and leveling legs.
OAD: 192" L x 84" W x 75" H
Krones Model 747-442 Autocol, Automatic, 30 station, stainless steel, rotary, front, back and neck pressure sensitive labeler rated from 30 to 800 containers per minute – depending on materials and application. Container and label size range per application. Equipped with star wheel in feed and discharge with 2 or 3 labeling heads, label unwind stands for continuous operation of wraparound, three panel or spot label applications with no container / no label senser and (30) 5" OD pedastal container stations set on 5-1/2" centers with top hold down and brushes to wipe down labels, Label head can handle maximum label reel of 18" OD on 3" OD core. Control panel, has touch pad controller with panel view, start, stop, e-stop push buttons, statis light bar, safety guarding and hand held e-stop. Mounted on heavy duty stainless steel frame.
OAD: __" L x __" W x __" H
