Frain Industries can help you with your P S Wrap labeler project no matter how big or small your labeling needs. Labeler P S Wrap is a pressure sensitive labeler which applies a wrap-around label to circular containers and packages. Pressure sensitive labels have a film backing which needs to be removed prior to application to uncover the adhesive on the back of the label.

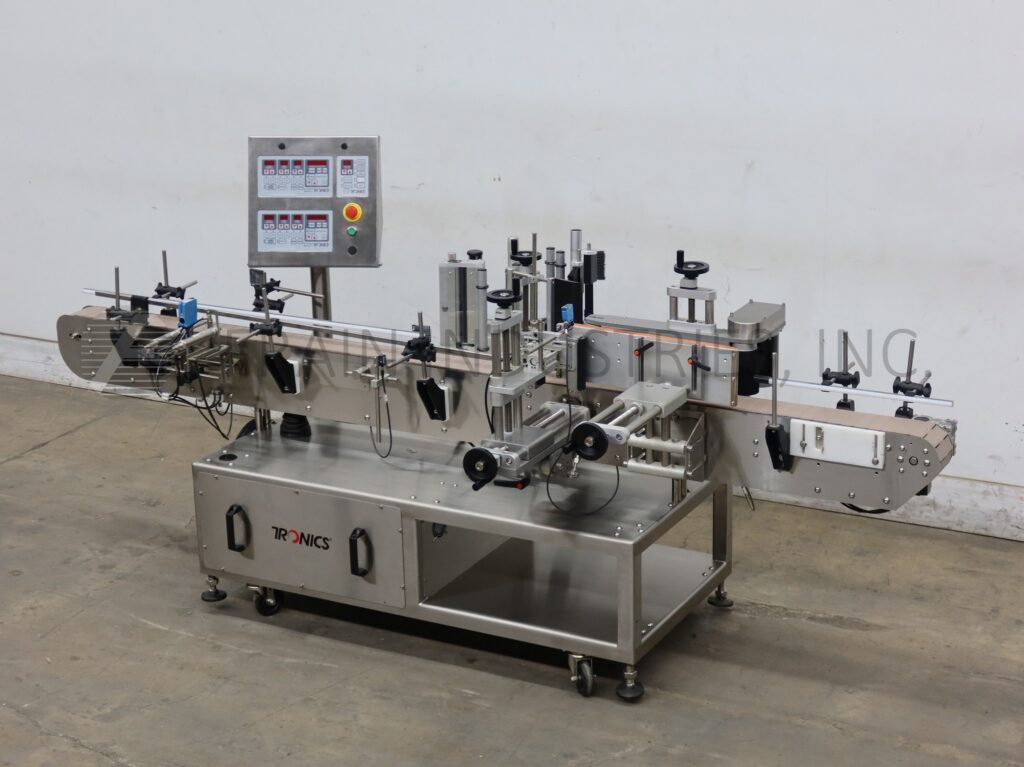

Tronics Model S30, stainless steel, open frame, stepper driven, pressure sensitive, wrap labeler rated from 100" to 1,200" per minute with number of labels and containers – depending on materials and application. Label size range up to: 10" in Height x 29" in length with accuracies up to + / – 1/32nd of label placement and containers from 5ml vials to 10 gallon containers (with proper change parts). Equipped with 4" wide x 120" long plastic Delrin product in feed conveyor with 32" in feed / discharge height, spacing wheel indexing, adjustable guide rails, no container / no label, single label head with 9-1/2" high peeler plate and 6" high side" 21" long x wrap belt, 13" OD label reel on 1-1/2" OD core and unit is hand crank adjustable. Control panel has touch pad controls with read out and has up to 100 job memory with e-stop. Mounted on stainless steel frame with casters and leveling legs.
OAD: 120" L x 54" W x 56" H

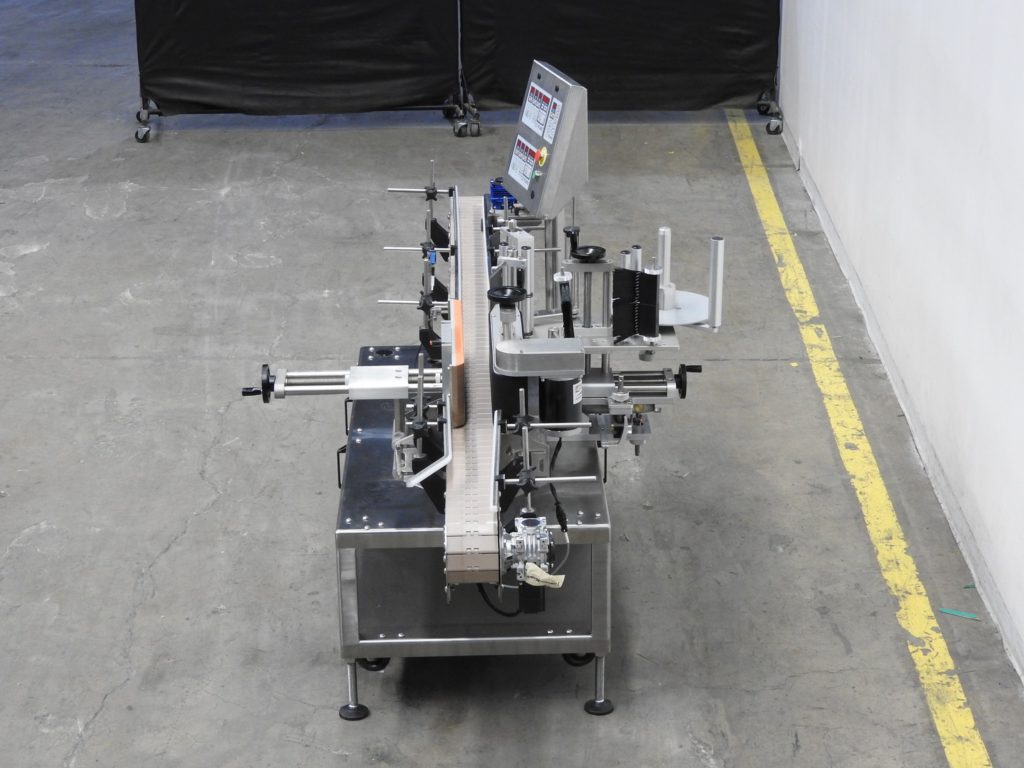

Tronics Model 3S3, stainless steel, pressure sensitive wrap labeler. Rated up to 1,200" per minute with number of product – depending on materials and application. Label size range: 1" to 8-1/2" in Height; 12" in length and capable of handling containers up to 8" OD. Equipped with 120" long x 7-1/2" wide plastic Delrin product conveyor with adjustable guide rails and worm screw orientator in feed, label head with 9" high peeler plates and 24" long x 5½" high vacuum wrap conveyor. Control panel has touch pad controls with read out and e-stop. Mounted on stainless steel base frame with casters and leveling legs.
OAD: 125" L x 52" W x 61" H

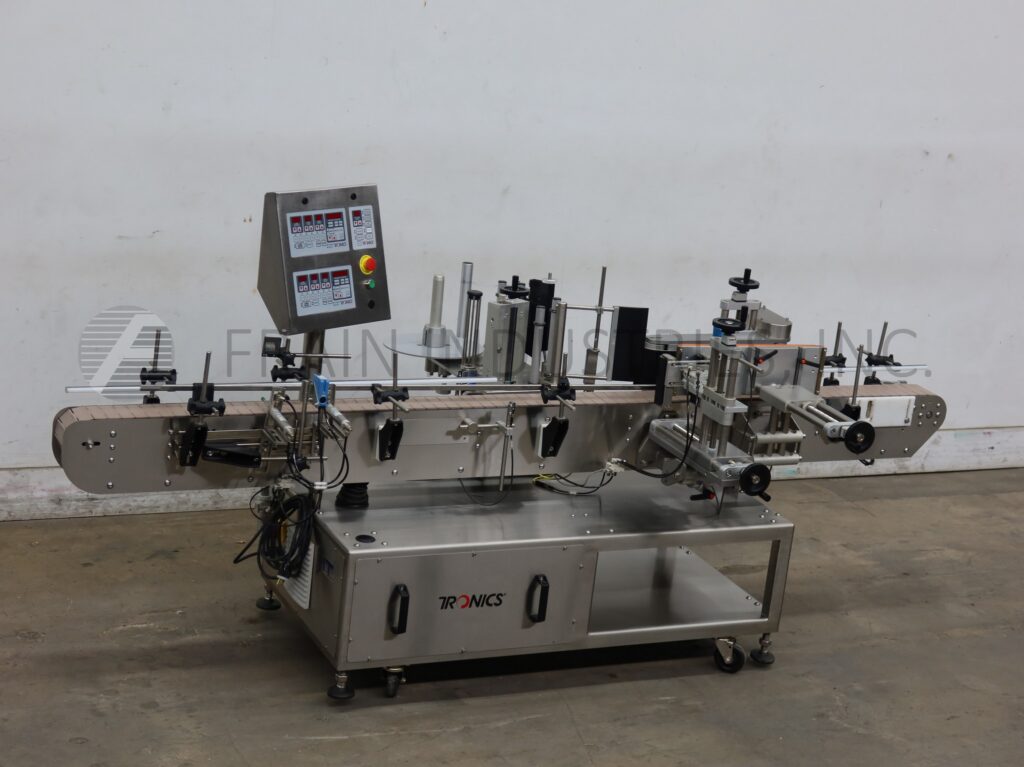

Tronics, Model S30, stainless steel, open frame, stepper driven, pressure sensitive, wrap labeler rated from 100" to 1,200" of labels per minute with number of containers – depending on materials and application. Label size range up to: 8¾" in Height x 29" in length with accuracies up to + / – 1/32nd of label placement. Equipped with 4½" wide x 116" long plastic Delrin product conveyor and has 32" in feed and discharge height, with pneumatic gate indexing and adjustable guide rails, no container / no label, single label head with 9½" high peeler plate and 5" high x 18" long wrap belt, 3-sided container trap and wrap, 12" OD label reel on 3" OD core and is hand crank adjustable. Control panel has touch pad controls with read out and up to 100 job memory with start and e-stop push buttons. Mounted on stainless steel frame with casters and leveling legs.

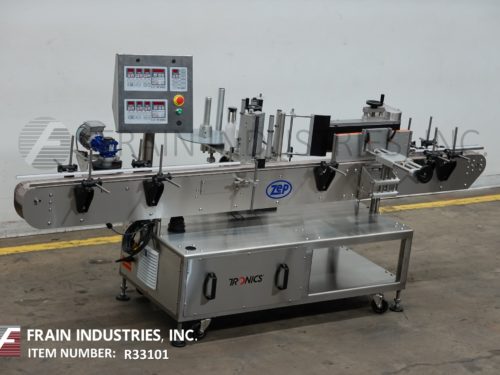

Tronics Model S30, stainless steel, open frame, stepper driven, pressure sensitive, wrap labeler rated from 100" to 1,200" of labels per minute – depending on materials and application. Label size range up to: 10" in Height x 29" in length with accuracies up to + / – 1/32nd of label placement and containers from 5ml vials to 10 gallon containers both with proper change parts. Equipped with 4" wide x 120" long plastic Delrin product conveyor with 32" in feed / discharge height, spacing wheel indexing, adjustable guide rails, no container / no label, single label head with 9-1/2" high peeler plate and 6" high side" 21" long x wrap belt, 13" OD label reel on 1-1/2" OD core and is hand crank adjustable. Control panel has touch pad controls with read out and has up to 100 job memory with e-stop. Mounted on stainless steel frame with casters and leveling legs.

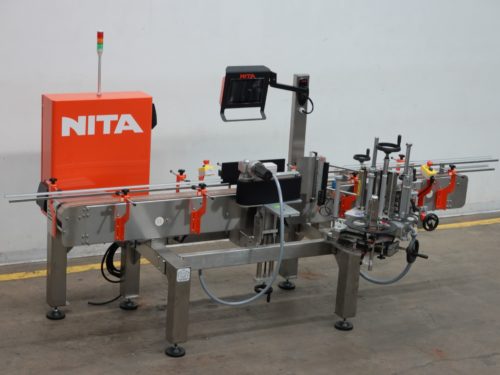

Nita, Model XP100, stainless steel, wrap around pressure sensitive labeler rated from 100" to 1570" on wrap labels per minute with number of containers – depending on materials and application. Label size range: 1" to 9" in Height. Equipped with 116" long x 4" wide plastic Delrin product in feed conveyor with adjustable guide rails, aligning belts for container squaring, label head with 10" high peeler plate and 16" long x 6" high side wrap conveyor all hand crank adjustable. Control panel has touch screen HMI. Mounted on stainless steel base frame with casters and leveling legs.
OAD: 142"L x 60"W x 73"H
Tronics Model S30, stainless steel, open frame, stepper motor, pressure sensitive, wrap labeler rated from 100" to 1,200" of labels per minute – depending on materials and application. Label size range up to: 10" in Height x 29" in length with accuracies up to + / – 1/32nd of label placement and containers from 5ml vials to 10 gallon containers both with proper change parts. Equipped with 4" wide x 120" long plastic Delrin product in feed conveyor with 32" in feed / discharge height, spacing wheel indexing, adjustable guide rails, no container / no label, single label head with 9-1/2" high peeler plate and 6" high side" 21" long x wrap belt, 13" OD label reel on 1-1/2" OD core and is hand crank adjustable. Control panel has touch pad controls with read out and has up to 100 job memory with e-stop. Mounted on stainless steel frame with casters and leveling legs.
Nita, Model XP100, stainless steel, wrap around pressure sensitive labeler rated from 100" to 1570" per minute. Label size range: 1" to 9" in Height. Equipped with 116" long x 4" wide Delrin conveyor, adjustable guide rails, aligning belts for container squaring, label head with 10" high peeler plate and 16" long x 6" high side wrap conveyor. Touch screen HMI. Mounted on stainless steel base frame with leveling legs. Speed dependent on materials, application and machine configuration.

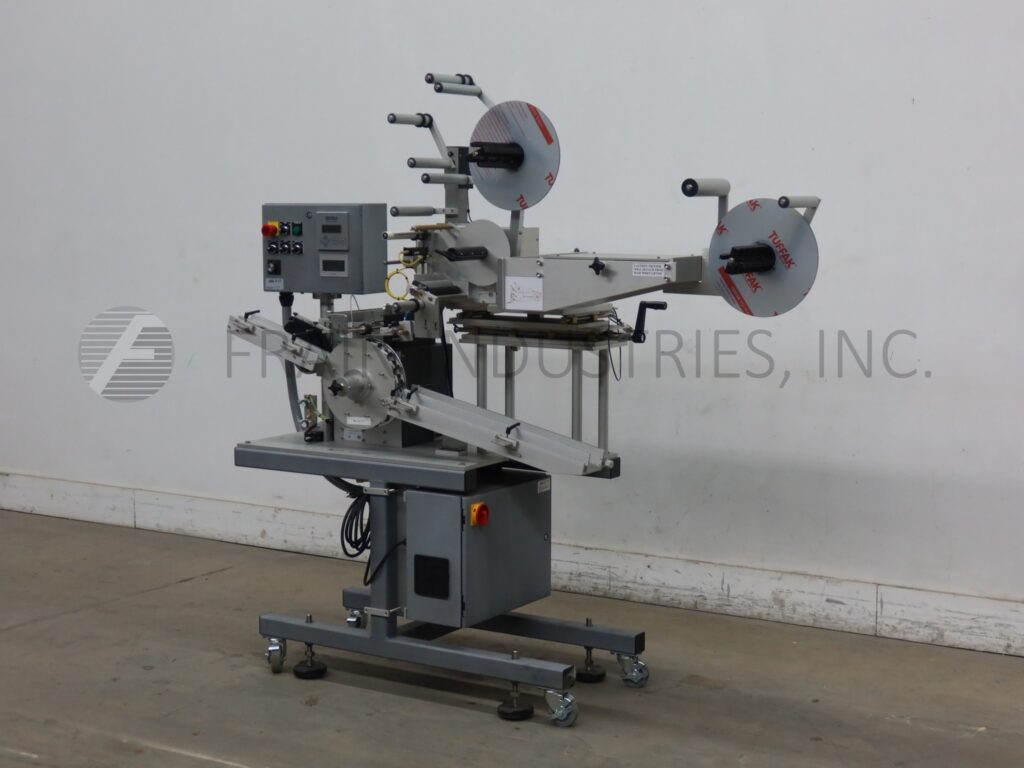

MPI Label Systems / Label Aire Model 3115NV, Automatic, pressure sensitive Trunnion Series labeler specifically designed to handle non-stable cylindrical containers or products (top heavy or rounded bottom) such as ampules, vials, lip balm and lipstick containers, crayons, pens and small batteries, etc and rated up to 1500" per minute with number of containers – depending on materials, application and machine configuration. Powder coated and anodized aluminum coated steel construction. Equipped with 8′ long x 3" wide Model RLC5500 horizontal product roller conveyor, with 3" long rollers spaced for 9/16" OD product with 3.5 OD overhead wrap roller section with hand crank vertical adjustment. Label-aire Model 3115NV wipe on label head with label size up to 7" label Width; and minimum label length of .5" with accuracy: + / – 1/32". Has label roll 16" OD on 3" OD core, with friction drive rewind. Photoelectric product and label sensor with automatic label setup. Control panel has A/B PLC controller with A/B HMI R3 didital display with standard metric and detailed readouts, storage of multiple label smd product setup switch with missing label detection, main power on / off switches vari speed AC drive, with start, stop push buttons. Mounted on height adjustable forkable frame with double locking casters and leveling legs.
OAD: 96" L x 55" W x 102" H
Tronics Model S30, stainless steel, open frame, stepper driven, pressure sensitive, wrap labeler rated from 100" to 1,200" of labels per minute with number of containers – depending on materials and application. Label size range up to: 10" in Height x 29" in length with accuracies up to + / – 1/32nd of label placement and can handle 5ml vials to10 gallon containers both with proper change parts. Equipped with 4" wide x 120" long plastic Delrin product conveyor and has 32" in feed and discharge height, with spacing wheel indexing and adjustable guide rails, no container / no label, single label head with 9-1/2" high peeler plate and 6" high side" x 21" long wrap belt, 13" OD label reel on 1-1/2" OD core and is hand crank adjustable. Control panel has touch pad controls with read out and up to 100 job memory with start and e-stop push buttons. Mounted on stainless steel frame with casters and leveling legs.
