Meat Equipment Batter Breader machinery will deposit a preset amount of either a batter or a breading unit individual pieces of meat or poultry. This is usually done in a waterfall manner to pre-coat the bottom of the portion and then to coat the remaining surfaces then the surplus is removed and recycled. The meat batter breader process is continuous and the product needs to be fed in single layers for uniform coating and topical applications. The finished product can be conveyed to either IQF or deep Fryers for subsequent processing

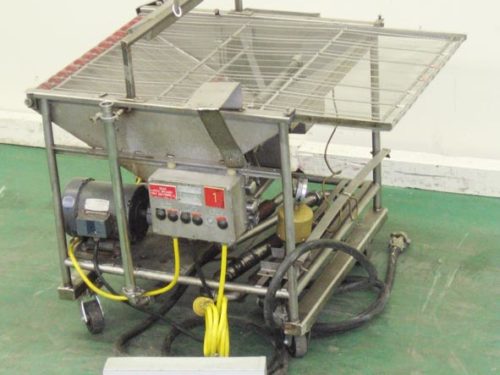

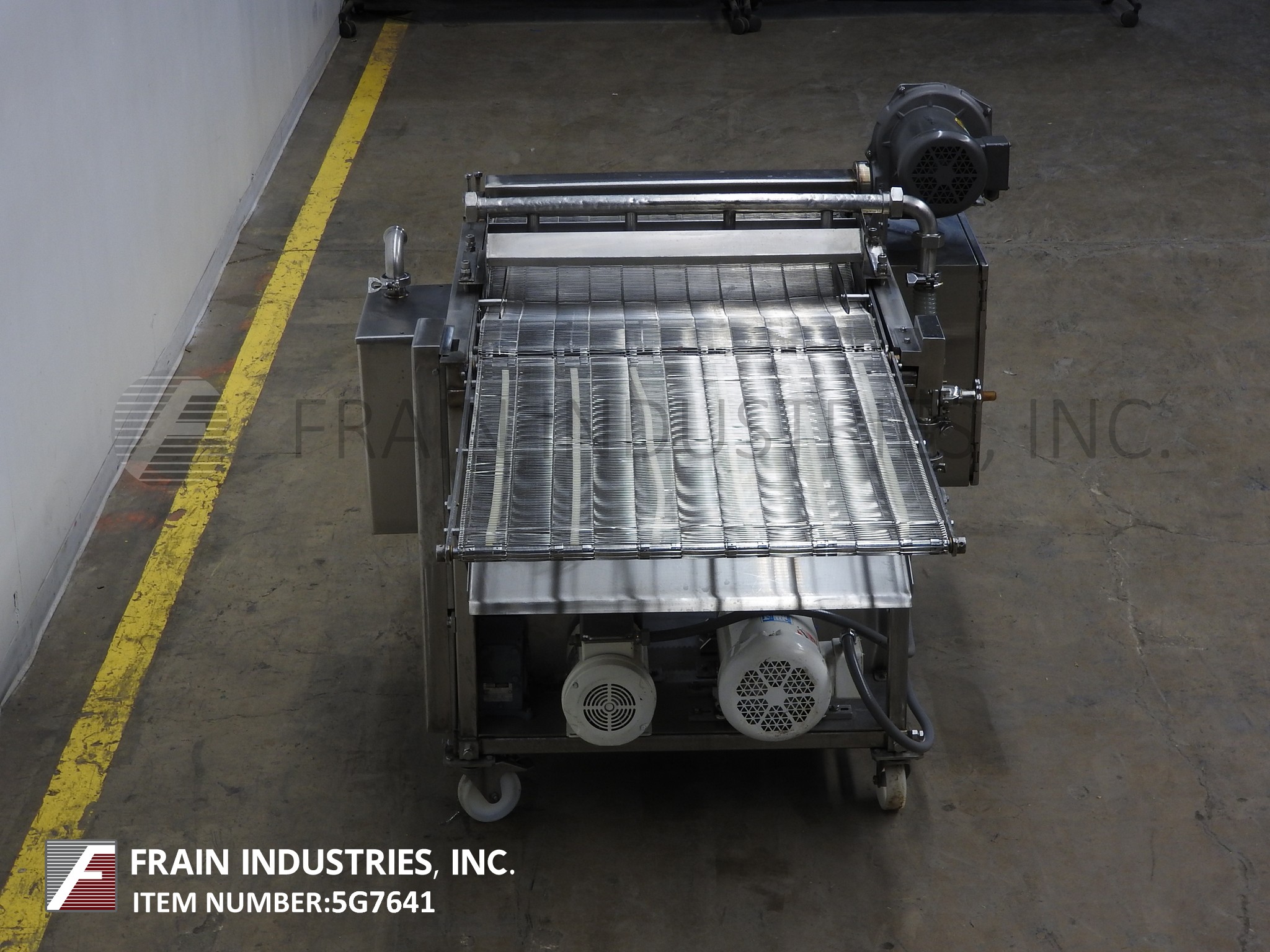

Stein, Model APB, stainless steel overflow batter applicator. For use with conventional pumpable batters. Products per minute – dependant on materials and application. Equipped with a 35" wide x 63" long stainless steel wire belt, 35" wide batter double curtain to coat top and sides of product, lowered belt section to coat bottom of product and batter pump. Mounted on a stainless steel base with casters.
OAD: 37"L x 50"W x 44"H

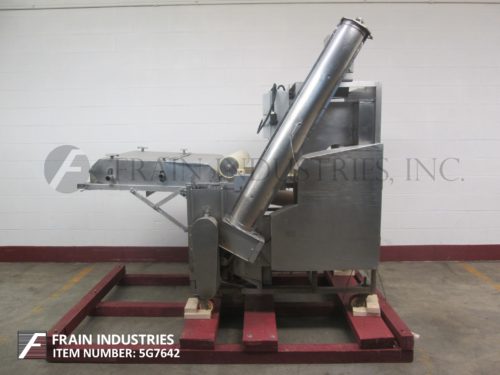

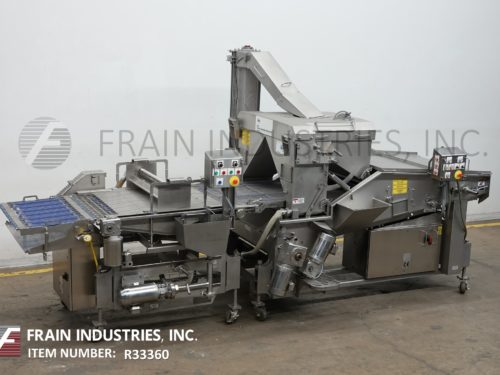

Stein, automatic stainless steel batter and breading applicator.
Model SUV-850BA, batter applicator. For use with conventional pumpable batters. Equipped with a 34" (850mm) wide x 117" long stainless steel wire belt powered by a ¾ hp drive with variable speed control, 34" wide batter curtain to coat top and sides of product, lowered belt section to coat bottom of product and 2 hp batter pump. Includes on/off switches for pump and push button start/stop control for conveyor. Mounted on a stainless steel base with casters.
Breading applicator capable of running flour and fine granular free flow coating materials. equipped with a 34" (850mm) wide x 75" long product in feed conveyor belt with 35" wide top applicator and bottom breading reservoir to cover belt and fully coat product with hooded blow off for excess breading removal. Coating material is transferred from filling station to top applicator by a 10" diameter x 84" long stainless steel screw conveyor. Unused breading from conveyor belt is returned to the filling station by a stainless steel screw conveyor. Mounted on stainless steel base frame with casters.
OAD: 189"L x 80"W x 98"H

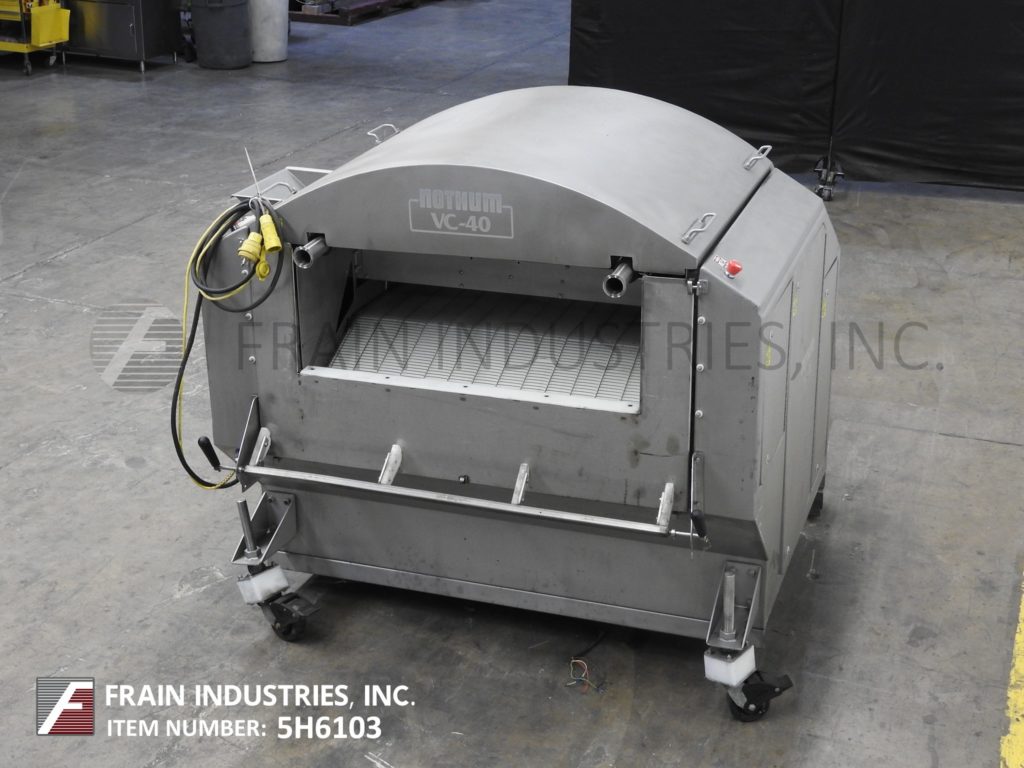

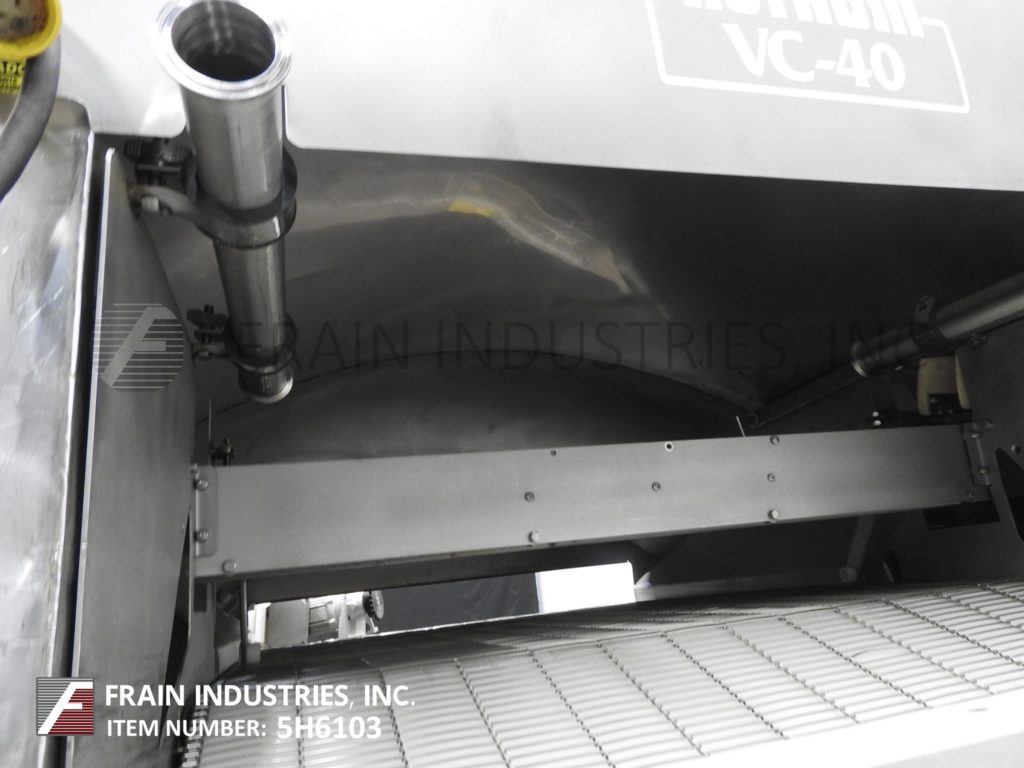

Nothum, Model VC-40 VersaCoat, predust and breading applicator. Equipped with a 40" wide x 64" long wire belt, 15" wide x 8" high breading charge port with (4) paddle airlock and waterfall style breading applicator with 4" product clearance. Mounted on a stainless steel base frame with casters.
OAD: 78"L x 78"W x 65"H

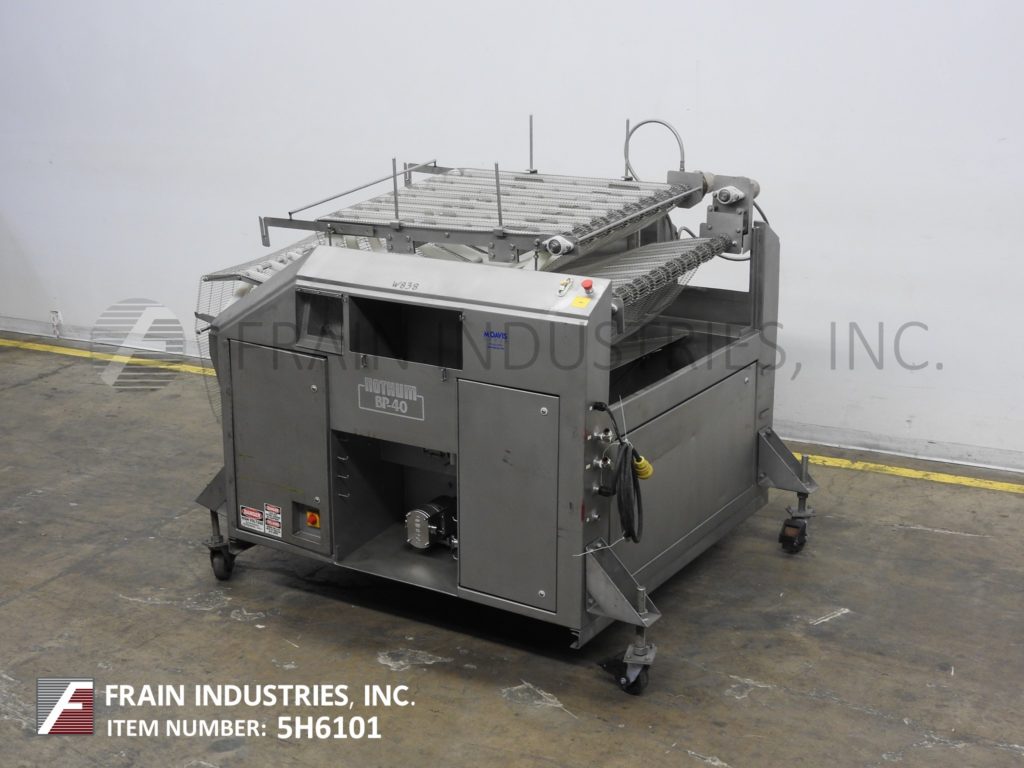

Nothum, Model BP-40 BatterPro, submerging batter / tempura applicator. For use with all conventional pumpable batters with pounds of product per minute – depending on materials and application. Equipped with 40" wide x 78" long stainless steel wire mesh product belt, 40" wide overhead conveyor to keep product submerged, twin shaft paddle agitated batter trough and positive displacement batter recirculation pump. Mounted on (4) leg stainless steel base with casters.
OAD: 78"L x 68"W x 70"H

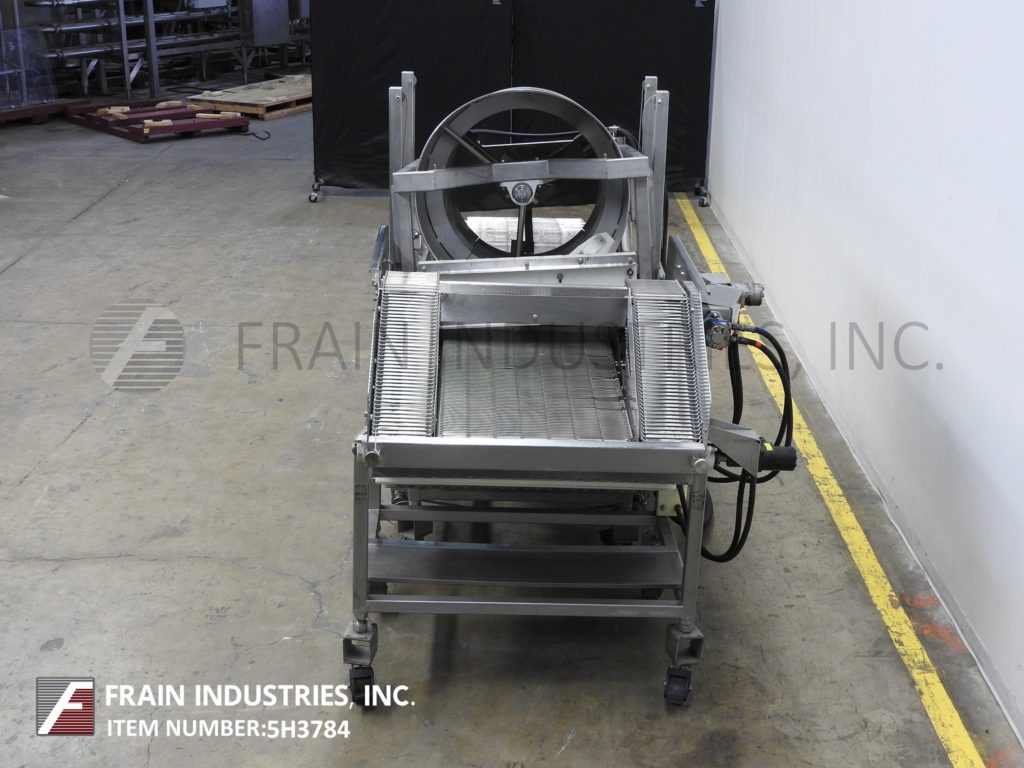

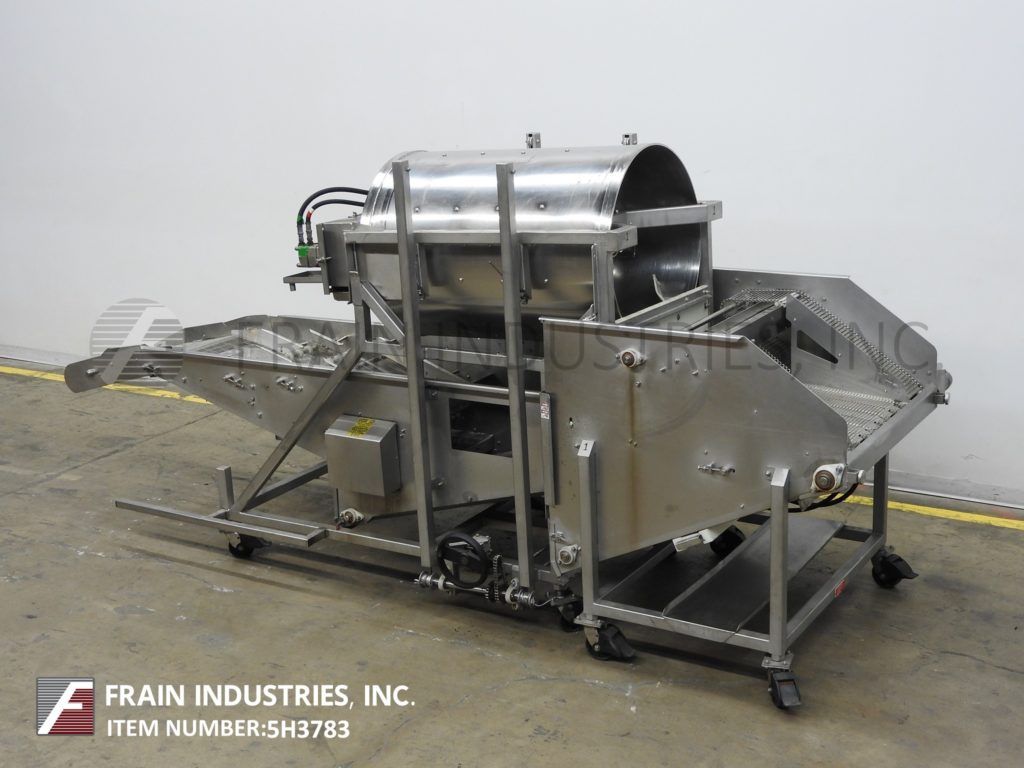

Nothum, Model FD-24, stainless steel, rotary barrel breader with number and pounds of product per hour – depending on materials and application. Equipped with a 26" wide x 45" long wire infeed belt with waterfall breadding applicator, 32" in diameter x 48" long tumbler, 26" wide x 64" long shaker discharge conveyor and 12" wide clump sifting conveyor. Complete with quick-connect hose for the supply-side hydraulic header and is setup to receive hydraulics from a plant power pac and distribute to various hydraulic motors. Mounted on stainless steel base frame.
OAD: 150"L x 60"W x 81"H
Nothum, Model FD-24, stainless steel, rotary barrel breader with number and pounds of product per hour – depending on materials and application. Equipped with a 26" wide x 45" long wire infeed belt with waterfall breadding applicator, 32" in diameter x 48" long tumbler, (2) 26" wide x 24" long flipping conveyors, 26" wide x 50" long shaker discharge conveyor and 12" wide clump sifting conveyor. Complete with quick-connect hose for the supply-side hydraulic header and is setup to receive hydraulics from a plant power pac and distribute to various hydraulic motors. Mounted on stainless steel base frame.
OAD: 170"L x 60"W x 80"H
Stein, Model APB Overflow, batter applicator. For use with conventional pumpable batters. Products per minute – dependant on materials and application. Equipped with a 30" wide x 88" long stainless steel wire belt powered by a 2 hp drive with variable speed control, 29" wide batter double curtain to coat top and sides of product, lowered belt section to coat bottom of product, 3 hp batter pump and 2 hp blower for removal of excess batter. Includes on/off switches for pump and blower and push button start/stop control for conveyor. Mounted on a stainless steel base with casters.
OAD: 90" L x 55"W x 65"H

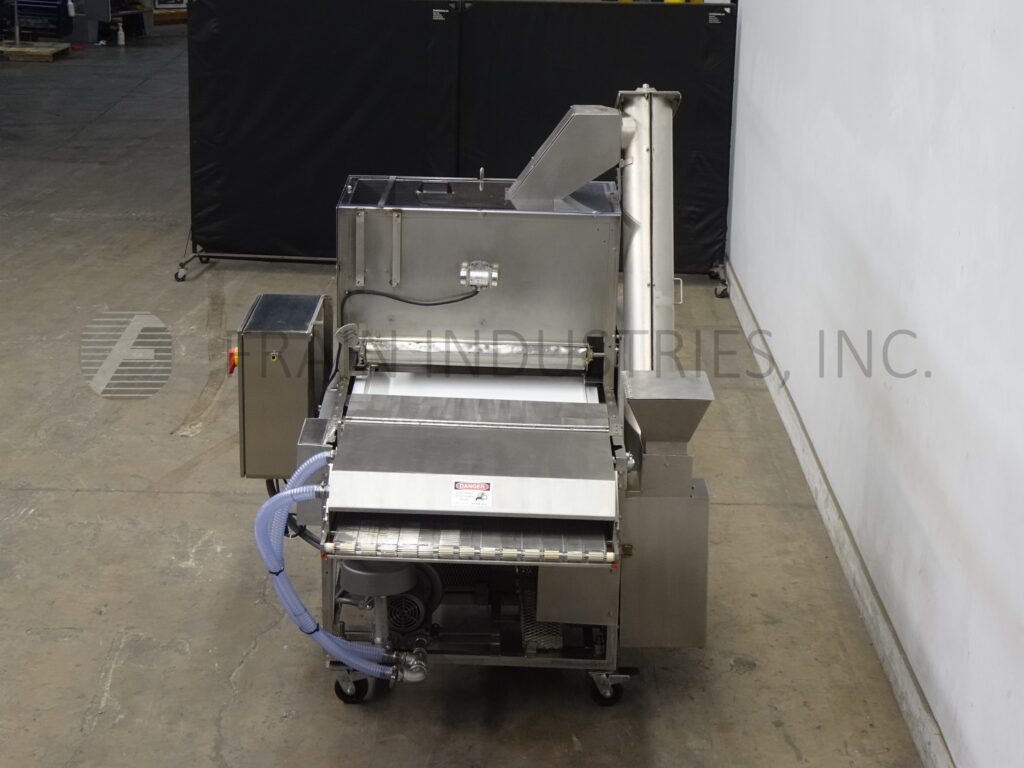

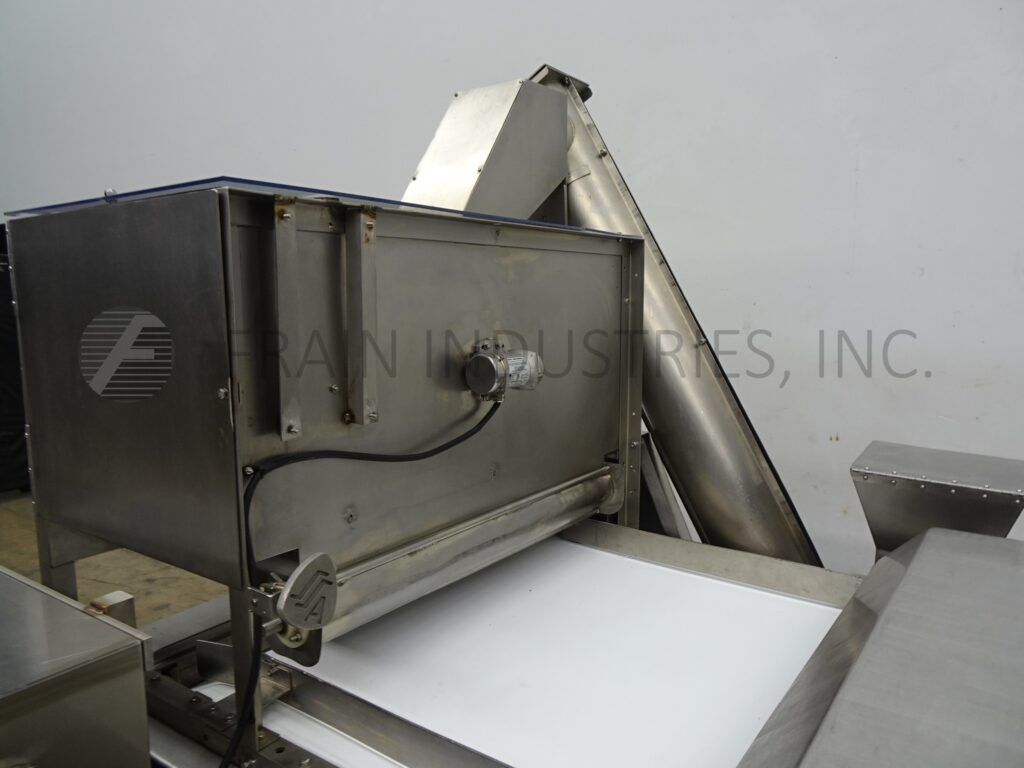

Stein Model Heritage, Automatic stainless steel breading applicator with number of product per hour – depending on materials and application. Capable of running flour and fine granular free flow coating materials. Equipped with a 36" wide x 36" long product in feed conveyor belt with 27" wide top applicator and bottom breading reservoir to cover belt and fully coat product, 30" wide x 35" long stainless steel wire product discharge belt with hooded blow off for excess breading removal. Coating material is transferred from filling station to top applicator by a 7½" diameter x 65" long stainless steel screw conveyor and further transferred to bottom station with a 3" diameter x 28" long stainless screw conveyor. Unused breading from conveyor belt is returned to the filling station by a 6½" diameter x 50" long stainless steel screw conveyor. Mounted on stainless steel base frame with casters.
OAD: 87"L x 56"W x 82"H
