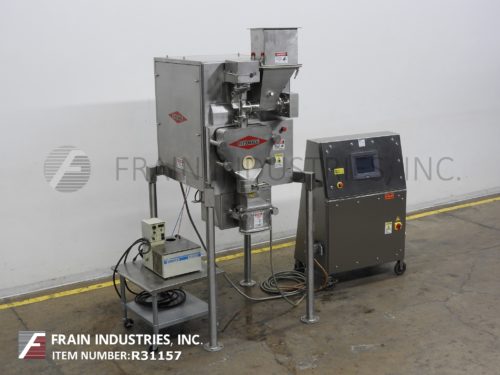

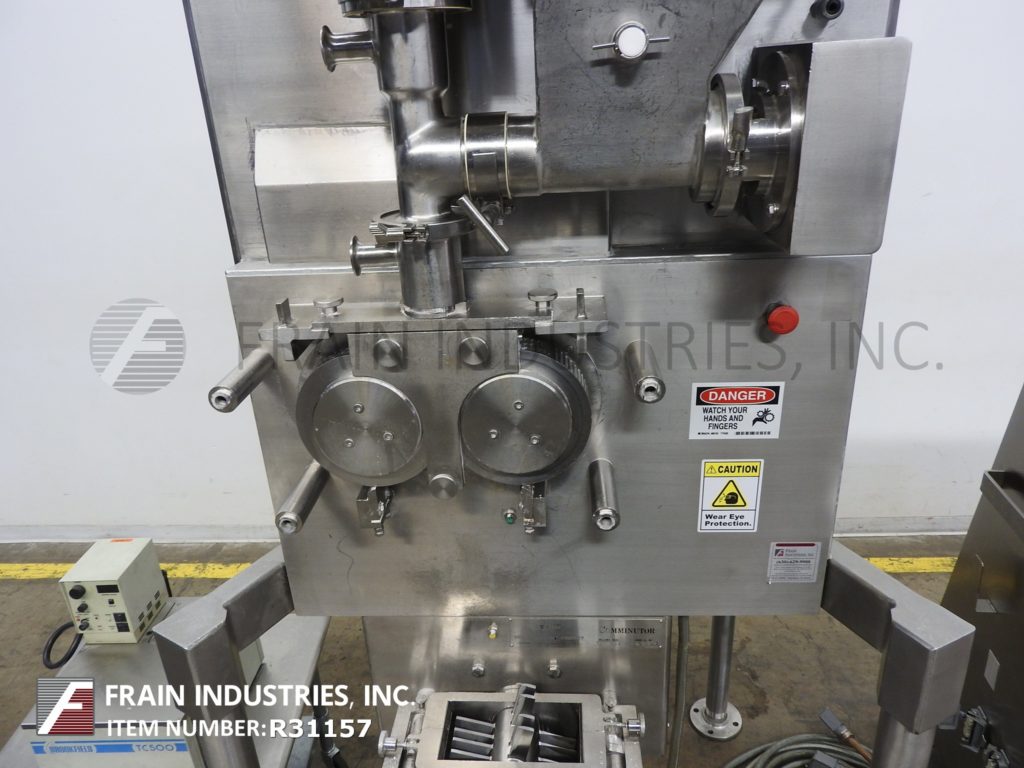

Fitzpatrick Model IR520, 316 stainless steel, pilot or small volume roller compactor, rated up to 150 kg of product per hour – depending on materials, application machine configuration and environment being run in. (2) screw feed design with 13" long x 9" wide x 10" deep ID stainless steel product hopper and rotary assist feeder to 3" OD x 12" long horizontal screw that eliminates vacuum dearation to 2" OD x 18" long vertical pre-compression screw that compresses product for more uniformity prior to feeding into the 2" wide x 8" OD groved product compaction rollers with roller force of 26.3 KN/CM and roll gap of 1mm to 6mm and has a capacity of 150 Kg an hour and powered by 5 Hp motor drive with noise level rating of 75 DB. Mobile control panel has A/B controller with parker panel view touch pad controls, A/B vari-speed controllers and e-stop. Mounted on (4) stainless steel legs with casters.
OAD: 48" L x 45" W x 70" H Roller Compactor 48" L x 32" W x 60" H Control Panel
Fitzpatrick Model 4LX10D, 316 stainless steel, free standing roller compactor, chilsonator with onboard stainless steel Fitzmill Model DKASO12 knife rotor hammer mill and the system is rated from 250 – 400 kg of product per hour – depending on materials, application, machine configuration and environment being run in. Equipped with 4" OD horizontal metering screw with 1 Hp motor drive that eliminates vacuum dearation to 4 OD" vertical pre-compression screw with 5 Hp motor drive, that compresses product for more uniformity prior to feeding into the 4" OD x 10" long face cored product compaction rollers with 7.5 Hp motor drive and bulk densities of feed from 10 to 100 lbs per cubic foot and roll force of 17.5 KN/cm with roll gap range of 1mm to 6mm. Has Fitzmill model DKASO12 knife rotor hammer mill with 10 Hp motor drive. Control cabinet with AMP meters and digital RPM indicators for rolls, verticle and horizontal screws, variable frequency speed controls with start and stop push buttons and e-stop. Mounted on (4) stainless steel legs.
OAD: 86"L x 74"W x 125"H
Fitzpatrick Model IR520, Stainless steel, medium volume, roller compactor chilsonator, with on board M5A Fitzmill hammer mill rated up to 150 kg of product per hour – depending on materials, application, machine configuration and environment being run in. 316 stainless steel construction. (2) screw feed design has 13" long x 9" wide x 10" deep ID stainless steel product hopper and rotary product assit to 3" OD x 12" long horizontal screw that eliminates vacuum dearation to 2" OD x 18" long vertical pre-compression screw that compresses product for more uniformity prior to feeding into the 5cm x 20cm or 2" wide x 8" OD groved product compaction rollers with a roller force of 26 KN/CM and roller gaps of 1mm to 6mm, powered by 5 Hp motor drive with noise level rating of 75 DB and has Fitzmill M5A hammer mill intergrated at discharge. Mounted on (4) leg frames with locking casters. Control panel with AB controller and touch screen HMI.
OAD: 35" L x 45" W x 85" H Chilsonator 45" L x 28" W x 63" H Control Cabinet

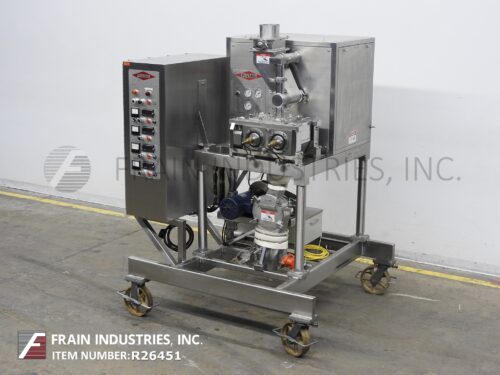

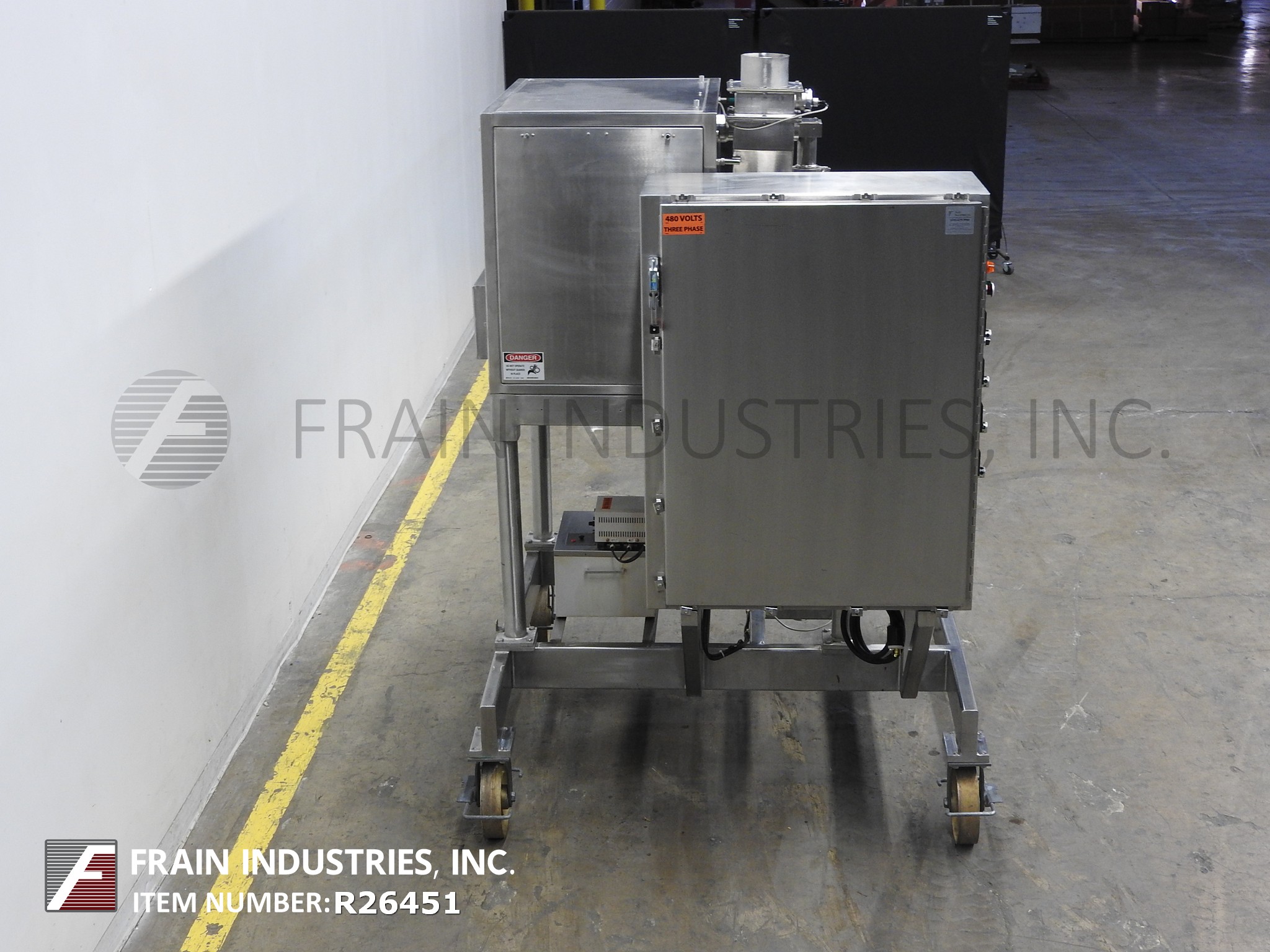

Fitzpatrick, Model DM 1.5L X 8D, Chilsonator roller compactor mill, capable of processing from 35Kg to 135Kg (77 lbs to 297 lbs) of product per hour – depending on materials, application, environment and machine configuration. Stainless steel contact parts. Equipped with agitated, vertical screw feed product hopper with 1-1/2" OD product feed screw driven by variable speed motor drive, 1.5" L x 8" OD compaction rollers and hammer mill with (16) rotary knife blades for in air impact for harder compacts, and reduction screen (change part per application). Control cabinet has push button start, stop for main power, granulator, compactor, rollers, vertical and horizontal feed screws, with oil, air and amp gauges, panel purged and granulator on, start and stop push buttons. Mounted on stainless steel frame.
OAD: 54" L x 46" W x 72" H
Fitzpatrick Model IR520, 316 stainless steel, roller, Chilsonator (roller compactor / hammer mill). Rated up to 220 lbs. of product per hour – depending on materials, application, machine configuration and environment. Equipped with (2) screw feed design and has 13" long x 8" wide x 12" deep ID stainless steel product hopper with rotary product feeder, 3" OD horizontal screw that eliminates vacuum de-aeration to 2" vertical pre-compression screw that compresses product for more uniformity prior to feeding into the 2" x 8" grooved product compaction rollers with roller force of 26.3 KN/CM and roller gaps of 1mm to 6mm, powered by 5 Hp motor drive with onboard stainless steel Fitzmill Model M5A hammer mill with (16) fixed stainless steel blades and 6" OD product discharge with 49” floor clearance. Control panel has A/B PLC with PanelView. Mounted on (4) legs stainless steel frame.
OAD: 55" L x 48" W x 107" H Chilsonator 42" L x 28" W x 63" H Control Panel
Fitzpatrick Model IR4L X 10D, 316 stainless steel, roller compactor chilsonator with onboard stainless steel Fitzmill Model D6A hammer mill rated up to 800 lbs of product per hour – depending on materials, application, machine configuration and environment being run in. Equipped with (2) screw feed design and has 19" long x 16" wide x 20" deep ID, stainless steel product hopper with 4" OD horizontal screw that eliminates vacuum dearation to 5" OD vertical pre-compression screw that compresses the product for more uniformity prior to feeding into the 4" x 10" groved product compaction rollers with roller force of 17.6 KN/CM and roller gaps of 1mm to 6mm, powered by 5 Hp motor drive with onboard stainless steel Fitzmill Model D6A hammer mill has (16) fixed stainless steel impact blades powered by 5 Hp motor drive with 14” long x 6” wide product discharge and 39” floor clearance. Remote control cabinet has A/B panelview touch pad controller with e-stop. Mounted on (4) legs stainless steel frame.
OAD: 108" L x 77" W x 120" H Chilsonator 36" L x 17" W x 72" H Control Panel
Fitzpatrick, Model 2L X 8D, chilsonator roller compactor mill. Able to process 45Kg to 181Kg (100lbs to 400 lbs) per hour – depending on materials, application, environment and machine configuration. Equipped with 316 stainless steel contact parts, a 6" diameter charge port, 2½" OD / 1¾" ID tri-clamp style discharge with 8½" ground clearance , feed system controlled by both a vertical and horizontal screw and model JT homoloid mill. The vertical screw has 2" OD and is driven by ½ Hp motor with a speed range of 100 to 450 rpm. The horizontal screw has 3" OD and is driven by ¼ Hp motor with a speed range of 0 to 62 rpm. The compaction rolls are 2" wide x 8" OD and made of 17-4PH stainless steel. The homoloid mill equipped with (16) 2½" long x 1" wide knife blades powered by 1½ Hp motor drive. Mounted on 304 stainless steel base with locking casters
OAD: 75" L x 63" W x 88" H
