Home » Mill » Pellet
A pellet mill is a continuous means for forming a pellet (cylindrical shaped products in a variety of sizes from a few mm to 1 inch pieces. Product is fed into the center of the pellet mill and it is pushed through a ring with the required diameter of pellets to be formed. As the product exits through the ring it is cut off with an external knife to the desired length.

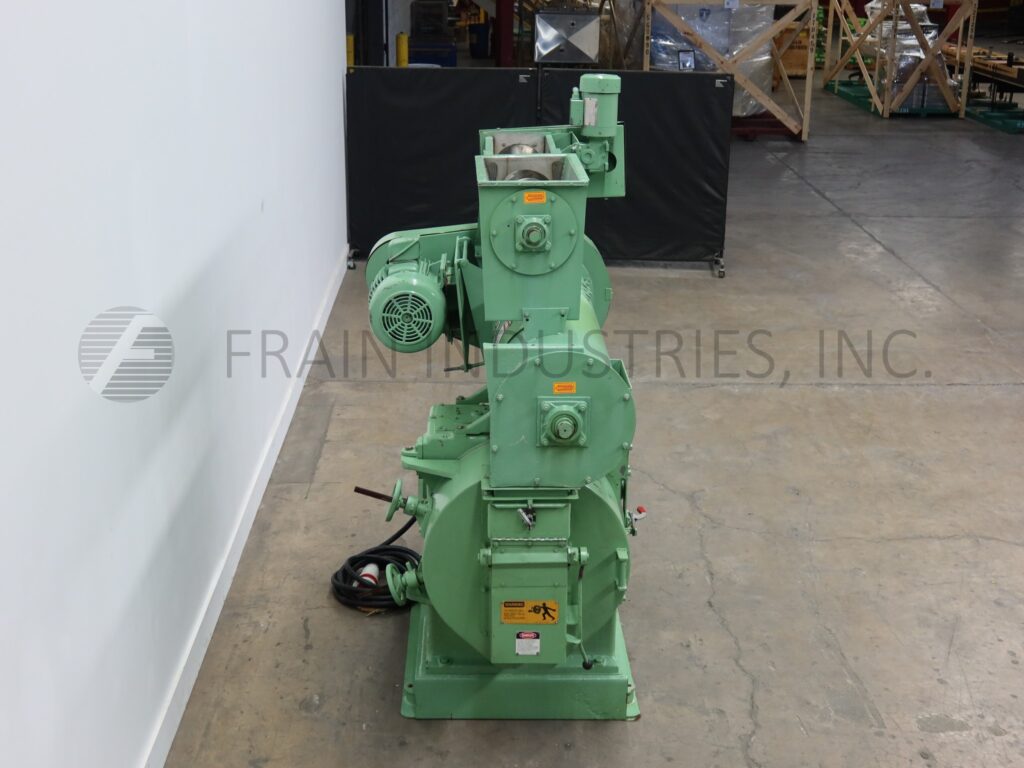

California Pellet Mill, Model 75C, pellet mill with amount of product per hour – depending on materials and application. Equipped with 24" long x 13" wide receiving port, 36" long auger feeder and powered by 2 HP drive into 38" long x 20" diameter continuous paddle mixer and conditioner powered by 25 hp drive and pellet mill chamber powered by 100 hp drive with 16" ID die with 226 in² working area.
OAD: 90"L x 50"W x 105"H

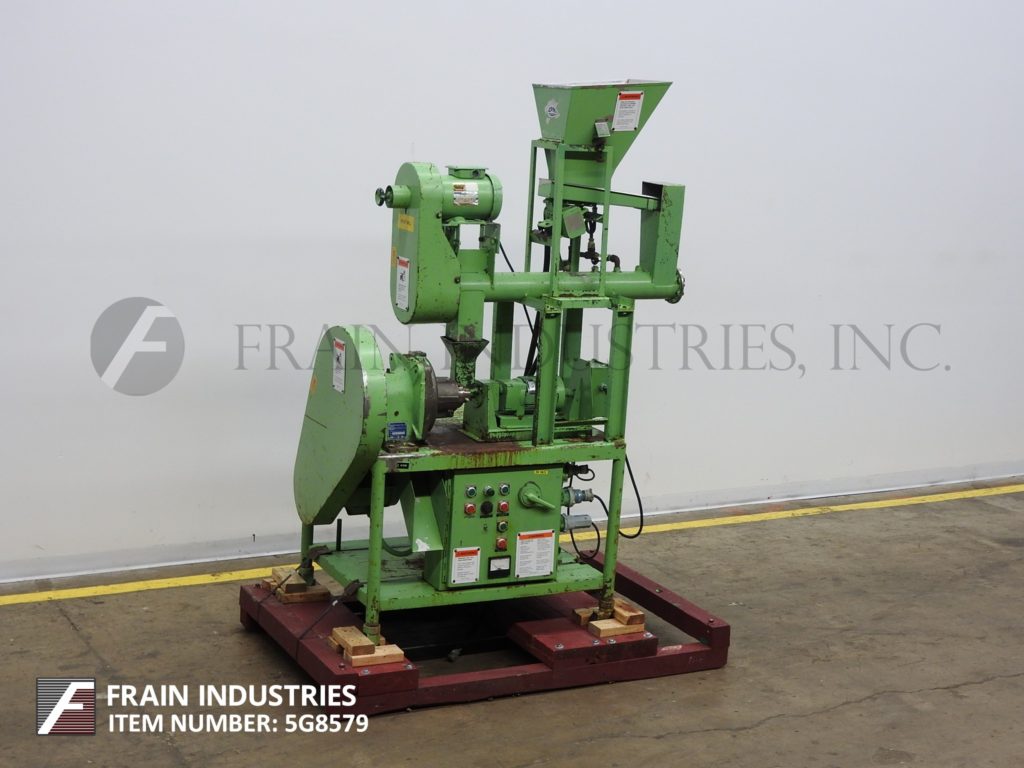

California Pellet Mill, Model CL, Laboratory size pellet Mill. Rated from 30 to 200 pounds of pellets per hour – depending on materials, application and machine configuration. Equipped with 17" long x 13" wide x 17" deep product hopper, 4" wide x 20" long vibratory feeder, 36" long x 4" OD continuous paddle mixer and conditioner powered by ¾ hp drive, 7" long x 1½" OD auger feeder powered by (1/3) hp drive and pellet mill housing powered by 2 hp drive with 5" OD die and 5" wide discharge chute with 15" ground clearance. Control panel with push button start / stop for mill, auger and mixer. On / off switch and variable speed dial for vibratory feeder. System mounted on a painted base frame with casters.
OAD: 60"L x 35"W x 86"H
