A double cone powder mixer is actually two cones, one inverted into the other, to form the double cone with the mixer rotated about the widest portion of the top and bottom cones. The batch mixer is loaded from the top and the contents allowed to inter mix caused by the rotation of the mixer. Double cone powder mixers can also be jacketed and they can have an intensifier bar along the rotation axis to facilitate breakdown of clumpy materials. Double cone powder mixers can also have liquid addition nozzles along this rotation axis.
A & M Process Equipment, Model ACB30, 5.38 FT³ (3 FT³ working capacity) 304 stainless steel double cone batch mixer with amount of product per hour – depending on materials and application. Vessel dimensions: 26" diameter, 9" straight wall, 8" deep top cone and 10" deep bottom cone. Equipped with 11" ID product port and bolt down cover and has 9"OD / 6" ID flanged discharge with 48" ground clearance. Mixer requires 85" ceiling clearance with 18" swing radius and 36" swing diameter. Control panel with AB controller and touch screen HMI. Mounted on heavy duty frame with lexan safety guarding.
OAD: 114"L x 70"W x 82"H

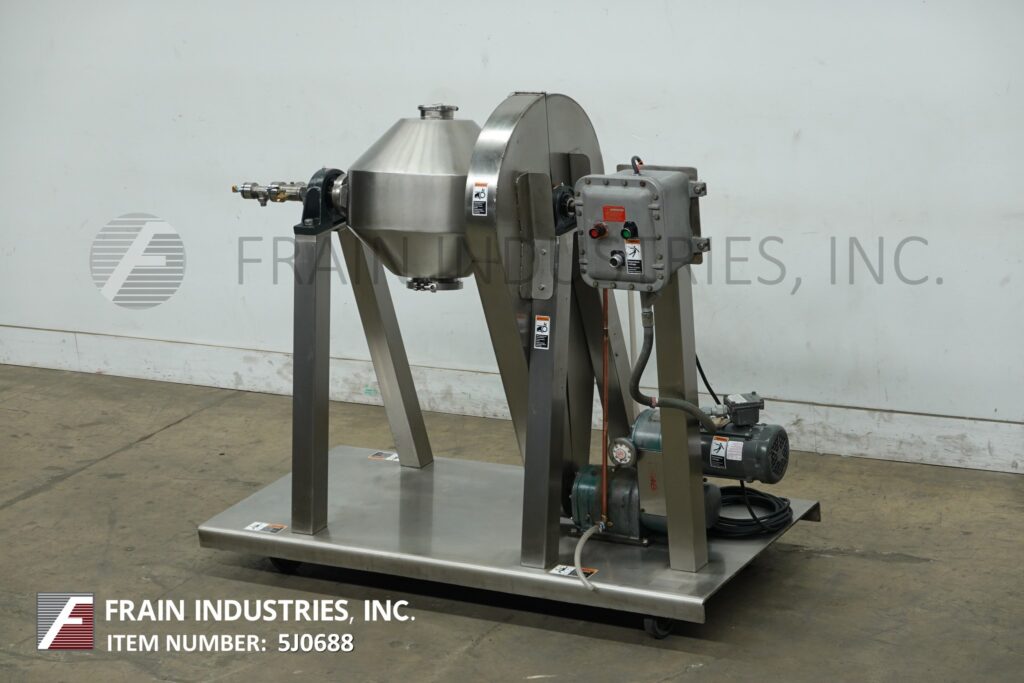

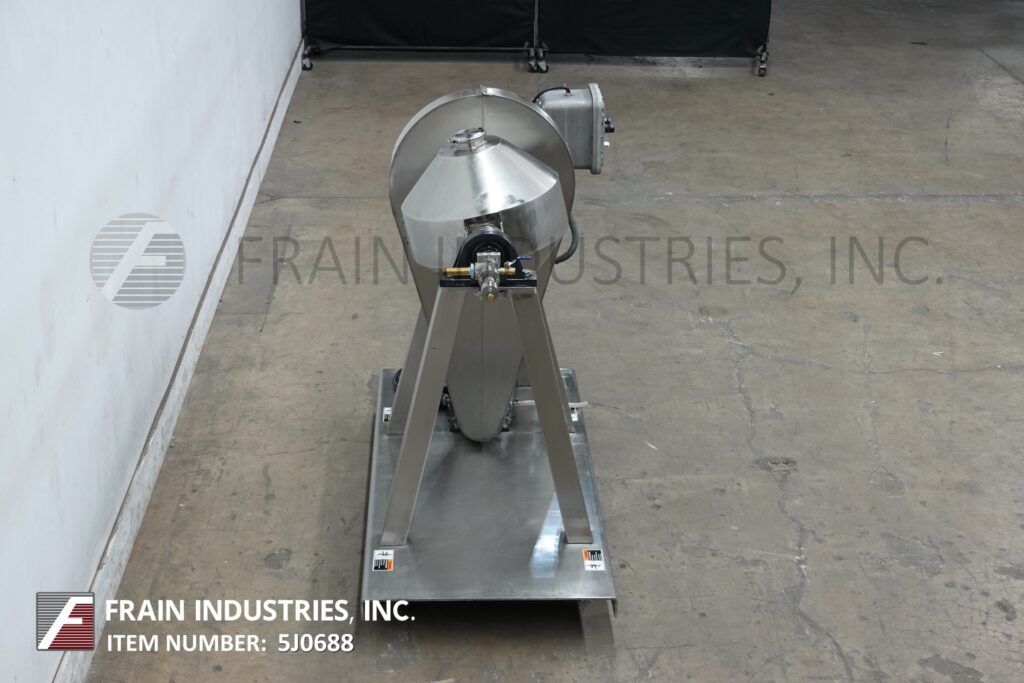

1 cu ft working capacity, rated for a bulk density on average of 65 lbs working capacity per cu ft. 316 S/S double cone tumble mixer, has a liquid solids bar, 11 1/2" hinged cover charge port with a 4"diameter butterfly valve discharge. Nema-7 control panel including motor starter, start/stop push buttons, fuse block. Swing diameter of 65 1/2".
OAD:58”L x 36”W x 50”H

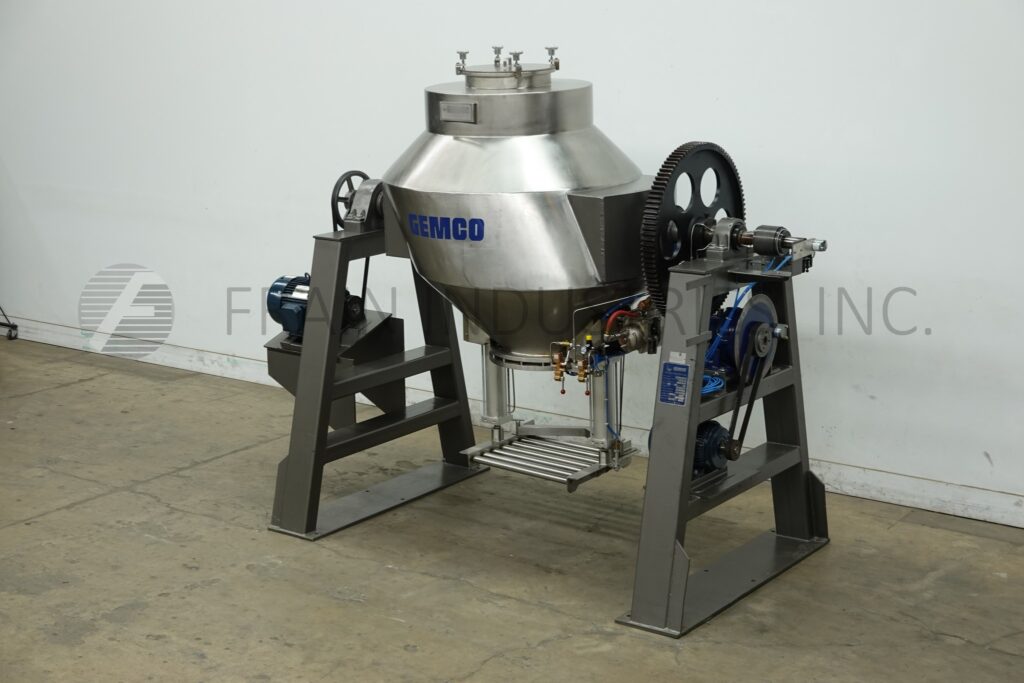

Gemco, 30 ft³, slant double cone vacuum blender. 316 stainless steel contact parts, with pounds of product per hour – depending on materials and application. Maximum material density of 55 lbs/ft³. Vessel dimensions: 55" diameter x 20" straight side with 14" deep top and 24" deep bottom cones. Shell powered by a 7½ hp drive. Equipped with 20½" OD top port with cover, intensifier bar agitator driven by 20 Hp motor drive and pneumatic barrel clamp discharge. Mounted on a stainless steel frame.
OAD: 145" L x 66" W x 110" H
Paul O Abbe, 1.7 ft³, total 1.2 ft³ working capacity stainless steel, roto cone blender with the number of pounds of product per hour – depending on materials, application and machine configuration. Equipped with 24" high cone shell with 10" top and bottom slants and 7" straight wall, with 5" OD top product port with clamp down cover and 7" OD discharge valve with 32" floor clearance, chain and sprocket drive has safety guarding and controller with start, stop push buttons. Mounted on (4) legs with forkable platform.
OAD: 76" L x 32" W x 62" H

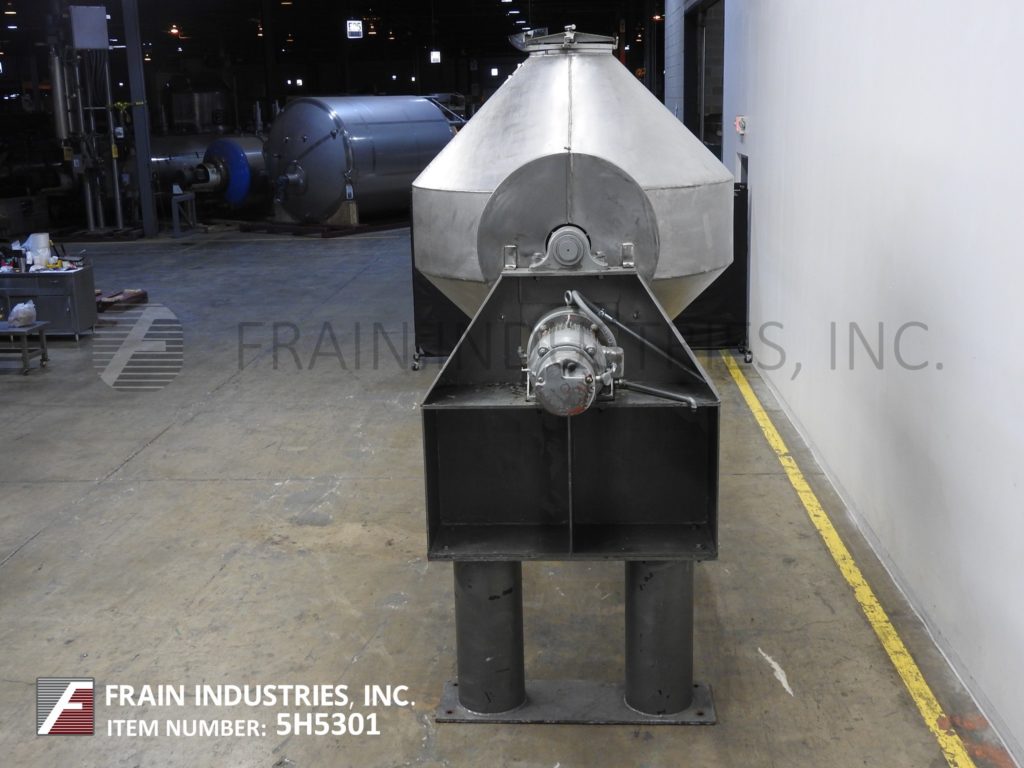

Patterson Kelly, 60 ft³, 304 stainless steel, double cone mixer. Rated to 56 lbs per ft³ with number of Ibs per hour – depending on materials, application and machine configuration. Equipped with (1) 18" ID product port with clamp down cover, 72" long x 72" diameter shell powered by 7½ Hp motor drive and 10" ID butterfly valve discharge with 35" floor clearance. Requires 150" ceiling clearance with 50" swing radius / 100" swing diameter.
OAD: 131"L x 72"W x 130"H
Paul O Abbe, 20 ft³ total capacity (15 ft³ working capacity), 316 stainless steel, double cone mixer. Equipped with (1) 14" ID product port with clamp down cover, 45" long x 42" diameter shell powered by 5 Hp motor drive, pin bar and 8" ID butterfly valve discharge. Requires 80" ceiling clearance with 30" swing radius / 60" swing diameter. Mounted on heavy duty base frame.
OAD: 110"L x 45"W x 70"H
Patterson Processs, Model Conaform 2½ ft³, double cone vacuum dryer. 316 Stainless steel contact parts. Equipped with (1) 8" ID product port with bolt down cover, intensifier, 24" long x 22" diameter shell powered by 1Hp motor drive and 6" ID manual gate discharge. Requires 70" ceiling clearance with 17" swing radius / 34" swing diameter. Mounted on base frame. with pounds per ft³ and pounds per hour – depending on materials, application and machine configuration.
OAD: 70" L x 33" W x 55" H
Full Vacuum @ 300°FJacket: 75 PSI @ 300°FMDMT: 75°F @ 75 PSI Dryer Speed: 26 rpmConagrator Speed: 175 rpmUL Rated National Board # 52
Gemco Model 3 cubic foot working capacity, 304 stainless steel, porta hopper double cone tumble blender with spray bar and pounds of product per hour – depending on materials and application. Cone dimmensions: 40” in Height x 29-1/2" in Diameter with 3-1/2" discharge. Equipped with a pressurized tank 33-1/2" high x 18" OD x 36" floor clearance with 30mm in feed, 73mm discharge (connected to 27" pipe), 43mm side tank discharge, has 3 legs mounted on mild steel base. Hoppers are equipped with Gemco’s dust-tite spherical solids valves of economical butterfly. Mounted on base frame with casters and 3" floor clearance. D/3 design provides greater particle mobility for more efficient blends and easy cleaning.
OAD: 96" L x 64" W x 72" H
Patterson, Model Type B ThoroBlender, double cone, stainless steel, jacketed vacuum drying blender with pounds of product per hour – depending on materials, appllication and bulk density of the product. Overall Capacity: 40 ft³. Working Capacity: 25 ft³. Dimensions: 55" in Diameter; 55" in Height; 14" Straight Wall. Swing Diameter: 72". Equipped with a 17½" diameter bolt down loading hatch, 4 hp drive, 8" diameter pneumatic butterfly valve discharge with 45" of ground clearance, in chamber cartridge filter for a 7½ hp vacuum pump with a maximum flow of 71 CFM mounted on a frame with a secondary filter housing.
Jacket Ports: (2) ¾" NPTVacuum port: (1) 7½"OD / 4"ID flange
OAD: ___" L x ___" W x ___" H

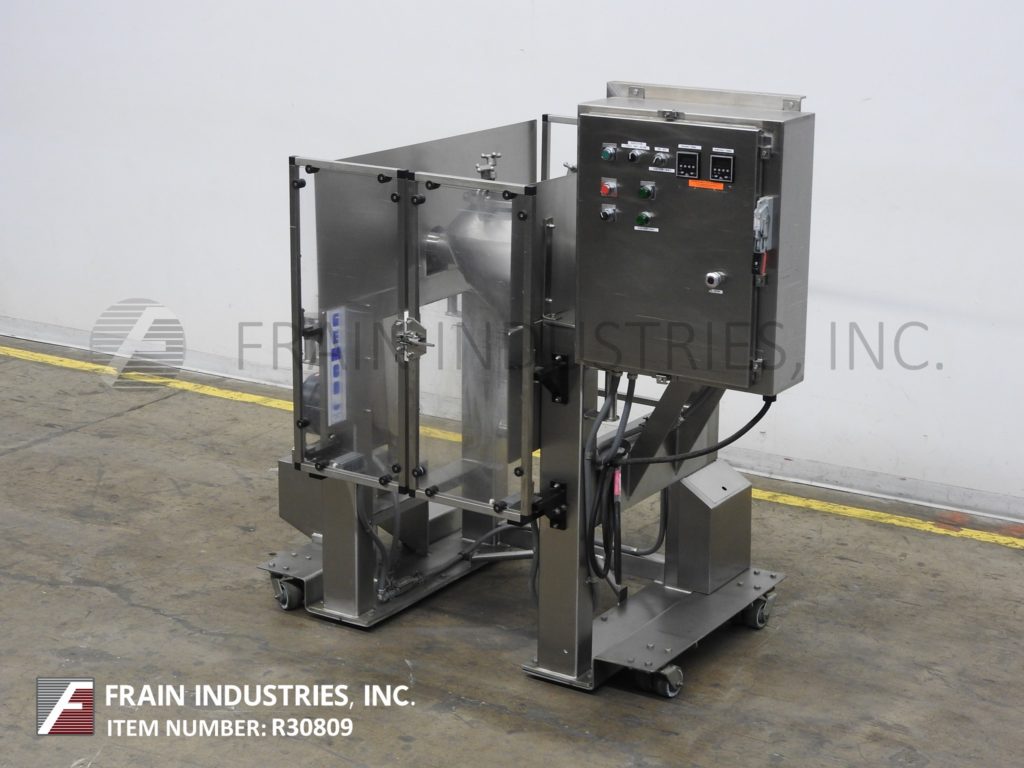

Gemco Model 1 Cubic Foot, stainless steel, slant cone tumble mixer with pounds of product per hour – depending on materials and application. Mixing cone dimensions of: 16" in Length and 16" in width. Equipped with 11" ID in feed and discharge ports with clamp down covers and intensifier bar. Fill level: 1.0 cubic foot maximum / 0.33 cubic foot minimum, rated at 60 lbs bulk density with maximum working temperature of 40 Deg C or 104 Deg F. Control panel has timers for vessel and agitator with agitation fast, off, slow and agitation timer on, off controls has on, jog, off, switch with start, stop and e-stop push buttons. Mounted on heavy duty stainless steel base frame with safety guarding and locking casters.
OAD: 96" L x 55" W x 72" H
Patterson Kelly, 5 ft³, stainless steel, double cone mixer. Rated to 106 lbs per ft³ and Ibs per hour – depending on materials, application and machine configuration. Equipped with (1) 14" ID product port with clamp down cover, 28" long x 30" diameter shell powered by 1 hp motor drive and 6" ID butterfly valve discharge. Requires 85" ceiling clearance with 20" swing radius / 40" swing diameter. Control panel, has start / e-stop and reset push buttons and run/jog control switch. Mounted on stainless steel base frame with casters and lexan guarding.
OAD: 70"L x 46"W x 80"H
Gemco, 16 quart working capacity, all stainless steel, double cone mixer with lbs of product per hour – depending on materials, application and machine configuration. Mixing chamber dimensions: 16" in Length; 14" in diameter; (2) 6" high cones and 4" straight wall; 19" distance from floor to center shaft. Equipped with (1) 3½" ID end product port with bolt down cover and 10½" table clearance, liquid solids bar and swing diameter of 18". Control panel has on / off switches for mixer and liquid solids bar. Mounted on stainless steel base frame.
OAD: 47"L x 17"W x 27"H
