Press equipment or presses are used for the production of a number of products including tablets and briquets. Presses are designed to press granules, powders, or small solids into a single mass using a large amount of pressure. The amount of pressure necessary to press the powders or granules into a solid depends on the characteristics of the material that is to be pressed. Bonding agents are sometimes used in the production of tablets or briquets to assist the various materials in bonding together. Single action tablet presses are designed to produce one tablet per cycle and are used for low levels of production. Rotary tablet presses have multiple tablet pressing heads which allow the press to process multiple tablets at a time, though each tablet is at a different level of completion. Rotary tablet presses produce tablets on a continuous basis. Briquet presses a specifically designed for producing briquets.
Stokes, Model DD2, 31 station, automatic, rotary tablet press. Rated from 100 to 975 tablets per minute – depending on materials, application, machine configuration and environment being run. Maximum pressure of 8.5 tons. Maximum tablet diameter of (15/16)", Maximum fill depth of 1(1/16)". Equipped with (2) 15"OD x 20" deep stainless steel conical product hoppers, (31) 1" OD keyed upper and 1½" lower round dies. Mounted on heavy duty 72" x 48" base frame. Customer to supply tooling.
OAD: 72"L x 48"W x 85"H
Willmes Model TP8, 8,000 litre, stainless steel rotary drum and membrane blatter tank press with volume of product per hour – depending on materials and application. Equipped with 52" OD x 211" long stainless steel rotary drum press has a 5 Hp (4) chain motor to sproket drive with 1-1/2" OD and 3" OD vertical side drum juice drains and membrane silencer. 100" OD x 84" straight wall x 74" slant bottom, stainless steel product feed hopper with (3) 21" OD manways and bolt down covers, (1) 18" OD center port with (2) 3-/12" OD / 2" ID sanitary top ports. 26" OD bottom port has single pnuematic piston slide gate with 34" floor clearence and internal PVC membrane drainage channels to 8" OD flanged end plate with 48" floor clearence and 69" long x 34" wide x 12" high product drip tray with front end auxillary 4.5 Hp vacuum turbine. Control panel has Allen Bradley CPU controller with panel view. Mounted on (4) leg heavy duty painted steel, frame with remote 150 psi membrane blatter air tanks.
OAD: 259" L x 79" W x 267" H Press 80" OD x 117" H Air Tank
Key International Model DC-16, Automatic, 16 station, rotary tablet press, rated from 450 to 770 tablets per minute – depending on materials, application, machine configuration and environment being run in. Maximum operating pressure of 8.5 tons. Maximum tablet OD round: 15/16", Maximum tablet capsule shape length: 1". Maximum fill depth: 13/16". Upper plate has (16) 1" ID keyed dies and lower plate has (16) 1-5/8" ID round dies. 12" OD x 25" Deep stainless steel product hopper with brass feed frame and 16" long x 10" wide discharge plate. Vari-speed belt to motor drive, push button start / stop controls and 24" OD pedestal base. Mounted on 30" long x 30" wide forkable platform frame. Customer to supply tooling.
OAD: 46" L x 40" W x 71" H With Hopper
Key International, Model CMD3, 16 station rotary press, rated from 350 to 650 tablets per minute – depending on materials, application, machine configeration and enivorment being run in. Compression: up to 8.5 tons. Maximum tablet diameter of (15/16)"; Maximum fill depth of (13/16)". Equipped with 1" OD keyed upper punches and 1½" OD dies and 2 Hp motor to sproket drive. Mounted on 48" x 42" pedestal base frame. Customer to supply tooling.
OAD: 48"L x 42"W x 75"H
Stokes, Model 512, Automatic,16 station, rotary, tablet press rated from 350 to 650 tablets per minute – depending on materials, application, machine configeration and enivorment being run in. Compression: up to 4 tons. Maximum tablet diameter of (5/8)"; Maximum fill depth of (11/16)". Equipped with ¾" OD keyed upper punches, 1¼" OD dies and 1½ Hp motor to sproket drive. Mounted on 42" x 40" pedestal base frame. Customer to supply tooling.
OAD: 42"L x 40"W x 71"H
Stokes, Model 512, Automatic, 16 station rotary tablet press rated from 350 to 650 tablets per minute – depending on materials, application, machine configeration and enivorment being run in. Compression: up to 4 tons. Maximum tablet diameter of (5/8)"; Maximum fill depth of (11/16)". Equipped with ¾" OD keyed upper punches and 1(1/8)" OD dies and 1½ Hp motor to sproket drive. Mounted on 36" x 36" pedestal base frame. Customer to supply tooling.
OAD: 46"L x 36"W x 68"H
Stokes, Model D3, 16 station, rotary tablet press, rated from 350 to 650 tablets per minute – depending on materials, application, machine configeration and enivorment being run in. Compression: up to 8.5 tons. Maximum tablet diameter of 25.4mm. Equipped with 1" OD keyed dies on upper plate and 1½" OD dies on lower plate. Mounted on 36" x 36" pedestal base frame. Customer to supply tooling.
OAD: 50"L x 38"W x 70"H
Stokes, Model 519-2, Single action tablet press. Rated from 60 to 95 tablets per minute – depending on materials, application, machine configuration and envirment being run. 4 tons maximum top pressure, maximum fill depth of 1(1/16)", maximum OD ¾" compact, with 9" long x 7" wide x 15" deep product hopper, 1½" OD keyed dies and 1 Hp motor drive. Mounted on heavy duty base frame. Customer to supply tooling.
OAD: 34"L x 30"W x 55"H
Stokes Model DD2, 31 station, rotary tablet press, rated from 100 to 975 tablets per minute – depending on material, application and envirerment being run in. Maximum tablet diameter of 15/16”, maximum fill depth of 1 1/16” and 15 tons working pressure. Equipped with dual feed hoppers, non-keyed machine. Mounted on heavy duty base frame. Customer to supply tooling.
OAD: 84” L x 60” W x 90”H

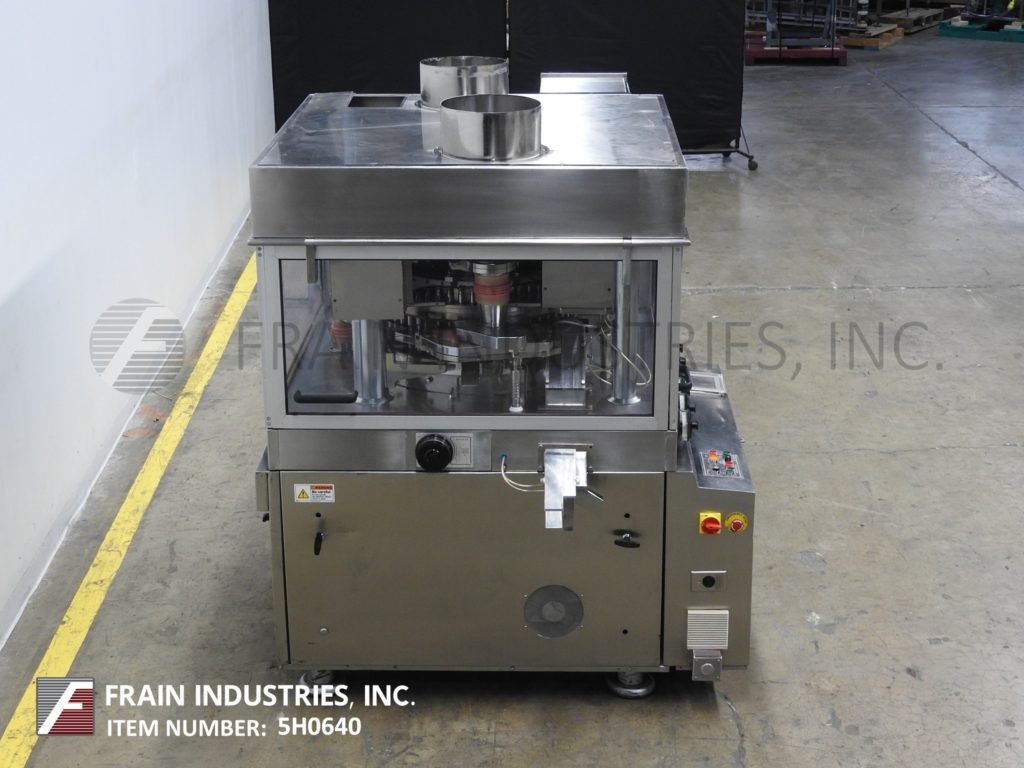

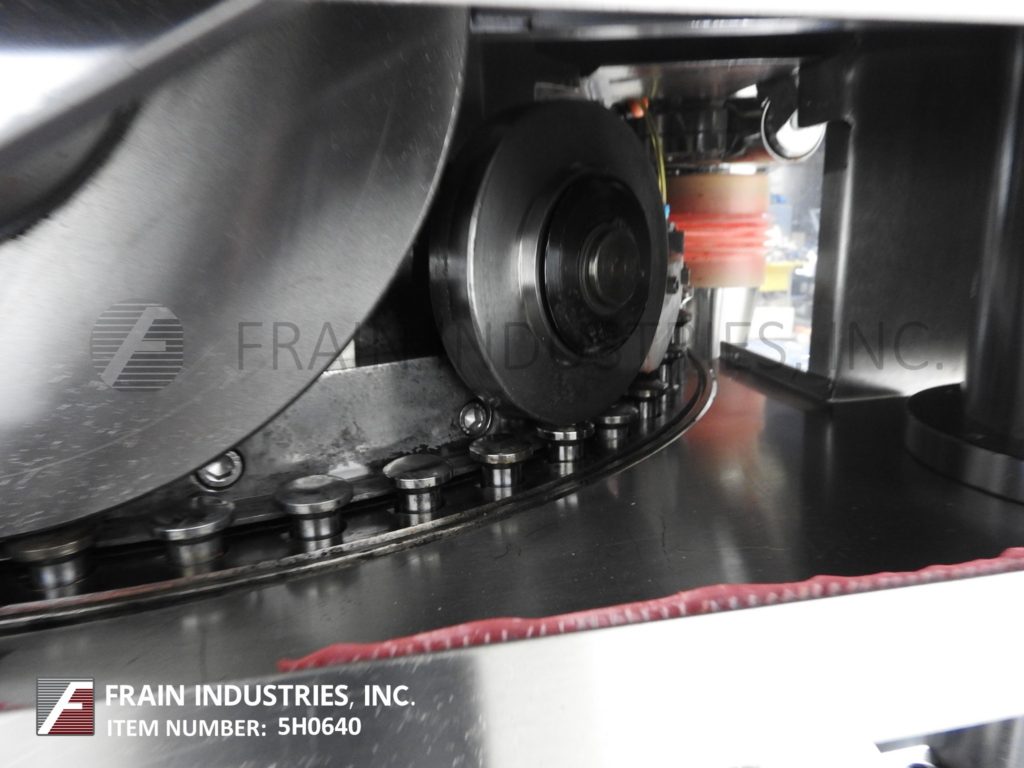

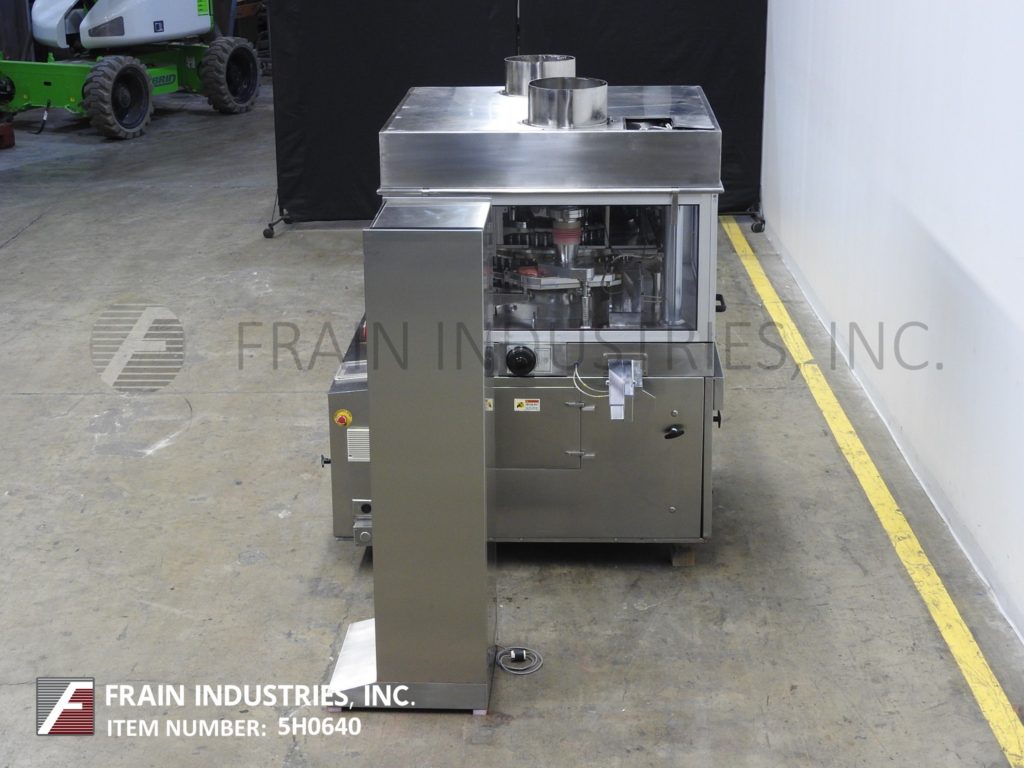

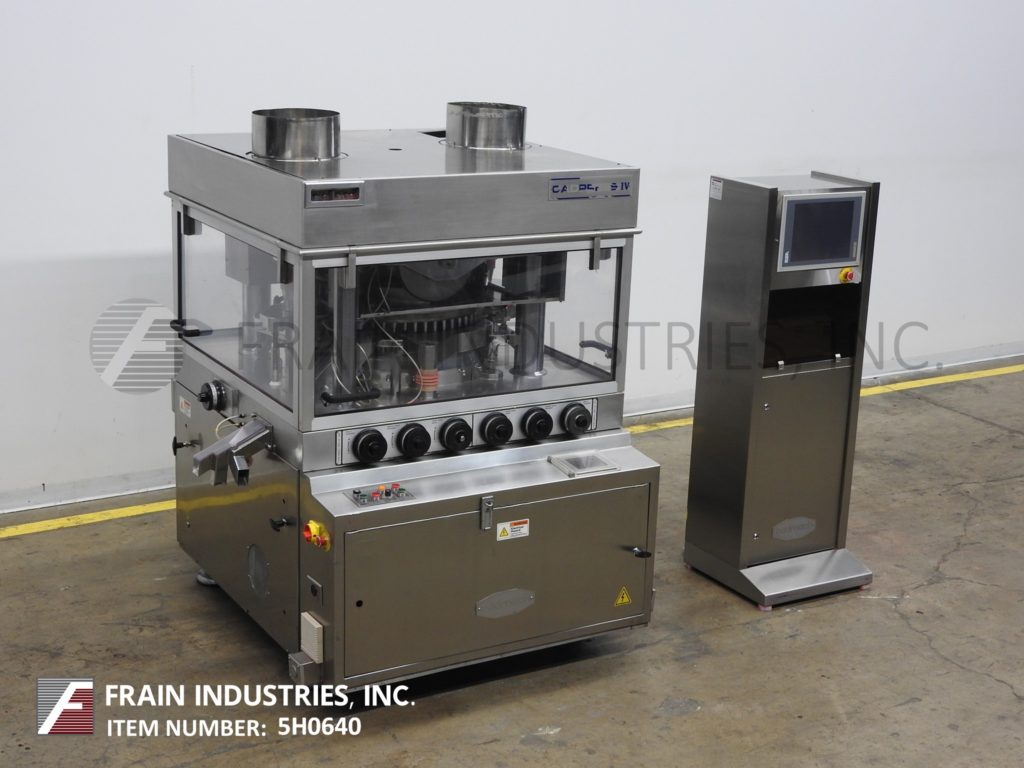

Cadmach, Model CPD IV-55, 2 sided, 55 station rotary tablet press, rated from 1,320 to 6,600 tablets per minute – depending on materials, application, machine configeration and enivorment being run in. Compression: up to 6 tons. Maximum tablet diameter of 16mm; Maximum fill depth of 17mm. Equipped with "B" tooling, keyed uppers, (2) 12" diameter x 20" deep product hoppers with level sensors and flow valves, 1 ton pre-compression, and (2) three lane discharge chutes with diverters for random sampling and start relief rejecting. Remote control panel with AB controller, touch screen display, push button start / stop, push button compression force and variable speed dial. Mounted on stainless steel base frame. Customer to supply tooling.
OAD: 70"L x 63"W x 75"H (Press) 22"L x 22"W x 66"H (Remote Console)
