Scale equipment or scales are used weigh products as part of the production process. Product is incrementally fed into product holding buckets, called product buckets, until the proper weight is reached. In a linear scale system, the one bucket that has reached the desired weight is discharged. In a combination scale system, the proper combination of buckets (one or multiple) are discharged to reach the proper weight. Bucket scale systems and equipment often discharge into directly into packaging machinery such as vertical or horizontal form, fill, and seal machines. Important factors to consider when selection the proper scale system include the volume of the product to be weighed, the weight of the product to be weighed, the speed at which the scale must operate (number of weighs per minute), the packaging machine that the scale will be integrated to, and plant environment into which the scale will be installed.

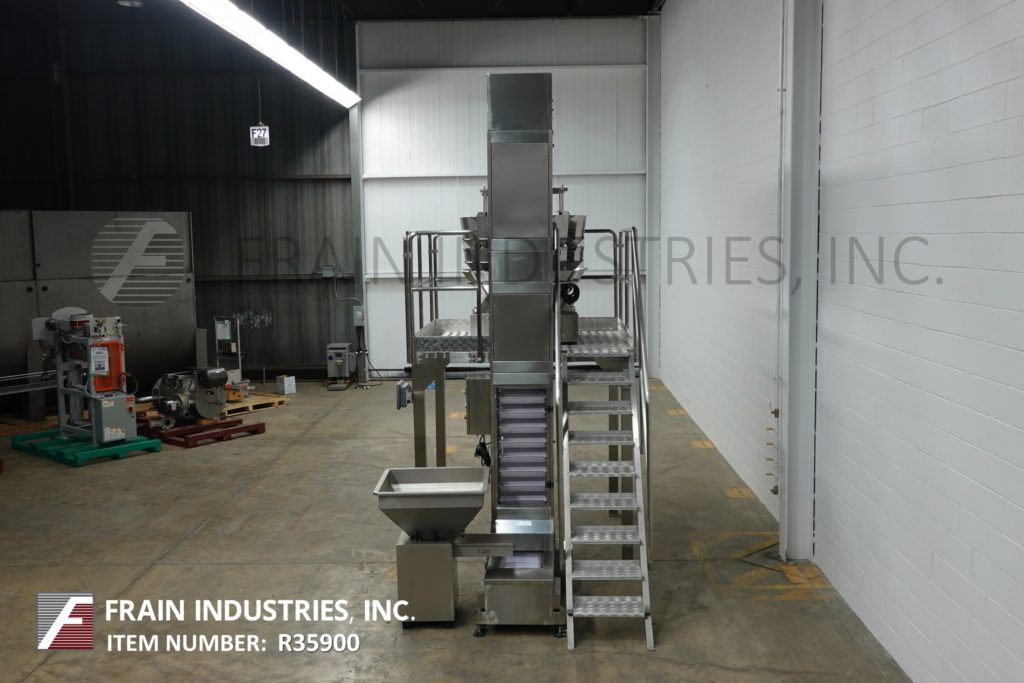

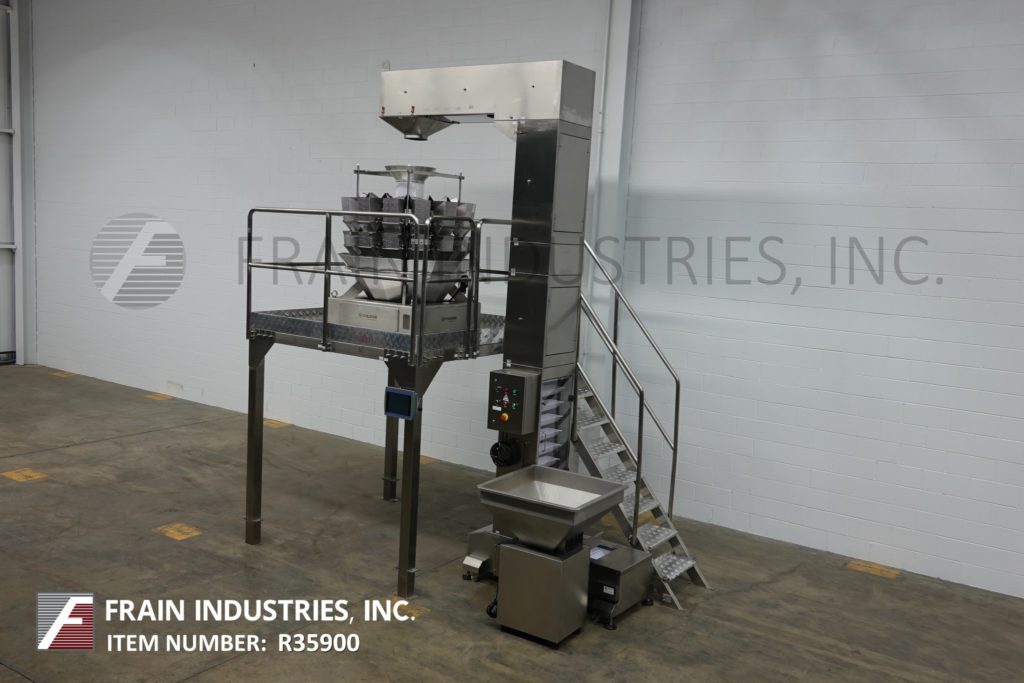

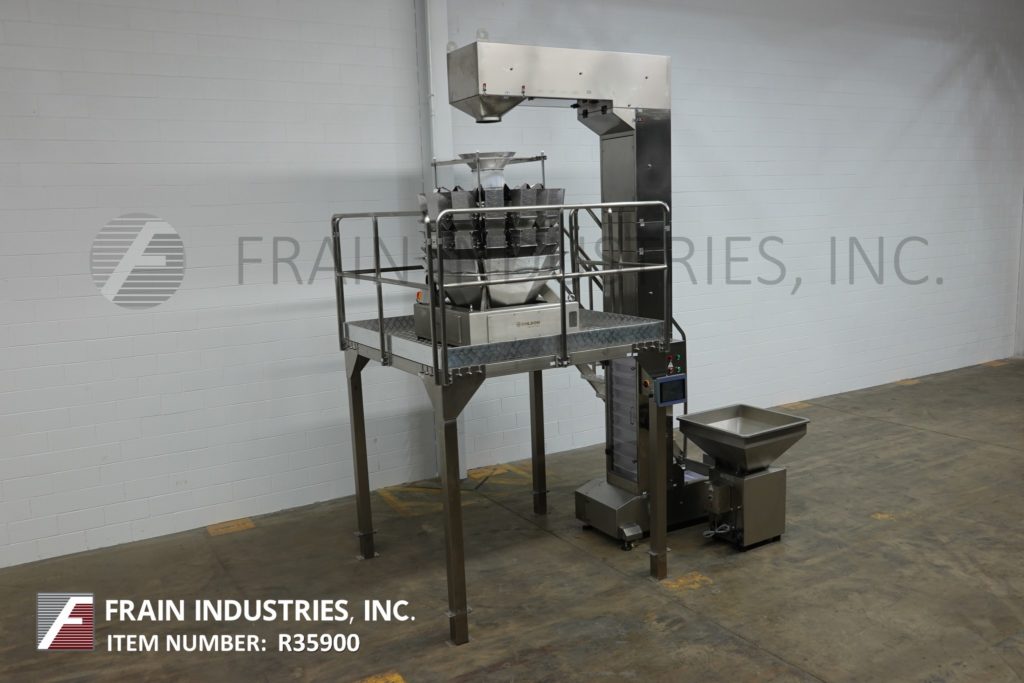

Yamato Model ADW-A-0214S, Combination weigh scale and filling system. Rated up to 200 weighs per minute – depending on materials, application and machine configuration. Maximum weight up to 1000g. Line consists of Eriez Model 36C product hopper, Frazier & Son Model C bucket elevator, Yamato Model ADW-A-0314S and (14) head combination weigh scale system. Product hopper, 34″ x 32″ x 42″ deep with touch screen HMI. Stainless steel vertical bucket elevator with 6″ x 10″ buckets and 154″ discharge with A/B touch screen HMI and A/B PLC controls. Yamato stainless steel combination weigh scale system with (14) heads, 3 liters maximum volume, and weight range from 8 to 1000 grams. Product in feed funnel, with (14) vibratory linear feed pans to (14) feed buckets, to (14) weigh buckets and product collating discharge chutes. Mounted on 175″ long x 120″ wide platform and 97″ high mezzazine with safety rails and access stairs.
OAD: 48″ L x 48″ W x 50″ H With Out Platform 180″ L x 172″ W x 197″ H With Platform & Bucket Elevator
Ohlson Packaging, combination weigh scale, filling system. Line consists of Olsen Model MHW-CW14-SSD dimpled bucket, combination weigh scale system with 14 head dimpled, stainless steel combination weigh scale system with 3 liter buckets and strain gauge load cells. Weight range from 10 to 3000 grams with accuracies of ± 0.5 grams. Product in feed funnel, with (14) vibratory linear dimpled feed pans to (14) dimpled feed buckets, to (14) dimpled weigh buckets and product collating discharge chutes. With stainless steel vertical bucket elevator and product hopper with stainless steel platform with safety rails and stairs. Speed dependent on materials, application and machine configuration.
OAD: 156"L x 90"W x 176"H
Ohlson Packaging, combination weigh scale and filling system with amount of product per hour – dependent on materials, application and machine configuration. Equipped with Olsen Model MHW-CW14-0.5SS, (14) head stainless steel combination weigh scale system has 0.5 liter buckets with strain gauge load cells. Weight range: 15 to 8000 grams with accuracies of ± 0.5 grams. Product in feed funnel with (14) smooth vibratory linear feed pans, (14) smooth feed buckets, (14) smooth weigh buckets and product collating discharge chutes. Mounted on stainless steel frame with electrical cabinet and has 0-99 program memory.
OAD: 156" L x 90" W x 176" H
Ohlson Packaging, combination weigh scale, filling system. Stainless steel combination weigh scale system with 3 liter buckets and strain gauge load cells. Weight range from 10 to 3000 grams with accuracies of ± 0.5 grams. Product in feed funnel, with (14) vibratory linear dimpled feed pans to (14) dimpled feed buckets, to (14) dimpled weigh buckets and product collating discharge chutes.
Ohlson Packaging, Complete combination weigh scale, filling system with number of containers per minute – depending on materials and application. Line consists of Ohlson Model MHW-CW14-SSD dimpled bucket, combination weigh scale system with 14 head dimpled, stainless steel combination weigh scale system with strain gauge load cells and has a weight range from 25 to 500 grams with accuracies of ± 0.1 grams and capacities from 500ml to 2500ml. Product in feed funnel, with (14) 11½" long vibratory linear dimpled feed pans to (14) 6" long x 4¾" wide x 9" deep dimpled feed buckets, to (14) 6" long x 4¾" wide x 9" deep dimpled weigh buckets and 10" wide x 30" long product collating discharge chutes. Control panel has Microprocessor and electronic control hardware with weigher base and remote-control unit with TFT color touch screen display and up to (100) product programs, battery backup memory and Model VB-1806-2LSS-D dimpled stainless steel vertical bucket elevator and SH-2SS-D product hopper with Model MHW-PF-SS stainless steel platform with safety rails and stairs.
OAD: ___" L x __" W x __" H

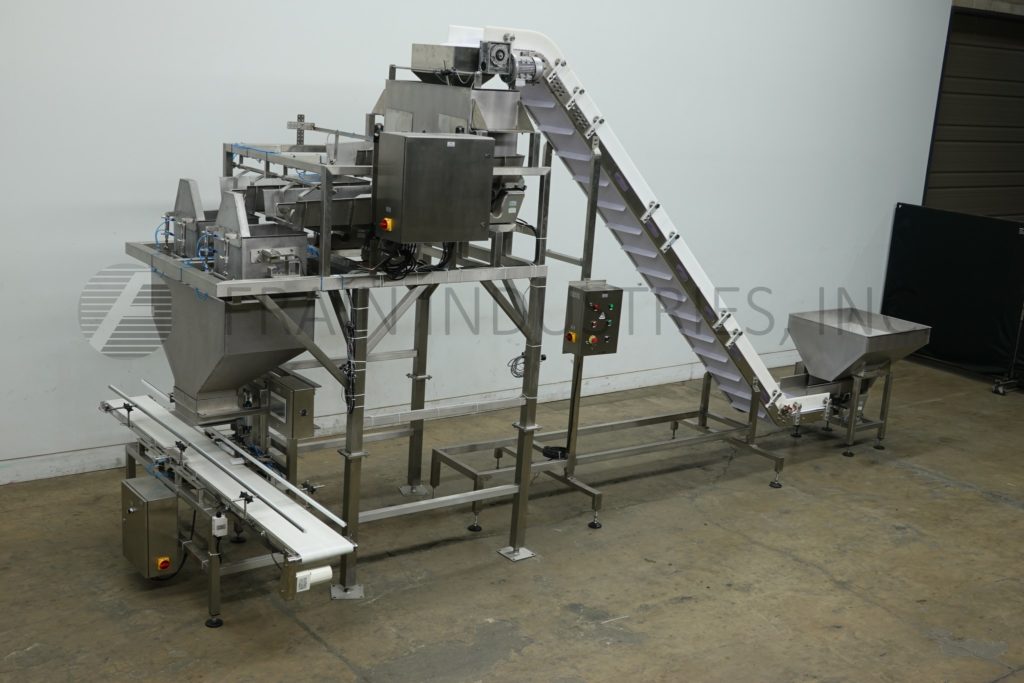

Ohlson, Model 2XL2, automatic, stainless steel, (2) scale, weighing system with inclined cleated feeder capable of weighing from 5 lbs to 50 lbs and up to 20 weighments per minute with number of bags or containers per hour – depending on materials. application and machine configuration. Equipped with 36" wide x 36" wide x 20" deep stainless steel floor level product hopper with a 46" feed height and 35" long x 12" wide product feed chute, stainless steel cleated incline conveyor with 24" long in feed section and 160" long x 16½" wide inclined cleated conveyor section with 2" high cleats set on 10¼" centers, to Ohlson Model 2XL2 dual lane, bulk / trickle scale capable of weighs up to 200 lbs (100 lbs per lane). 1¾ cu.ft. (3000 inches³) weigh buckets, (2) 32" long x 14" wide x 7" deep vibratory pans per lane and 120" long x 11¾" wide discharge conveyor. Control panel has PLC Controller with touch screen HMI. All mounted on stainless steel base frames.
OAD: 240" L x 120" W x 132" H
Ohlson Packaging, combination weigh scale, filling system. Line consists of Olsen Model MHW-CW14-SSD dimpled bucket, combination weigh scale system with 14 head dimpled, stainless steel combination weigh scale system with 3 liter buckets and strain gauge load cells. Weight range from 10 to 3000 grams with accuracies of ± 0.5 grams. Product in feed funnel, with (14) vibratory linear dimpled feed pans to (14) dimpled feed buckets, to (14) dimpled weigh buckets and product collating discharge chutes. Stainless steel mezzanine equipped with a 108" x 88" standing platform set 86" off the ground, (11) step staircase and 40" high guard rail.
OAD: 171"L x 108"W x 147"H
Ohlson Packaging, Complete combination weigh scale, filling system with number of containers per minute – depending on materials and application. Line consists of Olsen Model MHW-CW14-SSD dimpled bucket, combination weigh scale system with 14 head dimpled, stainless steel combination weigh scale system with strain gauge load cells and has a weight range from 25 to 500 grams with accuracies of ± 0.5 grams and capacities from 500ml to 2500ml. Product in feed funnel, with (14) 11½" long vibratory linear dimpled feed pans to (14) 6" long x 4¾" wide x 9" deep dimpled feed buckets, to (14) 6" long x 4¾" wide x 9" deep dimpled weigh buckets and 10" wide x 30" long product collating discharge chutes. With Model VB-1806-2LSS-D dimpled stainless steel vertical bucket elevator and SH-2SS-D product hopper with Model MHW-PF-SS stainless steel platform with safety rails and stairs.
Ohlson Packaging, complete stainless steel, combination weigh scale, bag filling system with number of bags per minute – depending on materials and application. Line consists of Olsen stainless steel bucket elevator with 15" long x 4½" wide x 3½" deep plastic buckets and has 26" long bottom horizontal run, to 142" long vertical run, to 72" long top horizontal run with 150" discharge height into the Ohlson 14 head stainless steel combination weigh scale system with strain gauge load cells and has a weight range from 25 to 500 grams with accuracies of ± 0.5 grams and capacities from 500ml to 2500ml. Product in feed funnel, with (14) 11½" long vibratory linear feed pans to (14) 6" long x 4¾" wide x 9" deep feed buckets, to (14) 6" long x 4¾" wide x 9" deep weigh buckets and 10" wide x 30" long product collating discharge chutes. Mounted on 78" x 78" stainless steel platform with stair access and safety rail guarding
OAD: 168" L x 72" W x 166" H
Ohlson Packaging, complete combination weigh scale, bag filling system with number of bags per minute – depending on materials and application. Line consists of Ohlson stainless steel bucket elevator with 15" long x 4½" wide x 3½" deep plastic buckets and has 26" long bottom feed horizontal run, to 142" long vertical run, to 72" long top horizontal run with 150" discharge height into the Ohlson 14 head stainless steel combination weigh scale system with strain gauge load cells, dimpled product buckets and has a weight range from 25 to 500 grams with accuracies of ± 0.5 grams, capacities from 500ml to 2500ml. Has product in feed funnel, with (14) 11½" long vibratory linear feed pans to (14) 6" long x 4¾" wide x 9" deep feed buckets, to (14) 6" long x 4¾" wide x 9" deep weigh buckets and 10" wide x 30" long product collating discharge chutes. Mounted on 78" x 78" stainless steel platform with stair access and safety rail guarding

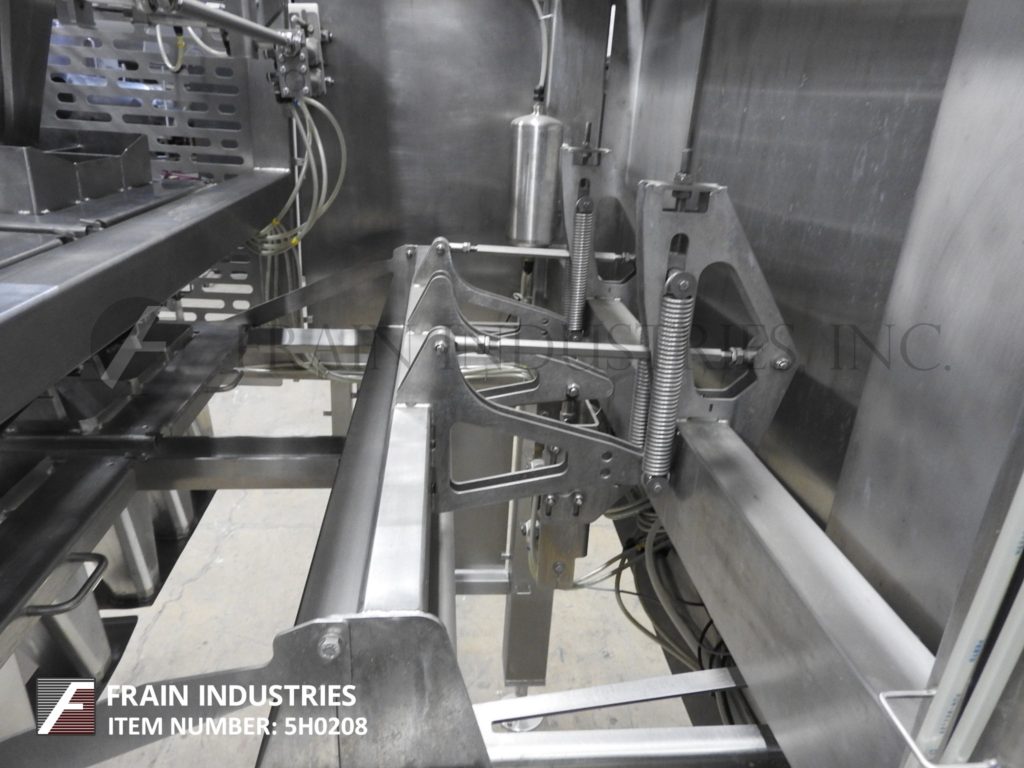

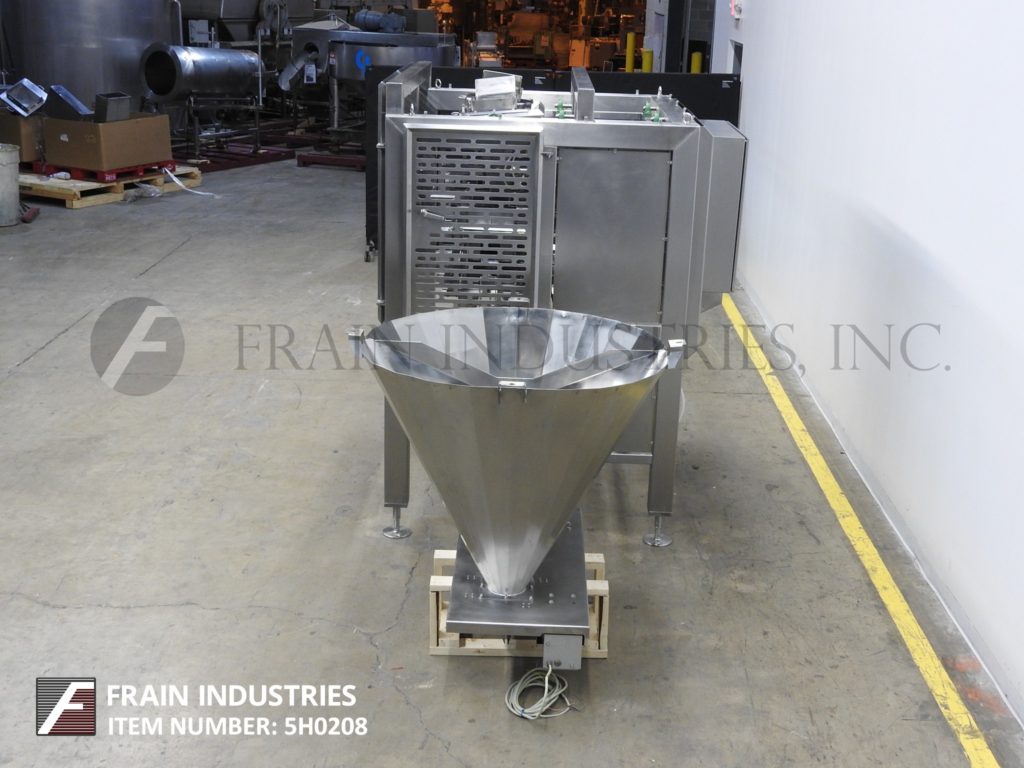

Multipond, Model UGS, 6 lane / 2 row distribution system. Rated from 100 to 300 weighing operations per minute – depending on materials, application and machine configuration. Equipped with a twin cone supply hopper (each side 46" diameter x 38" deep) with (2) drop buckets, (2) 1 to 6 compartment distribution heads and (12) total drop chutes in a 2 x 6 configuration.
OAD: 70"L x 70"W x 130"H
