Shrink bundlers are designed to wrap a single piece or bundle of product in heat shrinkable plastic film. Shrink bundlers are designed to form the plastic wrap around the product or bundle using two rolls or plastic film (with only one notable exception). Shrink bundlers create bundles or product that have open ends know as bulls-eyes on each side of the package. By using film that is much wider than the bundle on a shrink bundler, the size of the bulls-eye can be reduced. By using a film that is narrower than the bundle on a shrink bundler, the bundle of product is wrapped by a band of plastic.
Shrink bundlers take in product and pass the product bundle through a barrier of film that is created by heat sealing the film ends of two rolls of plastic film. As the bundle passes through the film barrier, the top roll of the film wraps around the top of the bundle and the bottom roll of the film wraps around the bottom of the bundle. After the container has passes the heat sealing station, the seal jaws on the shrink bundler come together again to seal the films together after the bundle and to separate the wrapped bundle from the remainder of the film. This action leaves a film barrier created by heat sealing the ends of the film together, which allows the next shrink bundle to pass through the film barrier. The shrink bundle then passes through a heat shrink tunnel to shrink the film around the bundle of product.
Hartness Model 4510-60 Global Shrink, Continuous motion, inline, shrink wrapper and tunnel for PET bottles or canned product, rated up to 60 cycles per minute with the number of trays and products – depending on materials, application and machine configuration. Single roll shrink wrapper to run trays or pads with both clear or printed film with proper change parts. Maximum tray size: 20" long x 24" wide x 12" high. Equipped with 352" long x 54" wide accumulation section with (8) lane product infeed conveyor, (2) chain blank tray magazine (2) chain x 210" long tray feed conveyor, with up feed conveyor and Nordson Problue hot melt glue system, servo controlled film feed with cutting and wrapping wand, 36-1/2" wide x 104" long (3) section feed conveyor to shrink tunnel. Laminar shrink tunnel has 24" high x 40" wide aperture x 240" long chamber with 54" wide x 250" long belt and top mounted discharge cooling fans. Control Panel has A/B PLC with touch screen HMI and has shrink wrap start and stop and tunnel start, reset, stop push buttons with infeed / outfeed zone controllers and e-stop with A/B powerflex vari-speed controllers. Mounted on heavy duty frame with interlock Lexan safety door guarding and safety switches.
OAD: 912" L x 140" W x 113" H
EDL Model FBS24, inline, continuous motion, bundler and integrated shrink tunnel. Rated up to 35 bundles per minute – depending on materials and application. Product size range: 5" to 24" in Length x 3" to 14" in width x 3" to 13" in Height. Equipped with 84" long x 14" wide in feed conveyor and has Pneumatic gate indexing, 25" wide hot impulse seal jaws set on 30" centers with flight bar, side mounted film racks and film rolls up to 24" in width; and 16" OD. Single zone shrink tunnel with 24" wide x 122" long flex link conveyor and 18” in width x 15" in height aperture and 78" long chamber with (2) top mounted blower motor. Control panel has Allen-Bradley controller with touch screen HMI. Mounted on heavy duty frame with status light bar and interlocked safety guarding.
OAD: 225"L x 82"W x 85"H

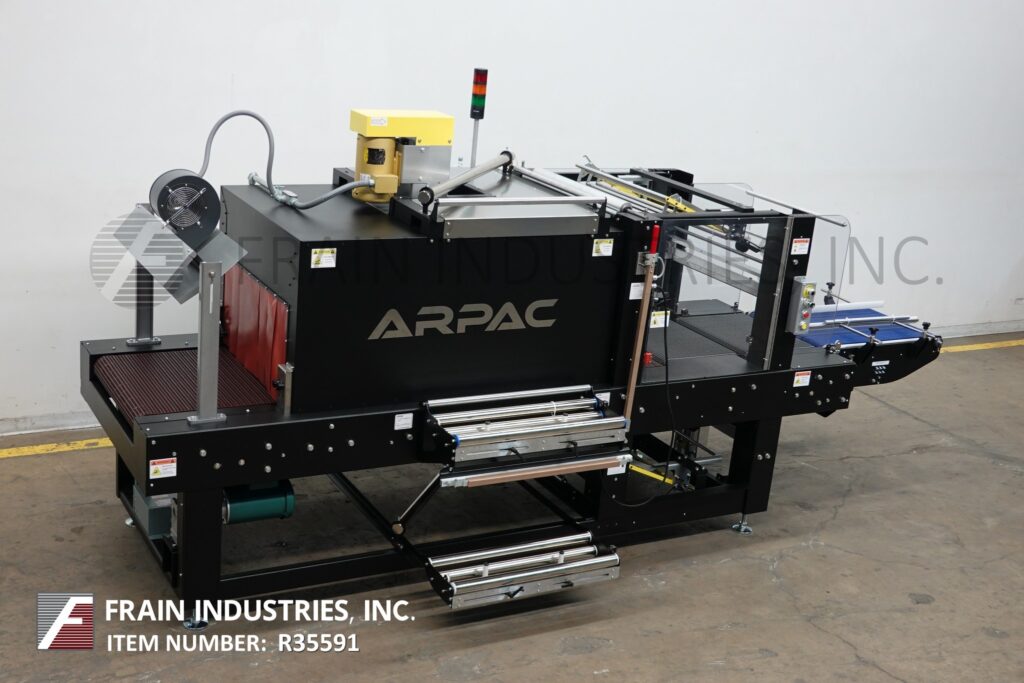

Arpac, Model 25TW-28, inline, intermittent motion, bundler and integrated shrink tunnel rated up to 25 bundles per minute – depending on materials and application. Product size range: 7" to 20" in Length x 6" to 18" in width x 4" to 12" in Height. Equipped with 20" long x 24" wide in feed conveyor, 28" wide hot impulse seal jaw with 13" vertical travel, side mounted film racks and splice station, with film rolls up to 27" in width; and 14" OD on 3" core. 18" long x 24" wide transfer conveyor into single zone shrink tunnel with 29" wide flex link conveyor and 32” in width x 16" in height aperture and 67" long chamber, top mounted blower motor and cooling blower at discharge. Control panel has Allen-Bradley controller with PanelView operator interface and color touch screen, message display and self-diagnostics, low film alert, bypass mode – allows product to pass through the machine without being wrapped and without heating the tunnel. Mounted on heavy duty frame with status light bar and interlocked safety guarding.
OAD: 180"L x 78"W x 80"H
EDL Model FBS22, inline, continuous motion, bundler and integrated shrink tunnel. Rated up to 35 bundles per minute – depending on materials and application. Product size range: 10" to 24" in Length x 5" to 11" in width x 3" to 10" in Height. Equipped with 76" long x 15" wide in feed conveyor and has pneumatic gate indexing, 23" wide hot impulse seal jaws set on 27" centers with flight bar, film rolls up to 22" in width; and 12" OD. Single zone shrink tunnel with 24" wide flex link conveyor and 26” in width x 16" in height aperture and 77" long chamber with top mounted blower motor. Control panel has Allen-Bradley controller with touch screen HMI. Mounted on heavy duty frame with status light bar and interlocked safety guarding.
OAD: 231"L x 61"W x 96"H
EDL Model FBS22, inline, continuous motion, bundler and integrated shrink tunnel. Rated up to 35 bundles per minute – depending on materials and application. Product size range: 10" to 24" in Length x 5" to 14" in width x 3" to 10" in Height. Equipped with 80" long x 15-1/4" wide in feed conveyor, 124" long x 24" wide metering conveyor with pneumatic gate indexing, 25" wide hot impulse seal jaws set on 27" centers, with flight bar, film rolls up to 24" in width; and 16" OD. Single zone shrink tunnel with 24" wide flex link conveyor and 25” in width x 16" in height aperture and 80" long chamber with top mounted blower motor. Control panel has Allen-Bradley controller with touch screen HMI. Mounted on heavy duty frame with status light bar and interlocked safety guarding.
OAD: 240"L x 58"W x 80"H
Skinetta, Model Film Teq 3030, Automatic, inline, intermittent motion, single lane up end shrink bundler and tunnel. Rated from 10 to 32 cycles per minute with number of product – depending on materials and application. Bundle size range: 5" to 16" in Length; 3" to 11" in Width; 3 to 10" in Height. Bundler: With 10" wide x 46" long in feed conveyor, 16" long product upending section with side product assist belts, 12" wide seal jaw and interlocking safety guarding. Control panel has touch screen HMI and statis light bar.Single zone shrink tunnel: With 12" wide x 12" high aperature and 24" long shrink chamber with top mounted blower and has speed and velocity control dials and discharge cooling fan. Both mounted on (4) leveling leg frames with interlock guarding.
OAD: 195"L x 50"W x 90"H
EDL, inline, continuous motion, bundler and integrated shrink tunnel. Rated up to 55 bundles per minute – depending on materials and application. Product size range: 7" to 28" in Length x 6" to 22" in width x 4" to 9" in Height. Equipped with 40" long x 14" wide in feed conveyor, 45" long x 14" wide metering conveyor with pneumatic gate indexing, 23½" wide hot impulse seal jaws set on 30" centers stream flight bar, side mounted film racks, with film rolls up to 22" in width; and 14" OD. Single zone shrink tunnel with 24" wide flex link conveyor and 24” in width x 16" in height aperture and 60" long chamber and top mounted blower motor. Control panel has Allen-Bradley controller with touch screen HMI. Mounted on heavy duty frame with status light bar and interlocked safety guarding.
OAD: 222"L x 78"W x 93"H
Arpac, semi automatic, inline, shrink bundler and tunnel. Rated from 1 to 15 bundles per minute – depending on materials, application and operator dexterity. Product size range: 6" to 18" in Length x 6" to 35" in Width x 6" to 18" in Height. Arpac Model 737C bundler equipped with 37" wide hot knife seal jaws with 20" vertical travel and (2) handed cycle start push buttons and roller transfer conveyor into shrink tunnel, powered film feed and has film specifications of 37" in width up to 14" in diameter on 3" OD core and film type polyethylene or low density polyethylene with film gauge of 1 to 3 mil.
Arpac Model HVP, single zone shrink tunnel with total aperture of 40” in width x 20" in height and has a chamber length of 60" with top mounted blower. Control panel has temperature, variable air flow, variable conveyor speed and e-stops. Capable of running boxes, trays, cartons or any conveyable type product. Mounted on a common frame with leveling legs.
OAD: 141" L x 61" W x 83" H
Arpac, Model 25TW-28, inline, intermittent motion, bundler and integrated shrink tunnel rated up to 25 bundles per minute – depending on materials and application. Equipped with 34" long x 24" wide in feed conveyor, 28" wide hot impulse seal jaw with 13" vertical travel, side mounted film racks and splice station, with film rolls up to 27" in width; and 14" OD on 3" core. 38" long x 24" wide transfer conveyor through seal and into single zone shrink tunnel with 29" wide flex link conveyor and 32” in width x 16" in height aperture and 67" long chamber, top mounted blower motor and cooling blower at discharge. Control panel has Allen-Bradley controller with PanelView operator interface and color touch screen, message display and self-diagnostics, low film alert, bypass mode – allows product to pass through the machine without being wrapped and without heating the tunnel. Mounted on heavy duty frame with status light bar and interlocked safety guarding.
Arpac, Model 45TW-28, inline, intermittent motion, bundler and integrated shrink tunnel.Equipped with 70" long x 24" wide in feed conveyor, 29" wide seal jaw with 12" vertical travel, side mounted film racks and splice station, 66" long x 17" wide transfer conveyor through seal and into single zone shrink tunnel with 29" wide flex link conveyor and 28” in width x 16" in height aperture and 70" long chamber, top mounted blower motor and cooling blower at discharge. Allen-Bradley controller with PanelView operator interface and color touch screen, message display and self-diagnostics, low film alert, bypass mode – allows product to pass through the machine without being wrapped and without heating the tunnel. Mounted on heavy duty frame with status light bar and interlocked safety guarding. Speed dependent on materials, application and machie configuration. Film rolls up to 28" in width; and 14" OD on 6" core.
OAD: 262"L x 80"W x 88"H
Arpac, Model 108-24P, Automatic, inline, shrink bundler and tunnel. Equipped with 12" wide x 93" long right angled product in feed conveyor, two roll bottom film carriage 24" in width; 14" OD on 3" OD cores, single arm product pusher, 25" wide heat seal jaw with 11" of vertical travel, top product hold down.Single zone shrink tunnel with 32" wide x 19" high total aperture and 83" long shrink chamber with top mounted blowers and 24" wide x 180" long product conveyor. Control panel has AB PLC and has start, stop, reset and e-stop push buttons and tunnel, seal bar, left and right side seal temperature controls, interlock safety guarding and statis light bar. Mounted on heavy duty frame with casters.
Speed dependent on materials, application and machine configuration.
OAD: 260"L x 115"W x 81"H
