Home ยป A & B Process Systems
A & B Process Systems, 90 gallon capacity, 304 stainless steel single wall tank. Vessel dimensions: 36" diameter x 30" deep with a 20" straight wall. Equipped with scrape agitation powered by a 7½ hp drive, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri Clamp fitting and thermowell. Cone bottom has 3½" OD / 3" ID tri-clamp center bottom discharge with 18" ground clearance.
Top Access Ports:(1) 8" diameter manway(1) 3" diameter open vent(1) 3½"OD / 3"ID Tri-Clamp(2) 2½"OD / 2"ID Tri-Clamp
Bottom Access Ports:(1) 2½"OD / 2"ID Tri-Clamp
OAD: 41"L x 40"W x 93"H
A & B Process Systems, 400 gallon capacity, 304 stainless steel single wall tank. Vessel dimensions: 56" diameter x 57" deep with a 40" straight wall. Equipped with scrape agitation powered by a 7½ hp drive, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri Clamp fitting and thermowell. Cone bottom has 3½" OD / 3" ID tri-clamp center bottom discharge with 36" ground clearance.
Top Access Ports:(1) 18" diameter manway(1) 6" diameter open vent(1) 4½"OD / 4"ID Tri-Clamp(2) 3½"OD / 3"ID Tri-Clamp(1) 2½"OD / 2"ID Tri-Clamp
Bottom Access Ports:(1) 3"OD / 2½"ID Tri-Clamp
OAD: 60"L x 60"W x 140"H
AB Process, 2000 gallon capacity, 304 stainless steel jacketed process tank. Vessel dimensions: 90" diameter with a 80" straight wall. Equipped with a dome top with a 20" diameter top hinged man way, (2) CIP spray balls supplied by a 2½"OD / 2"ID Tri-clamp fitting, 15 Hp top mounted scrape agitator, dish bottom with 3"OD / 2½"ID Tri-clamp discharge with 10" ground clearance and pneumatic ball valve.
Top Ports:(2) 2½"OD / 2"ID Tri-Clamp(1) 3"OD Open Vent
Jacket Ports:(4) 1¾" NPT
Nat’l Brd: 13MAWP: 100 PSI @ 338°F MDMT: -20°F @ 100 PSI
OAD: 98"L x 98"W x 170"H

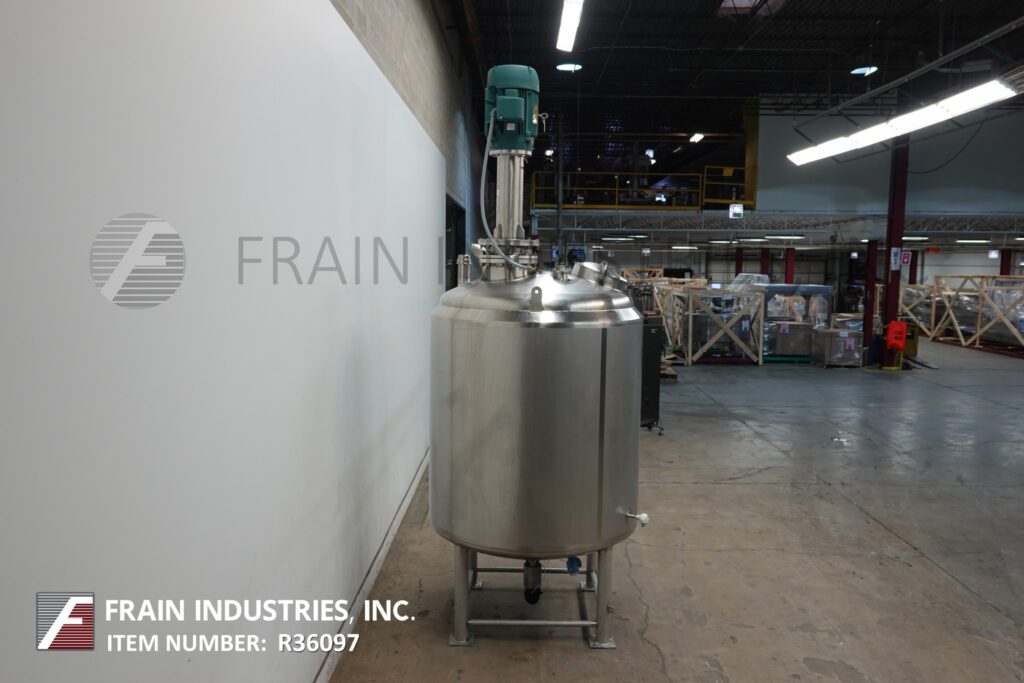

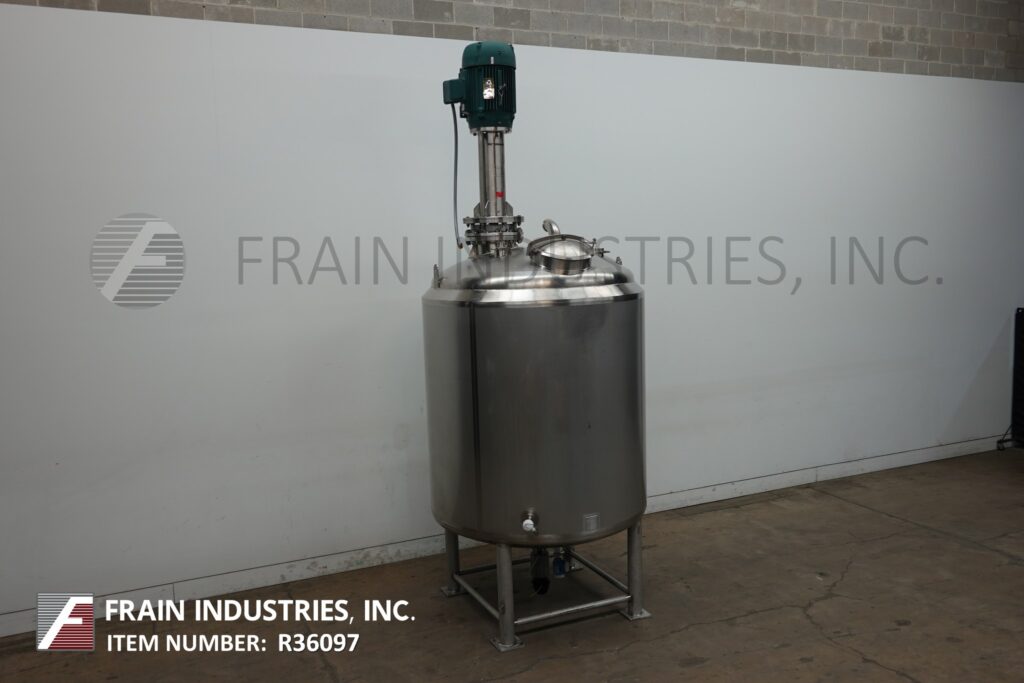

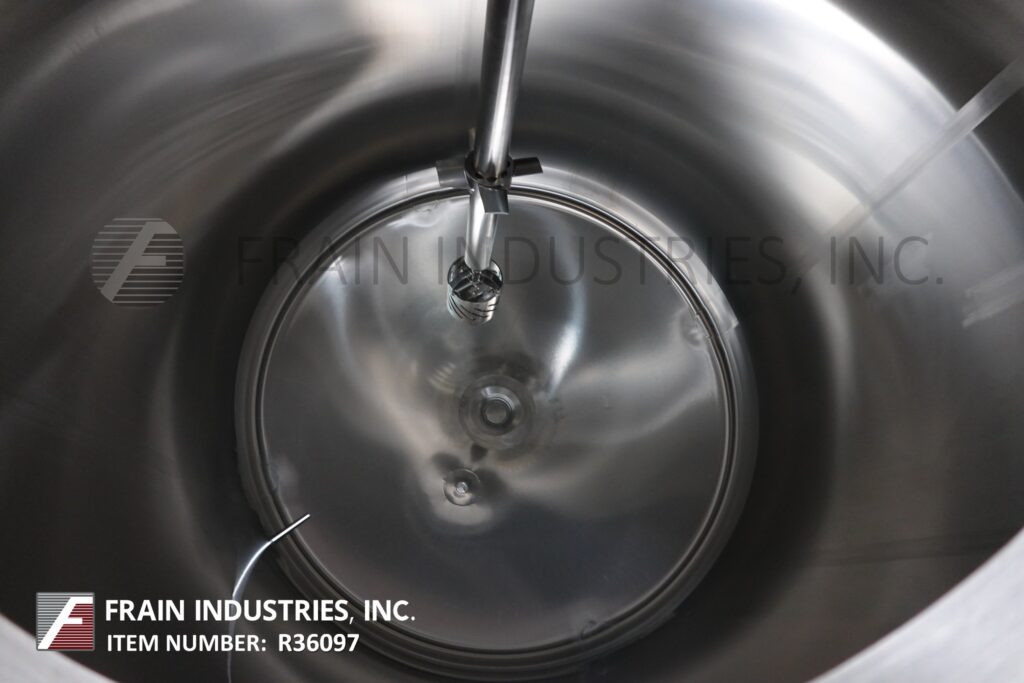

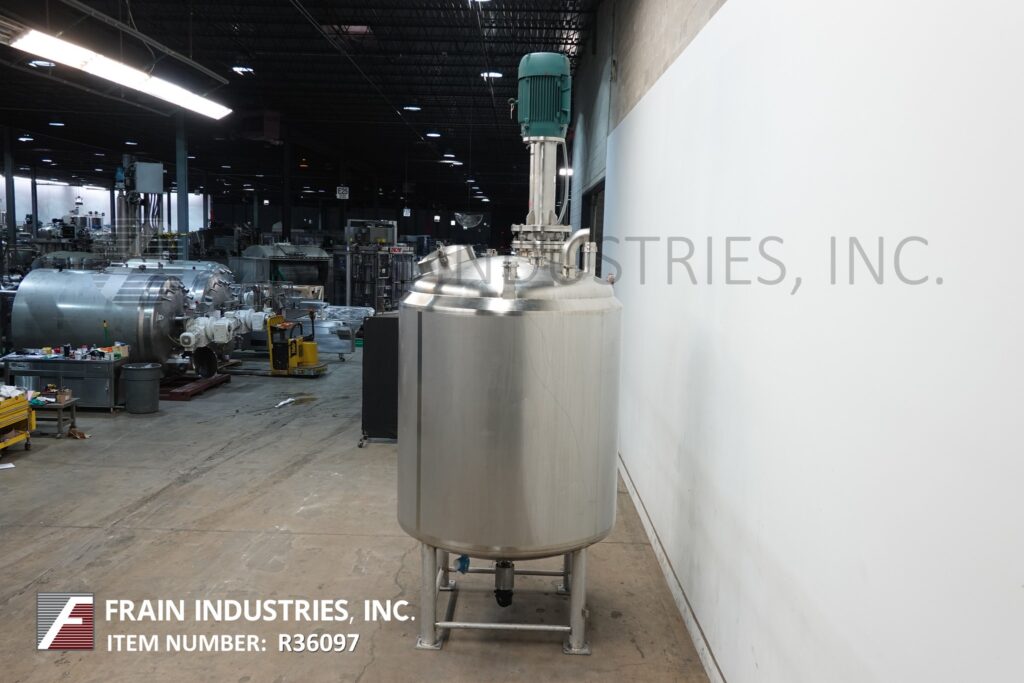

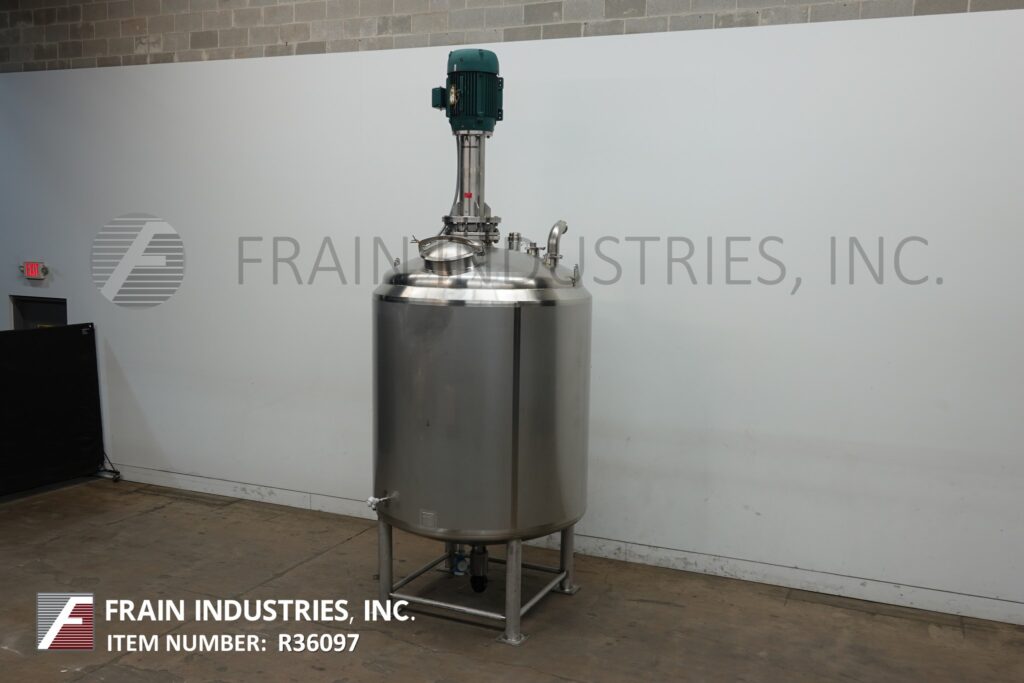

A & B Process System, 1000 gallon capacity, 304 stainless steel single wall process tank. Vessel dimensions: 64" diameter x 70" straight wall. Equipped with a 18" OD top hinged man way, (2) CIP spray balls supplied by 2½"OD / 2"ID Tri-clamp fittings, 40 Hp top mounted Admix Rotosoler high shear agitator, (1) thermowell, (1) flush mount sensor and flush valve 4½"OD / 4" ID Tri-Clamp discharge with 19" ground clearance.
Top Ports:(1) 4½"OD / 4"ID Tri-Clamp(1) 4" diameter sight glass(1) 4" diameter open vent
OAD: 71"L x 65"W x 180"H

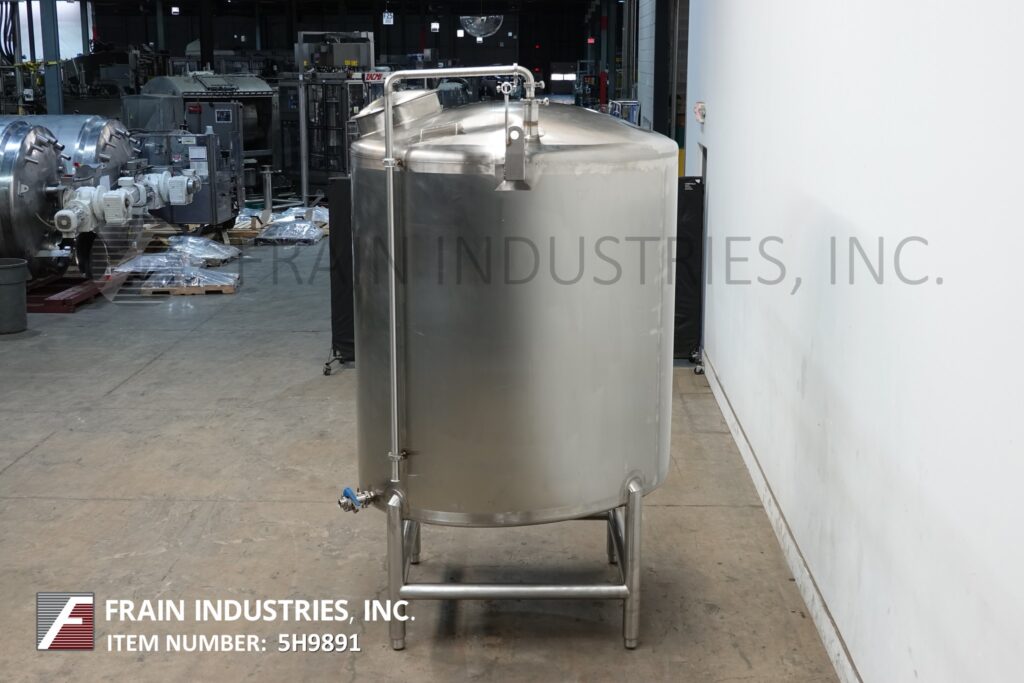

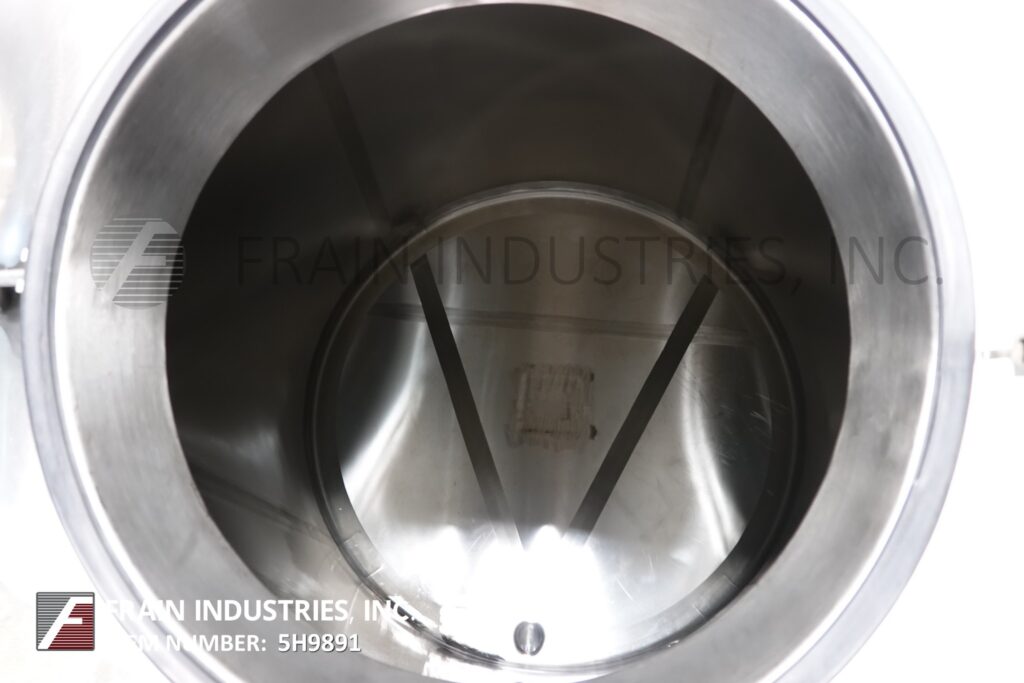

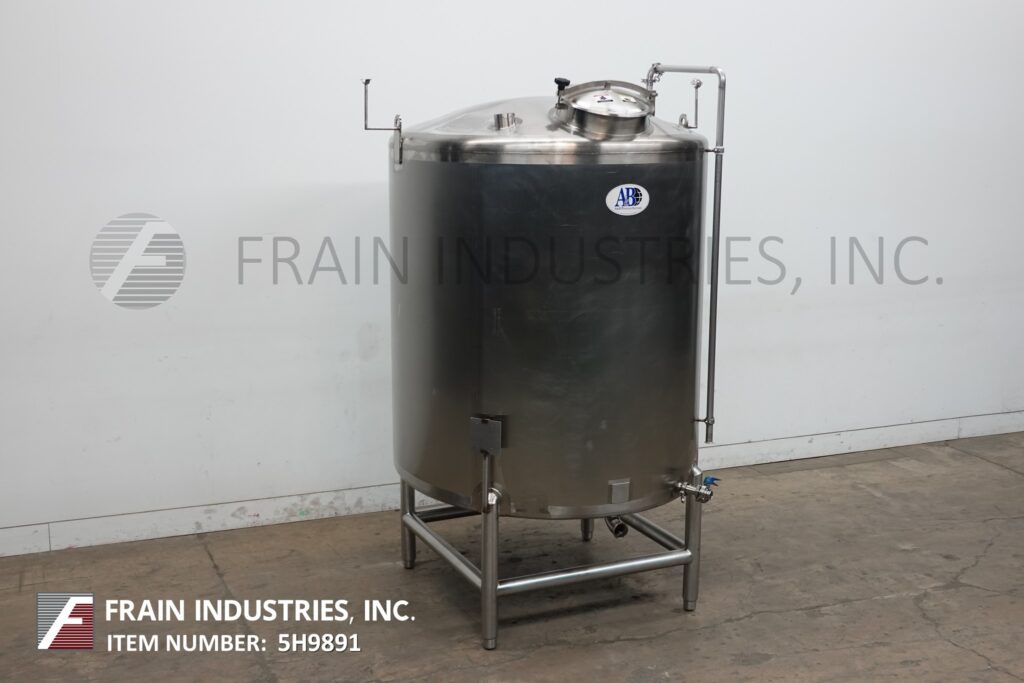

A & B Process Systems, 1000 gallon capacity, 304 stainless steel single wall tank. Vessel dimensions: 70" diameter x 72" straight wall. Equipped with dome top and 18" man way with flip up, bolt down cover. Slant bottom has a 3½" OD / 3" ID Tri-Clamp style bottom discharge with 22½" ground clearance.
Top Access:(1) 3½"OD / 3"ID Tri-Clamp(1) 4" OD Open Vent
Side Access:(1) 2½"OD / 2"ID Tri-Clamp
OAD: 75"L x 75"W x 120"H
A & B Process Systems, Stainless steel, CIP system with rates per hour – depending on materials and application. Equipped with (3) Sani-Fab 32" OD x 56" straight wall, 200 gallon stainless steel single wall tanks (1) for caustic, (1) for acid and (1) for rinse all have flat tops with manways and flip up covers, top return ports and top mounted agitation. Slant side bottoms with end bottom discharges and 9" ID x 60" long single tube heat exchanger. System has all stainless steel piping and sanitary couplings, with flow rate and pressure control valves. Control Panel has A/B PLC and A/B touch pad controls with panel view, e-stop and status light. Mounted on (8) leg stainless steel frame.
OAD: 168" L x 55" W x 101" H
