Alpha Brewing Operations Machines

Alpha Brewing Operations Tank SS JKT 2200 GAL

• Manufacturer: Alpha Brewing Operations
• Model Number: 2200 GAL
• Frain Number: 5J3986

Alpha, 2,200 gallon, 304 stainless steel, jacketed tank. Vessel Dimensions: 79" diameter x 97" straight wall with a dish bottom. Equipped with 13" x 17" side manway with bolt down cover. Tri-clamp discharge with 6" ground clearance.

Top Ports:
(1) 6½" OD x 6" ID Tri-Clamp
(1) 4½" OD x 4" ID Tri-Clamp
(1) 3" OD x 2½" ID Tri-Clamp
(1) 2" OD x 1½ ID Tri-Clamp

Side Port:
(5) 2" OD x 1½" ID Tri-Clamp

Bottom Port:
(1) 2" OD x 1½" ID Tri-Clamp

Jacket Port:
(6) 1" NPT

MAWP: 29 PSI (Vessel)
MAWP: 43 PSI (Jacket)

OAD: 92"L x 84"W x 144"H

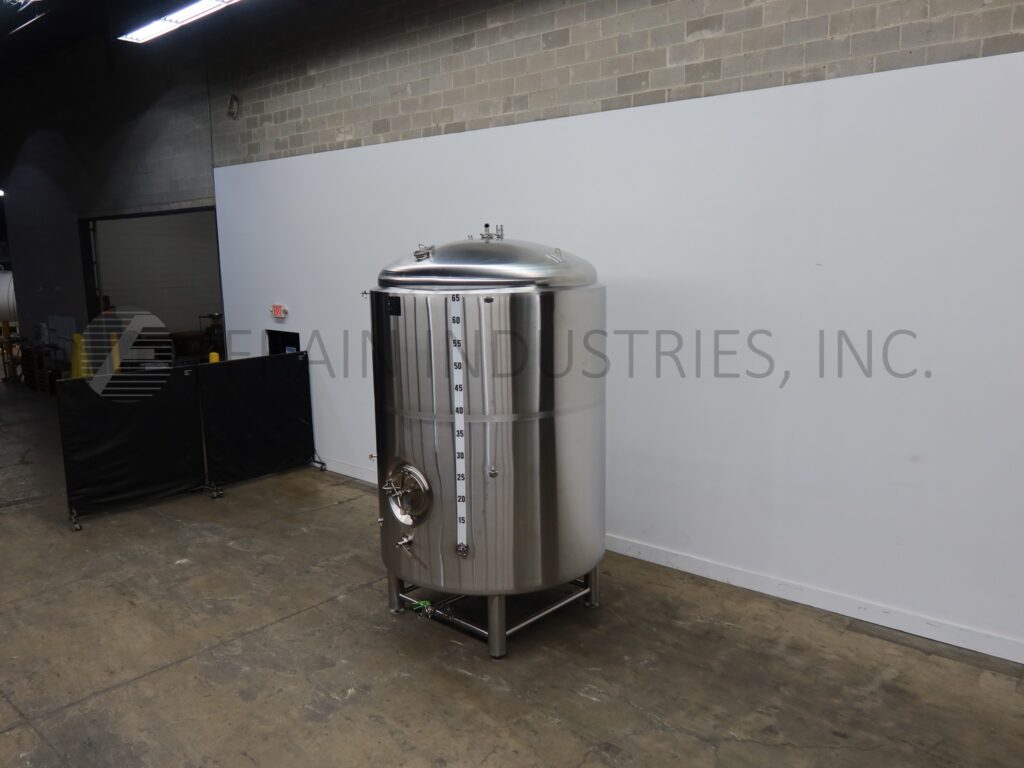

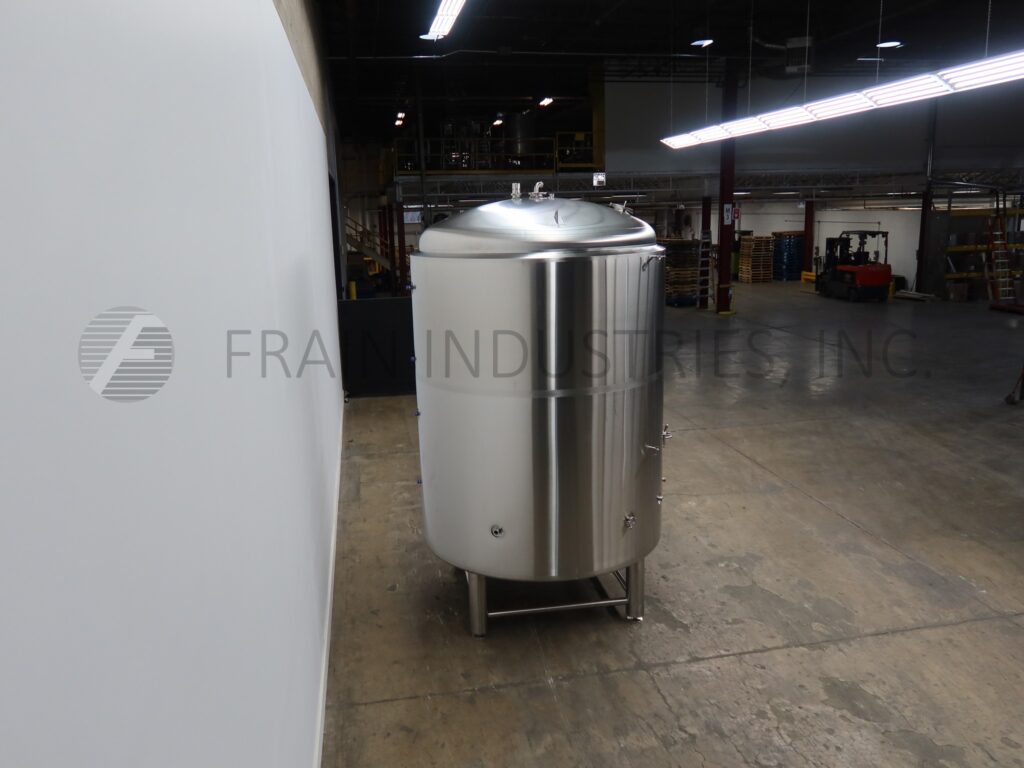

Alpha Brewing Operations Tank SS JKT 2200 GAL

• Manufacturer: Alpha Brewing Operations
• Model Number: 2200 GAL
• Frain Number: 5J3985

Alpha, 2,200 gallon, 304 stainless steel, jacketed tank. Vessel Dimensions: 79" diameter x 97" straight wall with a dish bottom. Equipped with 13" x 17" side manway with bolt down cover. Tri-clamp discharge with 6" ground clearance.

Top Ports:
(1) 6½" OD x 6" ID Tri-Clamp
(1) 4½" OD x 4" ID Tri-Clamp
(1) 3" OD x 2½" ID Tri-Clamp
(1) 2" OD x 1½ ID Tri-Clamp

Side Port:
(5) 2" OD x 1½" ID Tri-Clamp

Bottom Port:
(1) 2" OD x 1½" ID Tri-Clamp

Jacket Port:
(6) 1" NPT

MAWP: 29 PSI (Vessel)
MAWP: 43 PSI (Jacket)

OAD: 92"L x 84"W x 144"H

Alpha Brewing Operations Tank SS JKT 2300 GAL

• Manufacturer: Alpha Brewing Operations
• Model Number: 2300 GAL
• Frain Number: 5J3983

Alpha, 2,300 gallon, 304 stainless steel, jacketed tank. Vessel Dimensions: 79" diameter x 79" straight wall with a cone bottom. Equipped with 17" x 13" side oval manway with bolt down cover. Tri-clamp discharge with 5" ground clearance.

Top Port:
(1) 4½" OD x 4" ID Tri-Clamp
(1) 4" OD x 3½" ID Tri-Clamp
(1) 2½" OD x 2" ID Tri-Clamp
(1) 2" OD x 1½" ID Tri-Clamp

Side Port:
(2) 2" OD x 1½" ID Tri-Clamp

Bottom Port:
(2) 2" OD x 1½" ID Tri-Clamp
(1) 3" OD x 2½" ID Tri-Clamp

Jacket Port:
(6) 1" NPT

MAWP: 29 PSI (Vessel)
MAWP: 43 PSI (Jacket)

OAD: 88"L x 83"W x 180"H

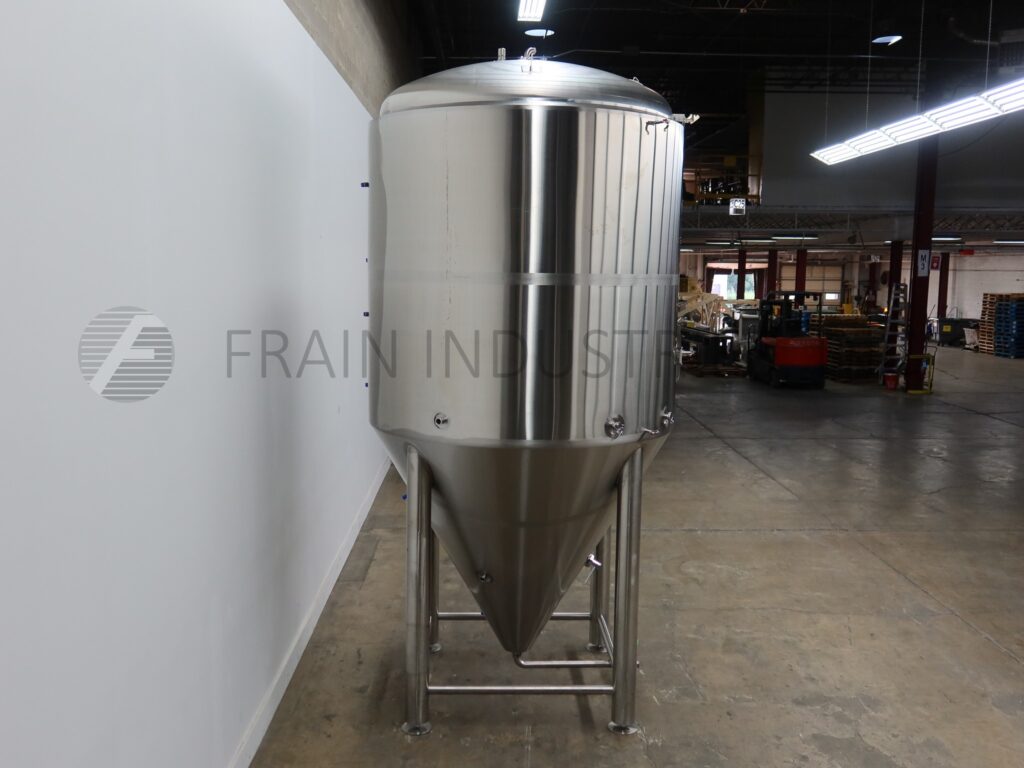

Alpha Brewing Operations Tank SS JKT 2300 GAL

• Manufacturer: Alpha Brewing Operations
• Model Number: 2300 GAL
• Frain Number: 5J3982

Alpha, 2,300 gallon, 304 stainless steel, jacketed tank. Vessel Dimensions: 79" diameter x 79" straight wall with a cone bottom. Equipped with 17" x 13" side oval manway with bolt down cover. Tri-clamp discharge with 5" ground clearance.

Top Port:
(1) 4½" OD x 4" ID Tri-Clamp
(1) 4" OD x 3½" ID Tri-Clamp
(1) 2½" OD x 2" ID Tri-Clamp
(1) 2" OD x 1½" ID Tri-Clamp

Side Port:
(2) 2" OD x 1½" ID Tri-Clamp

Bottom Port:
(2) 2" OD x 1½" ID Tri-Clamp
(1) 3" OD x 2½" ID Tri-Clamp

Jacket Port:
(6) 1" NPT

MAWP: 29 PSI (Vessel)
MAWP: 43 PSI (Jacket)

OAD: 88"L x 83"W x 180"H

Alpha Brewing Operations Tank SS JKT 2300 GAL

• Manufacturer: Alpha Brewing Operations
• Model Number: 2300 GAL
• Frain Number: 5J3981

Alpha, 2,300 gallon, 304 stainless steel, jacketed tank. Vessel Dimensions: 79" diameter x 79" straight wall with a cone bottom. Equipped with 17" x 13" side oval manway with bolt down cover. Tri-clamp discharge with 5" ground clearance.

Top Port:
(1) 4½" OD x 4" ID Tri-Clamp
(1) 4" OD x 3½" ID Tri-Clamp
(1) 2½" OD x 2" ID Tri-Clamp
(1) 2" OD x 1½" ID Tri-Clamp

Side Port:
(2) 2" OD x 1½" ID Tri-Clamp

Bottom Port:
(2) 2" OD x 1½" ID Tri-Clamp
(1) 3" OD x 2½" ID Tri-Clamp

Jacket Port:
(6) 1" NPT

MAWP: 29 PSI (Vessel)
MAWP: 43 PSI (Jacket)

OAD: 88"L x 83"W x 180"H

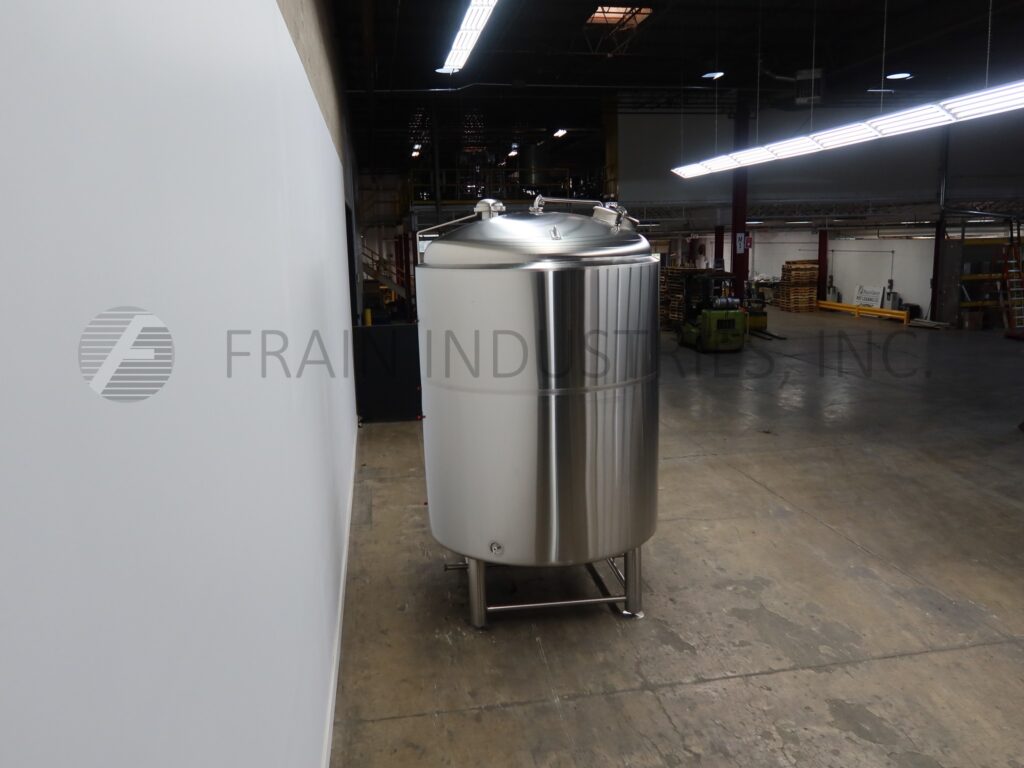

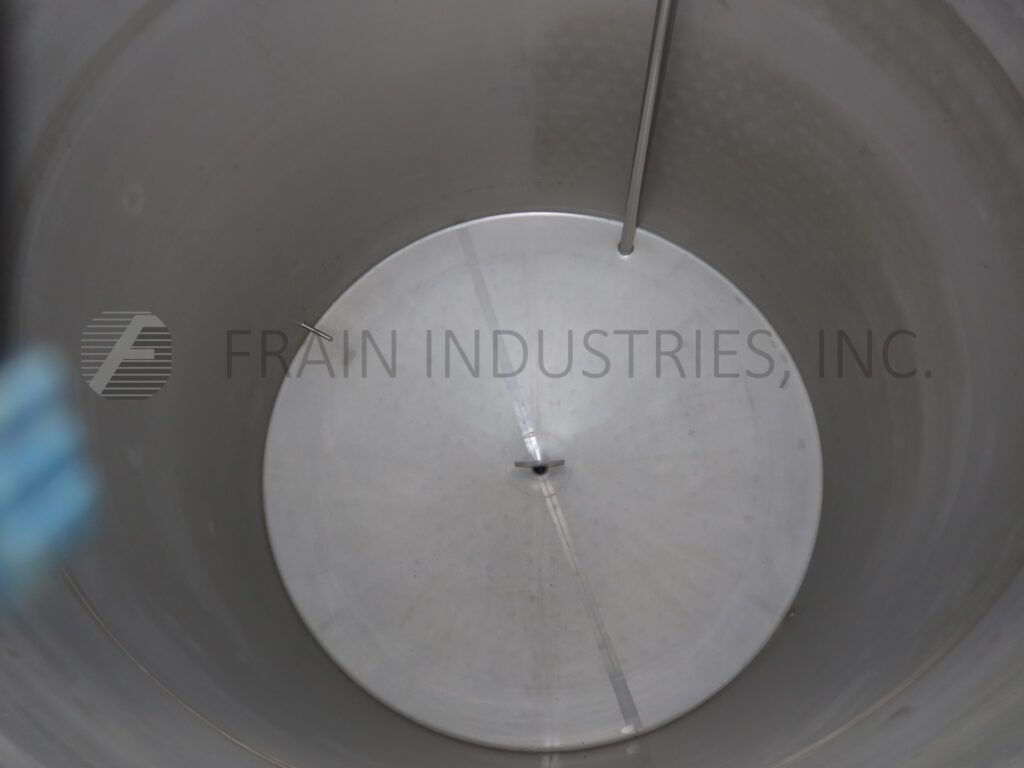

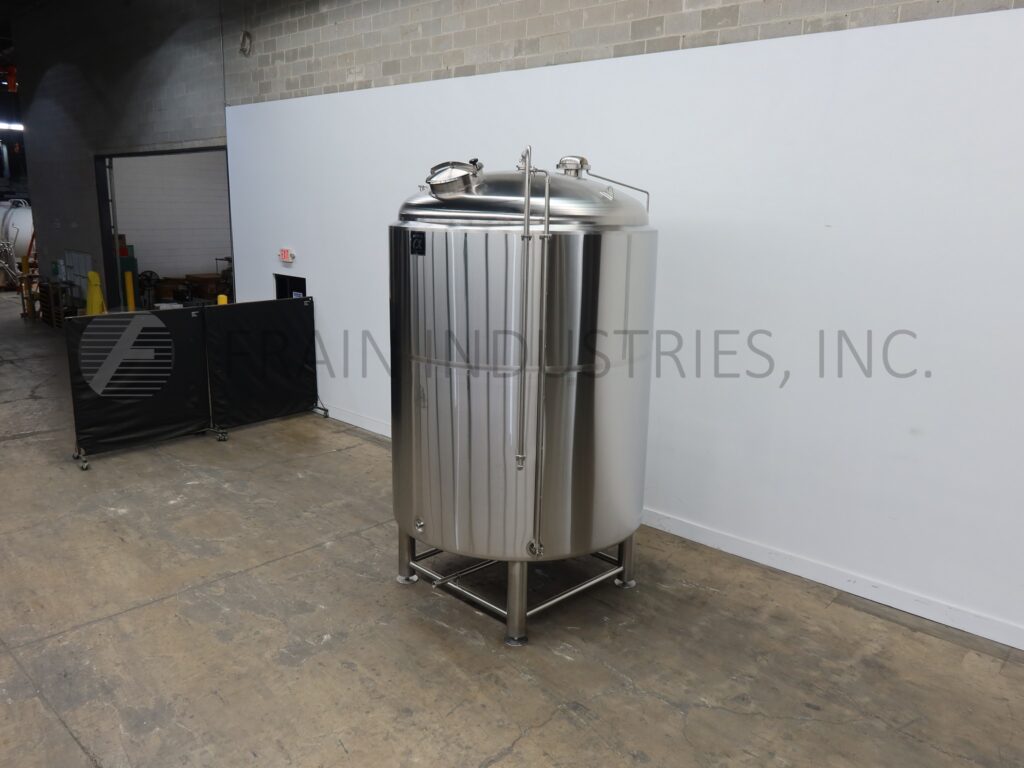

Alpha Brewing Operations Tank SS JKT 2200 GAL

• Manufacturer: Alpha Brewing Operations
• Model Number: 2200 GAL
• Frain Number: 5J3980

Alpha, 2,200 gallon, 304 stainless steel, low pressure jacketed tank. Vessel Dimensions: 81" ID x 99" straight wall with a cone bottom. Equipped with 16" top manway with bolt down cover. Tri-clamp discharge with 7" ground clearance.

Top Port:
(1) 4½" OD x 4" ID Tri-Clamp
(1) 2" OD x 1½" ID Tri-Clamp

Side Port:
(2) 2" OD x ½" ID Tri-Clamp

Bottom Port:
(2) 2" OD x 1½" ID Tri-Clamp

Jacket Port:
(6) ¾" NPT

OAD: 93"L x 88"W x 150"H
