AFM Model LX-100 VD high speed, shrink sleever / neck bander with heat shrink tunnel rated from 40 to 100 containers per minute – depending on materials and application. Sleever has layflat sleeve size range of: 40mm (1.6") to 170mm (6.8") wide; Film Thickness .034mm to 0.07mm with cut length of 40mm (1.6") to 200mm (8") and is capable of running most types of film and can handle both oval and round containers made of plastic, glass and metal. Equipped with single head bullet style mandrel, single blade centrifical cutting mechanism, perf wheel, film registration, label brush down device single roll unwind and tention controller, powered film unwind with single film reel and low film indicator light. Control panel has Panasonic / Delta controls, with SQ-53i TTO coder and mounting bracket operator interface, statis lite bar and interlocking safety guarding.
TRIpack Model HT-1, Dual over conveyor hot air shrink tunnels with 125mm (5") wide x 262.5mm (10.5") high aperature x 900mm (36") long shrink chamber. Independent and adjustable baffles for air flow direction. Control panel has heater on / off, temperature controller with digital read out and powered up / down controls with e-stop and is hand crank height adjustable to 44" high.All mounted over 208" long x 4-1/2 wide stainless steel delran product belt conveyor with motor drive and e-stop. All have stands with casters and leveling legs.
OAD: 208" L x 40" W x 98" H
American Film, Model WSN-300-2M4T, stainless steel, steam shrink tunnel designed to be used with external 10 Hp steam generator with number of container per minute – depending on materials and application. Can handle middle or full body and cap shrink applications with materials of PVC, PETG, OPS and PLA and a wide range of round, square, oval and other irregularly shaped containers with proper change parts. Equipped with 4" wide x 11½" high total aperature x 80" long chamber, 4½" wide x 120" long stainless steel conveyor, two steam zones and adjustable manifold with direct steam heat.
OAD: 120" L x 36" W x 72" H
American Film & Machinery, Model LX-350SS and WSN-300, Automatic, stainless steel, tamper evident shrink neck bander or sleeve label applicator with stainless steel steam shrink tunnel. Rated from 50 to 350 container per minute – depending on materials, application and machine configuration. Layflat: 50mm to 240mm. Sleeve height: 40mm to 300mm. Film thickness: 0.035mm to 0.07mm. Equipped with 32" worm screw bottle indexing, dual roll splice station, forming tube, registration and knife film cut off. Control panel with AB PLC and touch screen HMI. Model WSN-300 stainless steel, 4 zone and 4 tier steam shrink tunnel. Equipped with 4" wide x 11½" high total aperature x 118" long chamber with multiple steam zones and adjustable manifold with direct steam heat.
OAD: 64" L x 55" W x 130" H Sleever 105" L x 30" W x 80" H Splice Station 118" L x 36" W x 72" H Shrink Tunnel 480" L x 20" W x 32" H Conveyor
American Film & Machinery, Model LX-350SS and WSN-300, Automatic, stainless steel, tamper evident shrink neck bander or sleeve label applicator with stainless steel steam shrink tunnel. Rated from 50 to 350 container per minute – depending on materials, application and machine configuration. Layflat: 50mm to 240mm. Sleeve height: 40mm to 300mm. Film thickness: 0.035mm to 0.07mm. Equipped with 32" worm screw bottle indexing, dual roll splice station, forming tube, registration and knife film cut off. Control panel with AB PLC and touch screen HMI.Model WSN-300 stainless steel, 4 zone and 4 tier steam shrink tunnel. Equipped with 4" wide x 11½" high total aperature x 118" long chamber with multiple steam zones and adjustable manifold with direct steam heat.

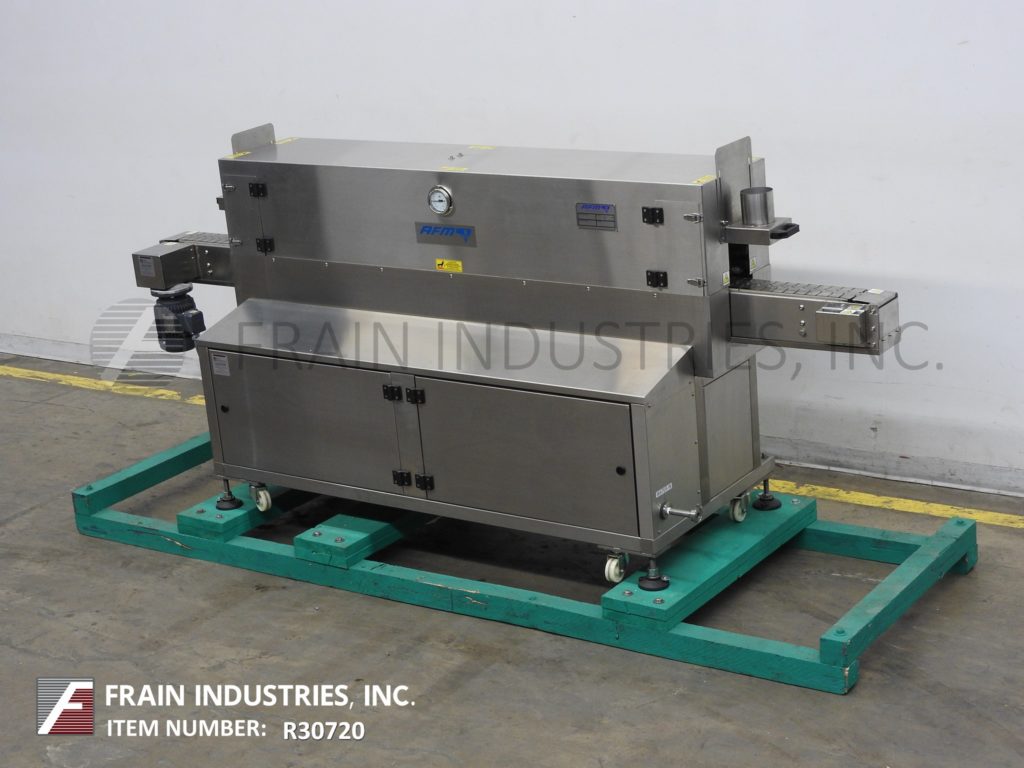

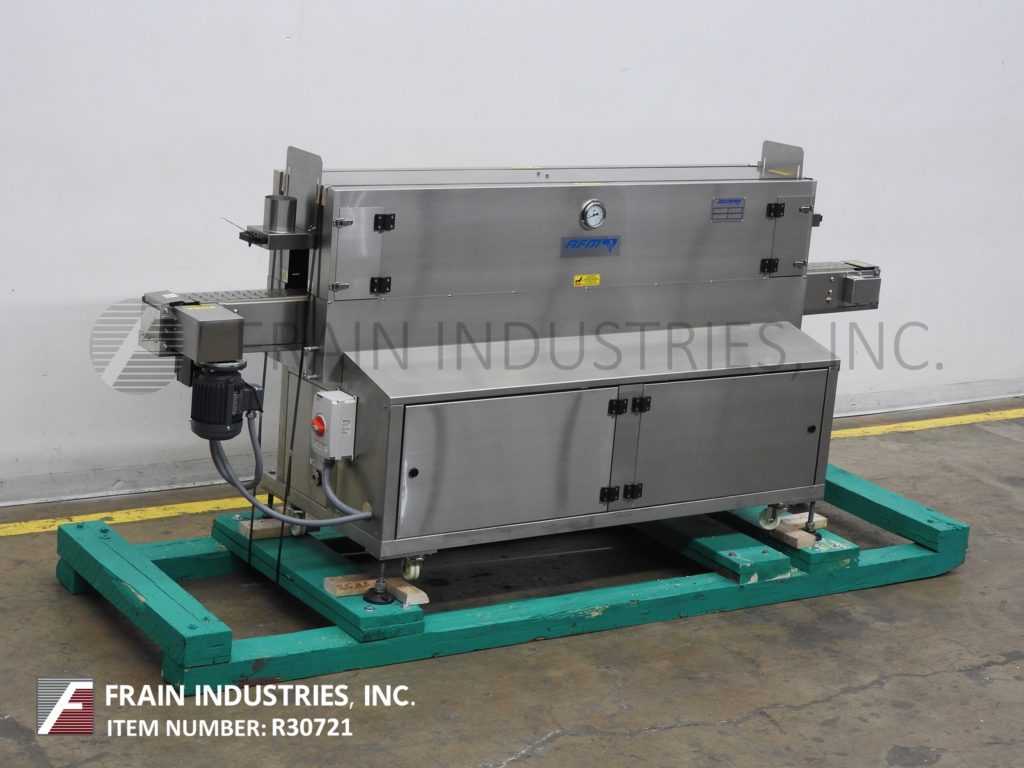

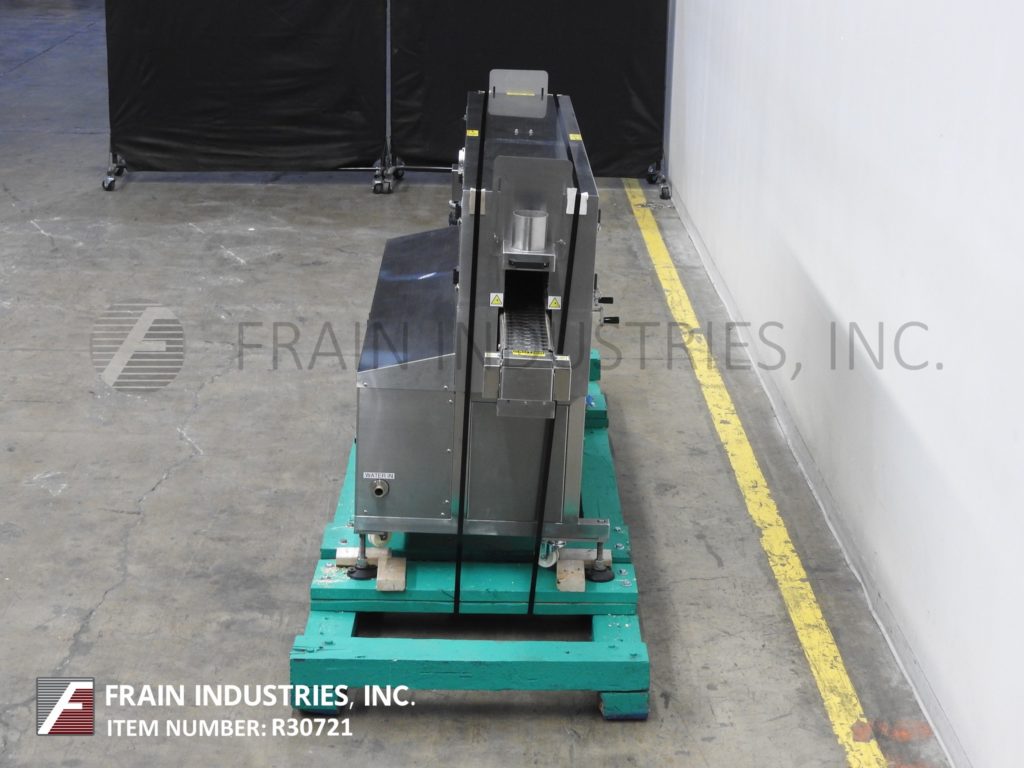

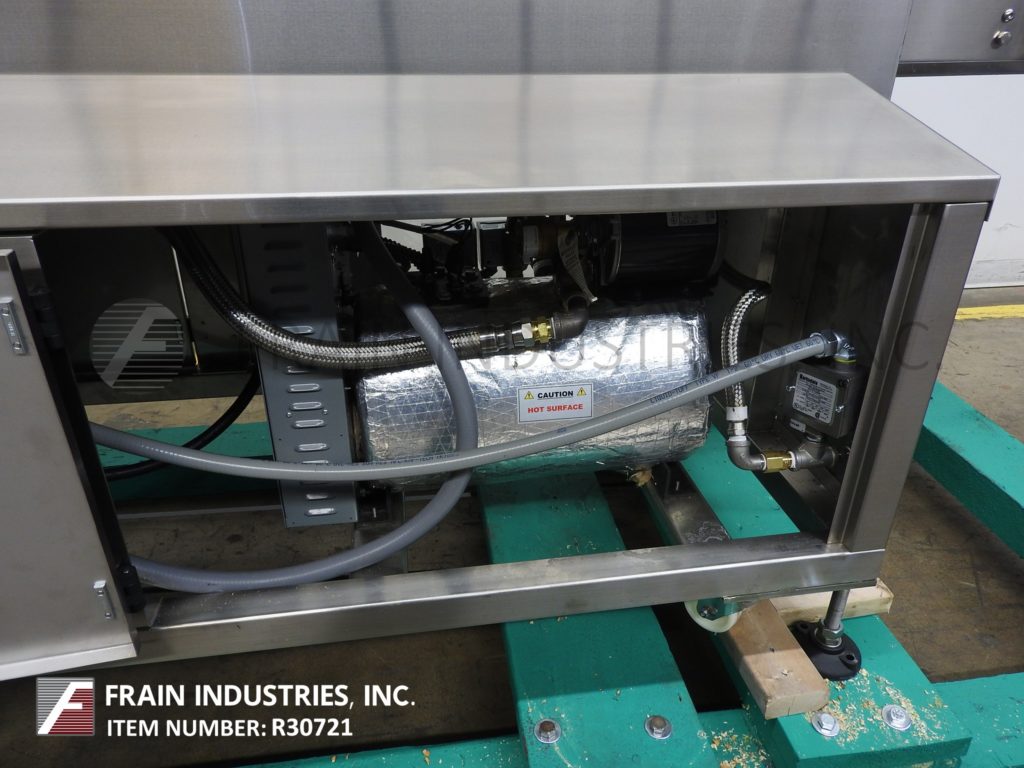

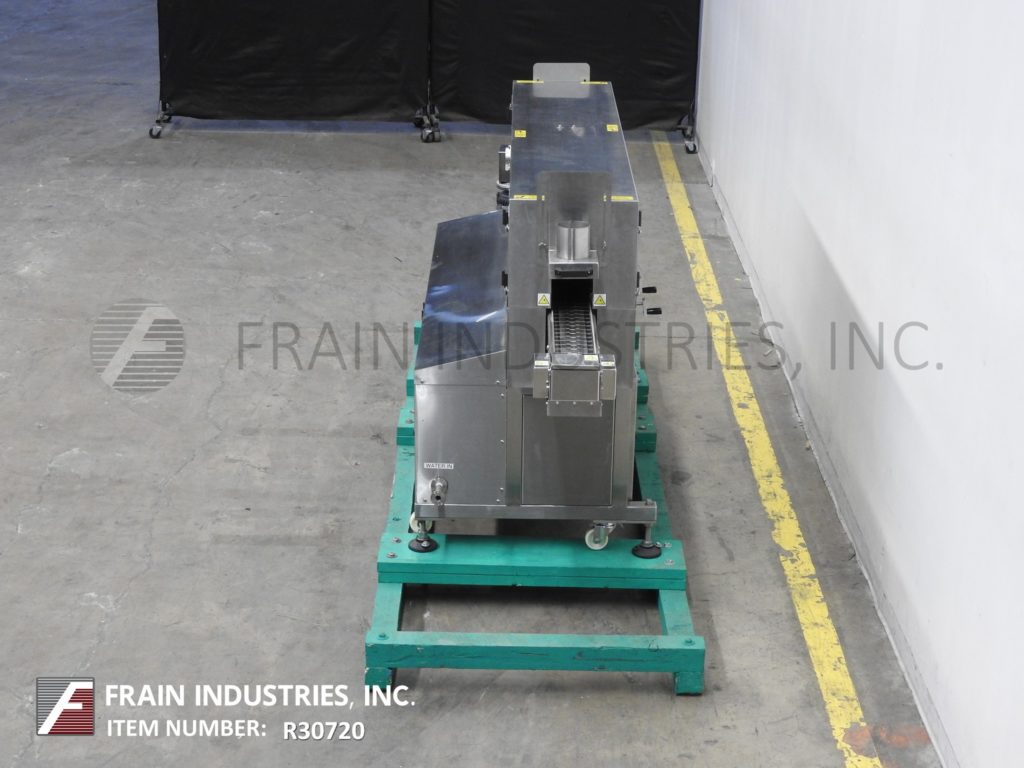

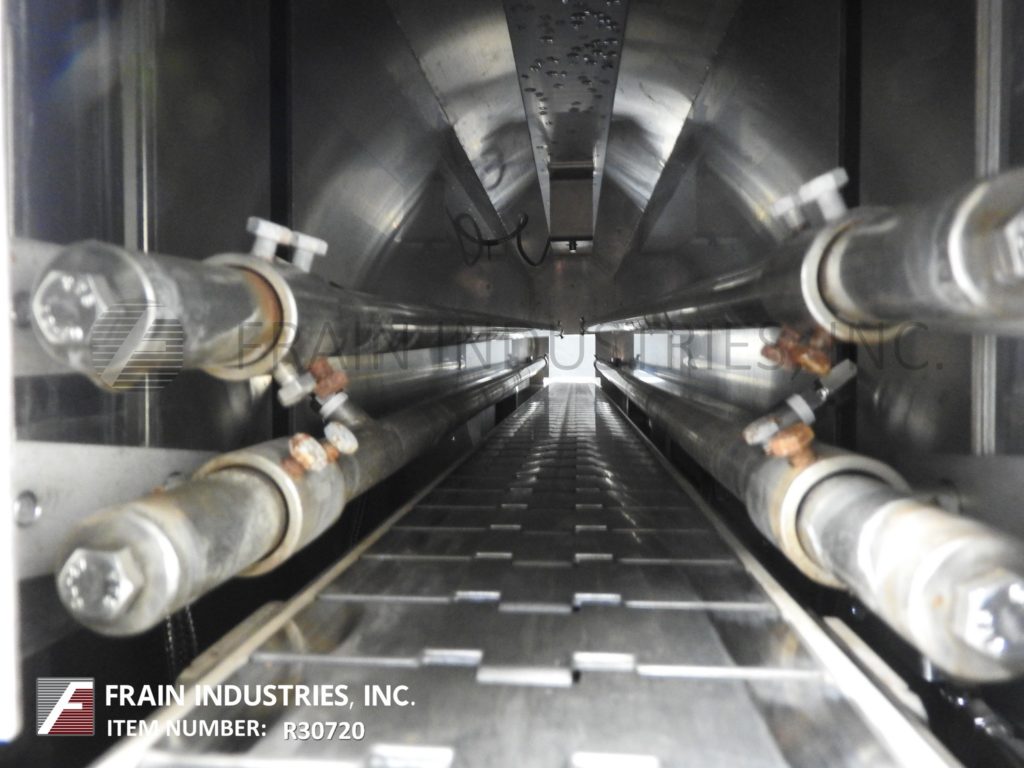

American Film & Machinery Model WSN-GEN-2M stainless steel, steam shrink tunnel and conveyor with self contained steam generator and number of containers per minute – depending on materials and application. Can handle middle or full body and cap shrink applications with materials of PVC, PETG, OPS and PLA and a wide range of round, square, oval and other irregularly shaped containers. Equipped with 1 zone and 2 tier shrink steam tunnel with 5-1/4" wide x 8" high total aperature x 79" long chamber with multiple steam zones and adjustable manifold with direct steam heat, 4-1/2" wide x 128" long stainless steel table top product conveyor has 36" in feed and discharge height hand crank adjustable to + / – 2", with A/C vari-speed controller. self contained 20KW electric steam boiler, with 50 psi, internally plumbed and steam pressure controls, drip pan for condensation recovery has a maximum operating temperature of 212° F, with temperature gauge and adjustable manifold for direct steam heat and steam pressure of 3-4 Kg/cm2 with 43 to 57 psi and dual top 3-3/4" OD steam exhaust, hot and cold water in / output ports with consumption rates of 200 litres or 52 gallons an hour. Mounted on stainless steel frame with casters and leveling legs.
OAD: 128" L x 36" W x 53" H
