Home » APV
Pasteurizing system with a 30 Gallon, stainless steel, tank and heat exchange system. Vessel dimensions: 25½" diameter with a 17" straight wall, dome top and slant bottom. Equipped with a 7½ HP Ampco centrifugal pump, APV plate heat exchange and 2"ID x 500" long holding tube. System mounted on a stainless steel frame. Control panel with AB controller, touch screen HMI and chart recorder.
OAD: 72"L x 48"W x 89"H – HTST Skid 72"L x 17"W x 67"H – Control Cabinet
APV, Model Paraflow, stainless steel, plate and frame heat exchanger. Approx 120 total ft² heat transfer area with a flow rate of 1 to 45 gallons per minute – depending on materials, application and machine configuration. Equipped with (60) plates 32" in Length; 9" in Width; in (3) zones. (16) 2½" OD / 2" ID seated bevel style transfer ports. Mounted on stainless steel base frame.
OAD: 67"L x 24"W x 61"H
APV 200 gallon, 316 stainless steel, jacketed triple motion kettle with a MAWP rating of 75psi @350F & jacket MDMT of -20F @75psi, (1) 7.5hp side bottom sweep agitation & (1) 10hp center turbine agitator (discharging via screw auger) into Moyno inline positive displacement pump, (1) APV scrap surface heat exchanger rated with a vessel MAWP of 150psi @ 400F & vessel MDMT of -20F @ 150psi to control product temperature. Allen Bradley 1336+ variable speed controls for all components included in system. Additional feature include mass flow meter. Skid package with all utility connections.
OAD: 112"L x 72"H x 125"H
APV, 1700 gallon capacity, 304 stainless steel jacketed process tank. Vessel dimensions: 84" diameter x 72" deep with a 60" straight wall and dish bottom. Equipped with a 18" diameter man way with flip clamp down cover, (2) CIP spray balls supplied by a 2"OD / 1½" ID Tri-clamp fitting, top mounted sweep agitator and 4" OD / 3½" ID Tri-clamp style bottom discharge with 10" ground clearance. Mounted on (5) tube legs.
Top Ports:(1) 3" OD / 2½" ID Tri-clamp
Jacket Ports: (4) 1¾" NPT
MAWP JKT: 50 PSI @ 400°F
OAD: 96"L x 88"W x 135"H

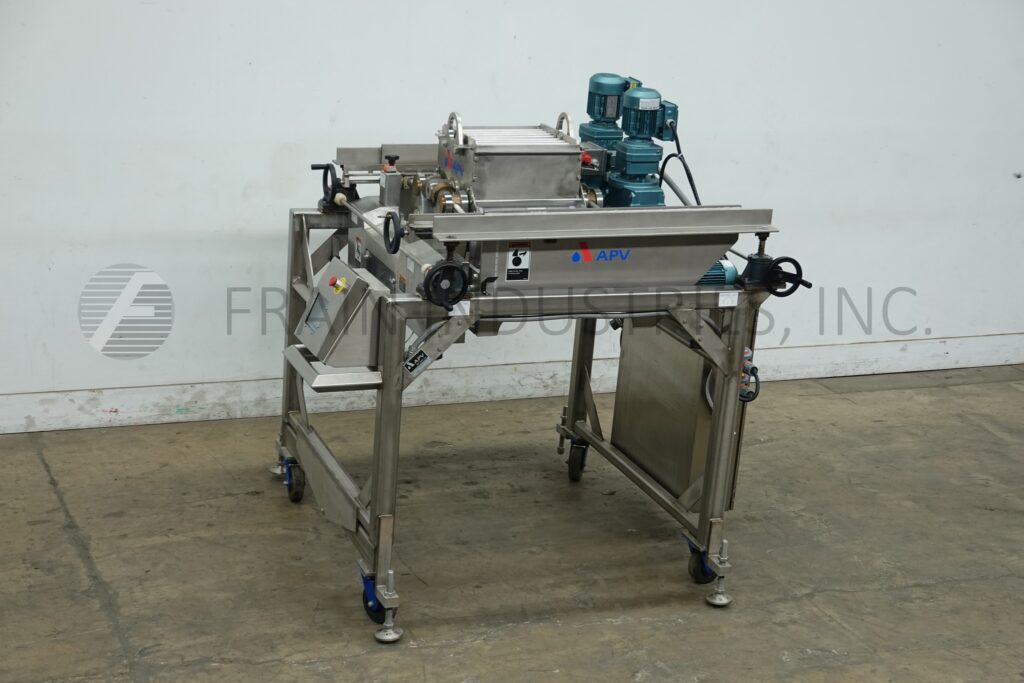

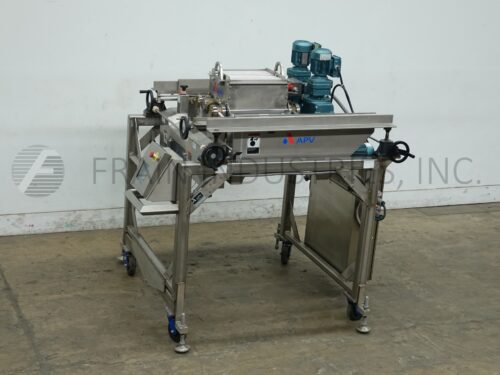

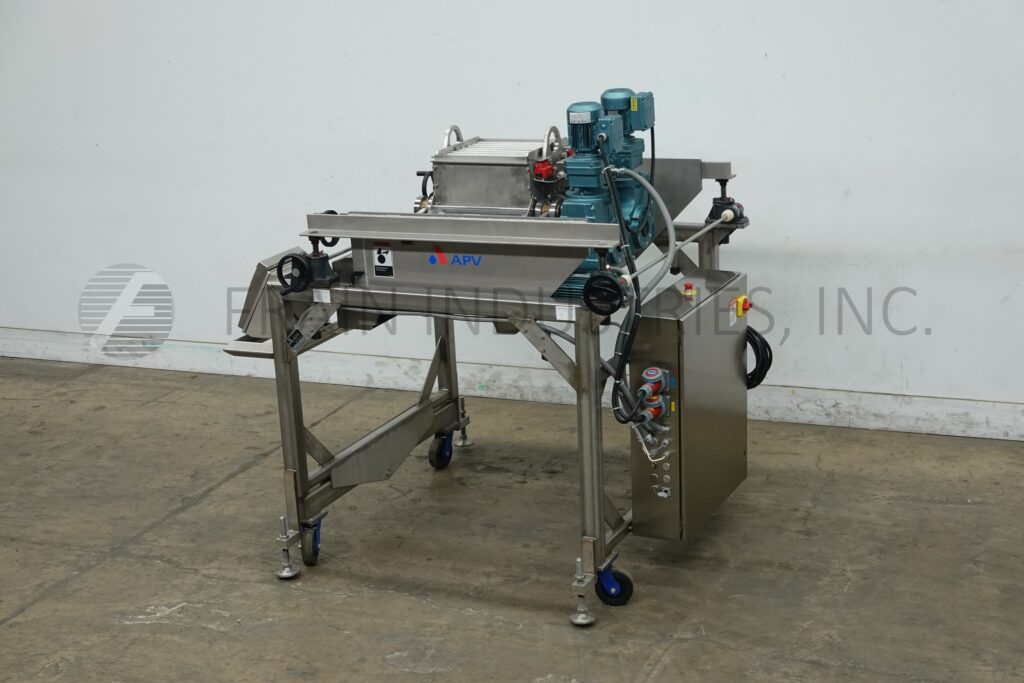

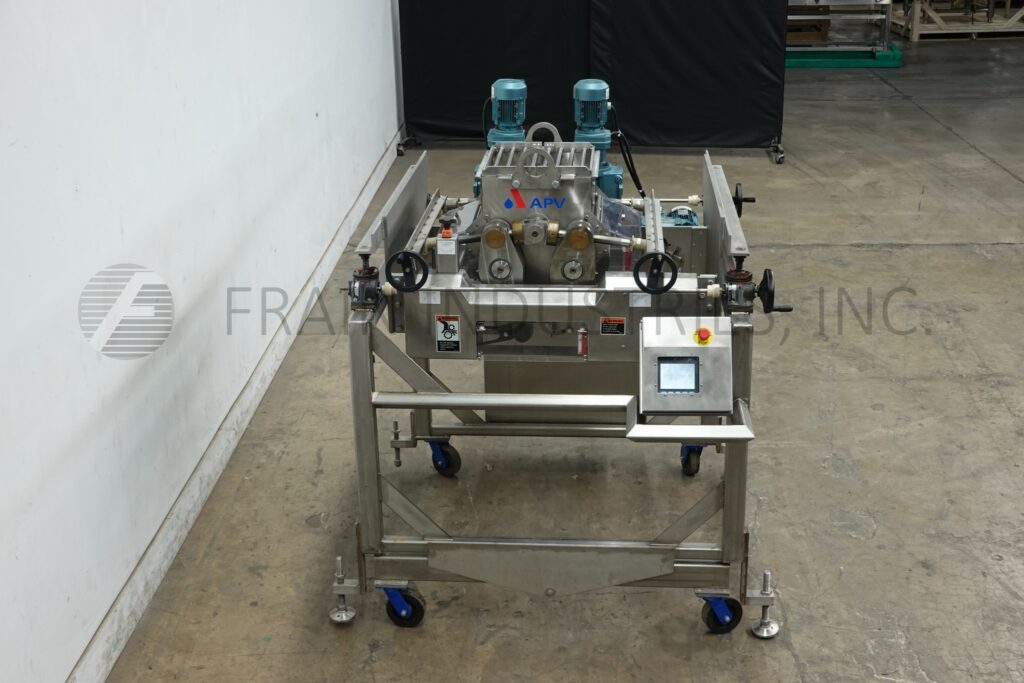

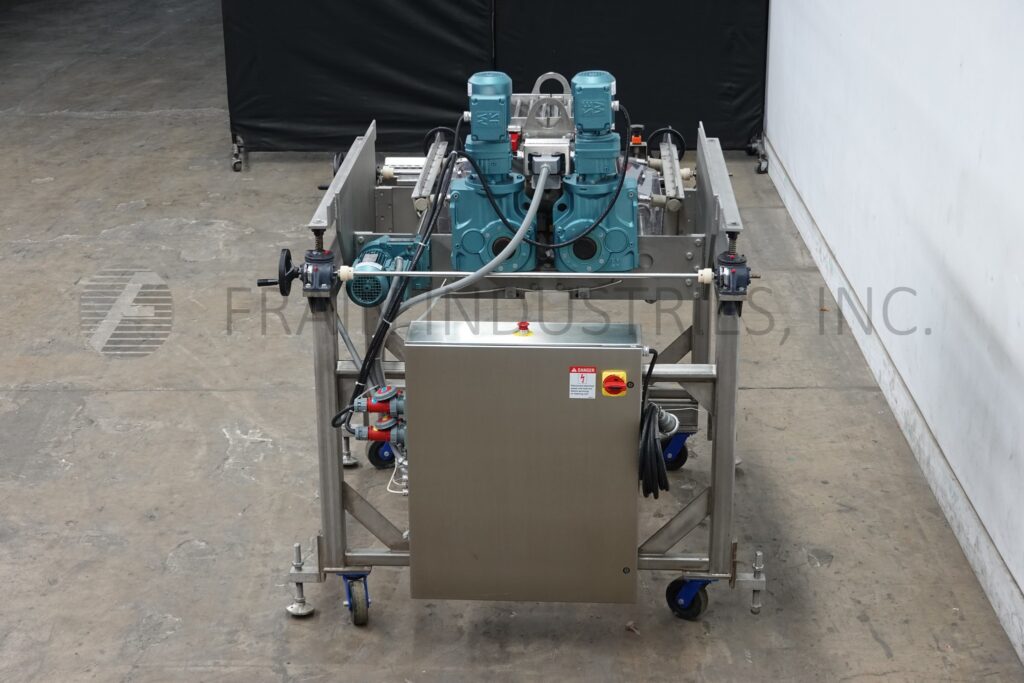

APV Model 0209/16/1, Automatic, rotary bar roller press with pounds of product per hour – depending on materials, application and machine configuration. Equipped with 16" long x 16" wide x 8" deep product feed hopper and (2) 10" diameter x 14" long rollers. Control panel with A/B touchpad Panelview 600 controls. Mounted on (4) leg frame with casters and leveling legs.
OAD: 76"L x 66"W x 74"H

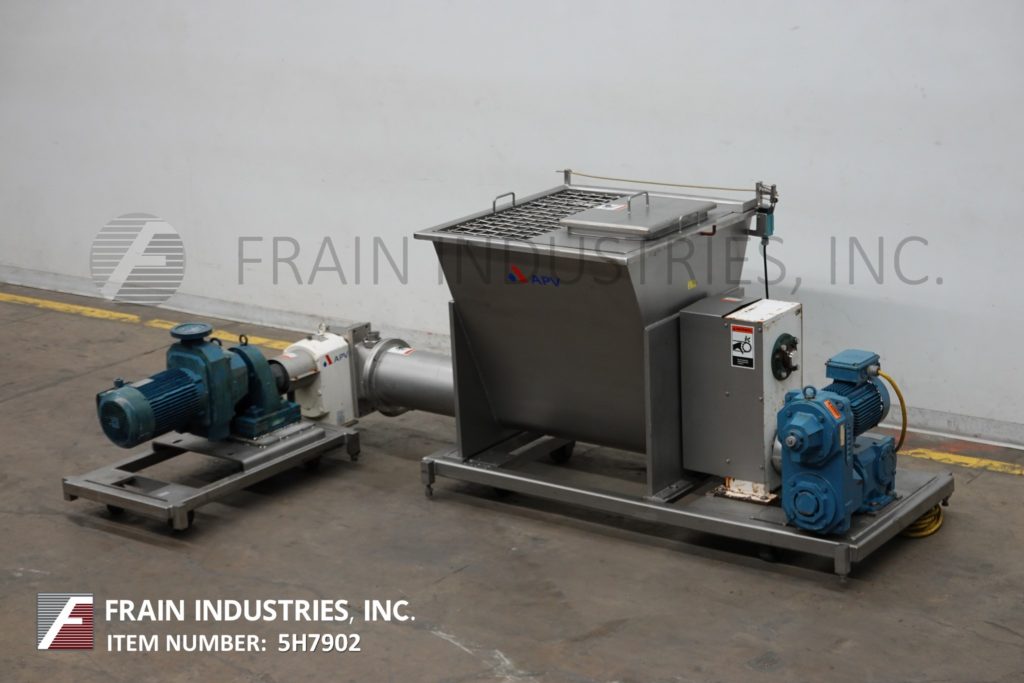

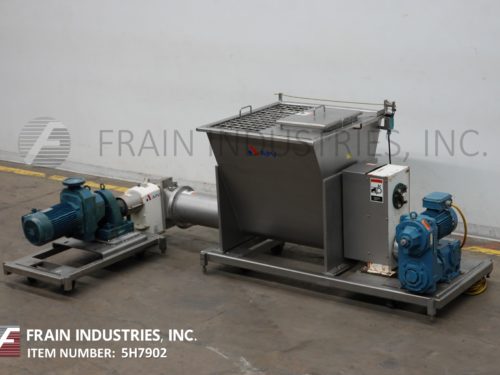

APV, Model AF, 304 stainless steel ribbon mixer, auger feeder and pump with pounds of product per hour – depending on materials and application. Inner mixing chamber dimensions of: 33" in Length; 35" in Width; 33" in Depth. Equipped with 2½" wide x ¼" thick ribbon, 9" diameter x 56" long bottom auger powered by 3 HP motor drive with variable speed gearbox feeding into a Model R4BRIHD positive displacement pump with 3½" OD / 3" ID seated bevel discharge powered by 7½ HP drive with variable speed gearbox. Both mounted on platform style frames with casters and leveling legs.
OAD: 93"L x 40"W x 46"H Mixer / Auger 60"L x 23"W x 27"H Pump
APV 24" wide depositor, extruder with pounds of product per hour – depending on materials and application. Stainless steel contact parts. Equipped with 24" wide white neopreme product conveyor, stainless steel product hopper with rotary valve depositing head has dual ribbed rollers with deposit opening sizes per application and guiltene cut off. Control panel has micrologix controller with touch pad controls and readout with variable speed, extruder and conveyor controls with main power, guiltene, exit and on / off switches and e-stop. Mounted on heavy duty frame with casters and leveling legs.
APV, 50 gallon, 304 stainless steel, single wall, high shear liquefier with amount of product per hour – depending on materials and application. Vessel dimensions of: 26" long x 26" wide x 20" straight wall. Equipped with 18" OD man way with flip top bolt down cover, bottom 10" OD 6 hole / 3 wing impeller and side mounted 7½ Hp motor drive. Cone bottom has 3" OD / 2½" ID side bottom discharge with 25" ground clearence. Control panel with push button start / stop control and variable speed control.
OAD: 68"L x 38"W x 75"H
APV, chocolate tempering system. Rated from 500kg to 2000 kg per hour – depending on materials, application and machine configuration. Equipped with a 24" OD x 56" H tempering chamber with (15) plates, water jacketed, 6000 Kw heater, scrape surface agitated zones with bottom mounted motor drive, top 3½"OD / 3" ID Tri-clamp and bottom 2½"OD / 2"ID Tri-clamp product ports. Mounted on (4) leg frame with casters.
OAD: 75"L x 65"W x 113"H
APV Model G110T-75P, stainless steel, (2) stage, (3) plunger homogenizer with working capacities to 14,000 litres or 3,696 gallons per hour – depending on materials, application and machine configuration. Maximum operating pressure up to 210 bar or 2,000 psi. Equipped with (3) poppet, aseptic design, mechanical hydraulic plunger valves, (2) stage valve and hydraulic homogenizing actuator assemblies, low-noise insulation and high pressure outlet connections with pressure relief valve and maximum temperature of 105 Deg C or 221 Deg F. Stainless steel control panel has 1st and 2nd stage pressure gauges, start, stop oil pump and e-stop controls with all internal indicators placed behind the side window pane. Mounted on heavy duty stainless steel base frame with concrete sub-frame for noise reduction, vibration dampering and better stability and height adjustable legs.
OAD: 100" L x 64" W x 58" H
APV, Model R57 MOD1, stainless steel, plate and frame heat exchanger. Approx 600 total ft² heat transfer area. Equipped with (89) plates 61" in Length; 16½" in Width; in (1) zone. (2) 3" OD / 2¾" ID Tri-clamp and (2) 9"OD / 4"ID 8-bolt flange style transfer ports. Mounted on a painted base frame with locking casters.
OAD: 72"L x 30"W x 86"H
Gaulin, Model 15M 8TBA, single stage, homogenizer. Rated output capacity of 15 gallons per hour – depending on materials and application. Maximum operating pressure up to 8,000 psi. Equipped with ball valve cylinders, manual homogenizing valve actuator assembly with a 6" diameter x 10" deep product hopper, 3 way valve discharge and pressure gage up to 15,000 psi. Ball valve head is ideally suited for high-viscosity or abrasive products like, peanut butter, evaporated milk, wax emulsions and lubricants.
OAD: 35"L x 32"W x 53"H
