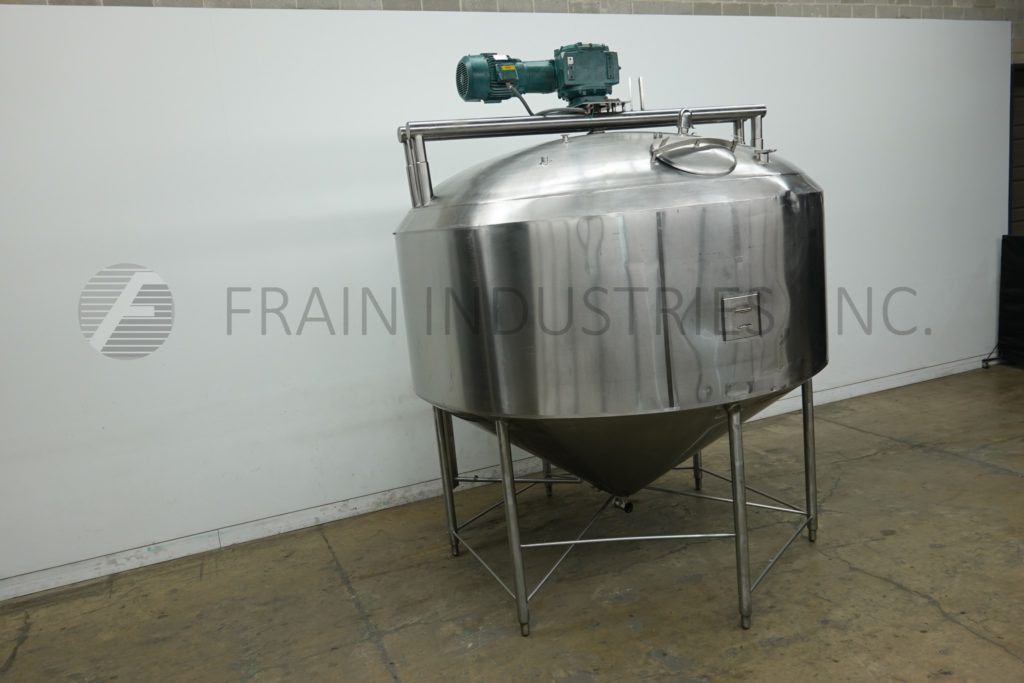

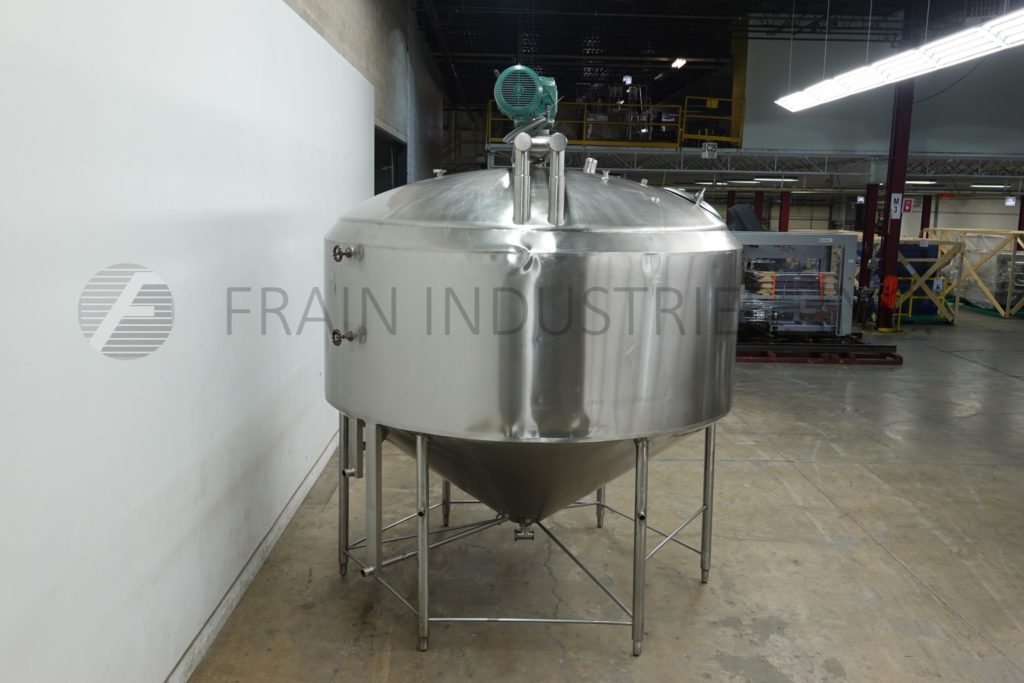

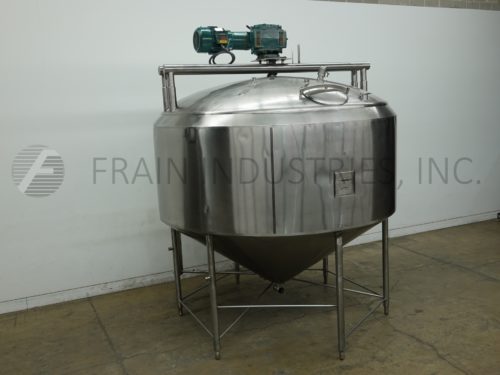

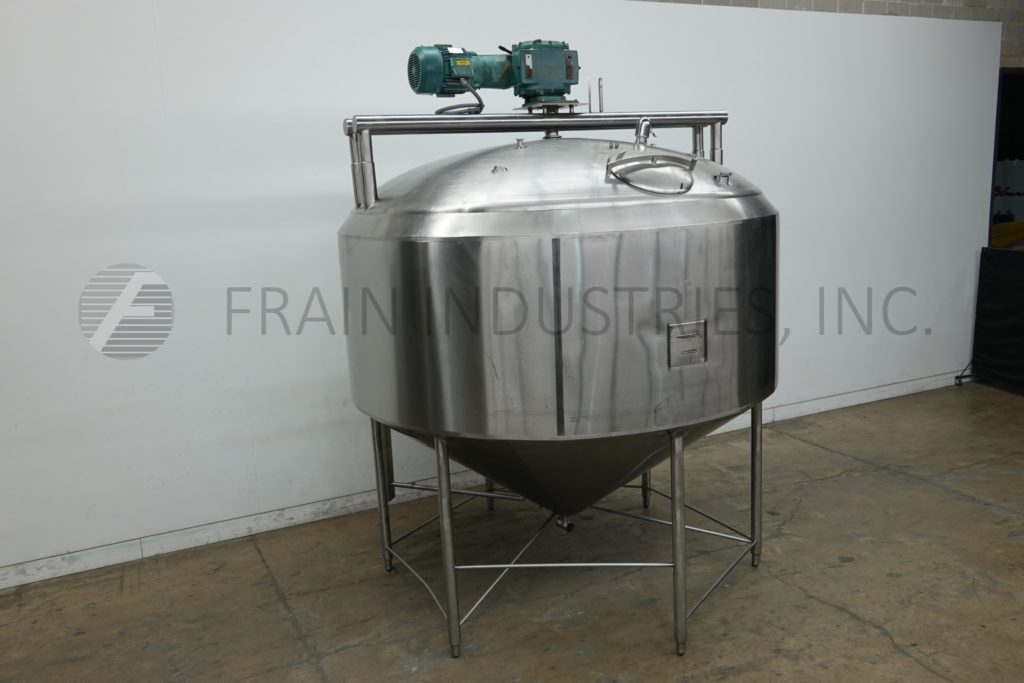

APV, 3,000 gallon capacity, 304 stainless steel jacketed process tank. Vessel dimensions: 120" diameter x 96" deep with a 53" straight wall and cone bottom. Equipped with a 18" diameter man way with flip bolt down cover, (2) CIP spray balls supplied by a 3½"OD / 3" ID Tri-clamp fitting, 5 / 10 Hp top mounted sweep agitator and 3½" OD / 3" ID Tri-clamp style bottom discharge with 12" ground clearance. Mounted on (5) tube legs.
Top Ports:(2) 2½" OD / 2" ID Tri-clamp(1) 3½" OD / 3" ID Tri-clamp
Jacket Ports: (2) 2" NPT
MAWP: 75 PSI @ 400°F
OAD: 128"L x 130"W x 160"H
OAD: 128"L x 130"W x 173"H

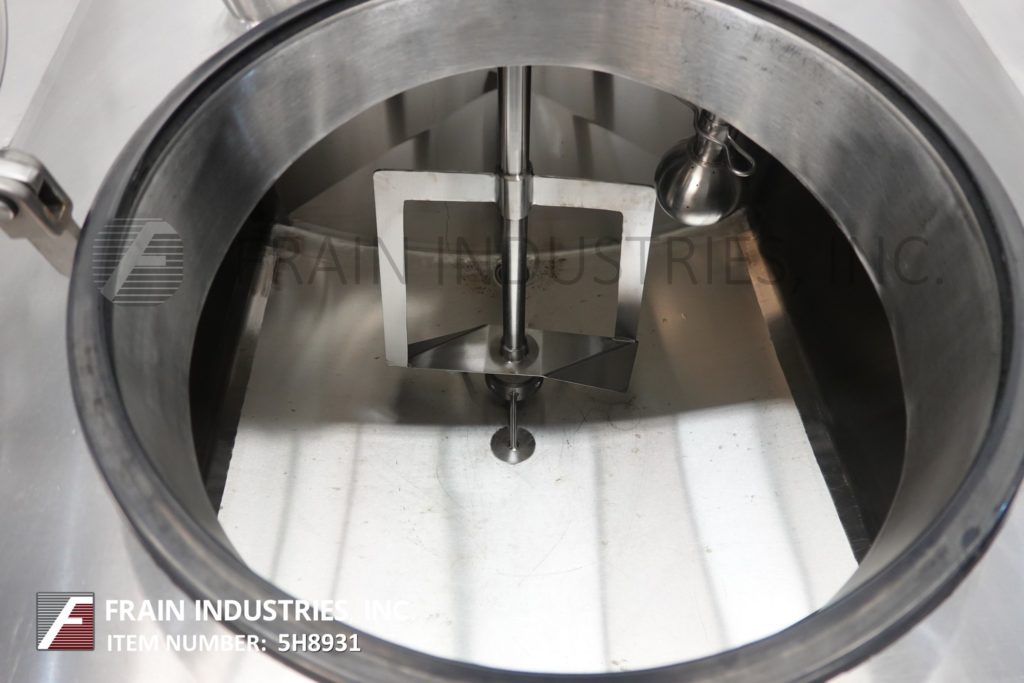

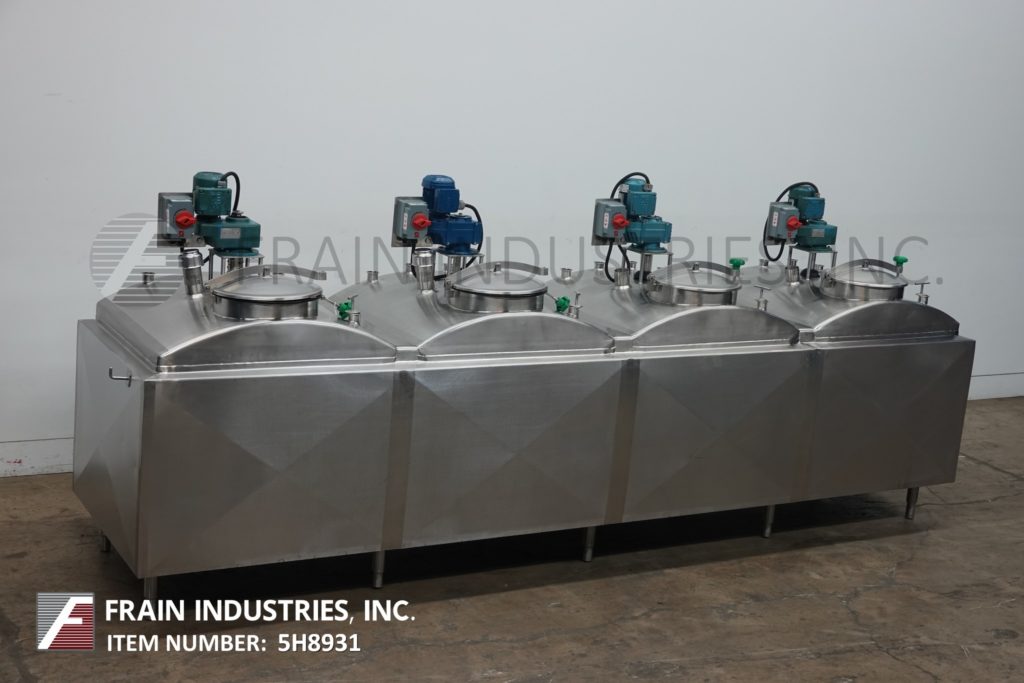

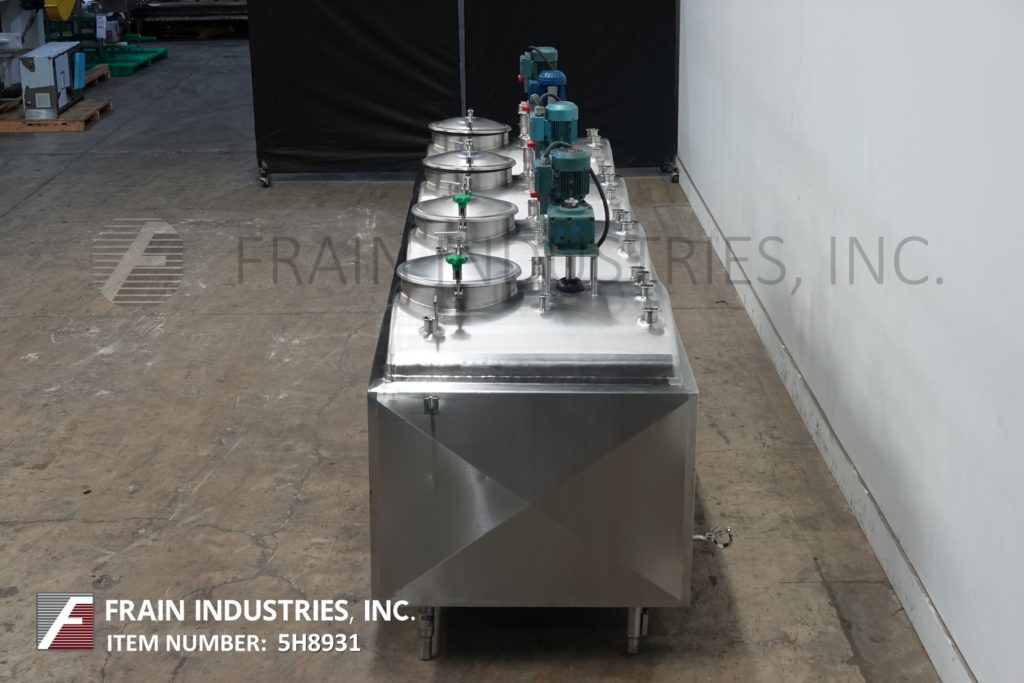

APV, four chamber, 304 stainless steel insulated, 800 gallon flavor tank. Each chamber is 200 gallons with inner dimension of 42" long x 42" wide x 40" deep. Equipped with lift up cover, safety grate, prop agitation powered by a ½ hp drive and CIP spray ball supplied by a 2"OD / 1½"ID Tri-Clamp fitting. Slant bottom has 2½" OD / 2"ID Tri-Clamp side bottom discharge with 10" floor clearance. Mounted on stainless steel legs. Rectangle construction provides maximum capacity in small floor area.
Top Access (Each Tank)(5) 2½"OD / 2"ID Tri-Clamp
OAD: 185"L x 48"W x 70"H

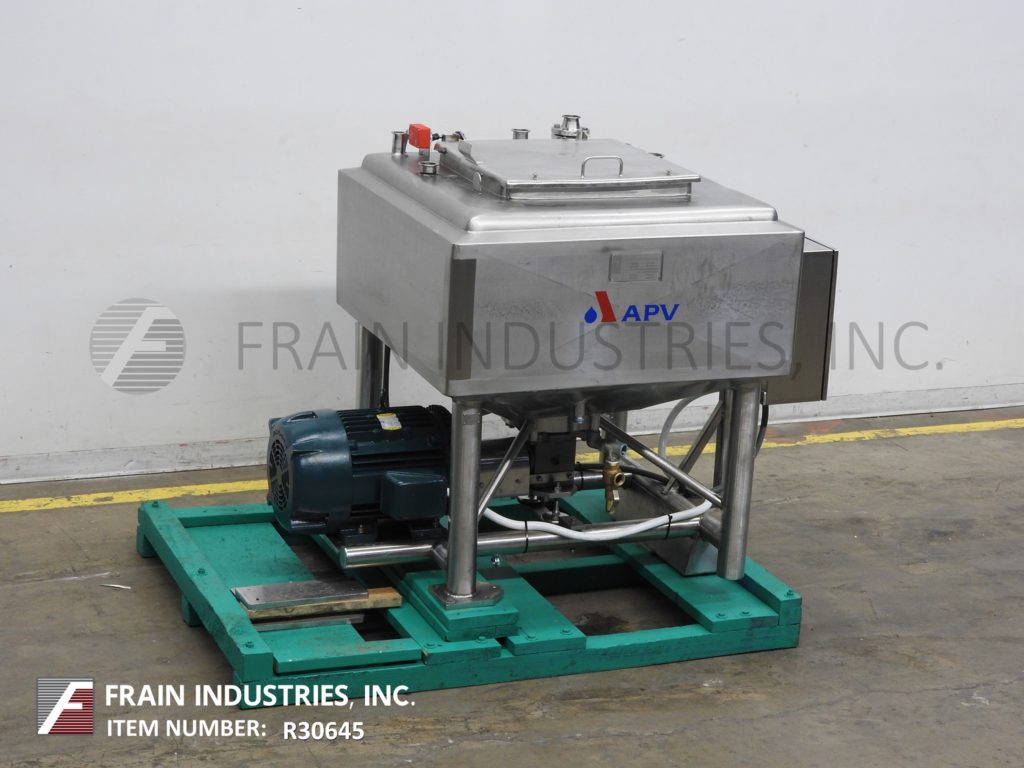

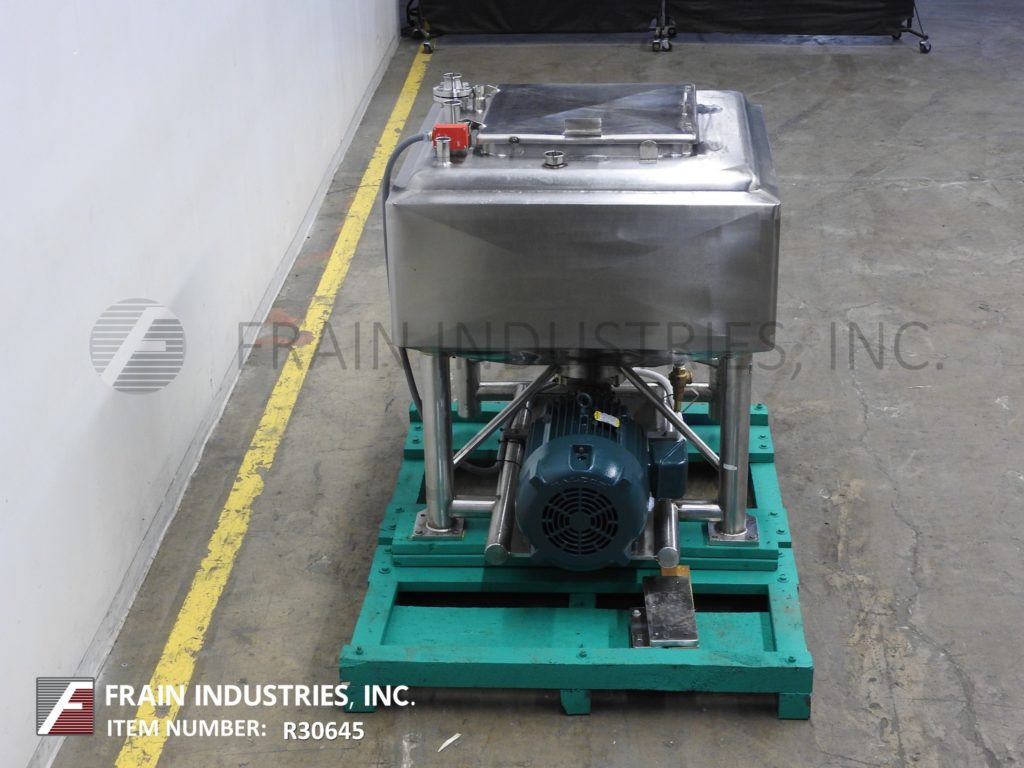

APV Crepaco, 100 gallon, 304 stainless steel, high shear, jacketed liquefier with gallons of product per hour – depending on materials and application. Chamber dimmensions: 40" in Length; 40" in Width; 16" straight wall. Equipped with 24" x 24" manway with flip top cover, high shear 6 hole / 3 wing impeller driven by side bottom 25 Hp motor drive. Cone bottom with 2½"OD / 2"ID Tri-Clamp discharge port with 18" floor clearence. Mounted on stainless steel tubular base frame.
Top Access:(1) 3½"OD / 3"ID Tri-Clamp(4) 2½"OD / 2" ID Tri-Clamp(1) 2"OD / 1½"ID Tri-Clamp
Jacket Access:(2) 1" NPT(1) ¾" NPT
MAWP: 95 psi @ 350°FMDMT: -20°F @ 95 psi
OAD: 62.5"L x 48"W x 55"H

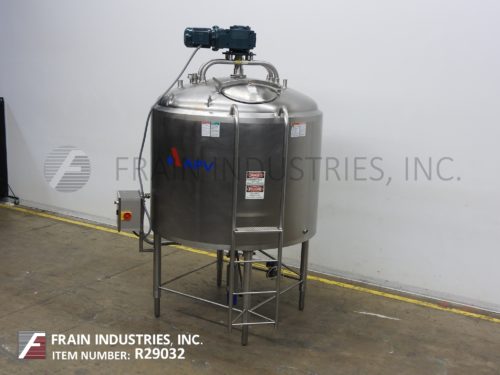

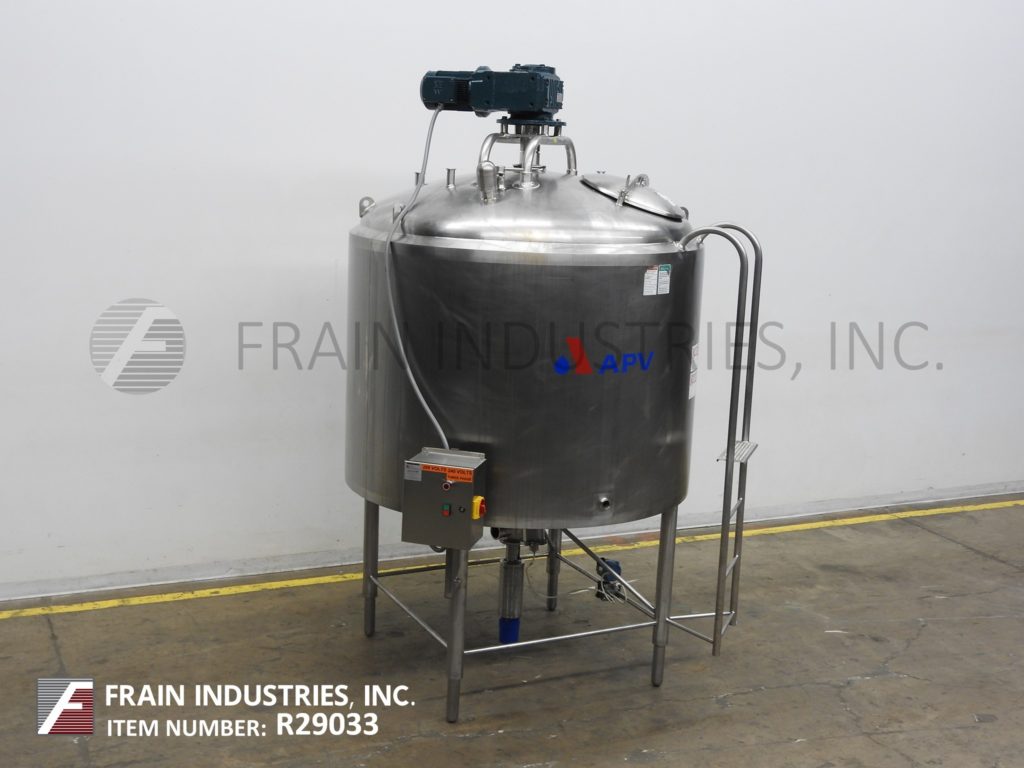

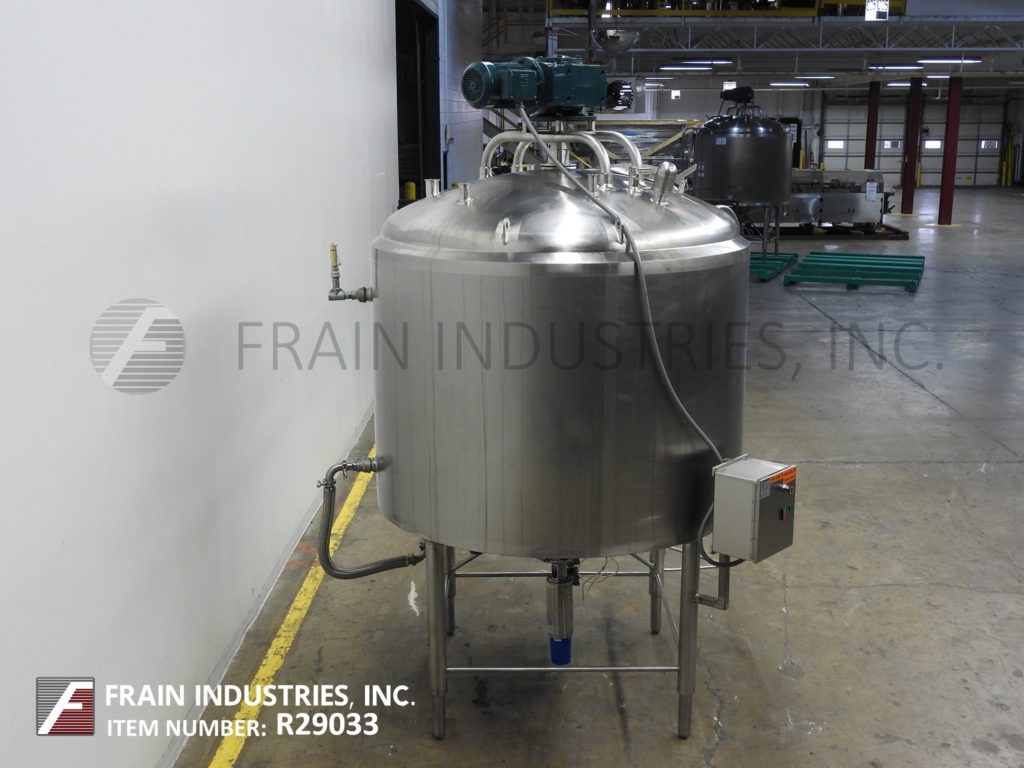

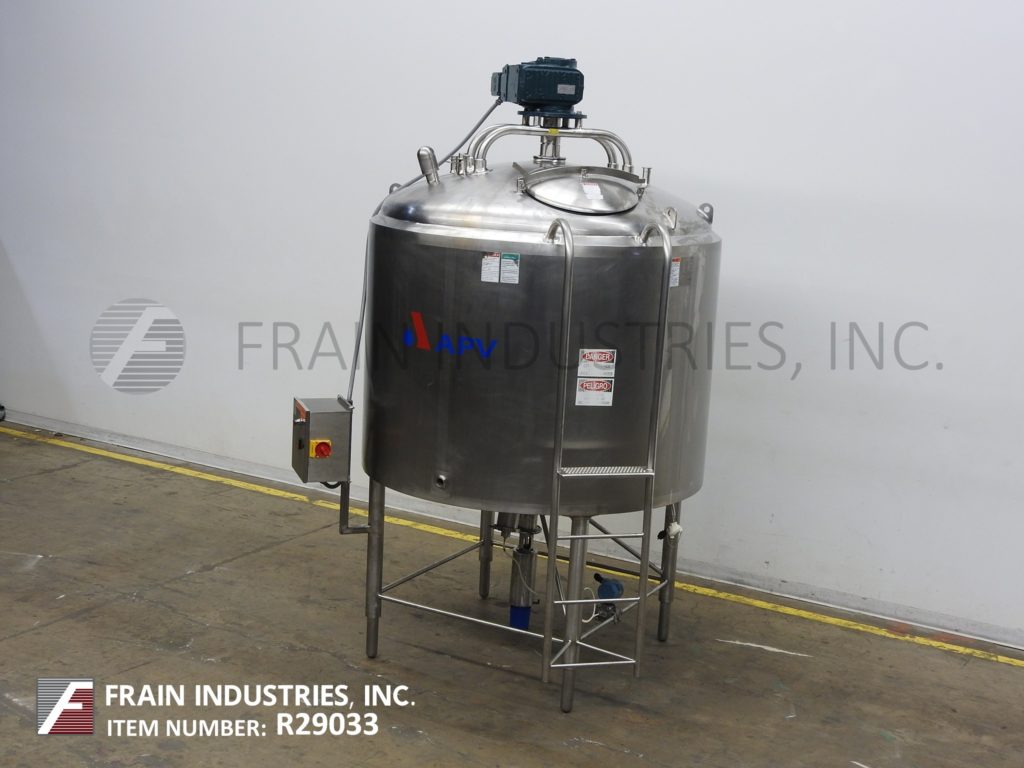

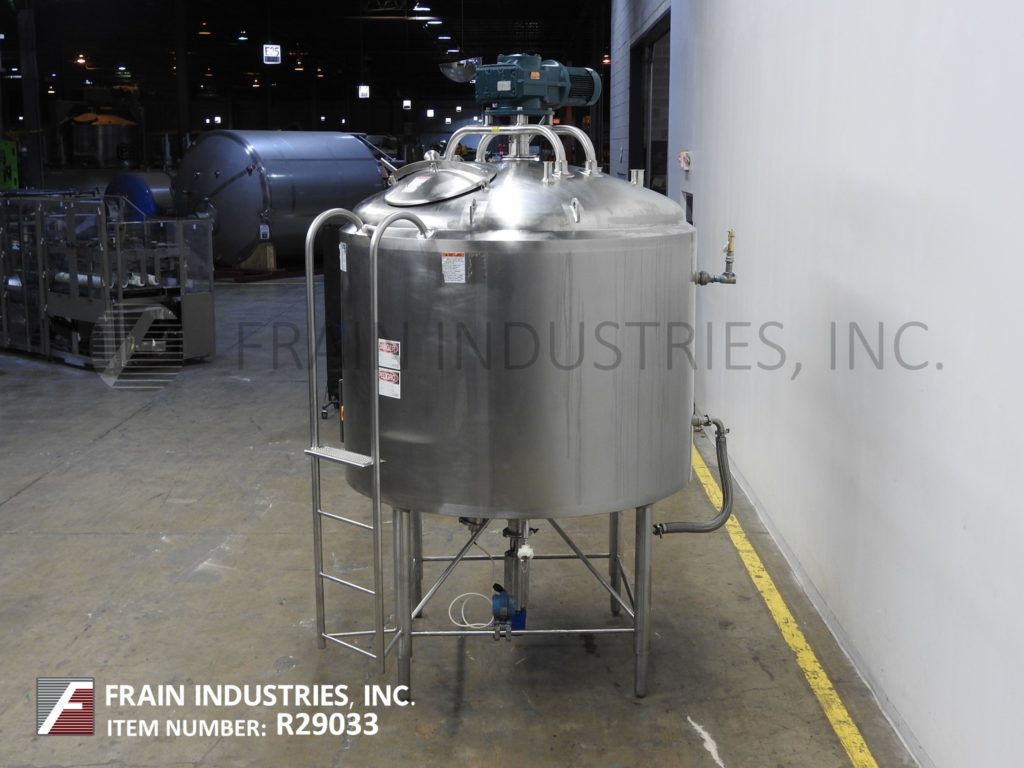

APV, Model CCA, 770 gallon capacity, 304 stainless steel jacketed and insulated process tank. Vessel dimensions: 66" diameter with a 48" straight wall. Equipped with a dome top with an 18" diameter top hinged man way, (2) CIP spray balls supplied by a 2"OD / 1½"ID Tri-Clamp fitting, (1) adjustable angle baffle, (1) thermowell, (1) flush mount bottom sensor, 3 Hp top mounted sweep agitator and pneumatic plug valve with a 3½"OD / 3"ID Tri-clamp fitting and 28" ground clearance.
Top Ports:(1) 3½"OD / 3"ID Tri-Clamp(1) 2½"OD / 2"ID Tri-Clamp(1) 2"OD Open Vent
Side Ports:(1) 2"OD / 1½"ID Tri-Clamp
Jacket Ports: (2) 1¼" NPT
MAWP: 75 PSI @ 350°F MDMT: -20°F @ 75 PSI
OAD: 100"L x 76"W x 125"H

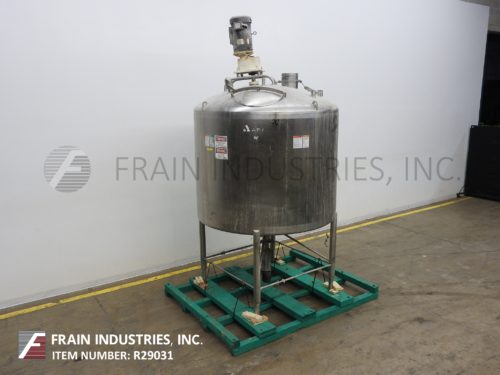

APV, Model CCA, 1000 gallon, 304 stainless steel, single wall tank. Vessel Dimensions: 72" diameter with a 56" straight wall. Equipped with a dome top, 18" diameter top bolt down man way, top mounted prop / dixie agitation powered by a 10 hp drive, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri-clamp fittings and pneumatic plug style valve with a 3½"OD / 3"ID Tri-clamp fitting and 28" ground clearance.
Top Access:(1) 8" OD Open Vent(1) 2½"OD Open Vent(1) 2½"OD / 2"ID Tri-Clamp(2) 2"OD / 1½"ID Tri-Clamp
OAD: 74"L x 74"W x 142"H

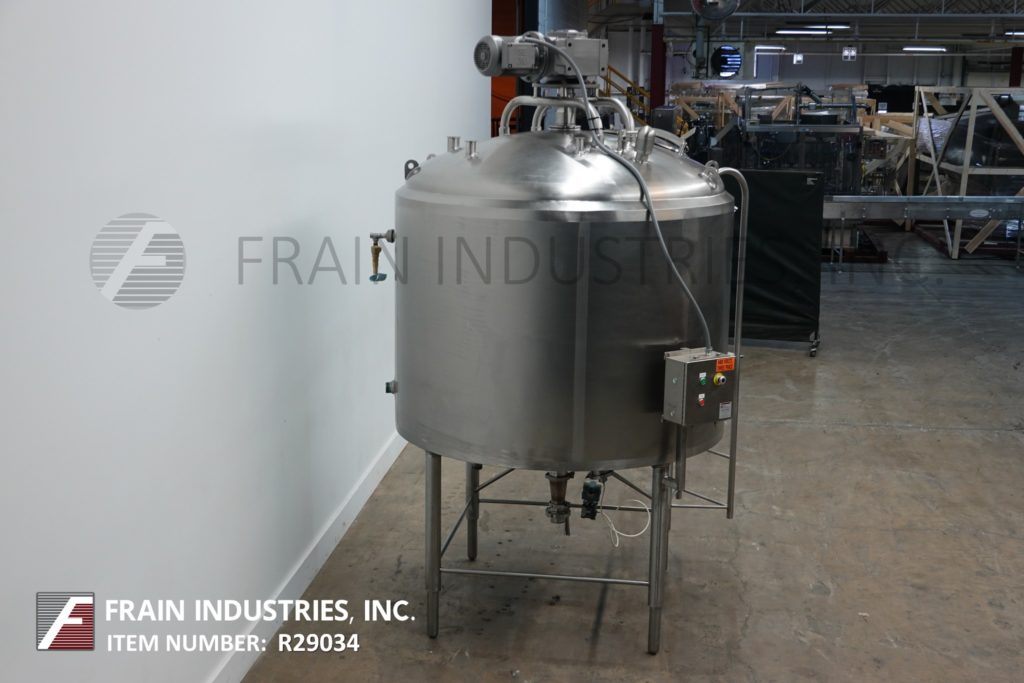

APV, Model CCA, 350 gallon capacity, 304 stainless steel jacketed and insulated process tank. Vessel dimensions: 48" diameter with a 40" straight wall. Equipped with a dome top with an 18" diameter top hinged man way, (2) CIP spray balls supplied by a 2"OD / 1½"ID Tri-clamp fitting, (1) adjustable angle baffle, (1) thermowell, 2 Hp top mounted sweep agitator, 0.30 hp top mounted prop agitator and 4½"OD / 3½"ID I-Line fitting discharge with 32" ground clearance.
Top Ports:(1) 2½"OD / 2"ID Tri-Clamp(1) 2"OD / 1½"ID Tri-Clamp(1) 2½"OD Open Vent
Jacket Ports: (4) 1¼" NPT
OAD: 68"L x 58"W x 108"H
Crepaco, 2,000 gallon capacity, 304 stainless steel jacketed mixing tank. Vessel dimensions: 84" Diameter; 90" Straight Wall. Equipped with dome top,18" diameter top manway with flip up cover, (2) thermowells, 3 Hp bridge mounted sweep agitator and slant bottom with 2½" OD / 2" ID Tri-clamp side bottom discharge with 9" floor clearance.
MAWP: 50 PSI
Top Ports:(1) 5"OD / 4"ID Tri-Clamp(1) 3"OD / 2¼"ID Seated Bevel(1) 2½"OD / 1¾"ID Seated Bevel(3) 2"OD / 1¼"ID Seated Bevel(1) 2" Open Vent(2) 2" NPT
OAD: 96"L x 96"W x 145"H

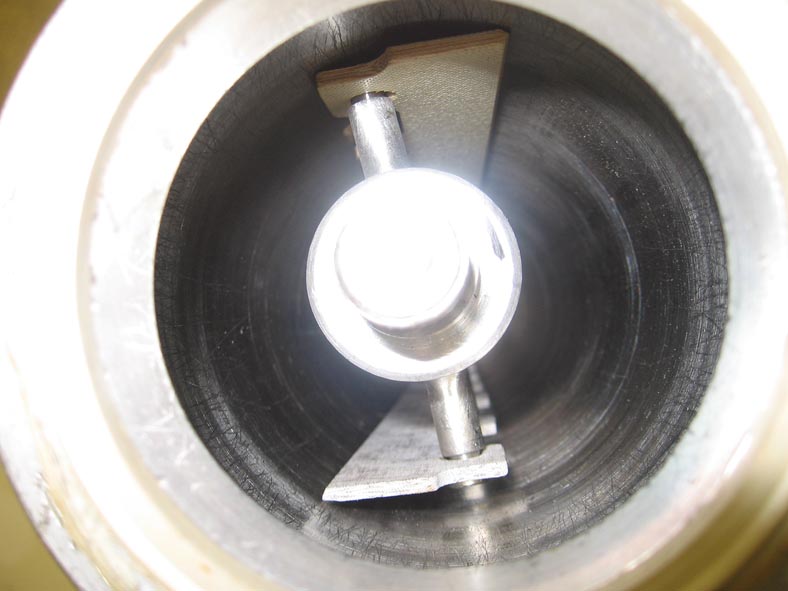

Crepaco, Model HD, stainless steel, continuous, double cylinder, scrape surface heat exchanger. Rated from 100 to 5,000 gallons of product per hour – depending on materials, application and machine configuration. Each cylinder is steam jacketed and rated to MAWP 150 Psi @ 350° F with 70" long x 6" ID product cylinder each,with (4) scraper blades, 9 ft² of heat transfer area, 2½"OD / 2"ID threaded product connections and 1" NPT media connections Both Cylinders powered by a common 15 Hp motor drive. Mounted on (6) leg heavy duty frame.
Tube S/N # 6250, 6252
OAD: 112" L x 38" W x 46" H
