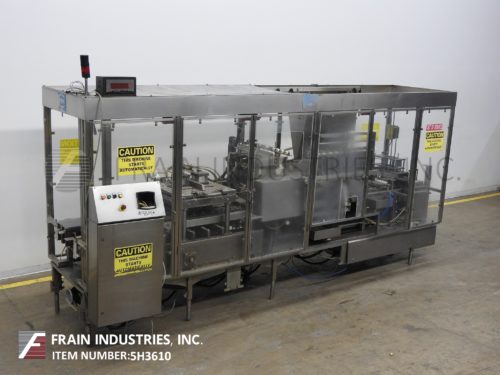

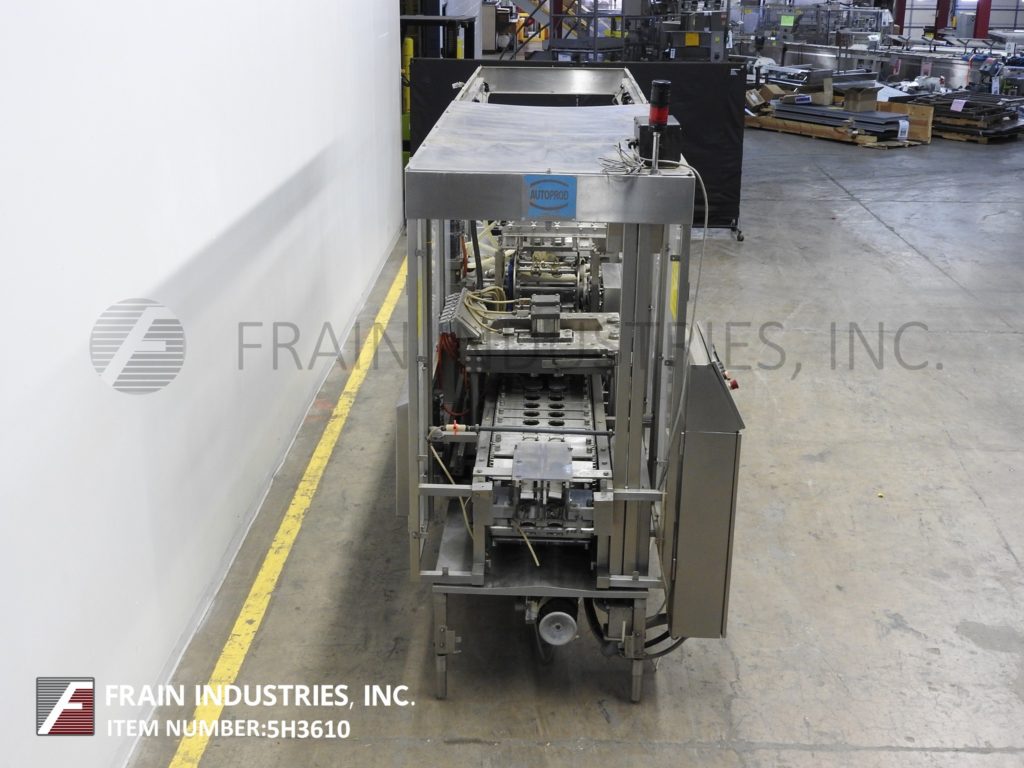

Autoprod Model ZP1X4, Stainless steel, wipe-down 1 x 4 inline cup filler heat sealer rated from 20 to 120 cups per minute – depending on material and application. Equipped with cup denester, agitated product hopper, (4) 16 ounce pistons with (4) bottom up filling heads and roll stock film with heat sealing section. Control panel has Allen Bradley PLC controller with start, stop, reset and e-stop push buttons and on / off switches and statis light bar. Mounted on stainless steel frame.
OAD: 140" L x 66" W x 90" H

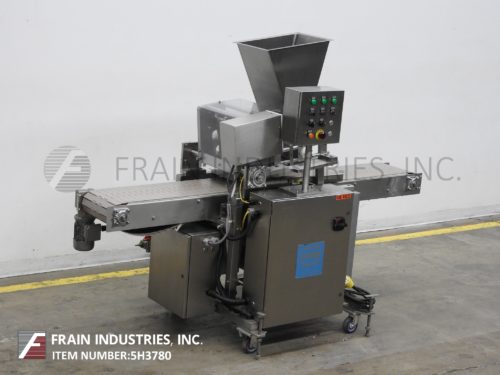

Autoprod / Oystar, Model F-3, inline, stainless steel (3) piston depositor. Containers per minute – depending on materials, application, environment and machine configuration. Equipped with 17" long x 12" wide x 24" deep conical product hopper and 96" long x 12" wide delran conveyor with 36" in feed and discharge height. (3) 1/2" ID pistons, set on 3-1/2" centers and actuator valve. Control panel has machine on / off / auto and fill volume, filler speed, conveyor on / off and conveyor variable speed control dials with e-stop. Mounted on stainless steel base frame, with casters and leveling legs.
OAD: 96" L x 46" W x 70" H
Autoprod, Model SLH, stainless steel, automatic inline, dual lane roll stock heat sealer and over lidder. Rated from 20 to 100 containers per minute – depending on materials, applicatuion and machine configuration. Film Specifications: 8" wide x 12" diameter on a 3" core. Container Specifications: 2¼" to 12" in height x up to 7" diameter. Equipped with (2) 6" wide x 138" long Delrin product conveyors, mechanical 1 to 2 lane diverter, (2) star wheel indexed heat seal stations with serrated die cut knife and trim rewind station, (2) star wheel indexed overlidders with 36" long roller bar magazines. Control panel has push button start / stop controls, variable speed control dials, digital temperature controls and heater on / off switch.
OAD: 150"L x 55"W x 84"H
Autoprod / Oystar, Model CMS, Automatic, stainless steel, 2) up cup filler . Rated from 60 to 240 containers per minute – depending on materials, application and machine configuration. Container size range to 3½" in diameter and 4" in height with 16½" x 4" plates set on 4½" centers. Equipped with 31" wide x 15" long x 24" deep product hopper, cup denester, (8) 9 oz pistons, (8) filling nozzles and a rotary pic-n-place die-cut film with heat sealer. Control panel has A/B controller and digital readout with start, stop, reset and e-stop push buttons with statis light bar. Mounted on stainless steel frame with safety guarding.
OAD: 195"L x 60"W x 106"H
Autoprod / Oystar Model FP2x1, Automatic, stainless steel, single lane, (2) up, cup filler roll stock film and heat selar rated from 10 to 60 containers per minute – depending on materials, application and machine configuration. Container size range: up to 5" in diameter and 5" in height. Equipped with cup denester, 18" wide x 16" long x 18" deep product hopper, (2) 32 ounce piston with rotary valve and positive cut off nozzles, roll stock film with heat seal station and re-wind with reciprocating pick and place overlidder. Control panel has push button and switches,with digital temperature controls. Mounted on heavy duty stainless steel frame with safety guarding.
OAD: 180" L x 52" W x 86" H
Autoprod / Oystar, Model FP 4×2, Automatic, stainless steel, (4) lane, (2) up, cup filler. Rated from 80 to 240 containers per minute – depending on materials, application and machine configuration. Container size range to 2" in diameter and 2" in height. Equipped with 21" diameter x 18" deep jacketed product hopper, cup denester, (8) 2oz pistons and roll stock film and heat seal stations with scrap re-wind. Control panel with push button start / stop and on / off switche controls. Mounted on heavy duty stainless steel frame.
OAD: 153"L x 64"W x 75"H
Autoprod, Model FP – 1×8, Automatic, inline, stainless steel cup filler and die cut heat sealer. Rated from 10 to 30 cycles or 80 to 240 cups per minute – depending on materials, application and machine configuration. Denests, fills and heat seals pre-cut foil to cups, currently set to do 1 x 8 pattern on 3¾” centers. Equipped with cup denster with 21" vertical magazine, 8-head rotary valve depositor with 16" long x 30"wide x 22" deep product hopper, 8-head piston filler with positive cut off and 16" long x 30" wide x 22" deep product hopper, reciprocating pre-cut foil pic-n-place and heat-sealing section. Control panel with push button start / stop / E-stop, (8) digital temperature controllers and on / off switches for cup denest, filler 1, filler 2, lid picker, heat sealer, and heaters.
OAD: 176" L x 80" W x 88" H
