Home » Combi America

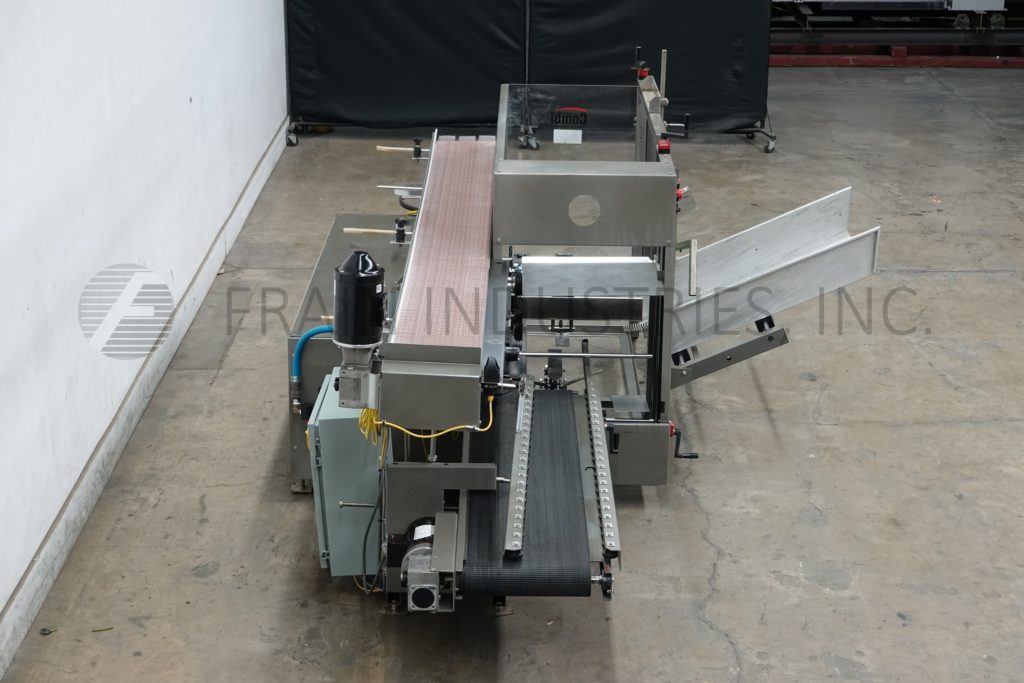

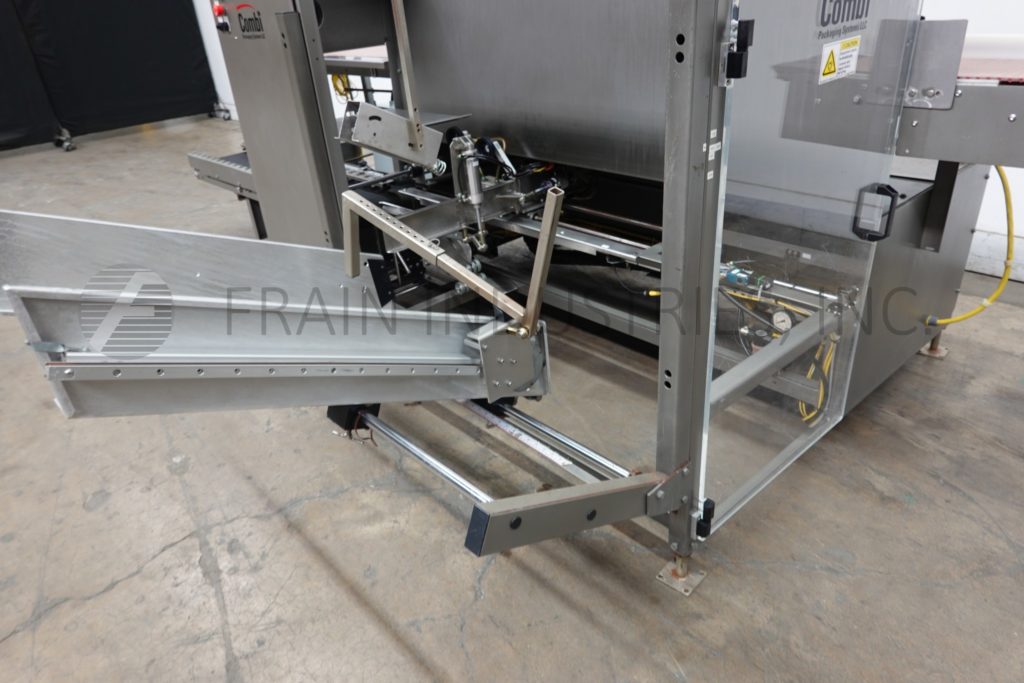

Combi America, Model Ergopack, case packing system. Rated from 5 to 10 cases per minute – depending on materials, application, machine configuration and operator dexterity. Case size range: 13" to 24" in Length; 7¾" to 16" in Width; 6" to 16" in Height. Equipped with 48" long blank case magazine, (4) suction cup reciprocating pick and place, case bottom minor and major flap closers, mechanical pusher bar, 12" wide x 192" long Intralox product conveyor with a 37" in feed height running parallel to 12" wide x 118" long rubber belt case conveyor and is hand crank adjustable. Control panel with (2) hand cycle control and push button operation controls. Mounted on base frame with leveling legs.
OAD: 305"L x 110"W x 80"H Case Erector / Packer

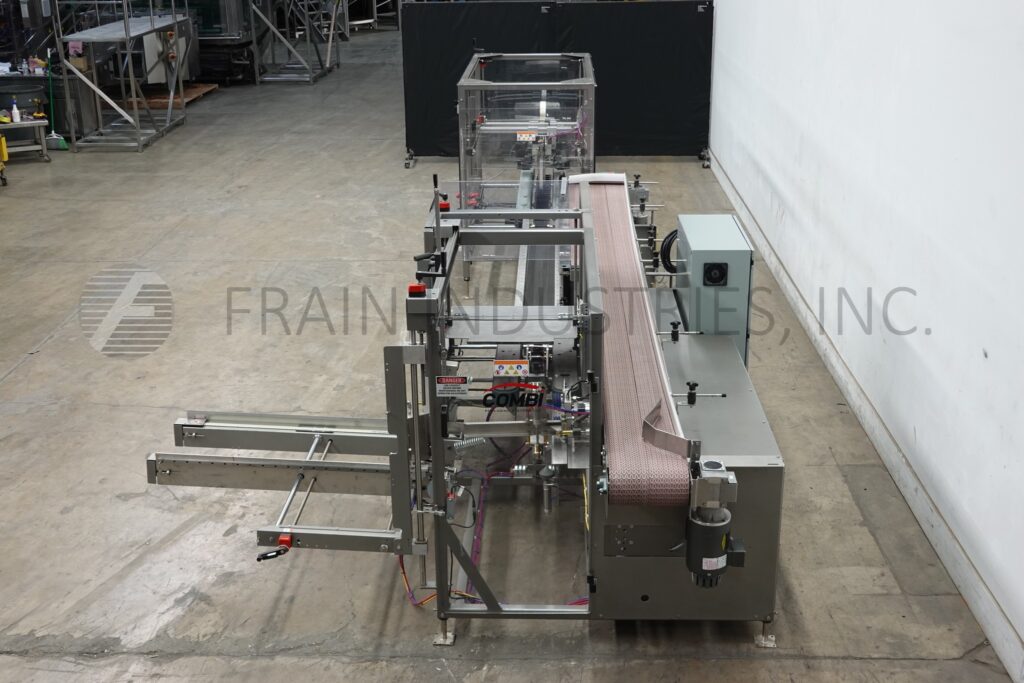

Combi America Model 2EZHS, Automatic, case erector, top and bottom tape packer rated from 5 to 20 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length x 6" to 16" in Width x 5" to 18" in Height. Equipped with easy load, blank case magazine, suction cup pic-n-place, minor and major flap closers, servo driven pusher bar, vacuum system, 2" tape head, hand crank no-tool adjustments and safety guarding, 12" wide x 196" long Intralox product conveyor running parallel to 12" wide x 96" long case conveyor to Model TBF, automatic, uniform, top flap closer, tape sealer. 72" long x 3" wide dual side belt conveyor, automatic top flap closer, major and minor flap plows, 2" top and bottom tape heads. Controll panel with controller and A/B variable speed controls. Mounted on heavy duty frame with safety guarding.
OAD: 268"L x 108"W x 72"H

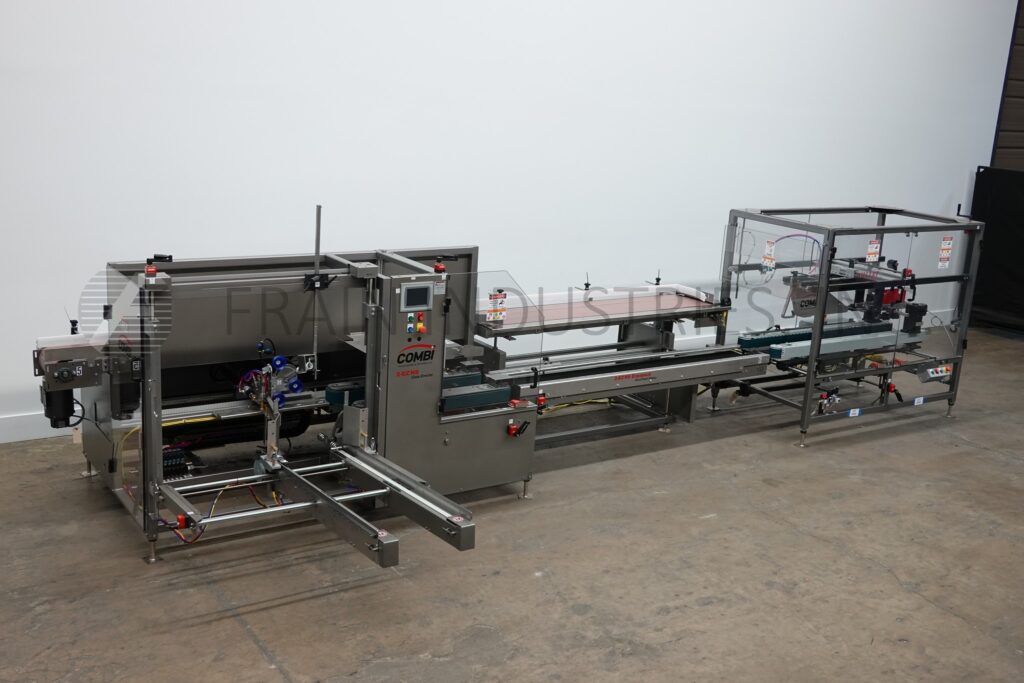

Combi America, Model 2EZHS, Ergopack. Rated from 5 to 20 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length; 6" to 16" in Width; 5" to 18" in Height. Equipped with 48" long blank case magazine, suction cup reciprocating pick and place, minor and major flap closers, mech pusher bar, 2" tape head, 12" wide x 192" long product conveyor with 80" long bi-directional accumulation and packing station running parallel to 12" wide x 94" long case conveyor. Top case taper equipped with minor flap closer, major flap plows, 3" wide dual side gripper belts, 2" top / bottom tape heads, hand crank adjustable with Siko gages and interlocking Lexan safety guarding.
OAD: 283"L x 116"W x 70"H
Combi America, Model 2EZHS, Ergopack. case erector and packer rated from 5 to 20 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length; 6" to 16" in Width; 5" to 18" in Height. Equipped with 48" long blank case magazine, suction cup reciprocating pick and place, mech pusher bar, with 2" tape head, 12" wide x 192" long product conveyor has a 80" long bi-directional accumulation and packing station running parallel to 12" wide x 94" long case conveyor. Equipped with minor flap closer, major flap plows, 3" wide dual side gripper belts, 2" top / bottom tape heads, hand crank adjustable with Siko gages and interlocking Lexan safety guarding.
Combi America, Model 2EZHS, Ergopack. Rated from 5 to 20 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length; 6" to 16" in Width; 5" to 18" in Height. Equipped with 48" long blank case magazine, suction cup reciprocating pick and place, minor and major flap closers, mech pusher bar, 2" tape head, 6" wide x 192" long product conveyor with 80" long bi-directional accumulation and packing station running parallel to 12" wide x 94" long case conveyor. Top case taper equipped with minor flap closer, major flap plows, 3" wide dual side gripper belts, 2" top / bottom tape heads, hand crank adjustable with Siko gages and interlocking Lexan safety guarding.
Combi America, Model 2EZHS, Ergopack. Case size range: 8" to 24" in Length; 6" to 16" in Width; 5" to 18" in Height. Equipped with 72" long blank case magazine, suction cup reciprocating pick and place, minor and major flap closers, mechanical pusher bar, 2" tape head, 12" wide x 214" long product conveyor and 104" long packing station running parallel to 8" wide x 118" long case conveyor. Top case taper equipped with minor flap closer, major flap plows, 3" wide dual side gripper belts, 2" top / bottom tape heads, hand crank adjustable with Siko gages and interlocking Lexan safety guarding. Control panel with tough screen HMI. Speed dependent on materials, application and machine configuration.
OAD: 305"L x 142"W x 76"H
Combi America, Model Ergopack HS. Rated from 5 to 20 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length; 6" to 16" in Width; 5" to 18" in Height. Equipped with 72" long blank case magazine, suction cup reciprocating pick and place, minor and major flap closers, mechanical pusher bar, 2" tape head, 12" wide x 192" long product conveyor and 80" long packing station running parallel to 12" wide x 92" long case conveyor. Top case taper equipped with minor flap closer, major flap plows, 3" wide dual side gripper belts, 2" top / bottom tape heads, hand crank adjustable with Siko gages and interlocking Lexan safety guarding. Control panel with tough screen HMI. Mounted on heavy duty frame.
OAD: 292"L x 140"W x 76"H
Combi America, Model 2EZHS, Ergopack. Rated from 5 to 20 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length; 6" to 16" in Width; 5" to 18" in Height. Equipped with 72" long blank case magazine, suction cup reciprocating pick and place, minor and major flap closers, mech pusher bar, 2" tape head, 7½" wide x 168" long product conveyor and 60" long packing station running parallel to 9½" wide x 70" long case conveyor. Top case taper equipped with minor flap closer, major flap plows, 3" wide dual side gripper belts, 2" top / bottom tape heads, hand crank adjustable with Siko gages and interlocking Lexan safety guarding.
OAD: 255"L x 137"W x 72"H
Combi America Model 2EZHS, automatic, case erector, bottom taper rated from 5 to 20 cases per minute – depending on materials, application and operator dexterity. Case size range: 8" to 24" in Length x 6" to 16" in Width x 5" to 18" in Height. Heavy duty welded steel construction. Equipped with easy load, 80" long automatic blank case magazine, (5) suction cup pic-n-place case erector, minor and major flap closers, 44" long x 3-1/4" wide dual side belt case indexing, 3" bottom tape head, hand crank no-tool adjustable, vacuum system and interlock safety guarding. Control panel has A/B controller with A/B panel view and safety reset, start, stop and e-stop controls with ethernet interface port and statis light bar. Mounted on height adjustable frame with leveling legs.
OAD: 105" L x 80" W x 84" H Magazine up 105" L x 160" W x 75" H Magazine down
Combi America, Model EM3 Ergopack, case packing system. Rated from 5 to 10 cases per minute – depending on materials, application, machine configuration and operator dexterity. Case size range: 13" to 24" in Length; 7¾" to 16" in Width; 6" to 16" in Height. Equipped with 42" long blank case magazine, (4) suction cup reciprocating pick and place, case bottom minor and major flap closers, mechanical pusher bar, 12" wide x 144" long Intralox product conveyor with a 41½" in feed height running parallel to 16" wide x 70" long rubber belt case conveyor and is hand crank adjustable. Control panel with Koyo controller, (2) hand cycle control and push button operation controls. Mounted on base frame with leveling legs.
OAD: 166" L x 99" W x 63" H Case Erector / Packer
Combi-America, Model HTF, Automatic stainless steel tray erector hot melt sealer. Rated to a maximum of 15 trays per minute – depending on materials and application. Tray size range: 8" to 22" in Length x 8" to 22" in Width x 2" to 9" in Depth. Equipped with 52" long blank tray magazine, vacuum recipicating pick and place, forming head. Nordson ProBlue hot melt glue system with 52" long x 20" wide tray conveyor with discharge height range of 20" to 25" and interlock safety door guarding. All supported by control panel with start, stop and e-stop push buttons. Mounted on stainless steel frame with height adjustable legs.
OAD: 180" L x 85" W x 83" H
Combi, Model TBS-100 FC-XL, automatic, uniform, top flap closer, top and bottom case tape sealer. Rated from 10 to 20 cases per minute – depending on materials, and application. Case size range: 8" to 24" in Length; 6" to 16" in Width; 5" to 18" in Height. Equipped with 72" long x 2-1/4" wide dual side belt case assit conveyors, automatic top flap closer, major / minor flap plows, 2" top and bottom tape heads, hand crank adjustable with interlock lexan safety guarding doors. Control panel has push button start / stop / reset and e-stop push button controls. Mounted on (4) leg height adjustable frame.
OAD: 84" L x 58" W x 69" H
