Commercial Manufacturing, Vibratory, separation, sizing and feed conveyor system with amount of product per hour – depending on materials and application. Equipped with conveyor measuring: 192" Long x 36" Wide x 6" Deep. Single deck vibratory conveyor has top 84" Long x 36" Wide x 1" Deep, stainless steel, removable dewatering screens with 2.45mm opening and 76" L x 28" W excess product discharge chute. Remaining product drops down to dimpled section that has (30) ½" H troughs and right angled product discharge at end with 24" floor clearencel. (2) ? hp motor drives with saftey guarding. Mounted on a heavy duty stainless steel frame. Can be used for uniform large / small / right on product separtation without scalping.
OAD: 206" L x 74" W x 51" H
Commercial, Model Vibra Glide, stainless steel vibratory trough style feed conveyor with product volumes per minute or hour – depending on materials and application. Equipped with an 18" wide x 120" long trough with (2) 4" high internal baffles to help even distribution. Charge end of trough has 5½" deep side walls with a charge height of 55" and discharges with 36" ground clearance. Mounted on heavy duty stainless steel frame with (2) 0.36 HP vibratory motors.
OAD: 125"L x 55"W x 55"H
Commercial Manufacturing, 304 stainless steel delumper. Equipped with a 96" long x 48" wide x 76" deep, 175 ft³, bulk stainless steel product hopper with lift out safety grate, 84" long pin bar agitation with14 – 12" long x 1 1/4" dia pins, 84" long x 12" diameter bottom auger. Pin bar and auger powered by a common 7½ hp drive. Product discharges from a 13" x 13" chute with 40" ground clearance. Mounted on a stainless steel frame.
OAD: 120"L x 67"W x 136"H

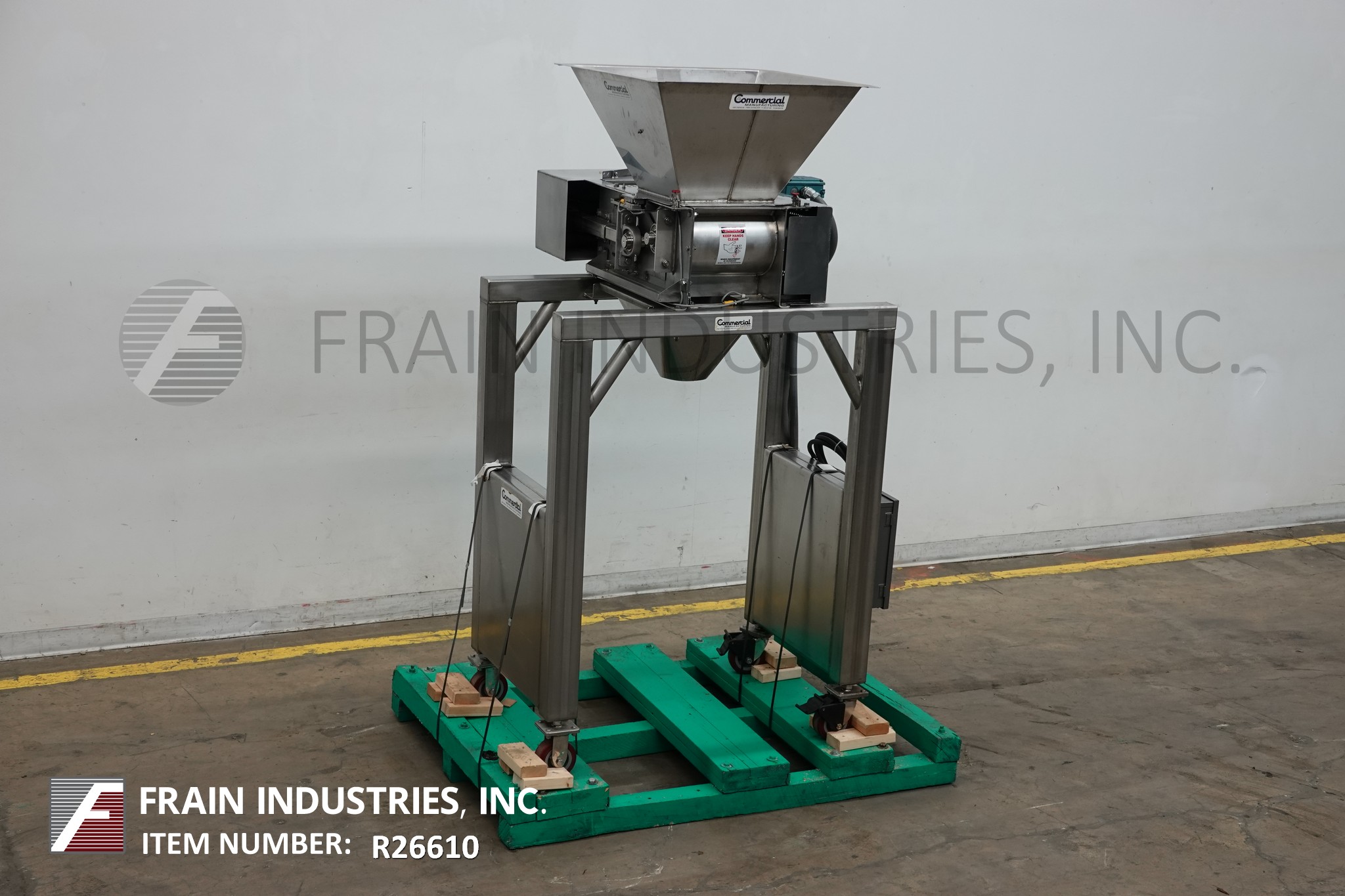

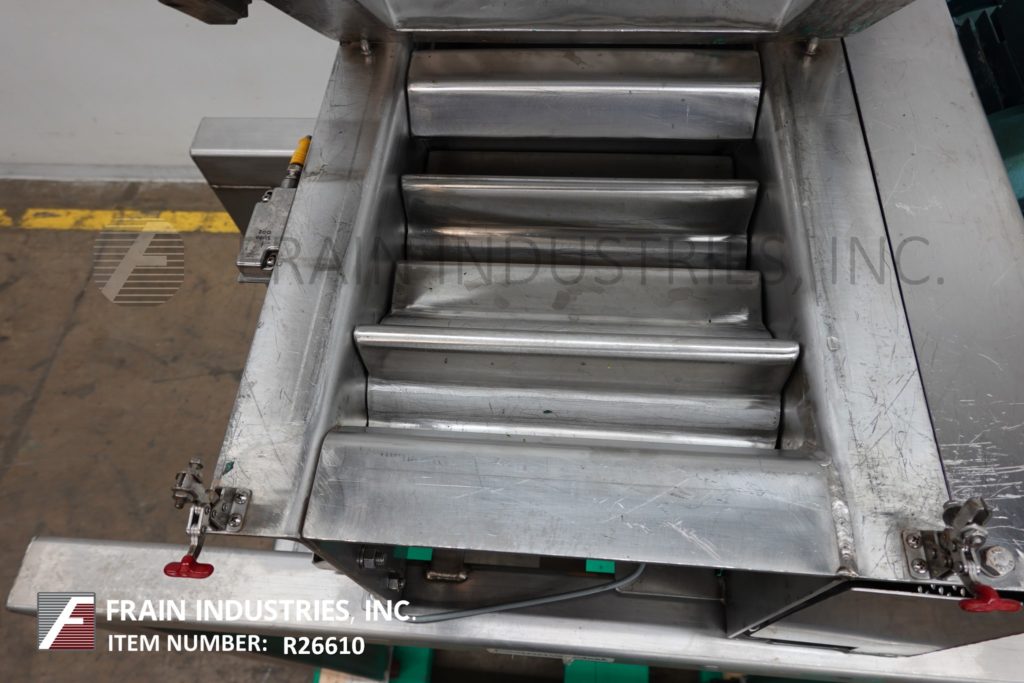

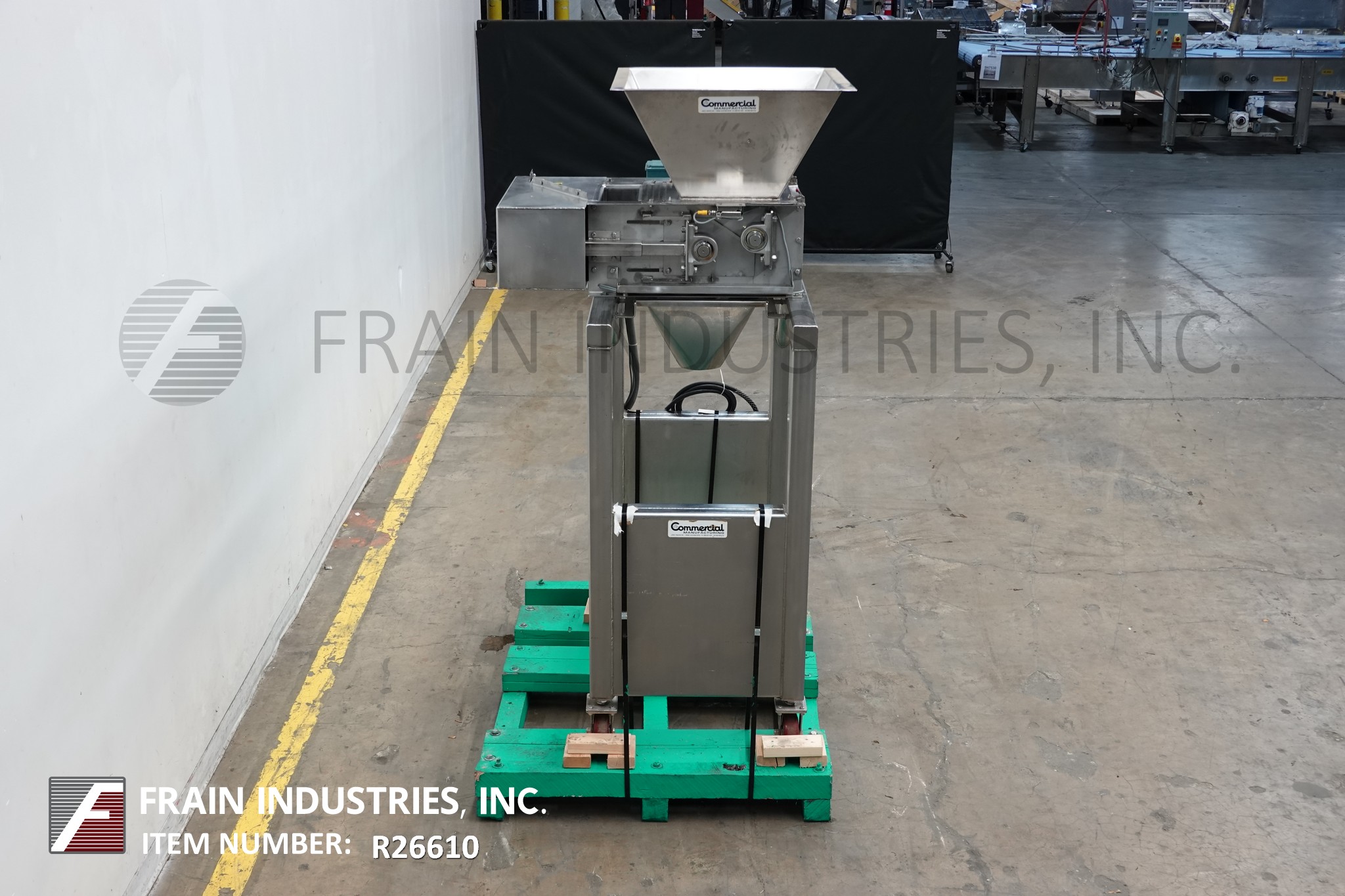

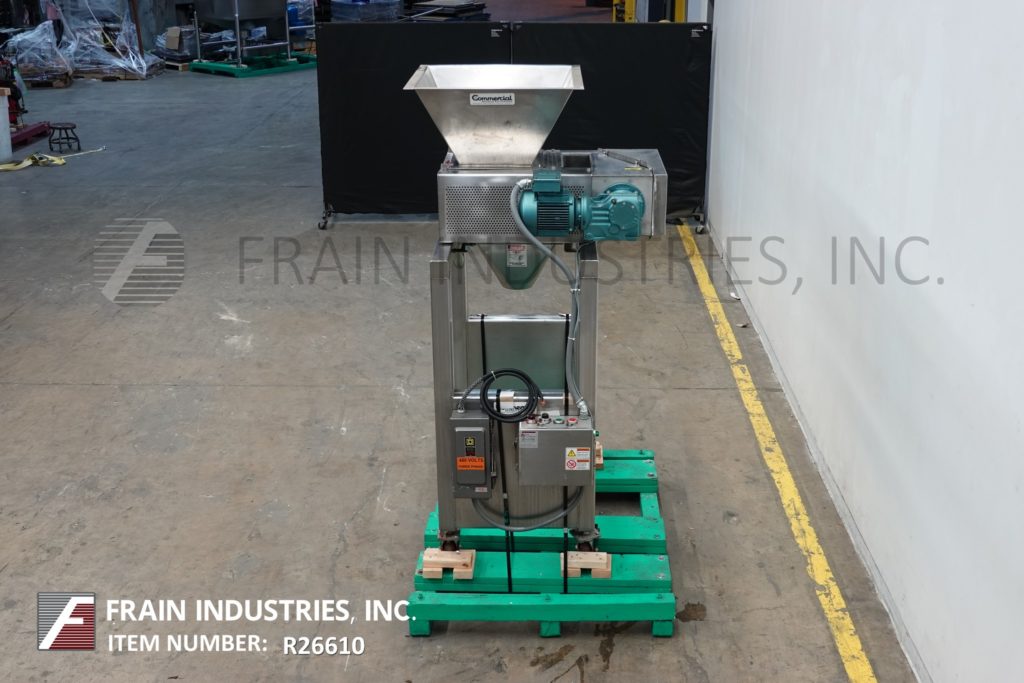

Commercial Manufactoring, Stainless steel product delumper with 25" L x 25" W, 6 ft³, bulk product hopper. Equipped with (2) 8" diameter x 12" long (5) pocket rotary lobe declumpers on 5" centers and 6" diameter center bottom discharge with 40" ground clearance. Control panel has start and stop push button controls. Mounted on stainless steel frame with casters.
OAD: 44"L x 38"W x 72"H
