Cozzoli, model RM110, automatic inline intermittent motion stainless steel monoblock, fill, plug and screw cap system. Rated up to 110 containers per minute – depending on materials, application and machine configuration. Fill range up to 120ml single dose and 360ml on multiple doses with proper change parts. Capable of handling straight sided, rounds, oval and rectangle containers. Maximum container diameter of 2ΒΌ”. Plug size range of: (5/16)” to 1(1/8)”. Cap size range of: 5/16″ to 1ΒΌ”. Equipped with 3ΒΌ” wide x 141″ long container conveyor, worm screw to star wheel container indexing, (4) head piston filler, 21″ diameter plug sorting bowl, 8 head 2-up plugger, 21″ diameter cap sorting bowl, 8 head 2-up capper and 2 head torque station. Control panel with AB controller and touch screen HMI.
OAD: 151″L x 86″W x 76″H

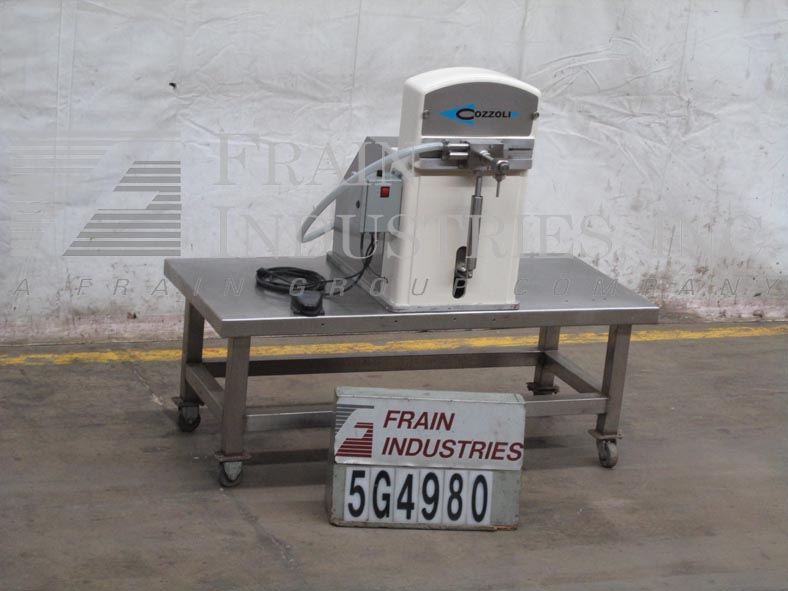

Semi-automatic, (2) head piston filler with number of containers per minute – depending on materials application,machine configuration and operator dexterity. Has all 316 stainless steel contact parts. Equipped with (2) 60ml pistons and is foot pedal operated and capable of fill ranges from 10ml to 120ml with appropriate change parts. Mounted on base frame.
OAD: 33" L x 20" W x 43" H

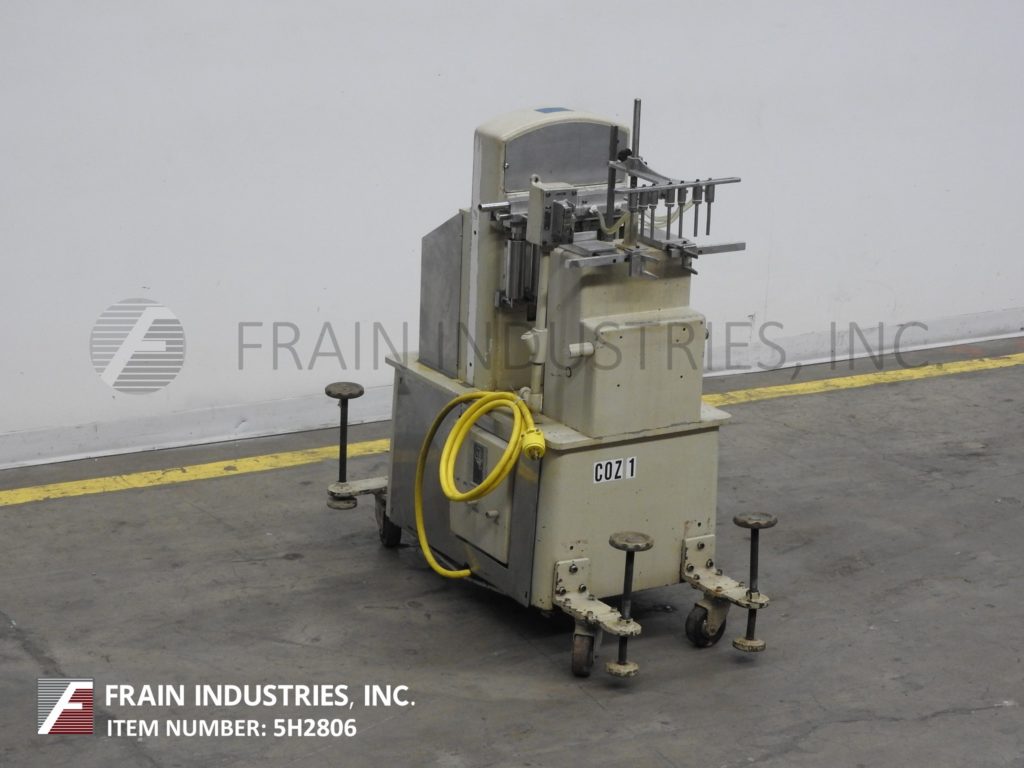

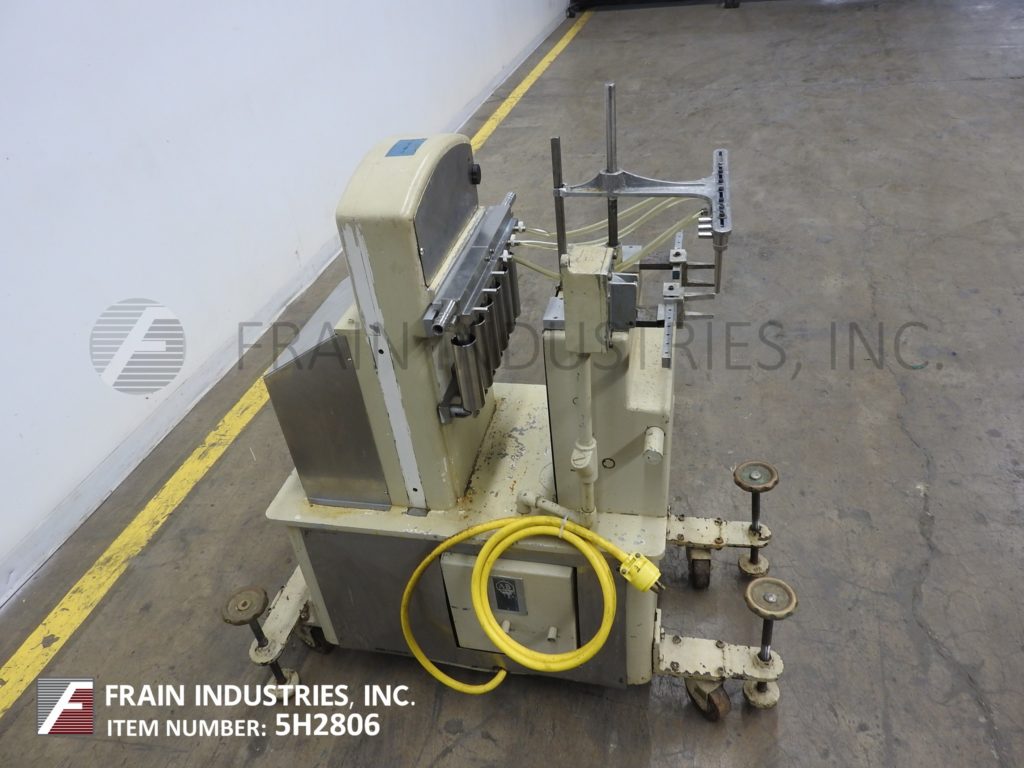

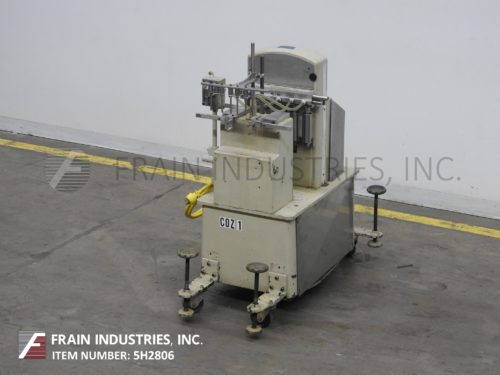

Automatic 10 head tray filler for syringes, cartridges and vials with a fill range of a .5cc to 30cc. Machine can be adapted to fill containers which have been trayed in a regular pattern, operator puts trays into holder & nozzles lower and automatically will fill one row at a time.
OAD: 4’L x 2’W x 3’H

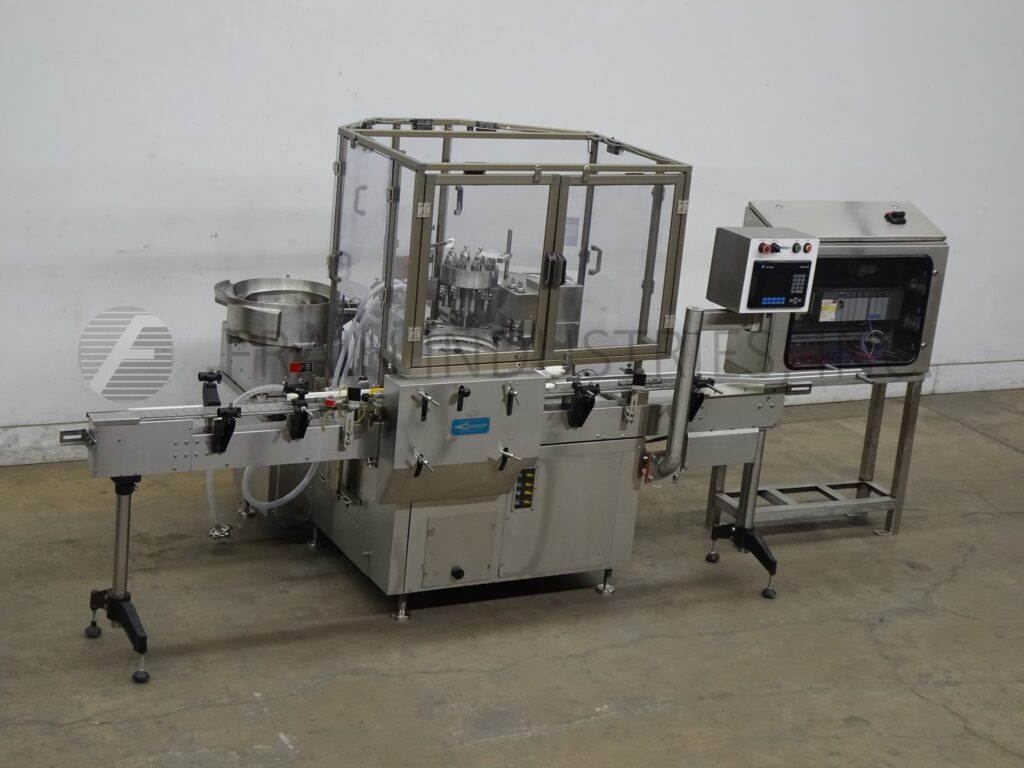

Cozzoli, Model RFPC, Automatic, stainless steel rotary, liquid filling, plugging, capping monoblock system. Rated up to 110 containers per minute – depending on materials, application and machine configuration. Fill range up to: 120ml – single dose, 360ml – multiple dose. Container size range: 9mm to 60mm OD x 32mm to 152mm in Height. Plug / Fitment size range: 8mm to 29mm. Cap size range: 8mm to 32mm. (both with proper change parts). Equipped with 3ΒΌ” wide x 102″ long container feed conveyor has worm screw to star wheel indexing (2) head piston filler, vibratory bowl feeder for plugs / fitments, (8) head fitment applicator, vibratory bowl feeder for caps, (8) head cap placer and (2) head cap tighting. Control panel has A/B controller with Panelview HMI. Mounted on stainless steel frame with safety door guarding and leveling legs.
OAD: 120″L x 68″W x 72″H
Cozzoli Model FPS1, Automatic, intermittent motion, 1-up, ampule unscrambler, filler and flame sealer rated from 15 to 60 ampules per minute – depending on materials and application. All 316 stainless steel contact parts. Fill range of .1ml to 2.2ml with accuracies of + / – 0.5%. Container size range of 6.4mm to 16mm OD with maximum height of 5-5/16" and sealing heights from 1-3/4" to 4-3/4". Bottom-up filling that fills one container at a time and is capable of handling ampules, glass tubes, onion skin and vials (with proper change parts). Equipped with 24" disc unscambler, fill piston, fill nozzle and flame sealer with pick off arms for ampule glass waste and discharge chute with finished ampule discharge conveying section and has on / off machine switch . Mounted on stainless steel frame with locking casters.
OAD: 45" L x 25" W 45" H
Cozzoli Model FPS2, Automatic, intermittent motion, unscrambler, flush, fill, flush and flame sealer rated up to 120 containers per minute – depending on materials, application and machine configuration. Stainless steel contact parts. Fill range: 1cc to 30cc with accuracies + / – 0.5%. Container size range: 3/8" to 1" in Diameter; up to 5-5/16" in Height and capable of handling ampules, glass tubes, onion skin and vials (change parts required for different size and fill ranges). Equipped with 24" OD disc unscrambling table with 14" long container roller conveyor, container indexing, with no container / no fill and can do 2 containers at a time, flush, fill, flush and flame seal with dual picker arms and reject chute with accumulation table. Mounted on heavy duty frame with casters.
OAD: 52"L x 27"W x 45"H
Cozzoli Model FPS1, Automatic, intermittent, 1-up, ampule unscrambler, flush, fill, flush and flame sealer rated from 15 to 60 ampules per minute – depending on materials and application. Stainless steel contact parts. Fill range of .1ml to 33ml and volumes can be changed by simple adjustment of calibrated sector arm with accuracies of + / – 0.5%. Bottom-up filling is provided through (2) cams to lower and raise with 2" or 5" strokes. Container size range 3/8" to 1" OD and has maximum container height of 5-5/16" with container sealing heights from 1-3/4" to 4-3/4". Fills one container at a time and is capable of handling ampules, glass tubes, onion skin and vials (with proper change parts). Equipped with dual flow meter assembly that visually indicates the oxygen and gas flow separately and has 24" disc unscambler, fill piston, fill nozzle and flame sealer with pick off arms for ampule glass waste with 12" long ampule discharge chute. Control panel has vibrator on / off and cycle per minute switched with start, stop push button. Mounted on stainless steel frame with locking casters.
OAD: 51" L x 32" W 53" H
Cozzoli Model RFPC, Complete, automatic, stainless steel, liquid fill, plug, cap, pack-off and labeling line with number of containers per minute – depending on materials and application. All stainless steel construction. Line consists of: Cozzoli 36" OD disc unscrambler with feed table to 96" long x 3" wide plastic delron container conveyor with air blow cleaner and worm screw to star wheel in feed and discharge. Cozzoli Model RFPC monoblock filler, plugger, capper. Fill range up to: 120cc. Vial size range: 13mm to 57mm OD x 32mm to 152mm in Height. Plugger size range: 8mm to 29mm. Cap size range: 8mm to 32mm. Maximum piston size up to: 120cc. (all with proper change parts). Equipped with (2) head PD filler. (8) head rotary plugger and cap feeder with feed bowls, (2) head screw capper to Cozzoli 36" disc accumulator. Remote control panel has A/B CPU with A/B panelview touch pad controller has main drive, plug and cap bowl, cap spin speed and vacuum control dials, with start, stop and e-stop push buttons controls. Newman Model NV2, inline, stainless steel, pressure sensetive wrap labeler. Label size: (3/8)" to 5½" in Length; (3/8)" to 4½" in Height. Label Roll: 12" OD on 2-1/2" core. Container size: (5/8)" to 6" OD. Equipped with 94" long x 4" wide plastic Delrin container conveyor, with spacer gating wheel, 12" OD label roll on 2-1/2" core and 1-1/4" OD label rewind spool, 4-1/2" wide stripper plate, 10" OD wrap applicator and compression drum and laser coder. Control panel has PLC controller, with A/B panelview touch pad controller and gating and multi-operator pack-off table. All mounted on stainless steel frames with leveling legs.
OAD: ___" L x ___" W x __" H
Cozzoli Model FSV50 / F400X, Automatic, stainless steel, mini monoblock vial filling and stoppering system, rated up to 40 strokes per minute with number of vials – depending on materials application and amount of fill. All stainless steel, sanitary, wipe down construction. Fill range up to 60ml with + / – accuracy of 0.5% of volume and is capable of handling 1ml to 100ml vials or straight wall tubes and stoppers both with proper change parts. Equipped with 15" OD disc unscrambler and has star wheel in feed and discharge, single filling head with Model F400X piston filler and 12" OD stopper feed bowl and chute with no vial / no fill / no stopper sensor, hood isolation and laminar flow system for use in clean room environment and 14" wide x 21" long vial discharge accumulation tray. Control panel has PLC controller with readout and start, stop, e-stop push button controls. Mounted on stainless steel base frame with interlock safety guarding. Capable of handling aqueous solutions which the solvant is water up to light oils.
OAD: 67" L x 39" W x 78" H

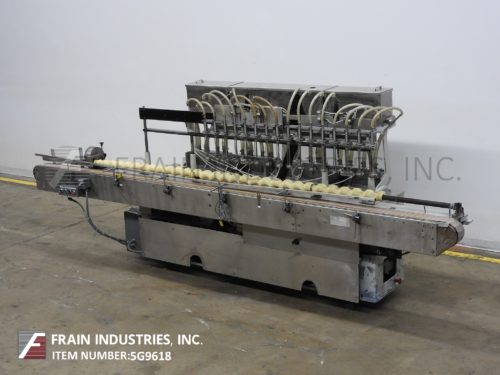

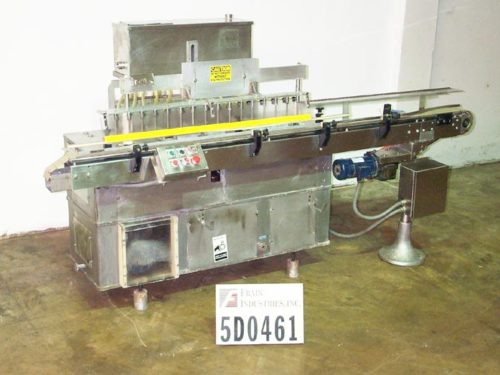

Cozzoli, Model LF1640, continuous motion, 16 head in-line piston filler, rated from 16 to 300 containers per minute – depending on materials, application, and machine configuration. Fill range: up to 600cc with proper change parts. Equipped with a 168" long x 4½" wide container conveyor with worm screw in feed and currently has (16) 3¼" ID x 9" Long (600cc) pistons, 62" long nozzle slide bar with (16) (7/16)" OD diving nozzles with centering bells, set on 4" centers and 80" long x 9" wide x 12" deep (37 gallons) top product tank. Mounted on stainless steel base frame.
OAD: 170"L x 47"W x 64"H
Cozzoli Model FPS2, Automatic, intermittent, 2 head unscramble, flush, fill, flush and flame sealer rated up to 120 containers per minute – depending on materials, application and machine configuration. Fill range: 1cc to 30cc with accuracies + / – 0.5%. Container size range: 3/8" to 1" in Diameter; up to 5-5/16" in Height. Fills one container at a time and capable of handling ampules, glass tubes, onion skin and vials (change parts required to accommodate different size and fill ranges). Equipped with 24" OD disc unscrambling table with feed shoe and 24" long container roller conveyor, with centering posts, no container / no fill and 2 heads, flush, fill, flush with 4 head flame sealing station and dual picker arms reject chute, gas hoses, pressure gauges, with start and stop switches. Mounted on heavy duty frame.
OAD: 48" L x 24" W x 44" H
Cozzoli, Model VR526, Inline, intermmitent motion, (6) head piston filler. Rated from 6 to 30 cycles per minute with number of containers – depending on materials, application and machine configuration. Maximum fill: 120cc with proper change parts. Equipped 12" long slide bar with (5/16)" OD diving nozzles and mechanical container indexing. Control panel has push button start / stop controls. Mounted on mild steel base frame with casters and leveling legs.
OAD: 48"L x 30"W x 51"H
