Home » E Pak
E Pak, Automatic, inline, stainless steel, feeder, spindle capper, conveyor and cap inspection. Rated from 10 to 90 containers per minute – depending on materials, application and machine configuration. Cap size range: 32mm to 130mm in Diameter. Equipped with a waterfall style cap sorter with a 47" long x 37" wide x 22" deep hopper and 9" wide belt with 3/8" high cleats set on 2" centers, adjustable cap chute, 4½" wide x 240" long Delrin belt, 32" long double container gripper belts, 4 station / 8 spindle capper and cap inspection with reject to identify missing, crooked or high caps. Control panel has push button start / stop controls and variable speed controls. Mounted on heavy duty base frame.
OAD: 240"L x 57"W x 71"H (Capper) 50"L x 46"W x 105"H (Feeder)
E Pak, Automatic, inline, 8-head, stainless steel, time-based gravity filler. Fill capacity from 1oz to 5 gallons with number of containers per minute – depending on materials, application and machine configuration. Equipped with 4½" wide x 144" long plastic delrin container conveyor, pneumatic container indexing, 48" long filling head slide bar has (8) (7/8)" OD positive cut off stainless steel diving nozzles with adjustable centers, 50" long drip tray and 45½" long x 17½" wide x 18" deep product tank. Control panel has touch screen operator interface with power / pump on / off and machine up / down switches. Mounted on stainless steel frame with casters and height adjustable locking legs.
OAD: 148"L x 38"W x 94"H

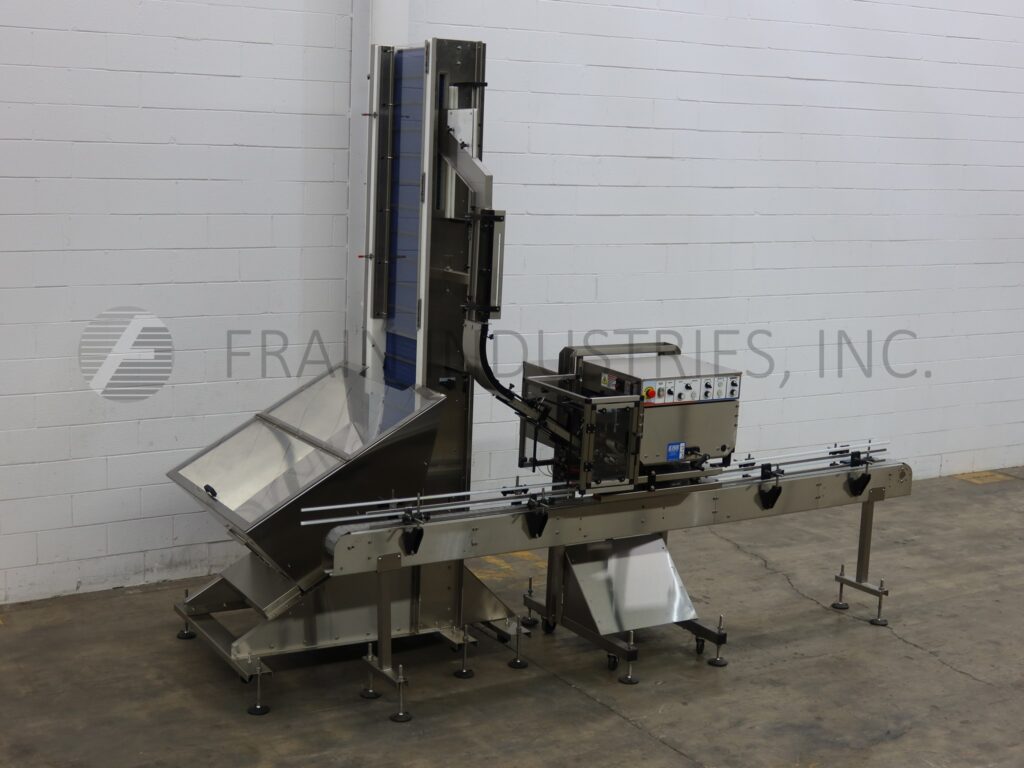

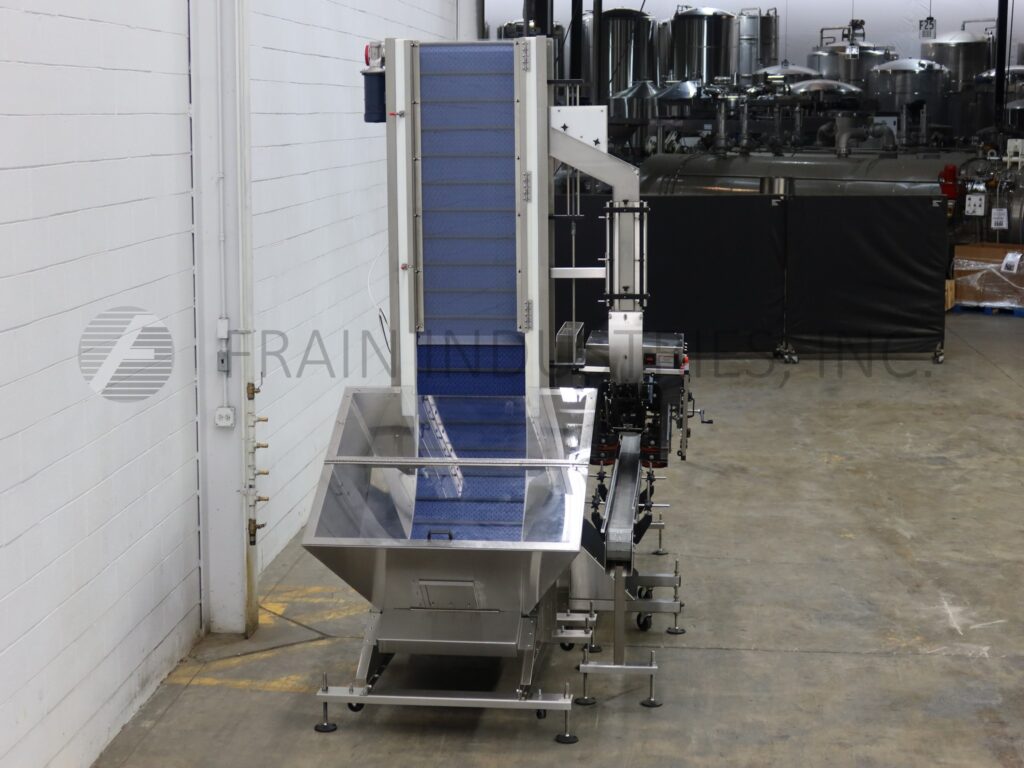

E Pak, automatic, inline, stainless steel, snap cap feeder, capper and conveyor. Rated from 10 to 90 containers per minute – depending on materials, application and machine configuration. Cap size range: 32mm to 130mm in Diameter. Equipped with a waterfall style cap sorter with a 47" long x 50" wide x 20" deep hopper and 23½" wide belt with ½" high cleats set on 5½" centers, adjustable cap chute, 4½" wide x 144" long Delrin belt, 24" long double container gripper belts and 3" wide x 10" long top compression belt. Control panel has push button start / stop controls and variable speed controls.Mounted on heavy duty base frame.
OAD: 150"L x 51"W x 66"H (Capper) 58"L x 50"W x 125"H (Feeder)
E Pak, automatic, inline, 12-head, stainless steel, time-based gravity filler. Fill capacity from 1oz to 5 gallons with number of containers per minute – depending on materials, application and machine configuration. Equipped with 4½" wide x 235" long plastic delrin container conveyor, pneumatic container indexing, 58" long filling head slide bar has (12) 2½" OD stainless steel diving nozzles with adjustable centers, 60" long drip tray and 45½" long x 17½" wide x 18" deep product tank. Control panel has touch screen operator interface with power / pump on / off and machine up / down switches. Mounted on stainless steel frame with casters and height adjustable locking legs.
OAD: 240"L x 38"W x 96"H
E-Pak, 4 head, inline, stainless steel (316 contact, 304 non-contact) gear pump filler. Equipped with 149" long x 4.5" wide Delrin conveyor, bimba indexing system, four gear pumps, four 5/8" OD diving nozzles with positive cut off and product reservoir with float recovery system. safety guarding, A/B PLC with Panel View, NEMA 12 electrics with Ethernet port. Mounted on leveling legs. Rates dependent on materials, application and machine configuration.
OAD: 149" L x 75" W x 75" H Filler 36" L x 18" W x 75" H Control Panel
E Pak, 40" diameter, stainless steel, rotary disc accumulator with number of containers per minute – depending on materials, application and machine configuration. Equipped with stainless steel 40" disc with variable speed dial, adjustable side rails and a table height of 31" to 38".
OAD: 46"L x 46"W x 34"H
E-Pak, 4 head, inline, stainless steel gear pump filler. Equipped with 12 long by 4.5" wide Delrin conveyor, Bimba indexing system, four 5/8" OD diving positive cut-off nozzles, four gear pumps and product reservoir with float recovery system. A/B PLC with Panel View (NEMA 12 electrics and Ethernet port) and interlocked guarding. Speed dependent on materials, application and machine configuration. 316 Stainless steel contact parts. 304 Stainless steel non-contact parts. Leveling legs adjustable from 32" to 38" in feed and discharge height.
E Pak, 7½" wide x 118" long Delrin belt conveyor with powered 13" wide x 40" long overhead belt compression overlid applicator. Both belts with seperate VFD controls.
OAD: 120"L x 26"W x 46"H
E Pak, Automatic, inline, 10-head, stainless steel, time-based gravity filler. Fill capacity from 1oz to 5 gallons with number of containers per minute – depending on materials, application and machine configuration. Equipped with 4½" wide x 235" long plastic delrin container conveyor, pneumatic container indexing, 87" long filling head slide bar has (10) 2½" OD stainless steel diving nozzles with adjustable centers, (2) 45" long drip trays and 45½" long x 17½" wide x 18" deep product tank. Control panel has touch screen operator interface with power / pump on / off and machine up / down switches. Mounted on stainless steel frame with casters and height adjustable locking legs.
E-Pak, 6 head, inline, stainless steel, positive displacement filler rated from 10 to 50 containers per minute – depending on materials, application and machine configuration. All 316 stainless steel contact parts and gear pumps. Fill range: 3oz to gallon with +/- 2% on 3oz fills. Capable of handling most type of products from low to medium to high viscosity liquids as well as foamy product with a temperature range from 0 to 220 Deg F into a wide variety of containers all with proper change parts. Equipped with 228" long x 7-1/2" wide plastic delron product in feed conveyor with bimba indexing drip pan, 72" long hand crank height adjustable slide bar and (6) 316 stainless steel sanitary gear pumps with 3/4" OD filling nozzles and (2) flow pumps for each fill head with positvie cut off. Control panel has A/B controller with touch pad controls and panel view with pressure air tank. Mounted on stainless steel base frame.
OAD: 228" L x 72" W x 82" H
