Forberg Machines

Forberg / Skala Group Mixer Powder Paddle S.S. FZM.7

• Manufacturer: Forberg
• Model Number: FZM.7
• Frain Number: 5H7011

Forberg, Model FZM.7, 304 stainless steel, paddle mixer. Mixing trough dimensions: 16" in Length; 18" in Width; 12" in Depth. Equipped with clamp down flip up cover, (2) sets of (14) angled paddles set on 2" diameter shafts powered by a 1½ hp drive and (2) 3" x 13" discharge ports with 16" ground clearance. Mounted on stainless steel base frame with casters.

OAD: 43"L x 40"W x 38"H

Forberg / Skala Group Mixer Powder Paddle S.S. F6RVC LAB

• Manufacturer: Forberg
• Model Number: F6RVC LAB
• Frain Number: 5G7506

Forberg Model F-6-RVC, lab size, stainless steel, twin paddle mixer and vacuum coating system rated from 2.5 to 6 litres per batch with number of pounds of product per hour – depending on materials and application. Mixing and coating trough dimensions: 14.5" in Length; 7.5" in Width; 9" in Depth Equipped with clamp down flip up clamp down cover. (2) sets of counter rotating 2" wide x 2-1/4" high x 1/8" thick angled paddles with 1/4" OD spokes set on 1½" OD x 9" long shafts and tilt discharge to 13" x 11" discharge port with 24" ground clearance and slide in catch pan. Control panel has Simatic controller and Siemens touch pad controls with read out, e-stops and vacuum pump. Mounted on stainless steel enclosed base frame with casters. Cycle: Automatic spraying, gentle mixing and vacuum core coating of aquatic feed extrudates, feed pellets, pet food kibbles and food extrudates, also pharmaceutical research product develepment and chemical industry coating of porous bulk materials replaces air with liquid.

OAD: 69" L x 29" W x 72" H

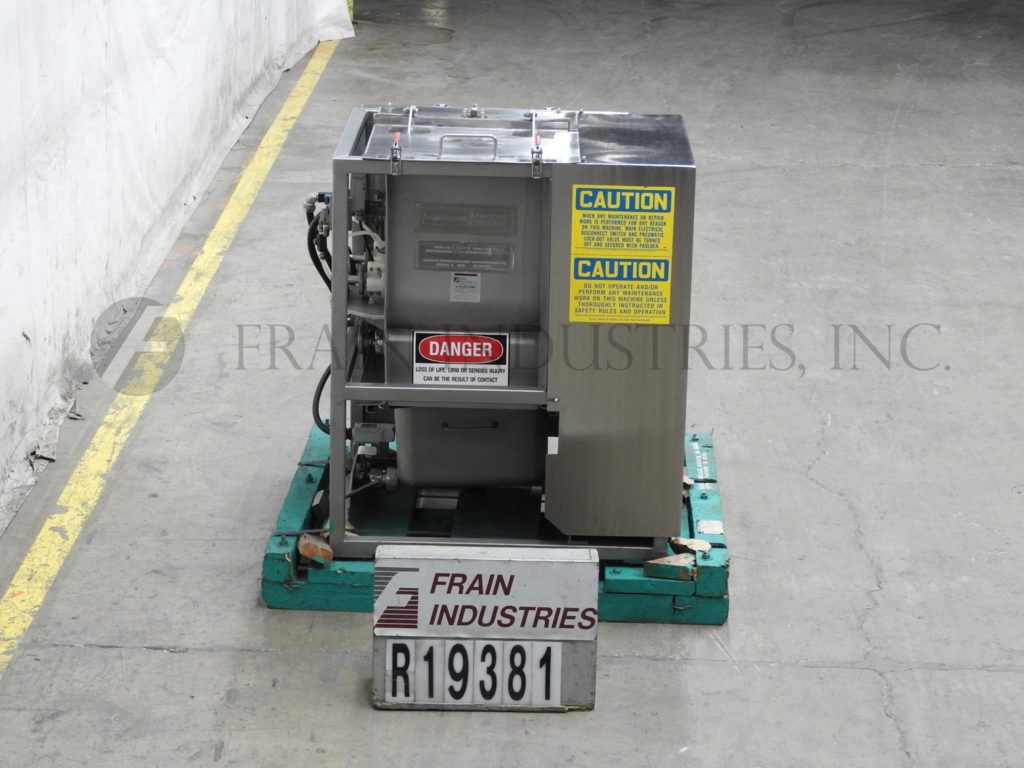

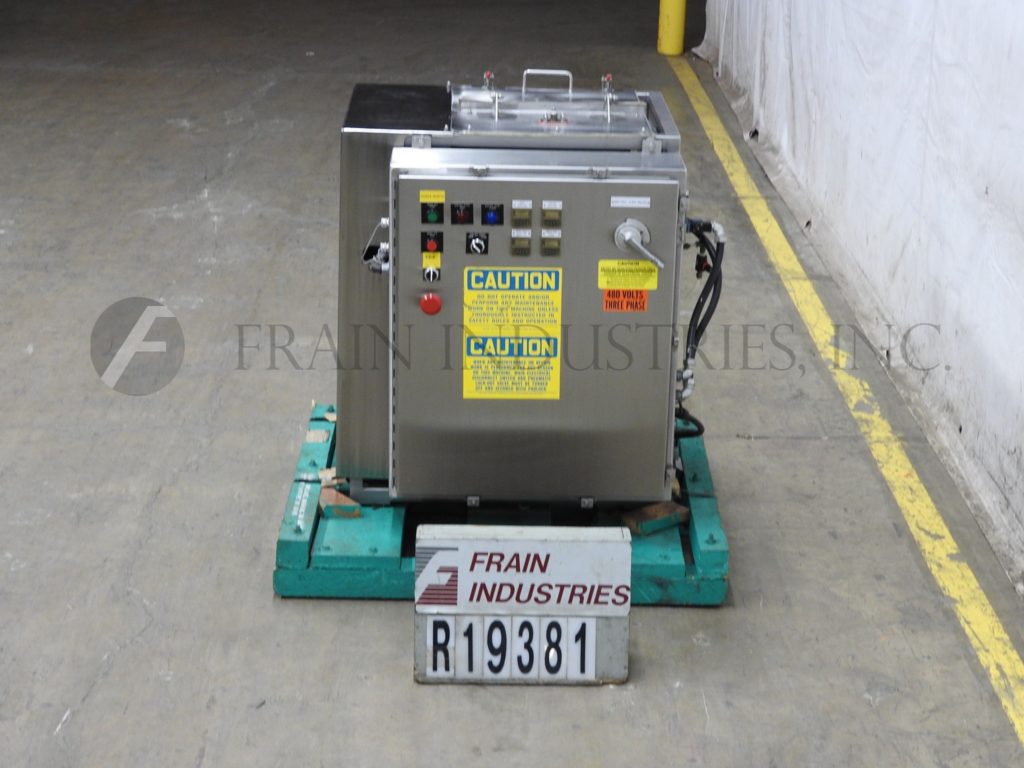

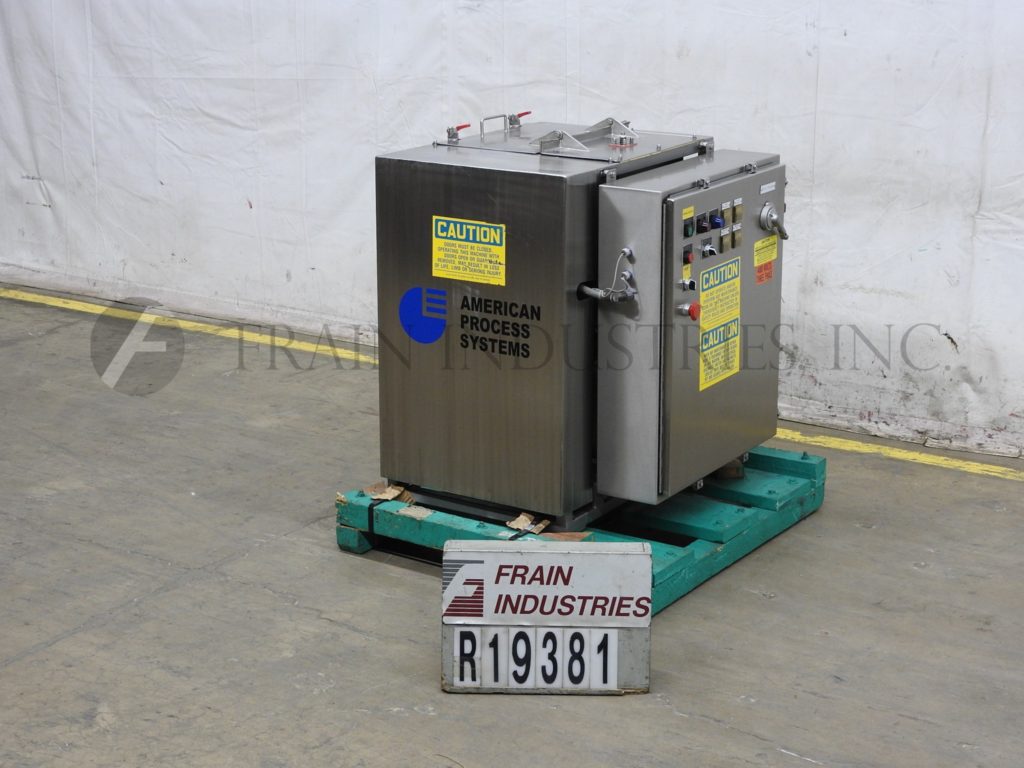

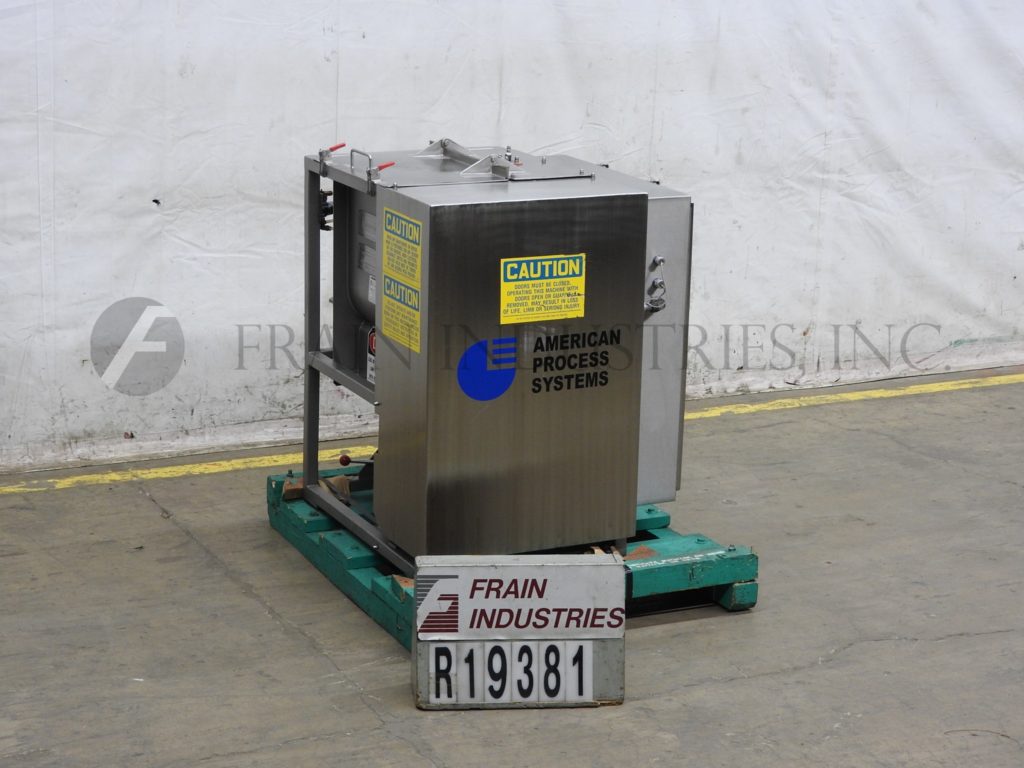

Forberg / Skala Group Mixer Powder Paddle S.S. .7 CU FT

• Manufacturer: Forberg
• Model Number: .7 CU FT
• Frain Number: R19381

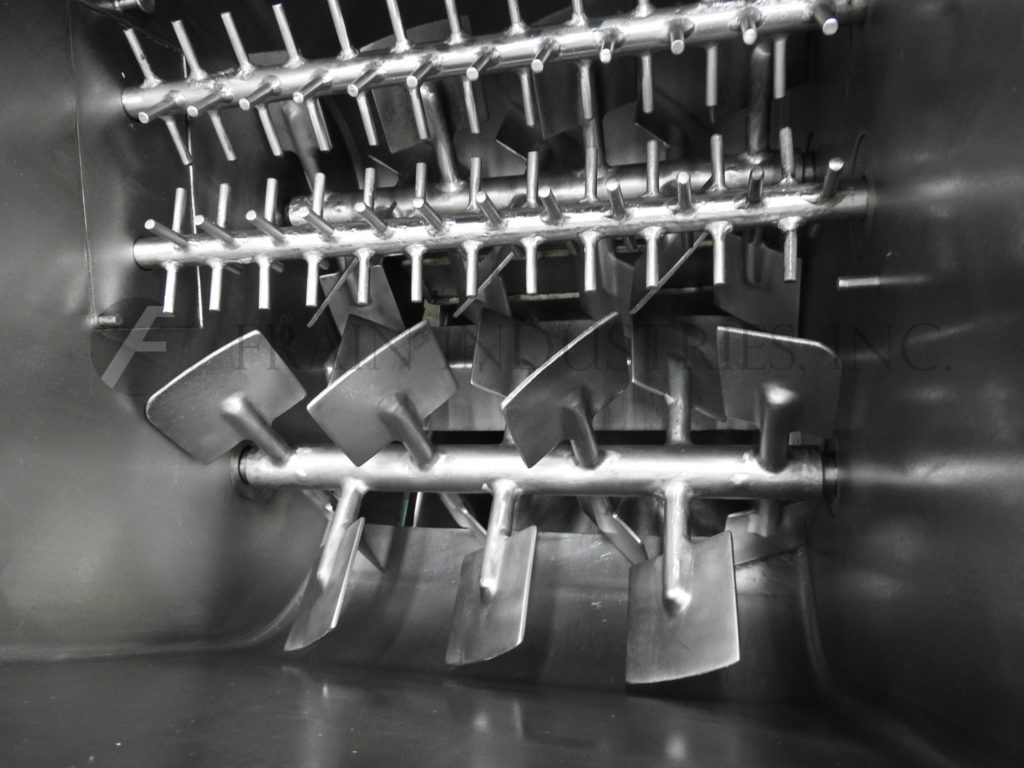

Horizontal, 304 stainless steel dual shaft paddle mixer with a working capacity of 0.7 cu ft (20 liters) ideal for test batches and small production runs. Complete with clamp down cover, optional dual "pin bars" to break up agglomerates, bomb bay bottom discharge, discharge collection pan and locking casters. Spray system option can be added to unit for addition of liquid to the mix.
OAD = 42" w x 37" L x 50"
