1 cu ft working capacity, rated for a bulk density on average of 65 lbs working capacity per cu ft. 316 S/S double cone tumble mixer, has a liquid solids bar, 11 1/2" hinged cover charge port with a 4"diameter butterfly valve discharge. Nema-7 control panel including motor starter, start/stop push buttons, fuse block. Swing diameter of 65 1/2".
OAD:58”L x 36”W x 50”H
Gemco, 30 ft³, slant double cone vacuum blender. 316 stainless steel contact parts, with pounds of product per hour – depending on materials and application. Maximum material density of 55 lbs/ft³. Vessel dimensions: 55" diameter x 20" straight side with 14" deep top and 24" deep bottom cones. Shell powered by a 7½ hp drive. Equipped with 20½" OD top port with cover, intensifier bar agitator driven by 20 Hp motor drive and pneumatic barrel clamp discharge. Mounted on a stainless steel frame.
OAD: 145" L x 66" W x 110" H
Gemco, 10 ft³, 304 stainless steel, twin shell mixer. Equipped with (2) 18" ID product ports with bolt down covers, (2) 38" long side V-Walls, (2) 18" long inner V-Walls. 6"ID valve discharge with 33" ground clearance. Shell powered by 1½ Hp drive. Requires 102" ceiling clearance with 35" swing radius / 70" swing diameter.
OAD: 90"L x 45"W x 90"L
Gemco Model 3 cubic foot working capacity, 304 stainless steel, porta hopper double cone tumble blender with spray bar and pounds of product per hour – depending on materials and application. Cone dimmensions: 40” in Height x 29-1/2" in Diameter with 3-1/2" discharge. Equipped with a pressurized tank 33-1/2" high x 18" OD x 36" floor clearance with 30mm in feed, 73mm discharge (connected to 27" pipe), 43mm side tank discharge, has 3 legs mounted on mild steel base. Hoppers are equipped with Gemco’s dust-tite spherical solids valves of economical butterfly. Mounted on base frame with casters and 3" floor clearance. D/3 design provides greater particle mobility for more efficient blends and easy cleaning.
OAD: 96" L x 64" W x 72" H
Gemco Model 1 Cubic Foot, stainless steel, slant cone tumble mixer with pounds of product per hour – depending on materials and application. Mixing cone dimensions of: 16" in Length and 16" in width. Equipped with 11" ID in feed and discharge ports with clamp down covers and intensifier bar. Fill level: 1.0 cubic foot maximum / 0.33 cubic foot minimum, rated at 60 lbs bulk density with maximum working temperature of 40 Deg C or 104 Deg F. Control panel has timers for vessel and agitator with agitation fast, off, slow and agitation timer on, off controls has on, jog, off, switch with start, stop and e-stop push buttons. Mounted on heavy duty stainless steel base frame with safety guarding and locking casters.
OAD: 96" L x 55" W x 72" H

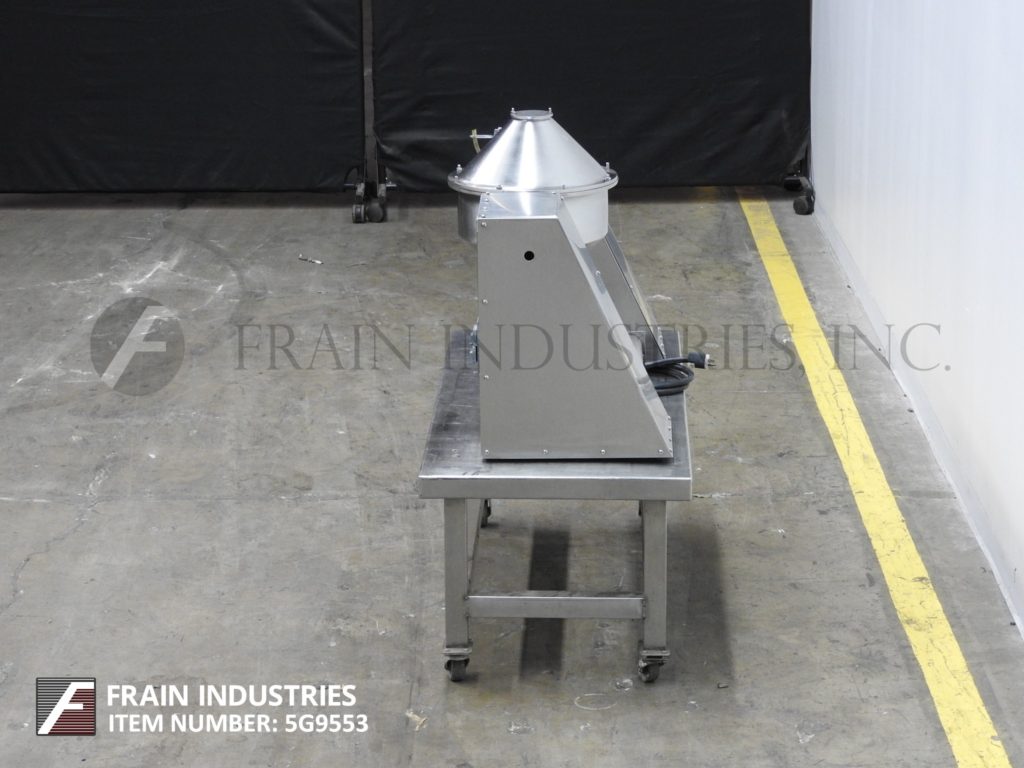

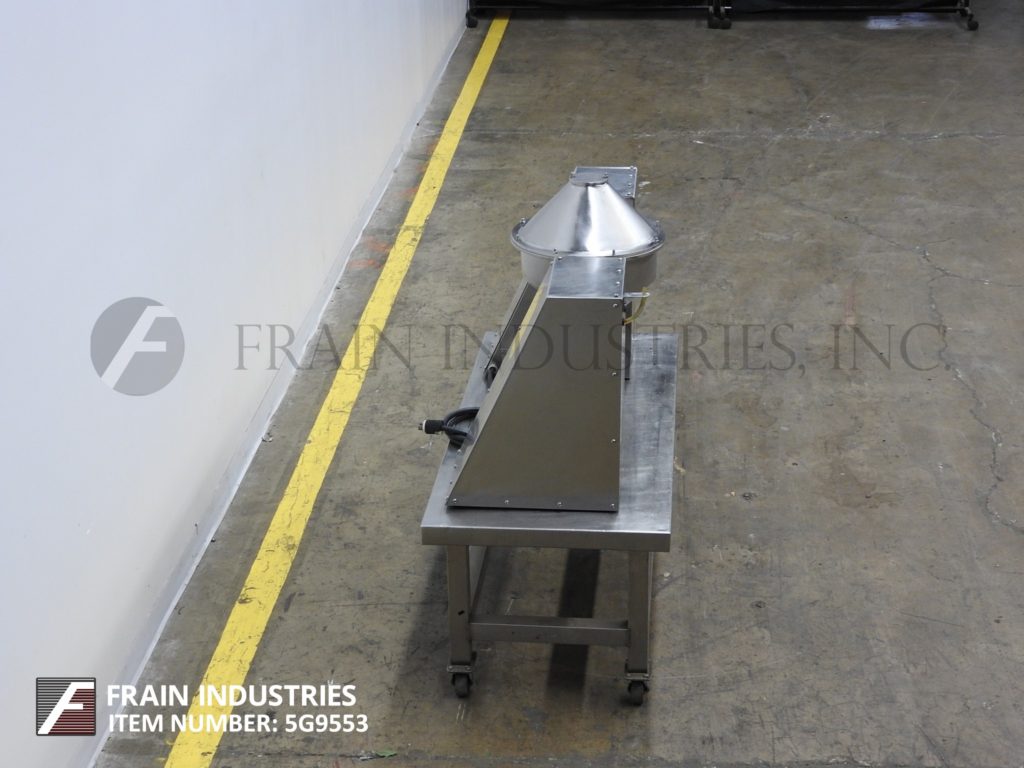

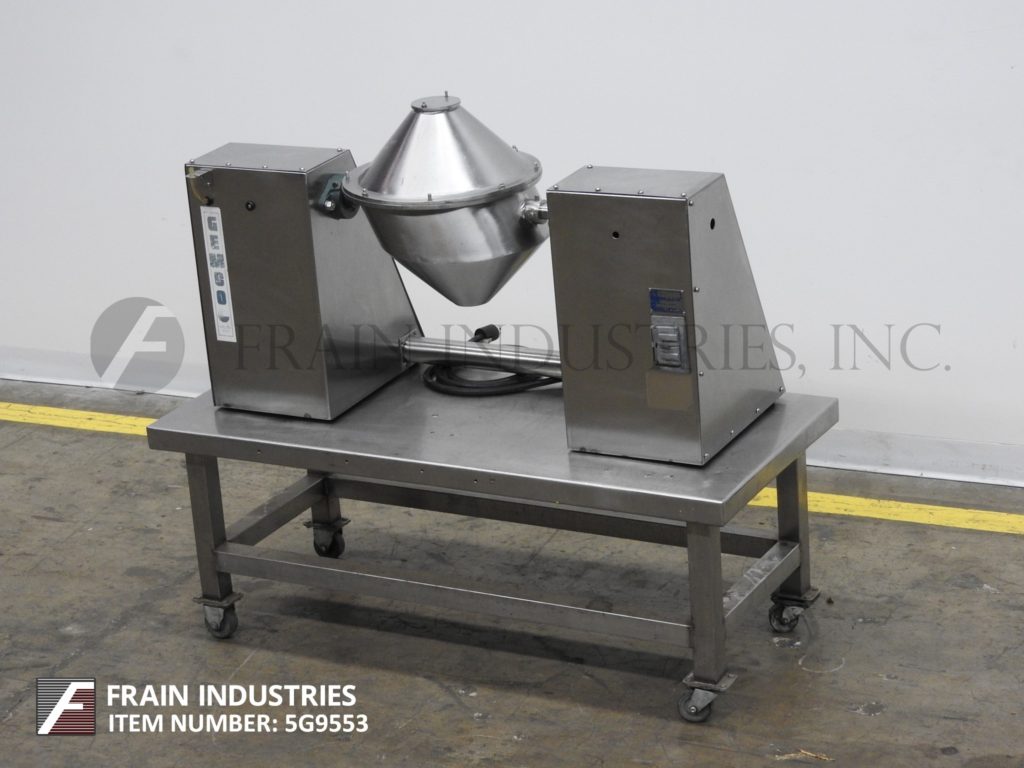

Gemco, 16 quart working capacity, all stainless steel, double cone mixer with lbs of product per hour – depending on materials, application and machine configuration. Mixing chamber dimensions: 16" in Length; 14" in diameter; (2) 6" high cones and 4" straight wall; 19" distance from floor to center shaft. Equipped with (1) 3½" ID end product port with bolt down cover and 10½" table clearance, liquid solids bar and swing diameter of 18". Control panel has on / off switches for mixer and liquid solids bar. Mounted on stainless steel base frame.
OAD: 47"L x 17"W x 27"H
