GWI - Ghazarian Welding Inc Machines
GWI - Ghazarian Welding Inc Machines In Stock

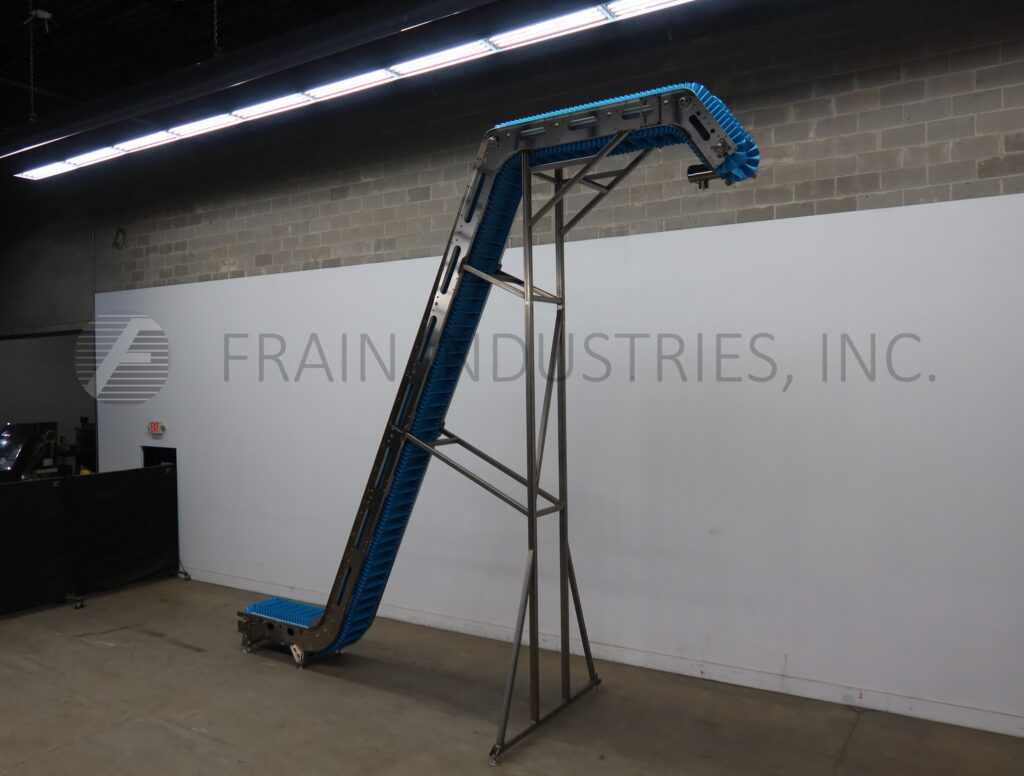

GWI – Ghazarian Welding Inc Feeder Incline/Cleated 200" DISCH
- Manufacturer: GWI - Ghazarian Welding Inc
- Model Number: 200" DISCH
- Frain Number: R40255
GWI, stainless steel, z type incline cleated belt feeder with number of product per hour – depending on materials, application and machine configuration. Equipped with 18" wide x 366" long food grade conveyor belt with 3" high cleats set on 5¾" centers powered by a top mounted 2 hp drive. 48" bottom horizontal run with 19½" infeed height, 220" incline, 77" top horizontal run, 26" downward angled run with 200" discharge height. Mounted on tubular stainless steel frame.
OAD: 180" L x 38" W x 226" H
Get a Free Quote Call: 630-629-9900
GWI – Ghazarian Welding Inc Material Handling Tote Dump 2 STAGE
- Manufacturer: GWI - Ghazarian Welding Inc
- Model Number: 2 STAGE
- Frain Number: R40272
GWI, model 2 stage, 304 stainless steel tote dumper and surge hopper with vibratory conveyor discharge. Tote size range: 28" height x 48" length x 48" width. Maximum lifting capacity 2000 lbs. Tote infeed height: 56" with a dump height of 77". Powered by 7½ hp hydraulic pack with a 23 gallon hydraulic fluid reservoir. Set up to dump directly into surge hopper. Surge hopper dimensions: 40 ft³, 47¼" Long x 47¼" Wide with 24" straight wall above a 20" deep truncated pyramid with 13" W x 13" L discharge that feeds to a vibratory conveyor. Surge hopper equipped with 20¾" Long x 26¾" Wide infeed opening with an infeed height of 77", soft drop baffling,12½" x 18½" clampdown manway. Vibratory conveyor dimensions: 52" L x 16¾" W x 5" H, 23½" discharge height. Vibratory conveyor equipped with (2) 0.43 hp drives.
OAD: 158" L x 100" W x 128" H
Get a Free Quote Call: 630-629-9900
GWI – Ghazarian Welding Inc Feeder Incline/Cleated 77" DISCH
- Manufacturer: GWI - Ghazarian Welding Inc
- Model Number: 77" DISCH
- Frain Number: R40259
GWI, stainless steel, z type incline cleated belt feeder with number of product per hour – depending on materials, application and machine configuration. Equipped with 18" wide x 110" long food grade conveyor belt with 3" high cleats set on 5¾" centers powered by a top mounted drive. 30" bottom horizontal run with 24" infeed height, 60" incline, 20" top horizontal run with 77" discharge height to a 18" wide discharge chute with a 61" discharge height. Mounted on tubular stainless steel frame.
OAD: 82" L x 31" W x 84" H
Get a Free Quote Call: 630-629-9900

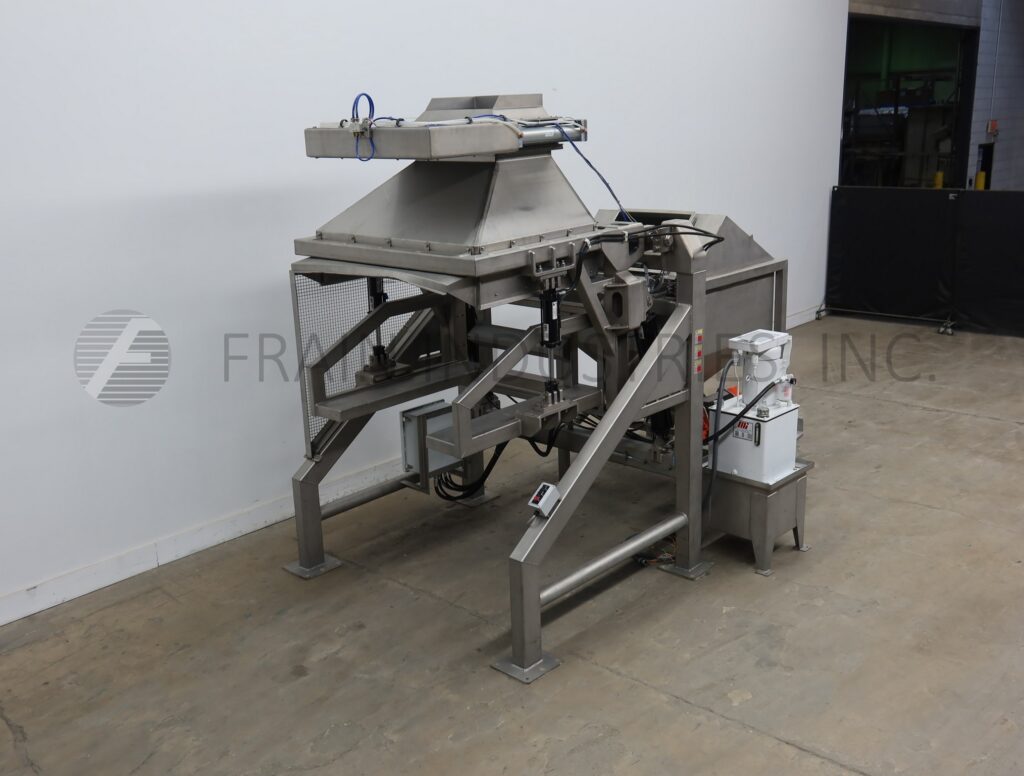

GWI – Ghazarian Welding Inc Material Handling Tote Dump 2 STAGE
- Manufacturer: GWI - Ghazarian Welding Inc
- Model Number: 2 STAGE
- Frain Number: R40254
GWI, model 2 stage, 304 stainless steel tote dumper and surge hopper with vibratory conveyor discharge. Tote size: 28" height x 48" length x 48" width. Maximum lifting capacity 2000 lbs. Tote infeed height: 56" with a dump height of 77". Powered by 7½ hp hydraulic pack with a 23 gallon hydraulic fluid reservoir. Set up to dump directly into surge hopper. Surge hopper dimensions: 40 ft³, 47¼" Long x 47¼" Wide with 24" straight wall above a 20" deep truncated pyramid with 13" W x 13" L discharge that feeds to a vibratory conveyor. Surge hopper equipped with 20¾" Long x 26¾" Wide infeed opening with an infeed height of 77", soft drop baffling,12½" x 18½" clampdown manway. Vibratory conveyor dimensions: 52" L x 16¾" W x 5" H, 23½" discharge height. Vibratory conveyor equipped with (2) 0.43 hp drives.
OAD: 158" L x 100" W x 128" H
Get a Free Quote Call: 630-629-9900

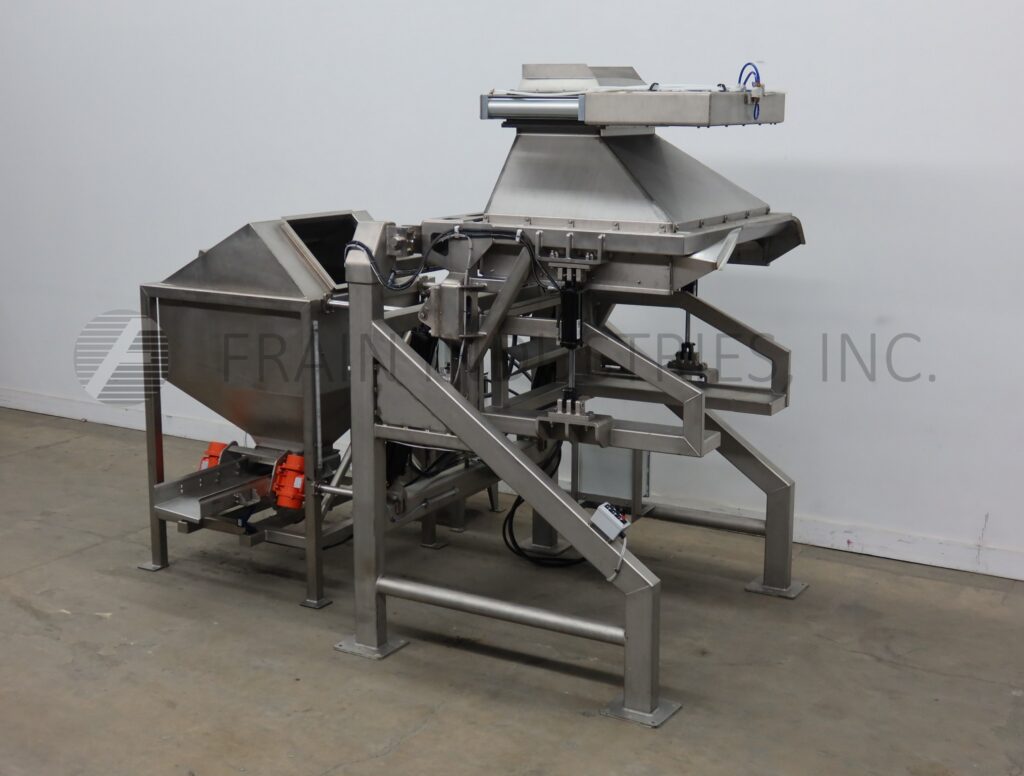

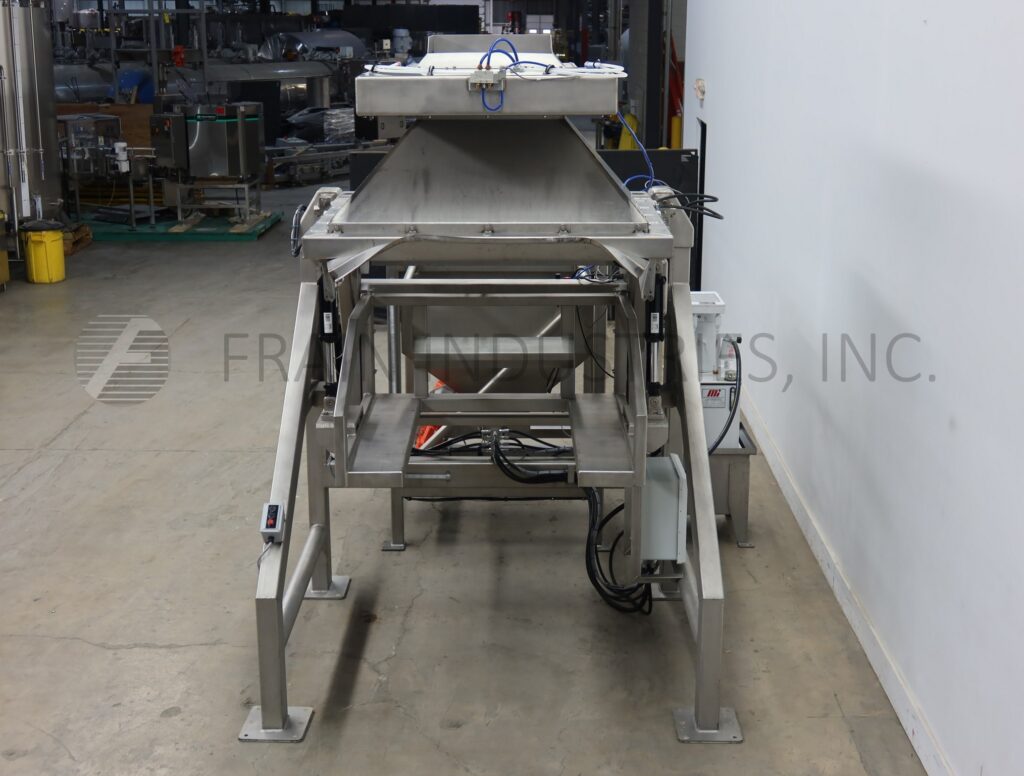

GWI – Ghazarian Welding Inc Material Handling Tote Dump 2 STAGE
- Manufacturer: GWI - Ghazarian Welding Inc
- Model Number: 2 STAGE
- Frain Number: R40253
GWI, model 2 stage, 304 stainless steel tote dumper and surge hopper with vibratory conveyor discharge. Tote size : 28" height x 48" length x 48" width. Maximum lifting capacity 2000 lbs. Tote infeed height: 56" with a dump height of 77". Powered by 7½ hp hydraulic pack with a 23 gallon hydraulic fluid reservoir. Set up to dump directly into surge hopper. Surge hopper dimensions: 40 ft³, 47¼" Long x 47¼" Wide with 24" straight wall above a 20" deep truncated pyramid with 13" W x 13" L discharge that feeds to a vibratory conveyor. Surge hopper equipped with 20¾" Long x 26¾" Wide infeed opening with an infeed height of 77", soft drop baffling,12½" x 18½" clampdown manway. Vibratory conveyor dimensions: 52" L x 16¾" W x 5" H, 23½" discharge height. Vibratory conveyor equipped with (2) 0.43 hp drives.
OAD: 158" L x 100" W x 128" H
Get a Free Quote Call: 630-629-9900
GWI – Ghazarian Welding Inc Feeder Incline/Cleated 131" DISCH
- Manufacturer: GWI - Ghazarian Welding Inc
- Model Number: 131" DISCH
- Frain Number: R40250
GWI, stainless steel, incline cleated belt feeder with number of product per hour – depending on materials, application and machine configuration. Equipped with 19" wide x 22½" long x 17" deep (1.5 ft³) stainless steel hopper with 54" infeed height, 18½" wide x 130 long food grade conveyor belt with 3" high cleats set on 5¾" centers with a 131" discharge height powered by a top mounted 1 hp drive. Mounted on steel frame with castors.
OAD: 86" L x 35" W x 146" H
Get a Free Quote Call: 630-629-9900
