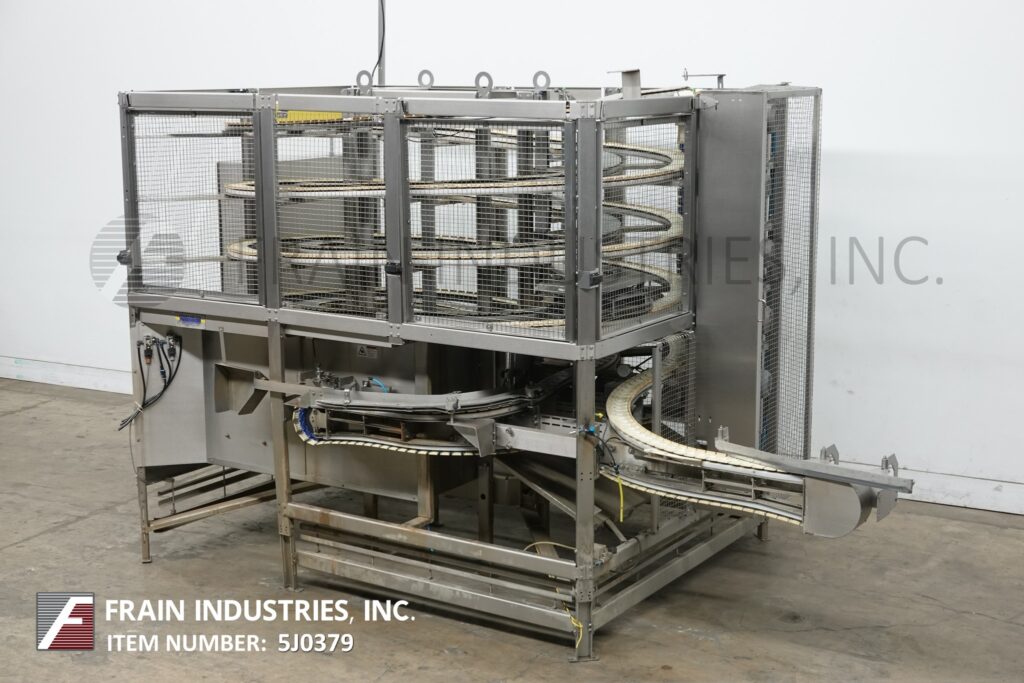

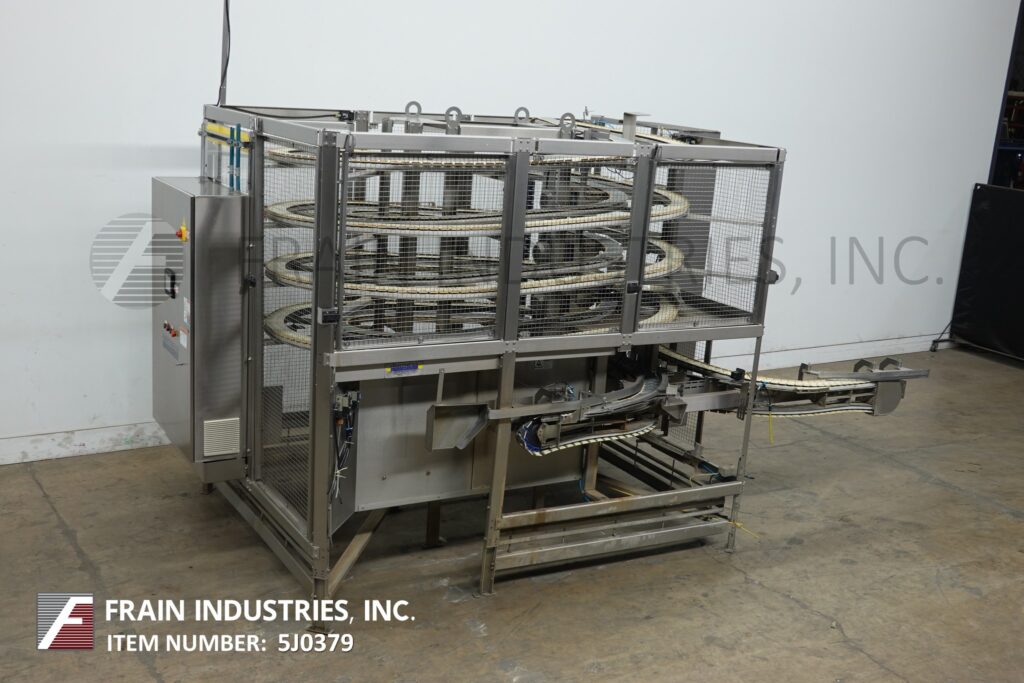

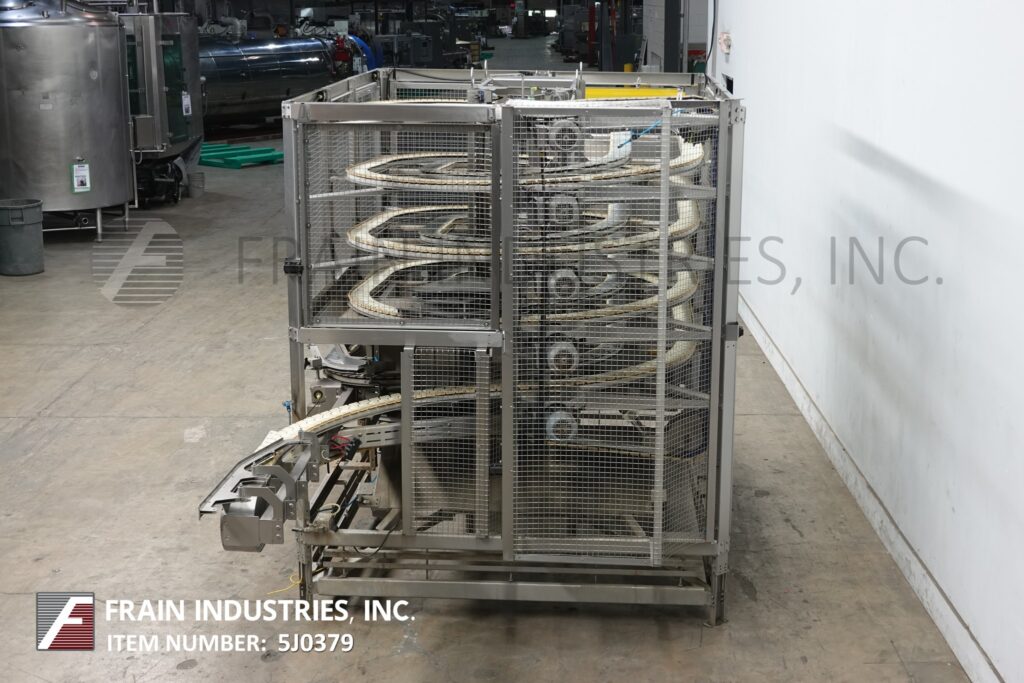

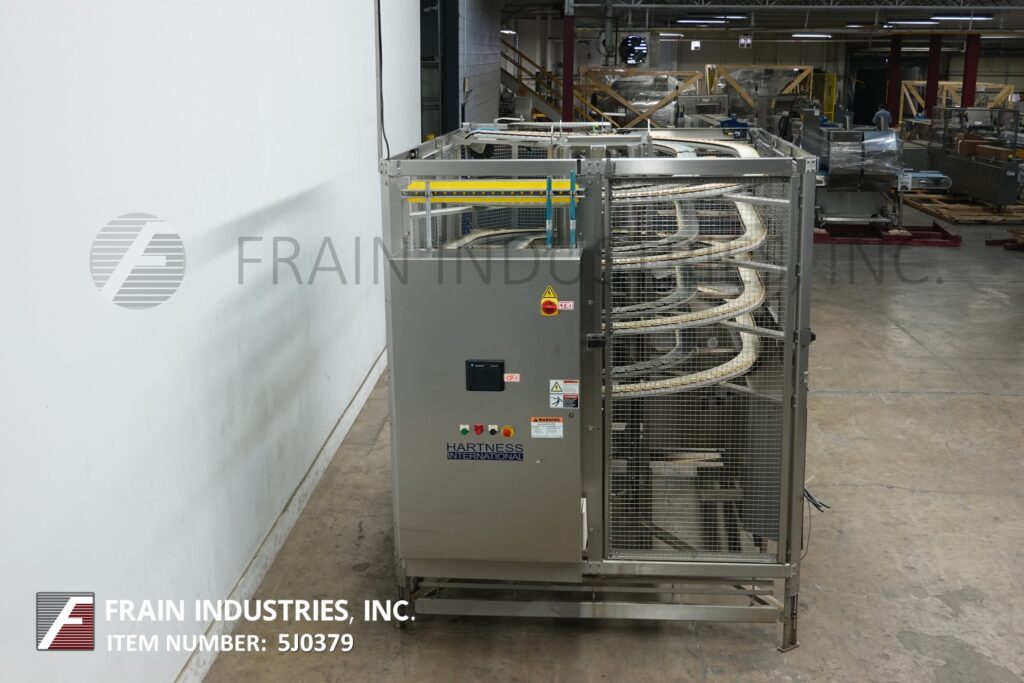

Hartness, Model 6930, DYNAC pressureless accumulation conveyor with number of containers per hour – depending on materials and application. Containers up to 7" in width and up to 11¼" in height. Equipped with 7½" wide table top conveyors with a 32" to 36" infeed / discharge height, 4" wide table top accumulation conveyors with about 160′ of accumulation. Control panel has AB controller with touch screen HMI. Mounted on heavy duty frame with safety guarding.
OAD: 255"L x 155"W x 115"H
Hartness Model 875, automatic, stainless steel, case packer. Case size range: 7" to 36" in Length; 5½" to 16½" in Width; 2" to 20" in Height. Equipped with 72" long in feed, lane dividers, container stops, air transfer package to ensure low pressure handling of lightweight or difficult to handle containers and central lubrication system. Bottom lugged empty case in feed conveyor set on 24" centers to choke fed case section, product soft drop grid with elevator and powered case discharge conveyor. A/B PLC and A/B HMI, VFD, stack light with horn and interlocked guarding. Speed dependent on materials, application, and machine configuration.
OAD: 288" L x 80" W x 72" H
Hartness Model 4510-60 Global Shrink, Continuous motion, inline, shrink wrapper and tunnel for PET bottles or canned product, rated up to 60 cycles per minute with the number of trays and products – depending on materials, application and machine configuration. Single roll shrink wrapper to run trays or pads with both clear or printed film with proper change parts. Maximum tray size: 20" long x 24" wide x 12" high. Equipped with 352" long x 54" wide accumulation section with (8) lane product infeed conveyor, (2) chain blank tray magazine (2) chain x 210" long tray feed conveyor, with up feed conveyor and Nordson Problue hot melt glue system, servo controlled film feed with cutting and wrapping wand, 36-1/2" wide x 104" long (3) section feed conveyor to shrink tunnel. Laminar shrink tunnel has 24" high x 40" wide aperture x 240" long chamber with 54" wide x 250" long belt and top mounted discharge cooling fans. Control Panel has A/B PLC with touch screen HMI and has shrink wrap start and stop and tunnel start, reset, stop push buttons with infeed / outfeed zone controllers and e-stop with A/B powerflex vari-speed controllers. Mounted on heavy duty frame with interlock Lexan safety door guarding and safety switches.
OAD: 912" L x 140" W x 113" H
Hartness, Model 6400, DYNAC pressureless accumulation conveyor with number of containers per hour – depending on materials and application. Equipped with 4" wide table top conveyors with 42" infeed and discharge height Conveyor contains about 100′ of accumulation and 9" height clearance. Control panel has AB controller with touch screen HMI. Mounted on heavy duty frame with safety guarding.
OAD: 187"L x 90"W x 108"H
Hartness International, Model 825, Automatic, intermittent motion, ascending, drop case packer rated from 10 to 30 cases per minute and number of product – depending on materials, application and pack pattern. Case size range: 6" to 24" in Length; 6" to 15-1/2" in Width; 1-1/2" to 19" in Height and is capable of handling a wide variety of glass, plastic and cans, as well as small, medium and large containers of different sizes and shapes with a size range from 2 ounces to 2-1/2 gallons (all with proper change parts). Equipped with 156" long x 16" wide top plastic delron product in feed conveyor with lane dividers and container aline station to ascending soft drop product pack grid (change part per application). Dual bottom 156" long x 4" wide delron case conveyors with lugged case feed conveyor and 64" x 4" dual delron discharge case conveyors. Control panel has CPU controller with reset and e-stop buttons. Mounted on heavy duty frame with interlock safety guarding and statis light bar.
OAD: 310" L x 60" W x 94" H
Hartness Model CM/HTW 50-600, Automatic, continous motion, servo, wrap-around case packer rated from up to 60 cycles per minute with number of product and cases – depending on materials and application. Product and case size range depending on project and proper change parts. Equipped with 6" wide x 100" long product in feed conveyor, 36" wide x 144" long laner conveyor, 35" wide x 148" long extended automatic blank case magazine, with bottom up blank case feed conveyor, product collation section with single load bar, servo drives controlled by a multi-axle system and (4) chains adjustable system with electro magnetic clutches used to adjust length. (6) head Nordson hot melt glue system, flap closers and wrap over case station. Remote control panel has A/B PLC and on board A/B touch screen HMI controller with e-stop, Seko gauges interlock safety guarding doors, M4000 light safety curtain and status light bar. Mounted on heavy duty frame.
OAD: 378" L x 113" W x 90" H (Case Packer) 84" L x 22" W x 83" H (Control Cabinet)
