Heritage Equipment / BCast, 300 gallon capacity, 316 stainless steel, jacketed double motion kettle. Vessel dimensions: 54" diameter x 40" deep with 20" straight wall. Equipped with lift up covers, safety grate, 5 Hp and 3 Hp bridge mounted double motion scrape agitator, flush mounted sensor, CIP spray balls supplied by 2"OD / 1½" ID Tri-Clamp fittings and 3½" OD / 3" ID Tri-Clamp style bottom discharge with ball valve and 14" ground clearance. Mounted on (4) leg frame.
Jacket Ports: (2) 2" NPT
Nat’l Brd: 2500MAWP: 75 PSI @ 320°FMDMT: -4°F @ 75 PSI
OAD: 66"L x 60"W x 99"H
Heritage Equipment / Bcast, Model BC-LIK200, 200 gallon, 316 stainless steel, high shear, jacketed, liquefier with amount of product per hour – depending on materials and application. Vessel dimensions of: 55" OD x 24" deep. Flat top with bridge mounted side and bottom scrape surface agitator powered by a 5 HP drive, dual hinged flip top covers, CIP spray balls supplied by a 2"OD / 1½"ID Tri-Clamp fitting and bottom 6 hole / 3 wing impeller with 50 Hp side mounted motor drive. Cone bottom has 3"OD / 2½"ID bottom discharge with 20" floor clearance. Mounted on (6) stainless steel leg frame. Control panel with push button start / stop and variable speed control.
Nat’l Brd: 2502MAWP: 75 PSI @ 320°FMDMT: -4°F @ 75 PSI
Top Ports:(1) 2½"OD / 2"ID Tri-Clamp
Jacket Ports:(4) 1½" NPT
OAD: 90"L x 60"W x 80"H
Heritage Equipment / B Cast, 200 gallon, 304 stainless steel tank. Vessel dimensions: 38" diameter x 48" deep. Equipped with a 18" manway and 3"OD / 2½"ID Tri-Clamp style discharge with 14" ground clearance. Mounted on (4) stainless steel legs.
Top Access:(2) 2½"OD / 2"ID Tri-Clamp(1) 2"OD / 1½"ID Tri-Clamp
OAD: 40"L x 40"W x 74"H
Heritage Equipment / BCast, 300 gallon capacity, 316L stainless steel, jacketed, double motion kettle. Vessel dimensions: 54" diameter x 46" deep with 16" straight wall. Equipped with lift up covers, 5 Hp and 3 Hp bridge mounted double motion scrape agitator, flush mounted sensor, CIP spray balls supplied by 2"OD / 1½" ID Tri-Clamp fittings and 3½" OD / 3" ID Tri-Clamp style bottom discharge with ball valve and 15" ground clearance. Mounted on (4) leg frame.
Jacket Ports:
-Side(1) 2¼" NPT (1) 1¼" NPT
-Bottom(1) 2¼" NPT – Bottom
Nat’l Brd: 2623
VesselMAWP: 75 PSI @ 320°FMDMT: -4°F @ 75 PSI
OAD: 64"L x 64"W x 98"H

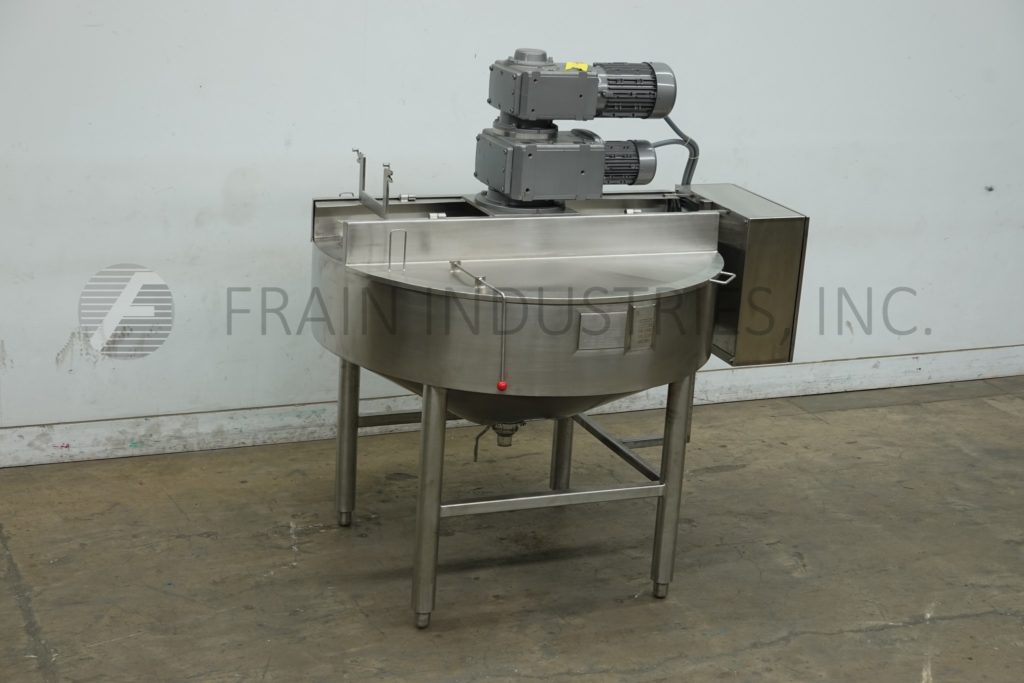

Heritage Equipment, B Cast, 100 gallon capacity, 316 stainless steel jacketed dual purpose cooker, cooler. Vessel dimensions: 60" diameter x 23" deep with cone bottom. Equipped with lift up covers, 5 Hp bridge mounted scrape and 2 hp prop agitator, 2½" OD / 2" ID Tri-clamp style bottom discharge with 19" ground clearance. Mounted on (4) tube legs.
Top Ports:(4) 2½"OD / 2"ID Tri-Clamp(1) 2"OD / 1½"ID Tri-Clamp
MAWP: 75 PSI @ 320°FMDMT: -4°F @ 75 PSINat’l Brd: 2501
OAD: 62"L x 62"W x 82"H
Heritage Equipment / BCast, 500 gallon capacity, stainless steel jacketed and insulated process tank. 316L stainless steel contact parts and 304 stainless steel jacket and exteroir parts. Vessel dimensions: 55" diameter with 48" straight wall. Equipped with dome top, 18" OD flip top man way, top mounted 5 Hp side scrape surface / bottom sweep agitation, CIP spray balls supplied by a 2"OD / 1½"ID Tri-Clamp fitting and thermowell. Dish bottom has 3½" OD / 3" ID center bottom discharge with 18" ground clearence. Control panel with push button start / stop and variable speed control.
Nat’l Brd: 2503MAWP: 75 PSI @ 320°FMDMT: -4°F @ 75 PSI
Top Ports:(1) 3½"OD / 3"ID Tri-Clamp(1) 2½"OD / 2"ID Tri-Clamp
Jacket Ports:(6) 1½" NPT
OAD: 71"L x 60"W x 116"H
Heritage, BCast Stainless Products, Model 300 gallon, stainless steel, high shear, single wall liquefier, with gallons of product per hour – depending on materials and application. 316 stainless steel contact parts, 304 stainless steel outer shell and legs. Vessel dimensions: 48" x 48" ID x 28" straight wall x 24" cone bottom. Dome top has 24" OD manway with hinged flip top cover and sanitary top ports with CIP system. Interior bottom 6 hole / 3 wing impeller with 60 Hp side mounted motor drive. Cone bottom with thermowell and 2-1/2" OD side bottom discharge with start, stop, e-stop push button controls. Mounted on (6) leg stainless steel frame.
OAD: 83" L x 51" W x 73" H

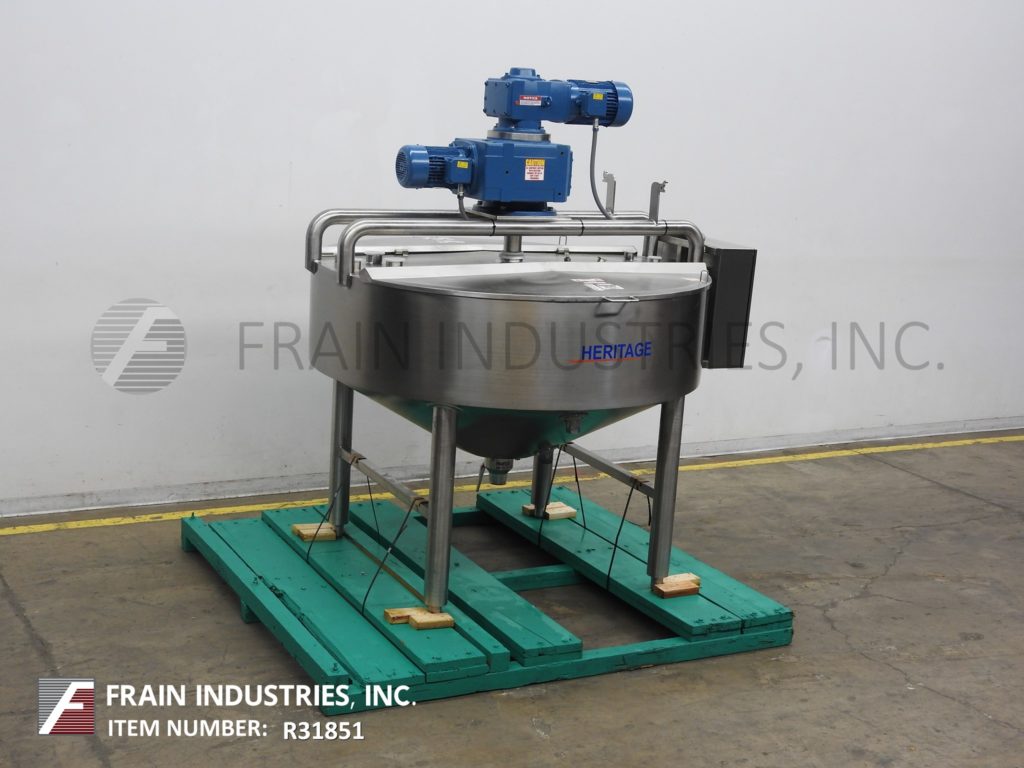

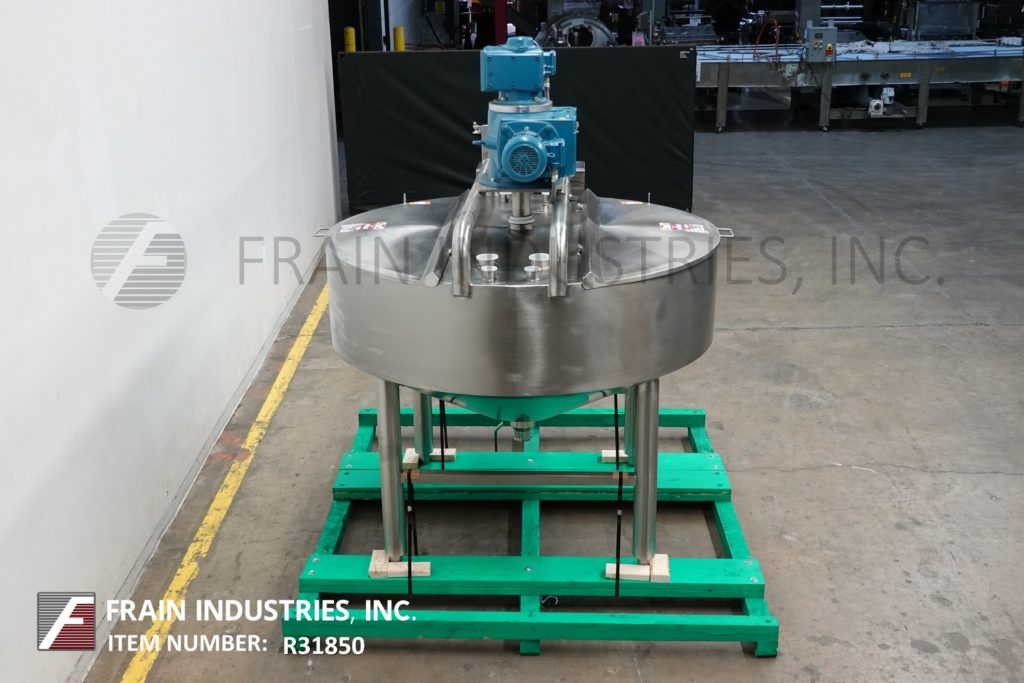

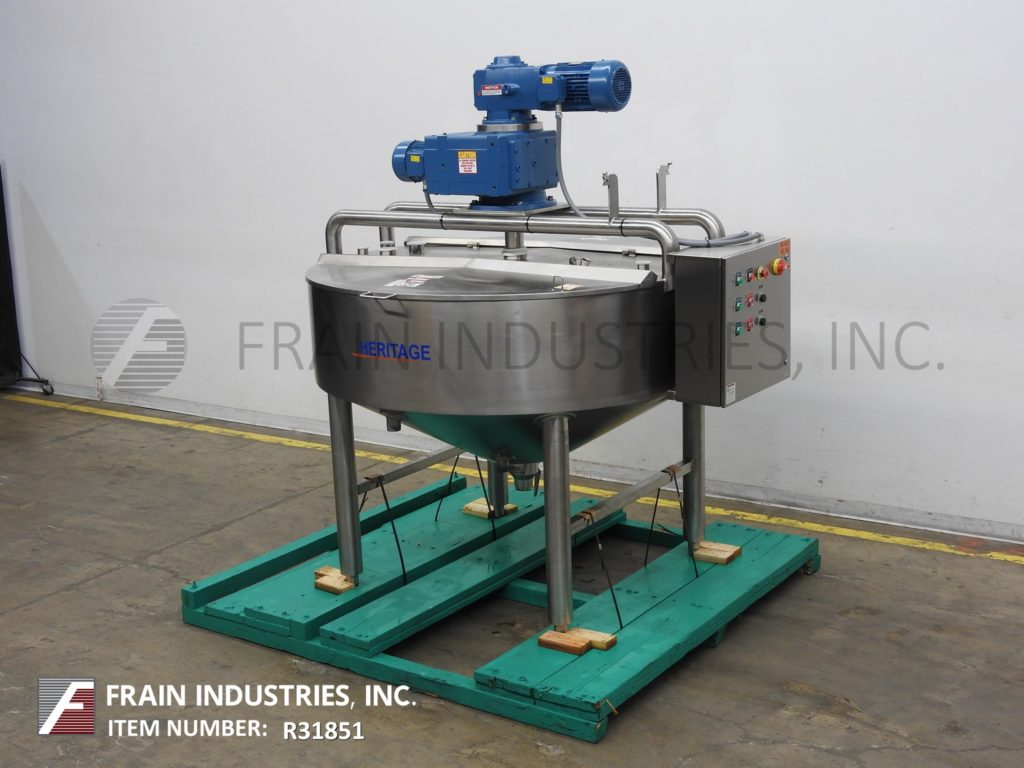

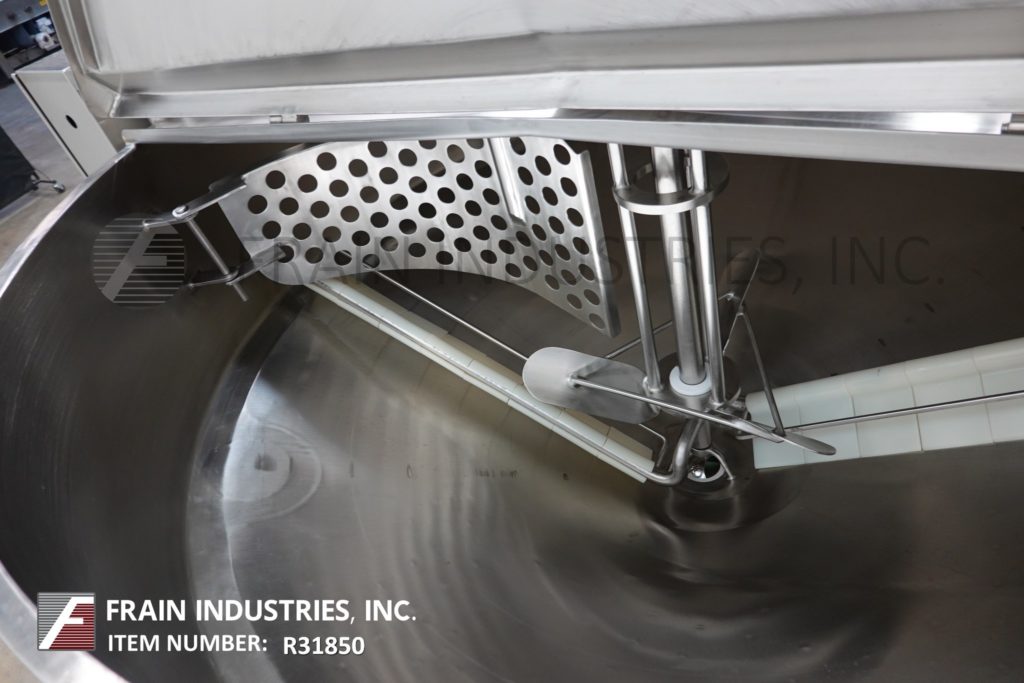

Heritage Equipment, B Cast, 200 gallon capacity, 316 stainless steel jacketed dual purpose cooker, cooler. Vessel dimensions: 72" diameter x 34" deep with 17" straight wall and cone bottom. Equipped with lift up covers, 5.4 Hp bridge mounted scrape and 3 Hp prop agitator, 3½" OD / 3" ID Tri-clamp style bottom discharge with flow valve and 16" ground clearance. Mounted on (4) tube legs.
Top Ports:(2) 3½"OD / 3"ID Tri-Clamp(4) 2½"OD / 2"ID Tri-Clamp(1) 2"OD / 1½"ID Tri-Clamp
MAWP: 75 PSI @ 320°FMDMT: -4°F @ 75 PSINat’l Brd: 2196
OAD: 80"L x 76"W x 96"H
