Mateer Burt, Model 704 Mark 6, automatic, roll thru, glue labeler. Rated from 10 to 600 containers per minute – depending on materials, application and machine configuration. Designed to apply full wrap glue labels to round shaped containers of metal, plastic and also glass (with proper change parts). Container size range: 1¾" to 7¼" In Diameter; 1(9/16)" to 10" in Height. Label size range: 4-5/8" to 24" in Length; 1½" to 9¼" in Width. Equipped with 32" long elevator infeed conveyor, dual container handling gripper v-belts, hydraulic label feed magazine, no container / no glue with hot glue pot and direct contact wheel applicators with Valco cold glue lap seal system. Control panel has start / stop push buttom controls with heat on / off switch and heat controller. Mounted on (4) leg frame with safety guarding, locking casters, leveling legs and statis light bar.
OAD: 166"L x 40"W x 56"H
Mateer Burt, Model 704, automatic, roll through glue labeler. Rated from 10 to 600 containers per minute – depending on materials, application and machine configuration. Container size range: 1¾" to 7¼" In Diameter; 1-9/16" to 10½" in Height. Label size range: 4-5/8" to 24" in Length; 1¼" to 9¼" in Width. Equipped with dual container handling gripper v-belts, hot glue pots with direct contact wheel applicators, single hydraulic label feed magazine, with start / stop push button controls. Mounted on base frame. Designed to apply full wrap glue labels to cylindrically shaped containers of metal, plastic and glass with proper change parts.
OAD: 115" L x 32" W x 68" H
Mateer Burt, Model AU404 automatic, roll thru, hot glue wrap labeler. Container size range: 1¾" to 4½" in Diameter; 1(9/16)" to 7½" in Height. Label size range: 4-5/8" to 15" in Length; 1¼" to 7" in Width. Equipped with dual belt container handling, mechanical label magazine, hot glue pot with glue applicators, hot glue band lap seal and hand crank container adjustments. Speed dependant on materials, application and machine configuration.
OAD: 115"L x 36"W x 44"H
Mateer Burt, Model 704, automatic roll through glue labeler. Rated from 10 to 600 containers per minute – depending on materials, application and machine configuration. Container size range: 1¾" to 7¼" In Diameter; 1-9/16" to 10½" in Height. Label size range: 4-5/8" to 24" in Length; 1¼" to 9¼" in Width. Equipped with dual container handling gripper v-belts, hot glue pots with direct contact wheel applicators, single hydraulic label feed magazine, no container / no glue, with start / stop push button controls. Mounted on base frame. Designed to apply full wrap glue labels to cylindrically shaped containers of metal, plastic and (glass with proper change parts).
OAD: 115" L x 36" W x 53" H
Mateer Burt, Model 704 automatic, roll through, glue labeler rated from 10 to 600 containers per minute – depending on materials and application. Container size range: 1-3/4" to 7-1/4" In Diameter; 1-9/16" to 10-1/2" in Height. Label size range: 4-5/8" to 24" in Length; 1-1/4" to 9-1/4" in Width. Equipped with gripper V-belts, single label feed magazine with mechanical adjustment, hot glue pot with direct contact finger applicators and cold glue belt lap seal, no container / no glue with start / stop push button and on /off glue pump switch controls with attached __" long in feed and discharge conveyors, with 38" infeed and discharge height. Mounted on (4) leg height adjustable frame. Designed to apply full wrap labels to cylindrically shaped containers, both metal and plastic containers also (glass with proper change parts).
OAD: 119" L x 30" W x 55" H
Mateer Burt, Model 408, roll thru hot glue labeler rated from 10 to 600 containers per minute – depending on materials and application. Container size range: 1¾" to 4½" In Diameter x 1(9/16)" to 10½" in Height. Label size range: 4-5/8" to 15" in Length x 1½" to 9¼" in Width. Equipped with single label magazine, single container gripper V-belt, hot glue pot with direct container wheel and lap seam cold glue applicator with valco controller. Control panel with start / stop machine push button controls. Mounted on painted frame and has (4) height adjustable leveling legs.
OAD: 76" L x 34" W x 63" H

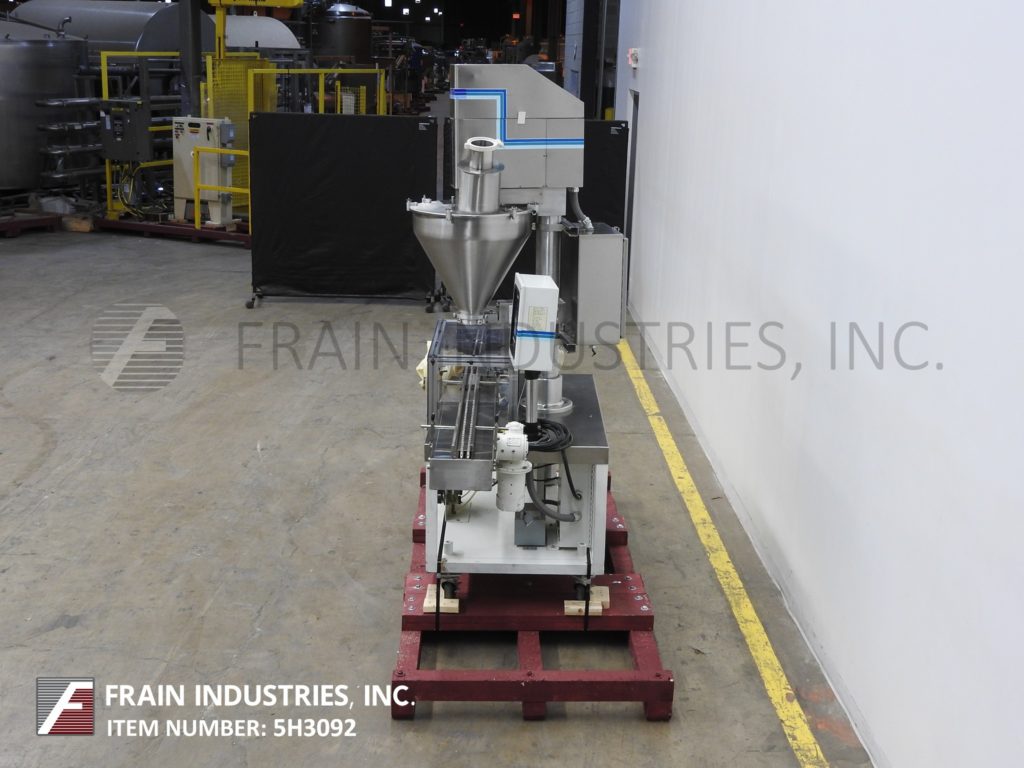

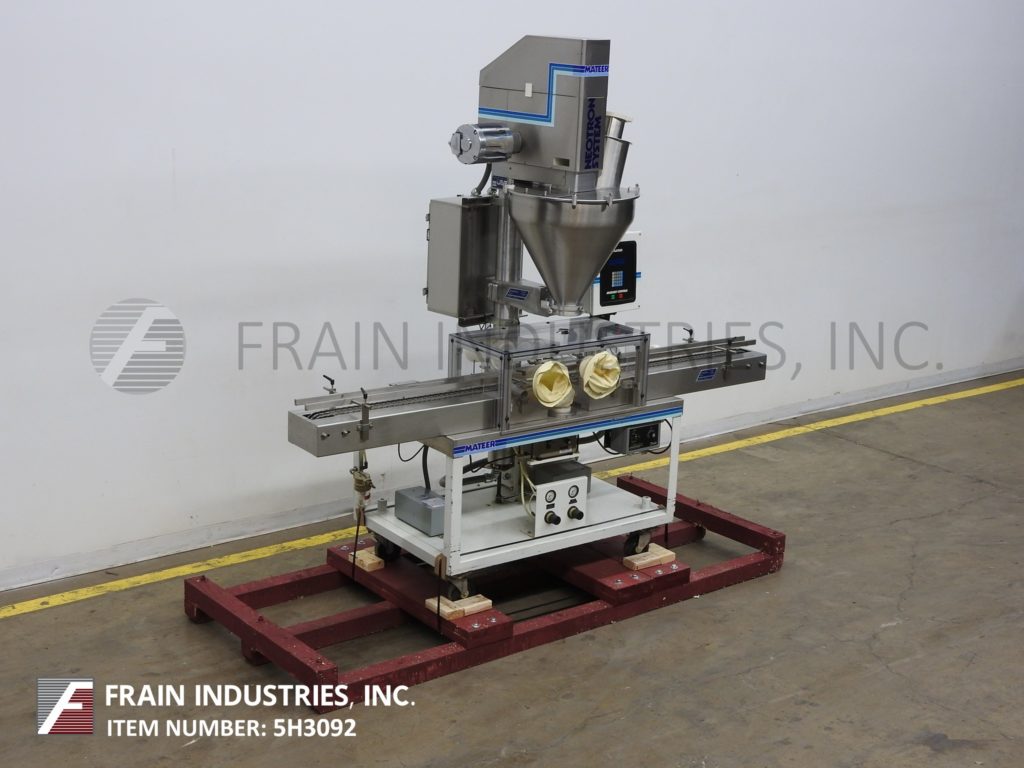

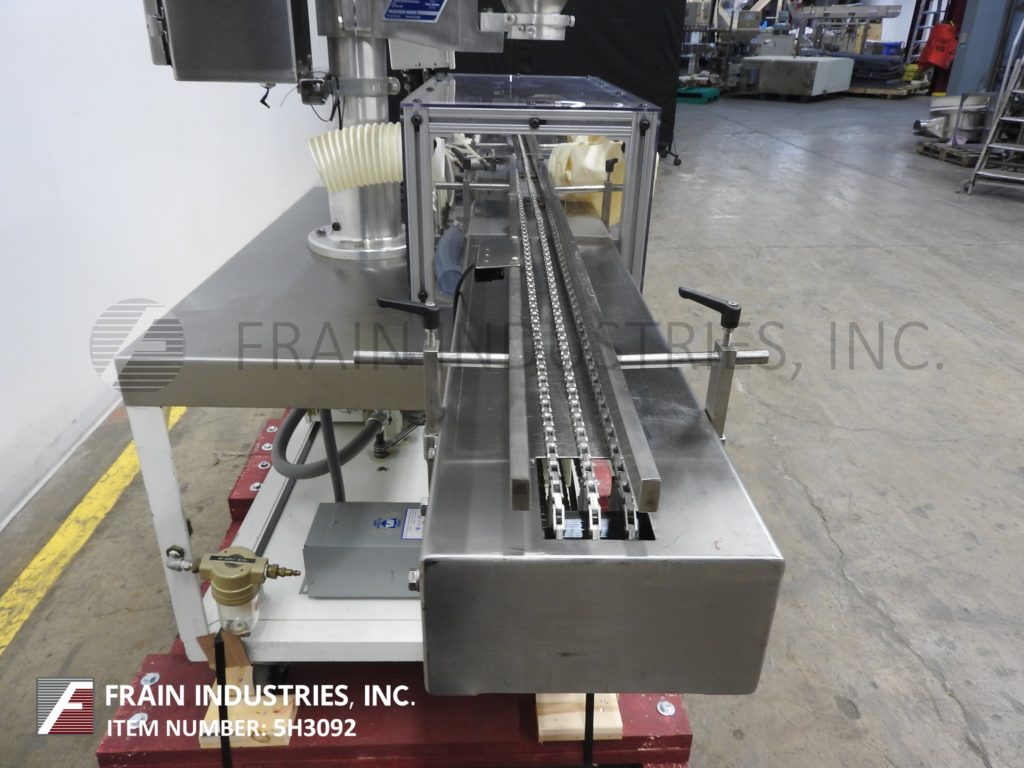

Mateer Burt Neotron, Model 3820, single head, stepper driven auger filler. Equipped with a 20" diameter x 20" deep stainless steel product hopper with bolt down dust cover, 7" OD product in feed chute and 93" long x 2½" wide chain conveyor with vibrator, Bimba indexing and containment glove box over filling station for connection to dust collection. Control panel has touch pad controls with digital readout, vibrator speed dial, conveyor speed dial and push button start / stop controls. Mounted on heavy duty base frame. Speed dependant on materials, application and machine configuration.
OAD: 98"L x 42"W x 95"H
Mateer Burt, Model 408, automatic roll through glue labeler. Rated from 50 to 600 containers per minute – depending on materials and application. Container size range: 1¾" to 4½" In Diameter x 1-9/16" to 10½" in Height. Label size range: 4-5/8" to 15" in Length x 1¼" to 9¼" in Width. Equipped with hydraulic lift label magazine, 5/8" gripper belt, hot glue pot with direct container contact finger applicators, cold band lap seal, has machine and label feed start / stop push button controls.
OAD: 105"L x 36"W x 50"H
Mateer Burt Model 704 roll through glue labeler. Container size range: 1-3/4" to 7-1/4" In Diameter x 1-9/16" to 10-3/4" in Height. Label size range: 4-5/8" to 24" in Length x 7/8" to 10" in Width. Equipped with gripper V-belts, hot glue pot with direct container contact finger applicators and glue belt system. Speed dependant on materials, application and machine configuration.
OAD: 148" L x 30" W x 52" H
