Home » Mepaco
Mepaco, 316 stainless steel, dual trough ribbon blender. Capacity: 140 ft³ total (100 ft³ working). with pounds of product per hour – depending on materials and application. Dual trough with mixer dimensions of: 100" in Length; 31" in Width; 42" in depth each trough. Equipped with lift up safety grate, 3" wide x ½" thick ribbons, dual 19" x 9½" pneumatic gate discharges with 32" ground clearance and powered by (2) 30 HP motor drives. Control panel with touch screen HMI.
OAD: 150"L x 83"W x 81"H
Mepaco, Model 170, 304 stainless steel dual trough paddle blender. Rated up to 250 lbs per batch. Capacity of: 8 ft³ (5 ft³ working). Trough dimesions: 41" in Length; 22" in Width; 16" in Depth. Equipped with lift up top cover, lift up safety grate, has 5" x 4" paddles and (2) 8" x 3" pneumatic end discharges with 42" ground clearance. Powered by 2 Hp motor drives. Control panel with AB controller and touch screen HMI. Mounted on (4) leg frame.
OAD: 74" L x 56" W x 66" H

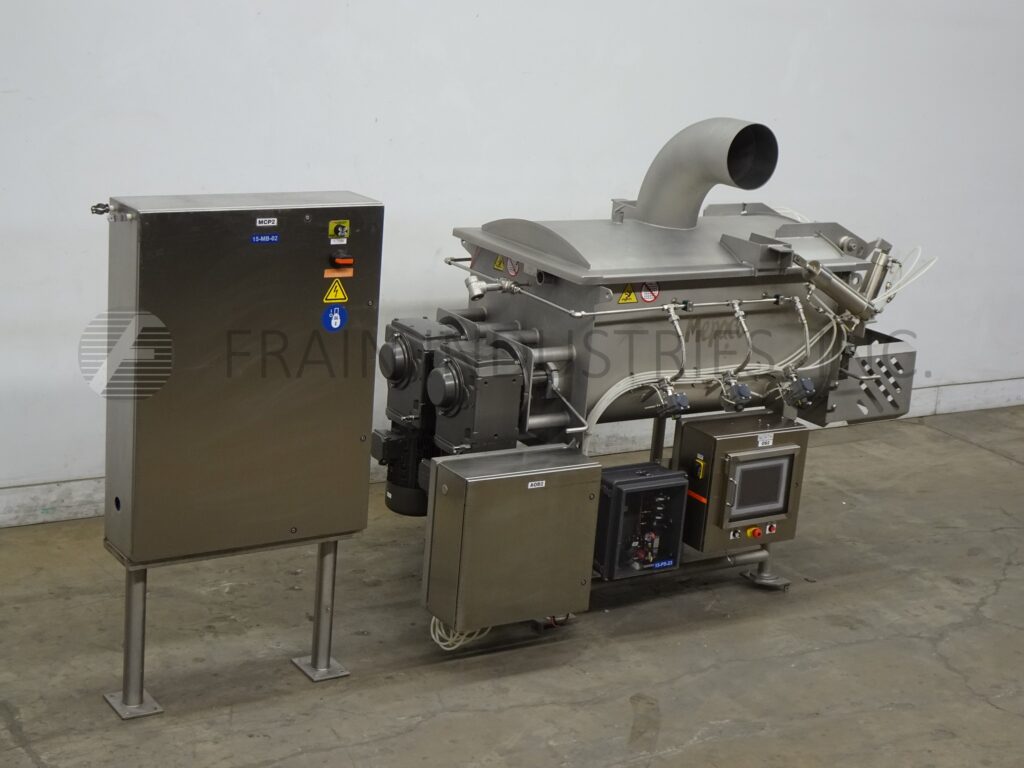

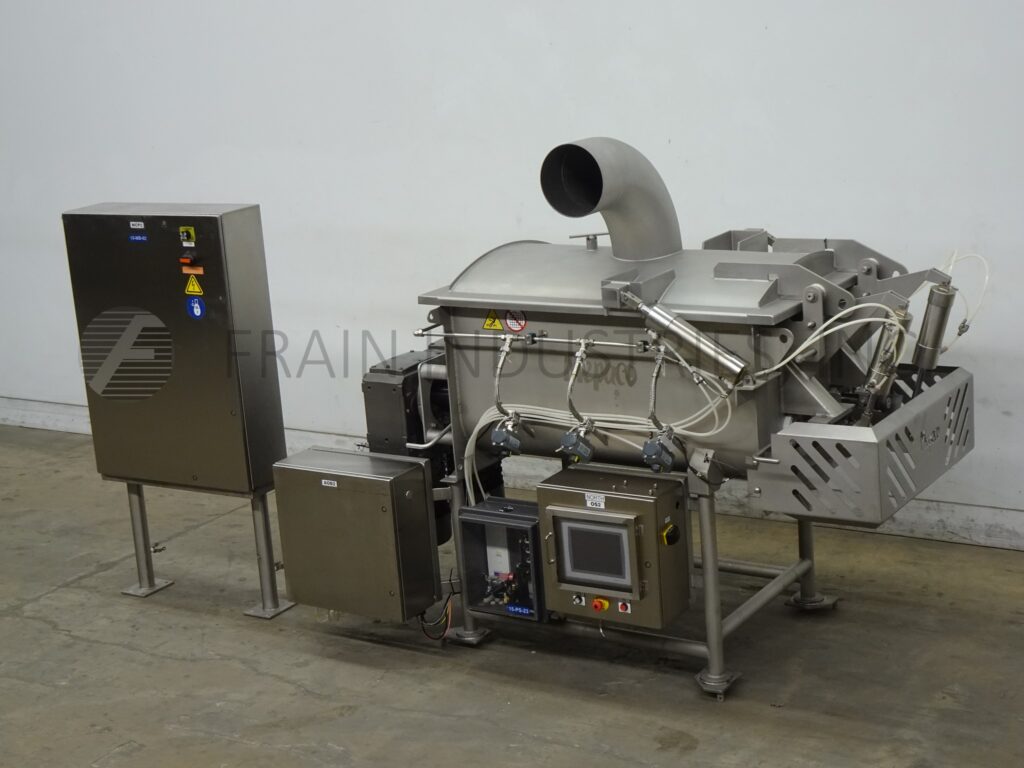

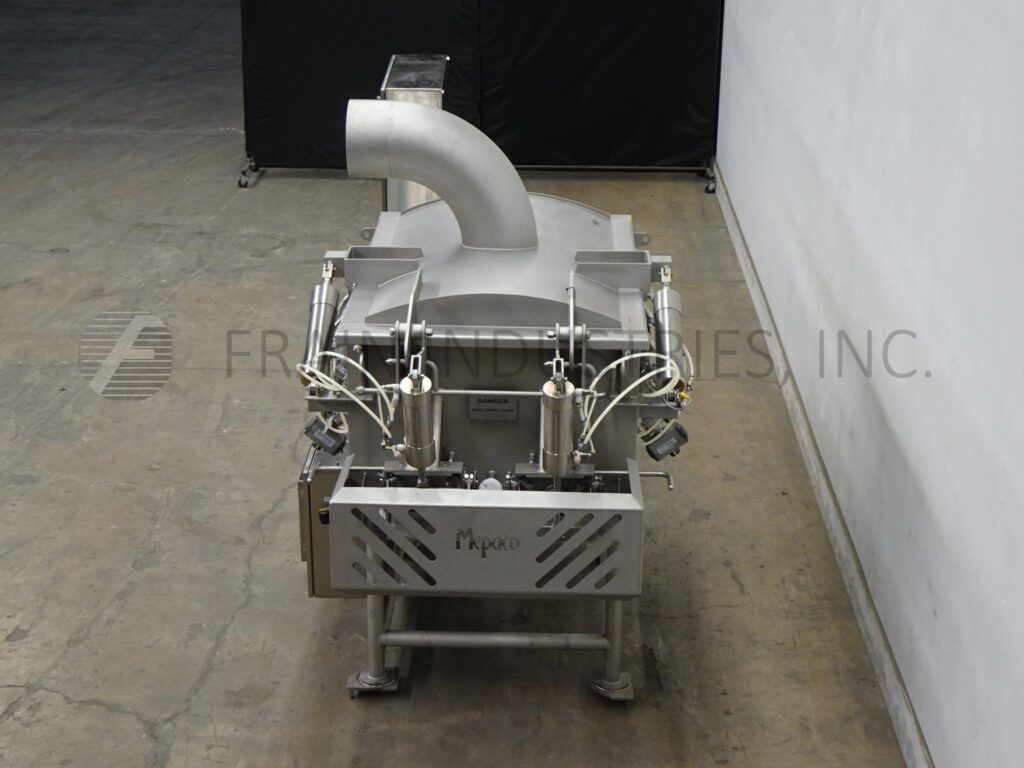

Mepaco, Model 170, stainless steel dual trough, ribbon blender. Capacity: 25ft³ (15 ft³ working) (750 Lbs.). Dual Trough dimensions: 52" in Length; 33" in Width; 26" in Depth; 20" Straight Wall. Equipped with pneumatic lift up top cover, (6) injection ports with individual pneumatic valves, 1" wide x ½" thick ribbons, 3" diameter motor shafts and (2) 5" x 19½" pneumatic flush mount bottom gate discharges with 30" ground clearance. Powered by (2) 7½ Hp motor drive. AB touch screen HMI. Pounds of product per hour – depending on materials and application
OAD: 100" L x 50" W x 82"H
Mepaco, Model 170, stainless steel dual trough, ribbon blender. Pounds of product per hour – depending on materials and application. Capacity: 25ft³ (15 ft³ working) (750 Lbs). Dual Trough dimesions: 52" in Length; 17" in Width; 26" in Depth; 20" Straight Wall. Equipped with pneumatic lift up top cover, (6) injection ports, 1" wide x ½" thick ribbons, 3" diameter motor shafts and (2) 5" x 19½" pneumatic flush mount bottom gate discharges with 30" ground clearance. Powered by (2) 7½ Hp motor drive. Control panel has AB Controller and touch screen HMI. Mounted on heavy duty base frame with casters.
Mepaco, 304 stainless steel, dual trough ribbon blender. Capacity: 130 ft³ total (100 ft³ working). with pounds of product per hour – depending on materials and application. Dual trough with mixer dimensions of: 92" in Length; 32" in Width; 43" in Depth each trough. Equipped with lift up safety grate, 3½" wide x ½" thick ribbons, dual 22" x 10" pneumatic gate discharges with 59" ground clearance and powered by (2) motor drives. Mounted on heavy duty frame.
OAD: 157"L x 75"W x 105"H
Mepaco, 304 stainless steel, dual trough ribbon blender. Capacity: 140 ft³ total (110 ft³ working). with pounds of product per hour – depending on materials and application. Dual trough with mixer dimensions of: 102" in Length; 32" in Width; 43" in Depth each trough. Equipped with lift up safety grate, 3½" wide x ½" thick ribbons, dual 22" x 10" pneumatic gate discharges with 53" ground clearance and powered by (2) motor drives. Mounted on heavy duty frame.
OAD: 163"L x 72"W x 105"H
Mepaco Model T4000, Hydraulic, stainless steel, container dumper with number of containers per hour – depending on materials, application and operator dexterity. Has 51" long x 54" wide x 80" high container dump chamber with (2) 48" long hydraulic cylinders and hydraulic power pack. Control panel has bin cover open / close, tote clamp unclamp and clamp, tote dump up / down switches and fill control and master reset indicator lights. Mounted on heavy duty stainless steel tubular style frame.Mepaco Model 185, Stainless steel, incline screw conveyor with 80" long x 56" wide x 60" deep with 34" straight wall. Product supply hopper with product auger drive and 189" long inclined product feed conveyor with flip up covers and 14" OD x 189" long feed screw with bottom 7½ Hp motor drive. Mounted on heavy duty stainless steel frame.
Mepaco Model T4000, Hydraulic, stainless steel, container dumper with number of containers per hour – depending on materials, application and operator dexterity. Maximum capacity of 3,000 lbs. per batch. Equipped with 48" long x 47" wide bottom container chamber with 2" OD stationary bars set on 6" centers with 4" gaps x 48" wide x 80" high solid wall dump chamber with (2) 48" long hydraulic cylinders and hydraulic power pack. Control panel has bin cover open / close, tote clamp unclamp and clamp, tote dump up / down switches and fill control with master reset indicator lights. Mounted on heavy duty stainless steel tubular style frame.Mepaco Model 185, Stainless steel, incline screw conveyor with 80" long x 40" wide x 64" deep product supply hopper with product auger drive and 266" long inclined product feed conveyor with flip up covers and 14" OD x 266" long feed screw, 120"high discharge. Bottom 7.5 Hp motor drive. Mounted on heavy duty stainless steel frame.
OAD: 240" L x 80" W x 124" H Dumper W/Hydralic 266" L x 40" W x 120" H Screw Feeder
Mepaco, Model 170, T304 stainless steel, 1/2 steam dimple jacketed, dual trough, therma blend cooker, rated to 5000 pounds of product of per batch with amounts per hour – depending on materials and application. Trough dimensions: 102" in Length; 27" in Width; 36" in Depth each trough and set on 27" centers. Equipped with pnuematic lift up top cover and safety grid, double overlapping non-scraping ribbons with steam injection agitaor shafts, powered by (2) 10 Hp motor drives, with safety shrouds, 1/2 dimple steam jacket with MAWP: 90psi @ 375 Deg F and MDMT -20 Deg F @ 90psi with (4) 1-1/2" jacket ports (2) each side and shroud safety guarding has dual pneumatic end gate flip up discharges with 40" ground clearance. Control panel has Allen Bradley PLC, controller with Allen Bradley PanelView touchscreen controls and push button e-stop. Mounted on heavy duty stainless steel frame with leveling legs. ASME Coded and National Board # 2618
OAD: 144" L x 90" W x 89" H
Mepaco, Model TB170, 304 stainless steel dual trough jacketed vacuum ribbon cooker. Capacity: 26 ft³ (200 gallon). Tub dimensions: 70 in Length; 33" in Width. Equipped with lift up top cover and lift up grate, dual mixing ribbons and has dual pneumatic discharge gates with 4" diameter Tri-Clamp fittings and 39" ground clearance. Powered by (2) 5 Hp motor drives. Control panel with AB PLC and an AB touch screen HMI. Mounted on a (4) leg stainless steel frame with vacuum pump.
Jacket Fittings:(2) 1½" NPT
MAWP: 90 PSI @ 350°F (Steam)MDMT: -20°F @ 90 PSI
OAD: 102"L x 73"W x 90"H
Mepaco, Model 105, 2,500lb capacity, stainless steel, single auger and pump feeding system with gallons and pounds of product per hour – depending on materials and application. Equipped with 120" in Length; 50" in Width; 32" in Depth product mixing chamber with 9" OD x 136" long stainless steel feeding screw powered by 5 Hp motor drive with a 47:1gearbox for final revolutions of 37 per minute. 20 Hp Waukesha Model 224 positive displacement pump with 4¾" OD / 4" ID Tri-Clamp style discharge with a 15.66:1 gear ratio for 57 GPM. Control cabinet with push button start / stop / reset and forward / reverse switch. Mounted on a stainless steel frame.
OAD: 182"L x 69"W x 44"H
Mepaco, Model 170, 304 stainless steel dual trough vacuum paddle blender. Capacity: 150 ft³ (120 ft³ working). Dual trough dimensions: 102" in Length; 64" in Width; 44" in Depth each trough. Equipped with lift up top cover and safety grate, double overlapping paddles, dual pneumatic gate end discharges with 40" ground clearance. Powered by (2) 20 Hp motor drives. Control panel has A/B PanelView Plus 700 touchscreen HMI. Mounted on heavy duty frame.
OAD: 154"L x 88"W x 105"H
