Modern Packaging, Model SL1X1, inline stainless steel cup overlidder. Rated from 5 to 30 cups per minute – depending on materials, application and machine configuration. Currently set to do 1 x 1 pattern set on 6" centers. Control panel with Push button start / stop controls and variable speed dial. Mounted on a heavy duty stainless steel frame with leveling legs.
OAD: 122"L x 45"W x 75"H
Modern Packaging, Model SL1X4, automatic, inline, stainless steel, 4 lane, cup filler and die cut heat sealer. Rated from 40 to 120 containers per minute – depending on materials, application and machine configuration. Equipped 1×4 plates set on 4½" centers, cup / tray de-nest station, (2) filling stations, no container / no fill, die cut film seal. Control panel has an AB controller with touch screen HMI, digital temperature controllers and on/off switches for each station. Mounted on stainless steel base frame with safety guarding.
OAD: 145"L x 60"W x 88"H
Modern Packaging, Model SL 1X4, automatic, inline, stainless steel, 4 lane, cup filler, roll stock heat sealer and overlidder. Rated from 40 to 120 containers per minute – depending on materials, application and machine configuration. Equipped 1×4 plates set on 6" centers, cup / tray de-nest station, piston filling station, roll stock film seal and over lidder. Control panel has an AB controller with touch screen HMI, digital temperature controllers and on/off switches for each station. Mounted on stainless steel base frame with safety guarding.
OAD: 135"L x 60"W x 96"H

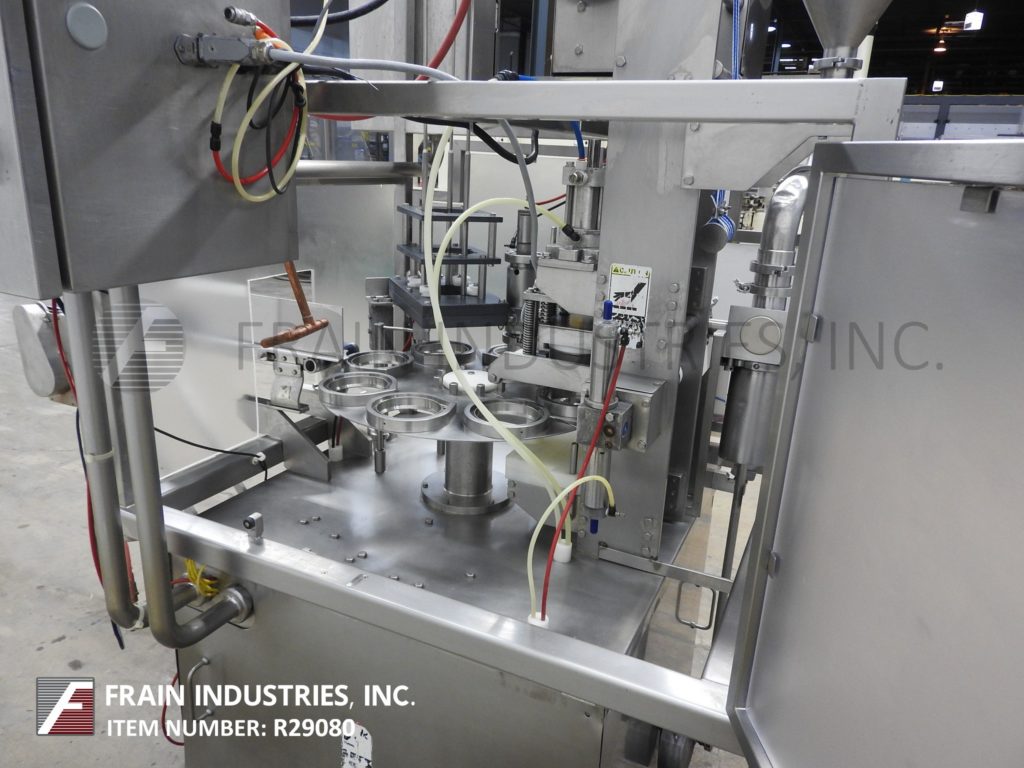

Modern Model SR8DC, automatic, 8 pocket, intermittent motion, stainless steel, rotary cup filler, roll stock film and heat sealer rated from 10 to 40 cups per minute – depending on materials and application. Fill range: 1/2oz to 14oz. Container size up to: 3" in diameter (with proper change parts). Equipped with 24" OD rotary turn table and has (8) 4.5 ID cup stations, screw cup despencer, 16"OD x 18" long product hopper, single head piston filler with 1-1/2" OD x 5" long single piston and 1-1/2" positive cut off nozzle, no container / no fill and roll stock film applicator, single head pneumatic heat sealing head and sweep arm reject to 36" long x 5" wide discharge conveyor. Control panel has A/B Micrologix controller, with touchpad, (touch pad needed) and liquid level controls with start, stop, reset, e-stop and statis light bar. Mounted on stainless steel base with height adjustable locking legs and swing door safety guarding.
OAD: 84" L x 64" W x 103" H
Stainless steel, one to four lane, accumlation table. Equipped with (1) 23¾" wide x 94" long Intralox style belt, (1) 23¾" wide x 58" long Intralox style belt, (2) overhead pneumatic diverting stations with 8" max clearance [(1) one to two lane, (1) two to four lanes]. Adjustable width lane guides, pneumatic stop gate and back stop with (4) product eyes.
OAD: 160"L x 38"W x 75"H
Modern Packaging, Model SL1X2, automatic inline stainless steel cup filler, die cut, heat sealer and lidder. Rated from 20 to 80 cups per minute – depending on materials and application. Fill capacity: 1 oz to 8 oz (with current pistons). Currently set to do 1 x 2 pattern, set on 4½” centers. Equipped with dual lane cup denster with 7" magazine, (2) piston filling station with positive cut off nozzles, pick and place die cut film with 6" magazine, peel off over lidder with 35" roller magazine and discharges to 16" long collating station. Control panel has A/B PLC controller with push button machine start / stop / E-stop. Variable speed control dial and on / off switch controls for heaters, auto / manual, cup denester, filler, film pick, heat seal and over lidder. Mounted on stainless steel base frame with casters and leveling legs.Change parts required to accommodate size range.
OAD: 140"L x 52"W x 86"H
