Home » MRM Elgin

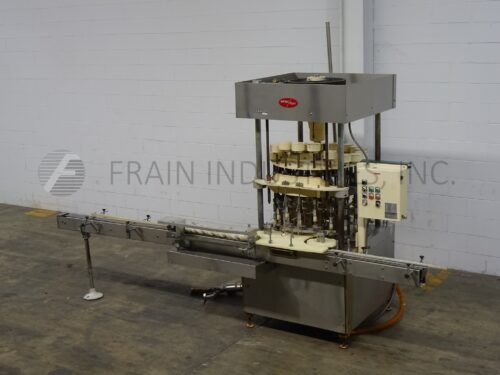

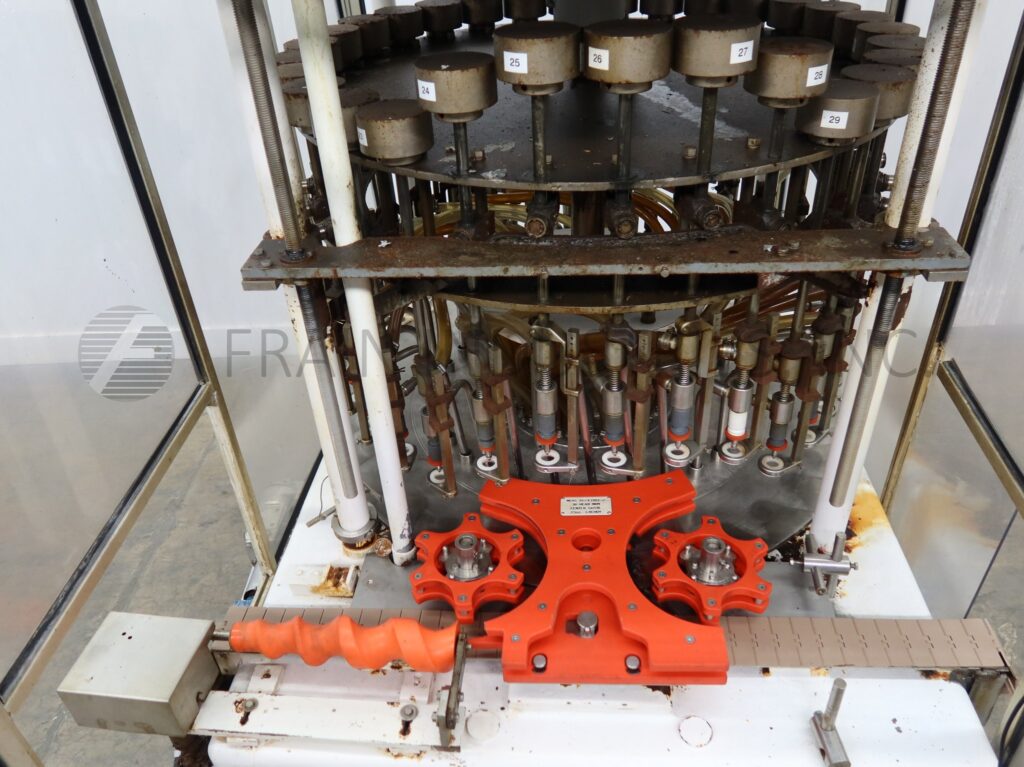

MRM Elgin, Automatic, 30 head rotary pressure gravity filler. Rated from 40 to 300 containers per minute – depending on materials, application and machine configuration. Container size: up to 4¼" in Diameter: up to 9½" in Height with proper change parts. Equipped with a wormscrew to star wheel in feed and discharge, (30) ½" OD stainless steel nozzles set on 4¾" centers and has a positive displacement product pump. Control panel with push button and switch controls. Mounted on heavy duty frame with safety guarsing..
OAD: 67"L x 92"W x 102"H

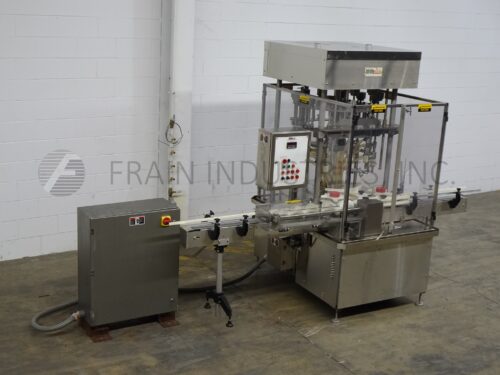

MRM Model RPF-16, Automatic, 16 head, rotary, piston filler rated up to 240 containers per minute – depending on materials and application. Containers up to 5" in diameter x up to 12" height. Maximun fill volume of 35oz both with proper change parts. Currently equipped with 2.5 oz pistons. wormscrew to starwheel in feed and discharge, 6" wide x 5-1/2" deep platforms, 1/4" OD fill nozzles, with bottom-up fill, 50 gallon product tank with float valve and has 3" diameter tri-clover product inlet, hand crank volume adjustment for all pistons, volume adjustments for individual pistons, neck centering guides, and no container / no fill, start and e-stop. Mounted on heavy duty frame with height adjustable feet and stainless steel guarding.
OAD: 60"L x 84"W x 84"H

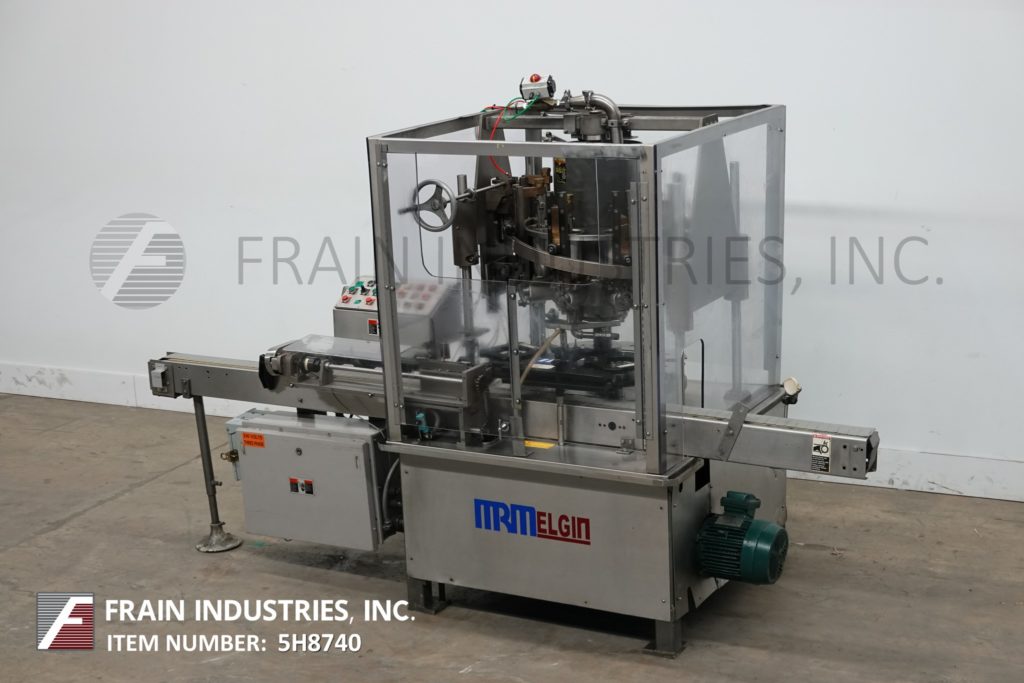

MRM Elgin Model RPF-16, Automatic, 16-head rotary, piston filler rated from 50 to 240 fills per minute – depending on materials and application. Containers: up to 4-3/4" in diameter x up to 12" in Height. Equipprd with 3-1/2" Wide conveyor frame, worm screw to star wheel in feed and discharge, neck centering guides, 3/8" diameter nozzles, Maximum fill of 52oz with fill accuracy +/- 0.5% by volume (with proper change parts), mechanical container height adjustment, no container / no fill. Control panel has a Micrologic controller with (3) Powerflex vari-speed controllers and power, conveyor and filler speed control dials, start, stop and e-stop push buttons. Mounted on base frame with electrical interlock, barrier safety guarding.
OAD: 92"L x 68"W x 90"H
MRM Elgin Model R50GSF18, Automatic, 18 head, stainless steel rotary, fill to level pressure gravity filler rated from 24 to160 containers per minute – depending on materials, application and machine configuration. Capable of handling containers 1/2 once to 2-1/2 gallons (with proper change parts). Equipped with 168" long x 3-1/2" wide container conveyor has 30" long worm screw to star wheel infeed and discharge with top gear drive and (16) 1/2" OD stainless steel nozzles set on 5" centers, with bottom up fill and no container / no fill. Control panel has start, stop, reset and e-stop push button controls. Mounted on stainless steel frame with safety guarding.
OAD: 168" L x 48" W x 92" H
MRM Elgin Model R50G-SF-18, Automatic, 18 head, stainless steel rotary, pressure gravity filler rated from 36 to 180 containers per minute – depending on materials, application and machine configuration. Capable of handling containers 1/2 once to 2-1/2 gallons (with proper change parts). Equipped with 174" long x 4-1/2" wide container conveyor has 24" long worm screw to star wheel in feed and discharge, top gear drive with (18) 1/2" OD stainless steel nozzles set on 5-1/2" centers, bottom up fill, no container / no fill. Control panel has on / off switch with start, stop and e-stop push button controls. Mounted on heavy duty stainless steel frame.
OAD: 174" L x 58" W x 90" H
MRM Elgin, Automatic, 12 head, stainless steel rotary, fill to level pressure gravity filler rated from 24 to 120 containers per minute – depending on materials, application and machine configuration. Capable of handling containers 1/2 once to 2-1/2 gallons (with proper change parts). Equipped with 128" long x 4-1/2" wide container conveyor has 32" long worm screw to star wheel in feed and discharge, top gear drive with (12) 1" OD stainless steel nozzles set on 7" centers, bottom up fill, no container / no fill with vari-speed contoller and centrifugal product feed pump, 27-1/2" long x 18" wide x 16" deep product basin. Control panel has variable speed control dials and start, stop and e-stop controls. Mounted on (4) leg stainless steel base frame with safety guarding.
OAD: 128" L x 60" W x 94" H

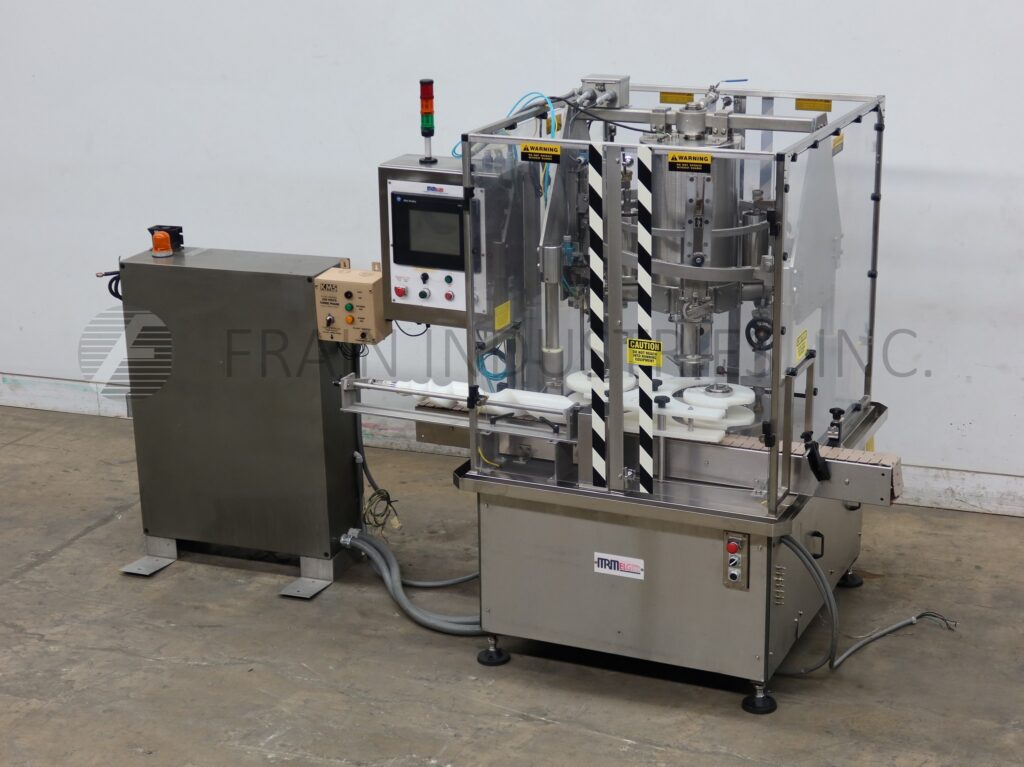

MRM Elgin, Model RPF-4, Automatic, continous motion, stainless steel, left to right, (4) head rotary piston filler rated from 10 to 60 containers per minute – depending on materials and application. Equipped with 80" long x 4½" wide plastic Delran container conveyor, with worm screw to star wheel in feed and discharge. 24" OD turret, with (4) 7½" x 5½" container pedestals, (4) filling heads stainless steel nozzles set on 15" centers, bottom up fill, with no container / no fill and has 48" x 48" stainless steel platform with drip trough. Control panel has A/B CPU with A/B panel view and power on / off switch with start, stop and e-stop push buttons. Mounted on stainless steel base frame with interlock safety guarding and leveling legs.
OAD: 108" L x 60" W x 80" H

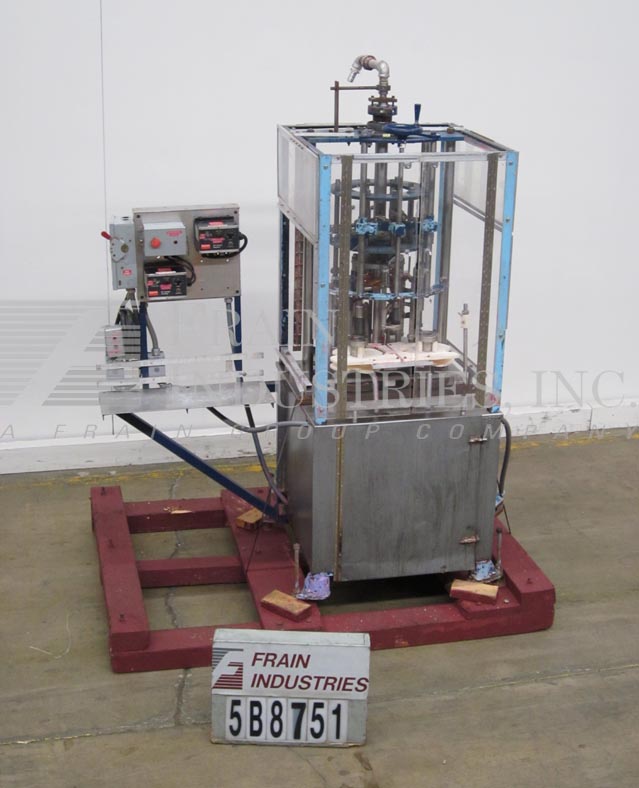

MRM Model RPF8, Automatic 8 head rotary piston filler capable of speeds from 20 to 120 container per minute – depending on product and fill volume. Maximum container size: 5" diameter x 12" height. Equipped with 14 gallon, heated hopper and has level detector, mechanical container height and piston adjustment, no container / no fill, 4-1/2" x 6′ conveyor track, stainless steel contact parts and Lexan guarding.Air requirements: 60 psi at 1 CFM.Maximum fill volume per application (with proper pistons)Left to right product flow.
OAD: 120" L x 48" W x 80" H
MRM Elgin, Model RPF-8, Automatic, 8-hd left to right, rotary piston filler rated from 30 to 150 containers per minute – depending on materials and application. Fill range: up to 35oz with accuracies + / – 1/4 of 1% depending on product and machine configuration. Maximum container size: up to 6" in Diameter; up to 12" in Height. Equipped with 3¼" wide conveyor, worm screw to star wheel in feed, 13½" diameter x 22" deep (14 gallon) stainless steel reservoir with level detector, 7" x 6" container pedestals, 5/8" OD nozzles set on 8" centers, drip trough, no container / no fill, E-stop and safety guarding. Mounted on stainless steel frame.
OAD: 128"L x 54"W x 80"H

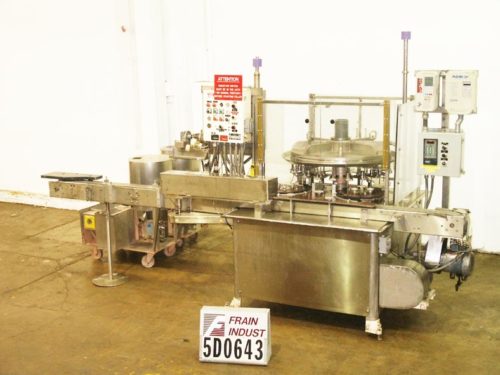

MRM Elgin, Automatic, 18 head, rotary, pressure gravity filler with number of containers per minute – depending on materials, application and machine configuration. Container size: Diameter and Height per application with proper change parts. Equipped with 76" long container in feed belt conveyor and 28" long indexing worm screw to star wheel in feed and discharge. 24" OD fill table with (18) 1/2" OD stainless steel filling nozzles set on 4-1/4" centers, bottom up fill, no container / no fill and 30" long x 12" wide x 18" deep product tank. Control panel has dual Teco controllers and hand held remote with pump switch and start, stop, e-stop push button controls. Mounted on stainless steel frame with (4) leveling legs.Capable of filling various viscous product, thin to medium foaming and nonfoaming liquids and detergents
OAD: 76" L x 60" W x 86" H

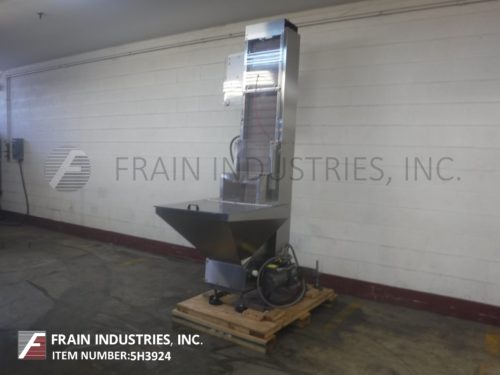

MRM Elgin, stainless steel incline cleated belt feeder with amount of product per hour – depending on materials an application. Equipped with 30½" wide x 36" long x 22" deep (14 ft³) stainless steel product hopper, 13" wide belt conveyor with 3/16" high cleats set on 3-3/16" centers, 77" discharge height with 2¼" wide chute and 77" ground clearance. Powered by .89 hp motor drive. Mounted on stainless steel base frame.
OAD: 49" L x 32" W x 104" H

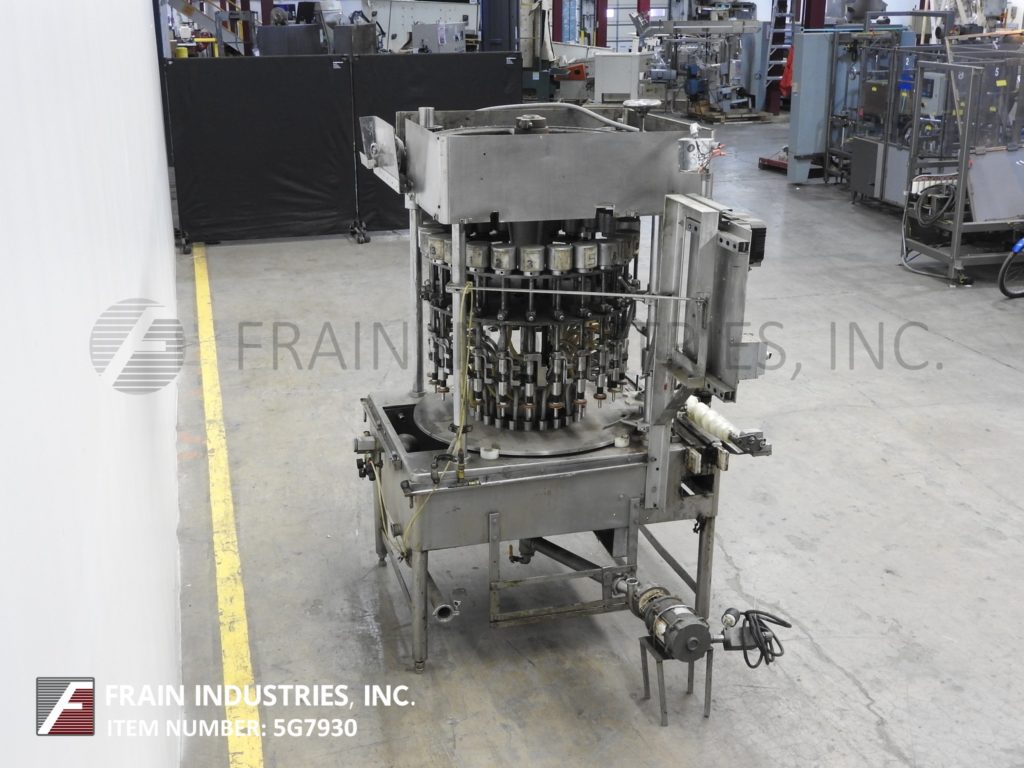

MRM Elgin, automatic, stainless steel, 24 head rotary pressure gravity filler. Rated from 40 to 240 containers per minute – depending on materials, application and machine configuration. Container size: up to 3.5" in Diameter: up to 9½" in Height with proper change parts. Equipped with a wormscrew to star wheel in feed and star wheel discharge, 38" diameter table with (24) ½" OD stainless steel nozzles set on 4" centers, centrifugal product pump, holding tank floating level sensor, no container / no fill and variable speed controller for pump and filler. Mounted on stainless steel base frame with drip pan.
OAD: 60"L x 60"W x 82"H
