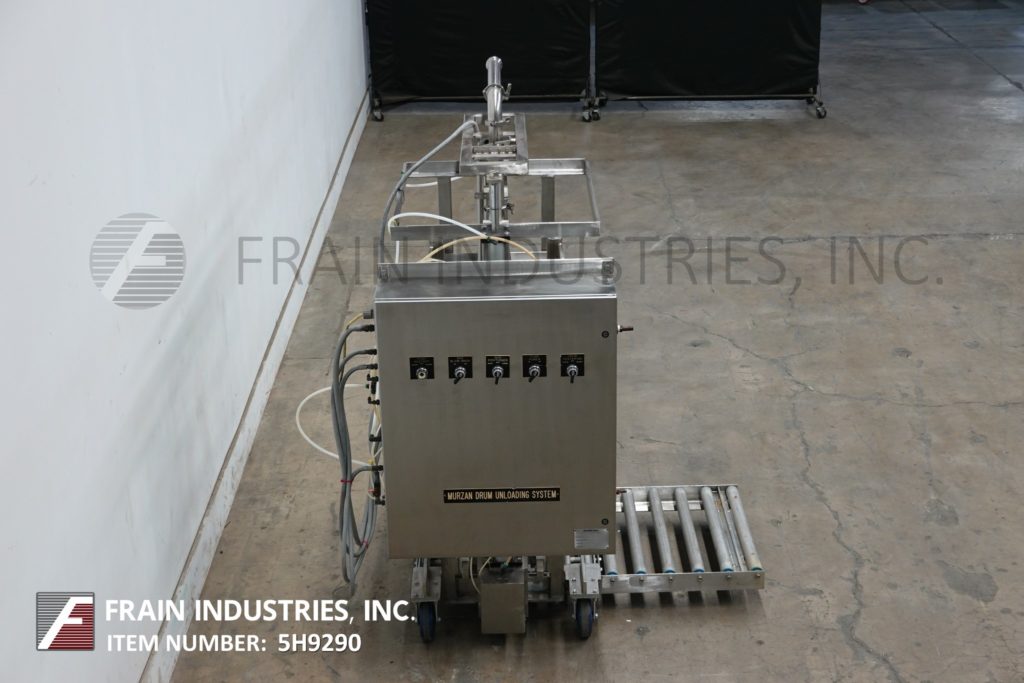

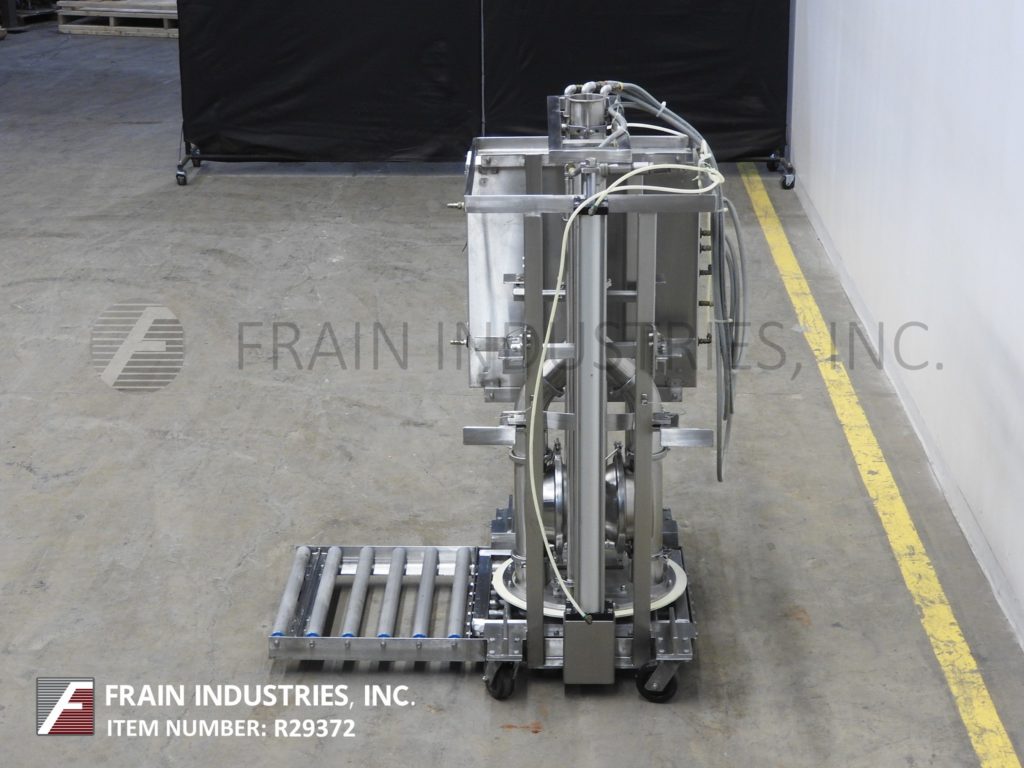

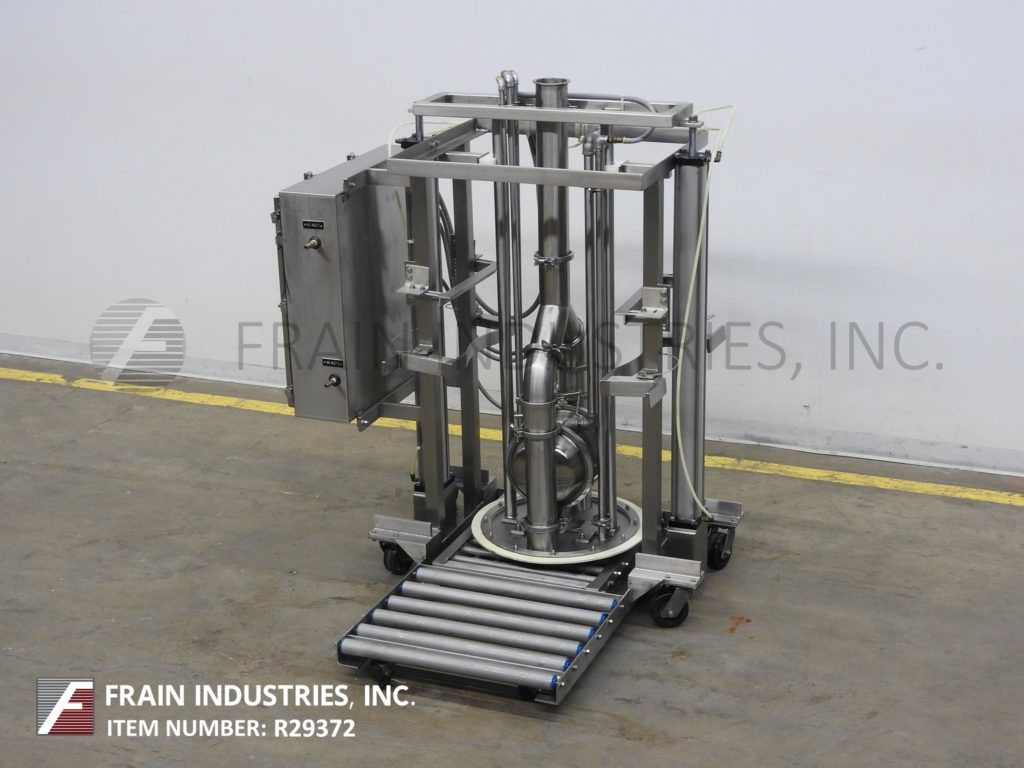

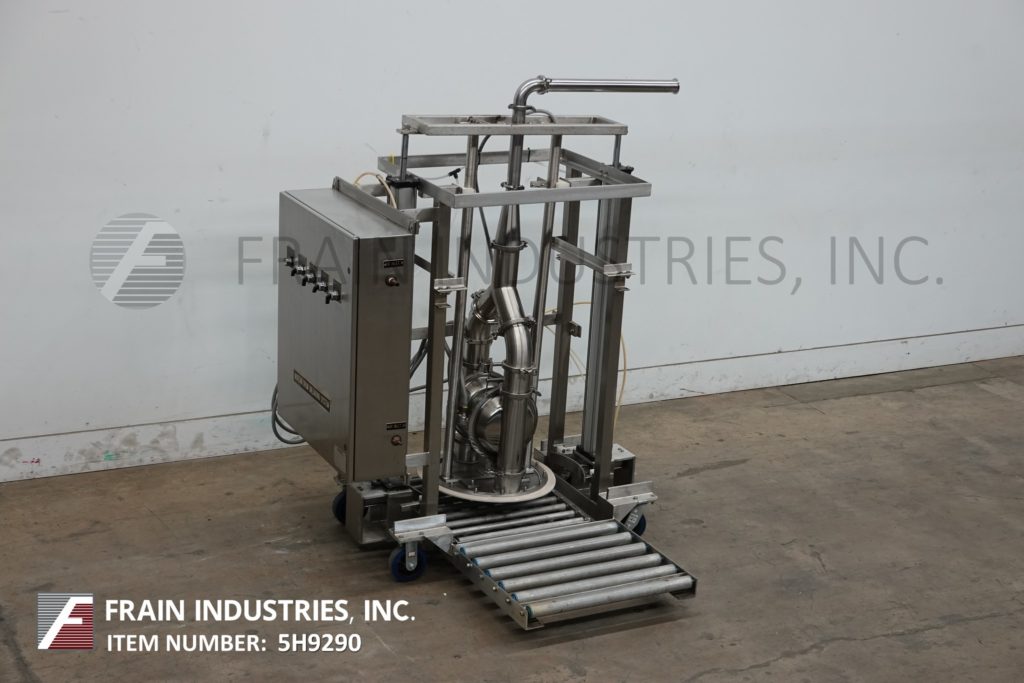

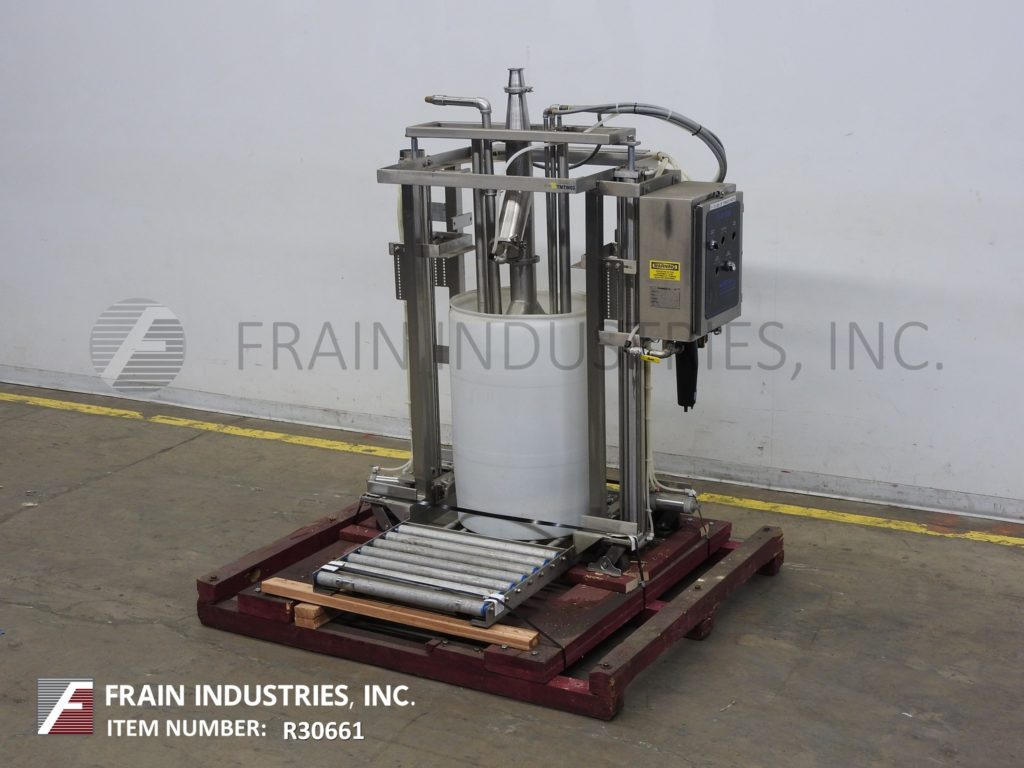

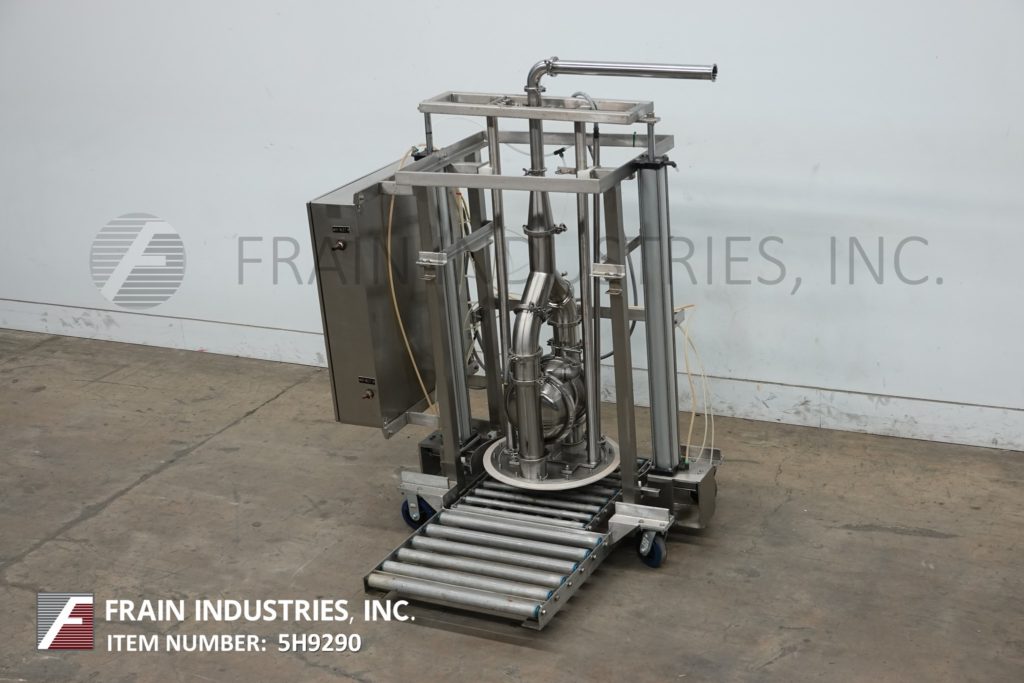

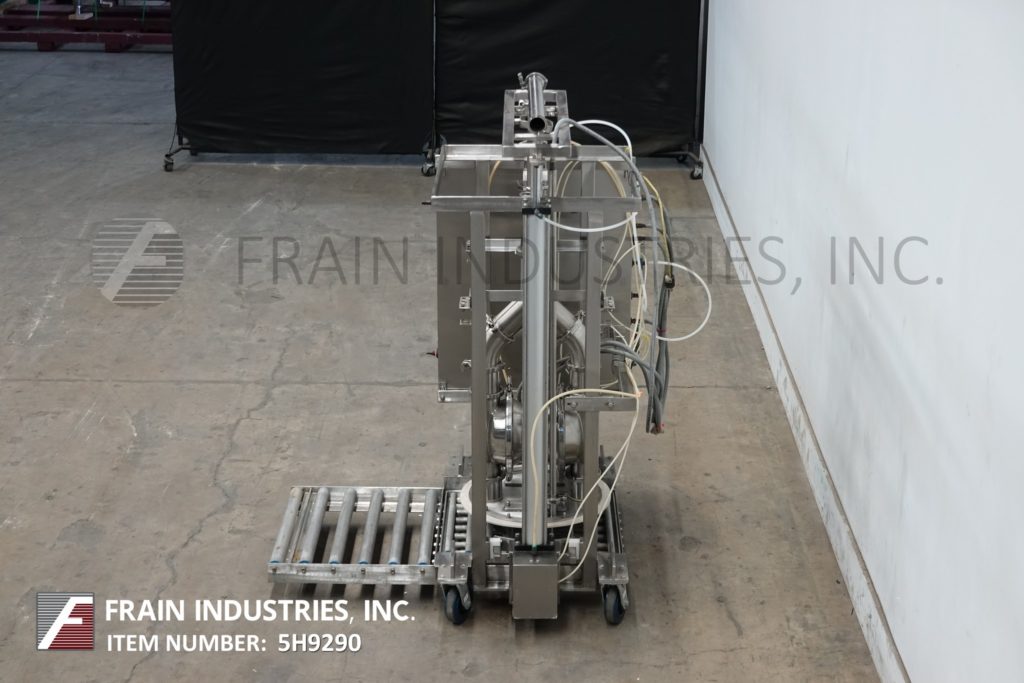

Murzan Model PI-50, Sanitary, stainless steel, 55 gallon drum unloader with number of drums per hour – depending on materials, application and operatory dexterity. Equipped with Model DUS7IM4X4 stainless steel double diaphragm pump with (2) pneumatic cylinders with approx. 52" stroke and 4" OD sanitary piping reduced to 3" OD and has 22" stainless steel follower plate. Oil free air valve, roller conveyor and drum centering section. Capable of handling drums made of metal, plastic or fiber with, or without liners and able to handle viscosities up to 150,000 centipoise and solids up to 6". Mounted on stainless steel frame. CIP capable with optional adaptor. Meets most FDA, USDA and 3-A standards.
OAD: 48"L x 40"W x 74"H
Murzan Model DUS-50, sanitary, stainless steel, 55 gallon drum unloader with number of drums per hour – depending on materials, application, pump configuration and operator dexterity. Capable of unloading drums made of metal, plastic or fiber with, or without liners and capable of handling most viscous products with viscosities up to 150,000 centipoise and solids up to 6". CIP capable with optional adaptor. Equipped with Murzan PI-50 double diaphram pump has 20" stainless steel follower plate, non-lubricated, oil free air valve, 24" long x 27" wide roller in feed and discharge conveyor with 27" long x 2" OD rollers set on 4-1/2" centers with 2-1/2" gaps and roller drum centering section with 26" long x 1-1/4" OD rollers set on 3-1/4" centers with 2" gaps. Control panel has pump restart and off, bag blow-back on / off DUS positioner, raise. lower, off pump power on, off and drum centering extend off and detract control switches. Mounted on stainless steel frame has roller in feed and discharge with casters.
OAD: 54" L x 60" W x 71" H
Murzan Model DUS-51M, sanitary, stainless steel, 55 gallon drum unloader with number of drums per hour – depending on materials, application, pump configuration and operator dexterity. Equipped with Murzan Model PI-50 double diaphragm pump with 21" stainless steel follower plate. Non-lubricated, oil free air valve, 30" long x 23" wide roller in feed and discharge conveyor with 28" long x 2" OD rollers set on 3-1/2" centers with 1-1/2" gaps and roller drum centering section with 28" long x 1-1/2" OD rollers set on 3-1/2" centers with 2-1/2" gaps. Control panel has pump, vacuum break, drum center clamp / unclamp, pump restart and off, with lower, raise and vacuum break controls. Capable of pumping drums made of metal, plastic or fiber with, or without liners. Can handle most viscous products with viscosities up to 150,000 centipoise and solids up to 6". CIP capable with optional adaptor. Mounted on stainless steel frame with roller in feed / discharge and locking casters
OAD: 60" L x 53" W x 70" H
Murzan Model DUS-50, sanitary, stainless steel, 55 gallon drum unloader. Equipped with Murzan Model PI 50 stainless steel double diaphragm pump and 24" stainless steel follower plate. Oil free air valve, roller conveyor and drum centering section. Capable of handling drums made of metal, plastic or fiber with, or without, liners. Able to handle viscosities up to 150,000 centipoise and solids up to 6". Rate / Speed dependant on materials, application and machine configuration. CIP capable with optional adaptor.
OAD: 52" L x 60" W x 67" H
Murzan Model KUS51E, stainless steel, sanitary, kettle unloading system rated from 0 to 5000 lbs pounds or 0 to 598 gallons per hour – depending on materials and application. Equipped with 316L stainless steel wetted parts, sanitary double suction diaphram pump with 32" OD food grade plastic contoured follower plate with (4) stainless steel air cylinders to lift and lower the pump made to unload contoured mixing bowls of viscous products such as icings, batters, and fillings with delicate solids up to 3" without altering product. Control panel has A/B controller with auto / manual and raise / lower switches with start, stop, e-stop push button controls. Mounted on 304 stainless steel construction tubular base frame with casters.
OAD: 68" L x 56" W x 80" H
