Home » Pack West
Pack West, Model Centurion 120, Inline, 3 station, 6 spindle, stainless steel capper. Rated 20 to 150 containers per minute – depending on materials and application. Cap size range: 0.3" (8mm) to 2.7" (70mm) OD with rotary disc sorter. Container size range: 0.5 " (12mm) to 9.9" (175mm) OD x 2" (50mm) to 15" (381mm) in Height. Equipped with 4½" wide x 128" long conveyor, 24" OD rotary disc sorter, 3 station, 6 spindle cap tightners. Control panel has gripper belt and quill speed controls with air clutch and touch screen HMI.
OAD: 133"L x 45"W x 89"H
Pack West, Model Centurion 200 torquer with waterfall style cap elevator / sorter / feeder. Rated from 25 to 300 caps per minute – depending on materials, application and machine configuration. Cap sizes from 28mm to 135mm. Equipped with a 30" wide x 33" long x 36" deep cap hopper, 11" wide live bottom watterfall conveyor with ¾" high cleats set on 6" centers, adjustable cap chute, 4½" wide x 128" long container conveyor with bump wheel indexing, 1" wide x 24" long single side belt container gripper, (4) sets of spindle-driven quills with (3) sets of air clutch. Control panel with touch screen HMI. Mounted on a stainless steel frame.
OAD: 60"L x 60"W x 102"H (Feeder / Sorter) 132"L x 40"W x 90"H (Capper)
Pack West Model C-6-A/C-30-LR-A1594, Inline, 3 station, 6 spindle, stainless steel capper rated 20 to 150 containers per minute – depending on materials and application. Cap size range: 0.3" (8mm) to 2.7" (70mm) OD with rotary disc sorter. Container size range: 0.5 " (12mm) to 9.9" (175mm) OD x 2" (50mm) to 15" (381mm) in Height. Equipped with 24" OD rotary disc sorter, bump wheel, 3 station, 6 spindle cap tightners. Control panel has gripper belt and quill speed controls with air clutch. Mounted on roll over conveyor frame with casters and leveling legs.
OAD: 75"L x 45"W x 92"H

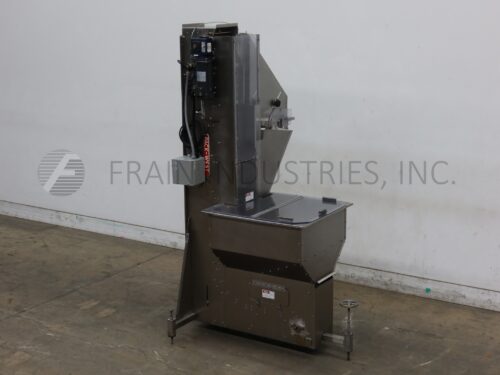

Pack West, Model CESF, Automatic stainless steel water fall style cap elevator / feeder and sorter. Rated from 50 to 300 caps per minute – depending on materials, application and machine configuration. Capable of handling screw, snap or childproof caps (with proper change parts). Equipped with a 10½" wide cleated cap conveyor belt with ¾" high cleats on 3" centers, 33" long x 30" wide x 32" deep stainless steel bulk product hopper, 33" long discharge chute with 64" discharge height. Mounted on a stainless steel base frame with leveling pads.
OAD: 63"L x 60"W x 101"H

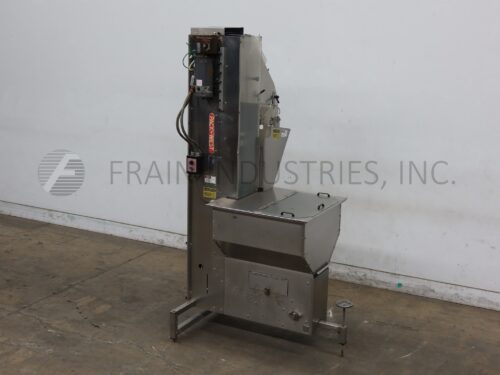

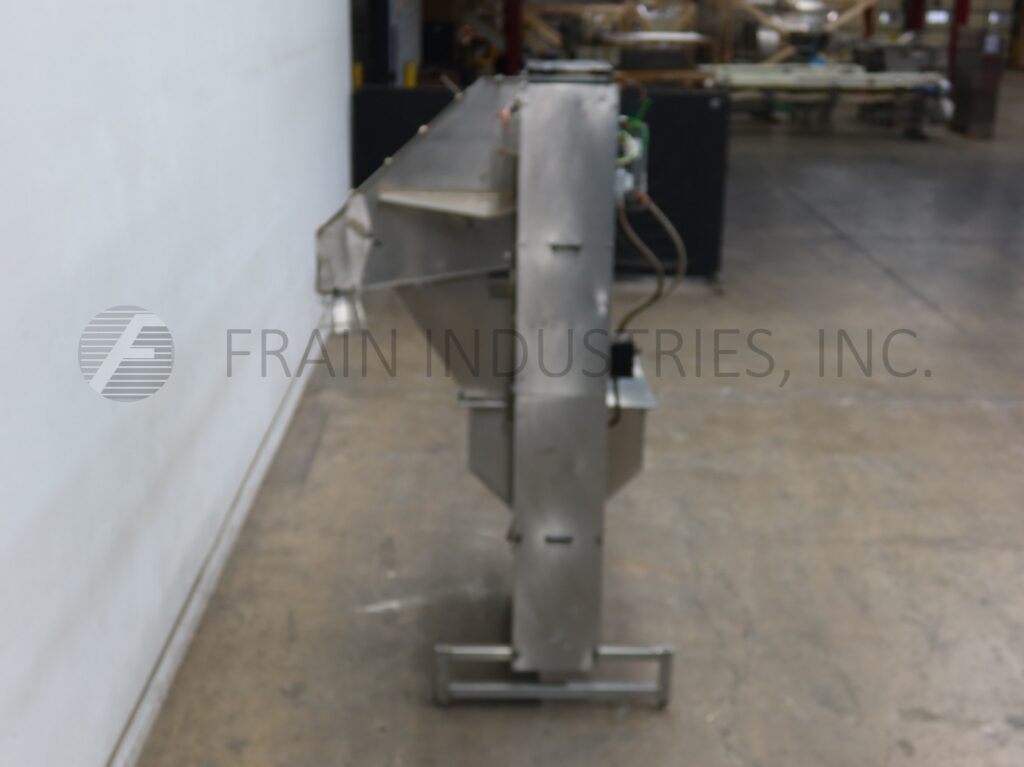

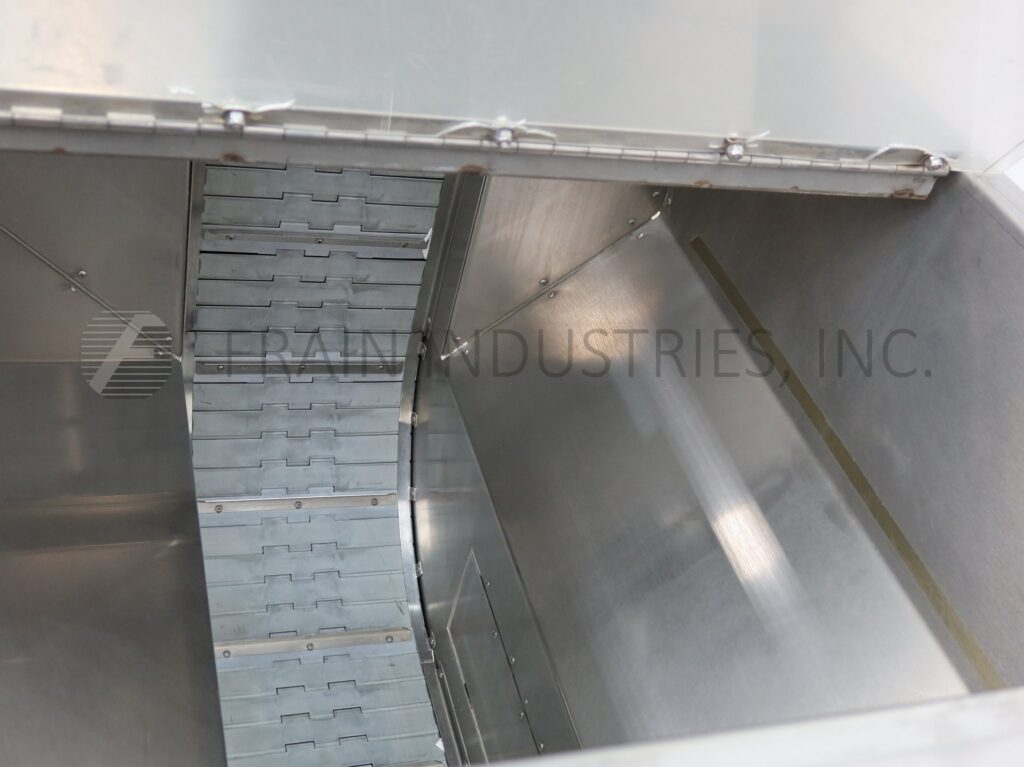

Pack West, model CESF, automatic stainless steel water fall style cap elevator / feeder and sorter. Rated from 50 to 300 caps per minute – depending on materials, application and machine configuration. Capable of handling screw, snap or childproof caps (with proper change parts). Equipped with a 10½" wide cleated cap conveyor belt with ½" high cleats on 7½" centers, 33" long x 30" wide x 33" deep stainless steel bulk product hopper, 32" long discharge chute with 69" discharge height. Mounted on a stainless steel base frame with leveling pads.
OAD: 63"L x 57"W x 103"H

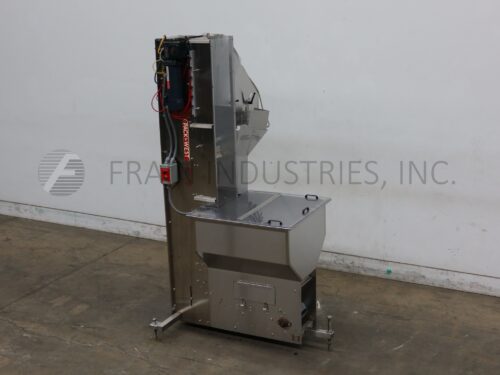

Pack West, model CESF, automatic stainless steel water fall style cap elevator / feeder and sorter. Rated from 50 to 300 caps per minute – depending on materials, application and machine configuration. Capable of handling screw, snap or childproof caps (with proper change parts). Equipped with a 10½" wide cleated cap conveyor belt with ½" high cleats on 4½" centers, 33" long x 30" wide x 33" deep stainless steel bulk product hopper, 32" long discharge chute with 65" discharge height. Mounted on a stainless steel base frame with leveling pads.
OAD: 60"L x 58"W x 99"H

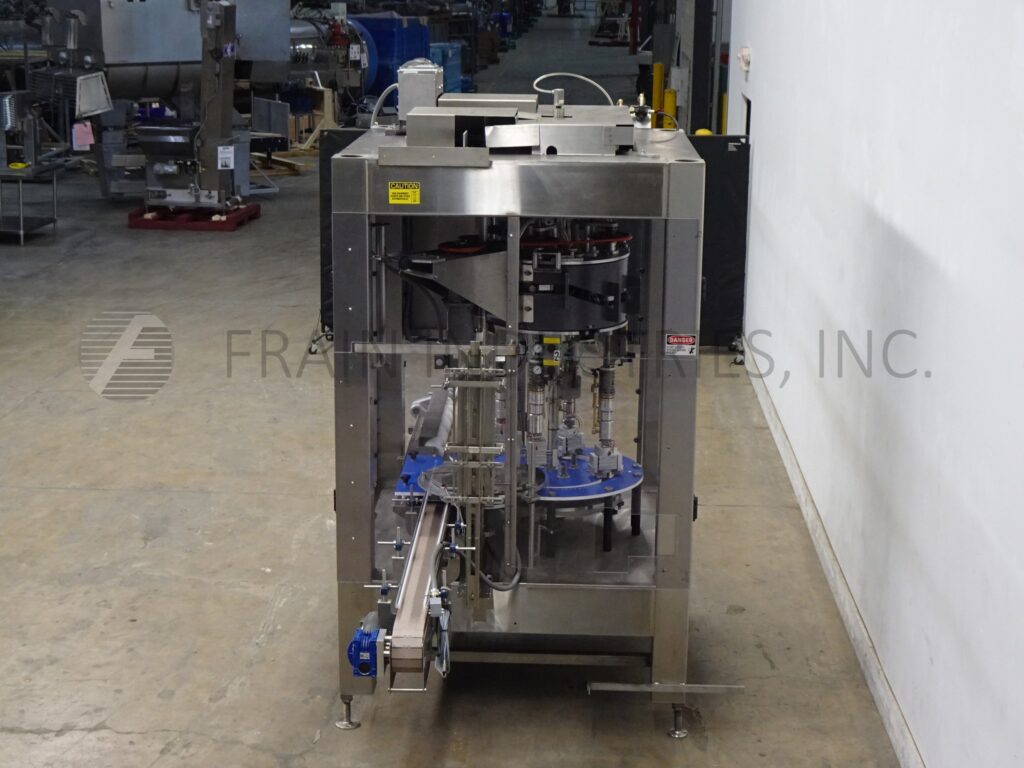

Pack West, Automatic, stainless steel, 4-head rotary, chuck-style capper with number of containers per minute – depending on materials and application Cap size range: 10mm to 110mm, with proper change parts. Containers: up to 4-1/2" OD x up to 11" High. 16" pitch, 120" Long x 4-1/2" Wide table top conveyor, with wormscrew to starwheel in feed and discharge, 2 cu.ft. cap hopper with sorting wheel, 17" OD cap transfer disc, barrier guarding with electrical interlock and E-stop. Control panel has programmable controller, touch screen control panel, with neck supports, status indicator lights, no bottle / no cap sensor and individual clutch pressure and jaw pressure adjustments for each chuck. Mounted on stainless steel frame.
OAD: 124" L x 64" W x 96" H
Pack West Model C-6-A/C-30-LR-A1594, Inline, 3 station, 6 spindle, stainless steel capper rated 20 to 150 containers per minute – depending on materials and application. Cap size range: 0.3" (8mm) to 2.7" (70mm) OD with rotary disc sorter. Container size range: 0.5 " (12mm) to 9.9" (175mm) OD x 2" (50mm) to 15" (381mm) in Height. Equipped with 24" OD rotary disc sorter, 3 station, 6 spindle cap tightners set on 6" centers and hand crank height adjustable Control panel has gripper belt and quill speed controls with air clutch. Mounted on roll over conveyor frame with casters and leveling legs.
OAD: 44" L x 42" W x 92" H

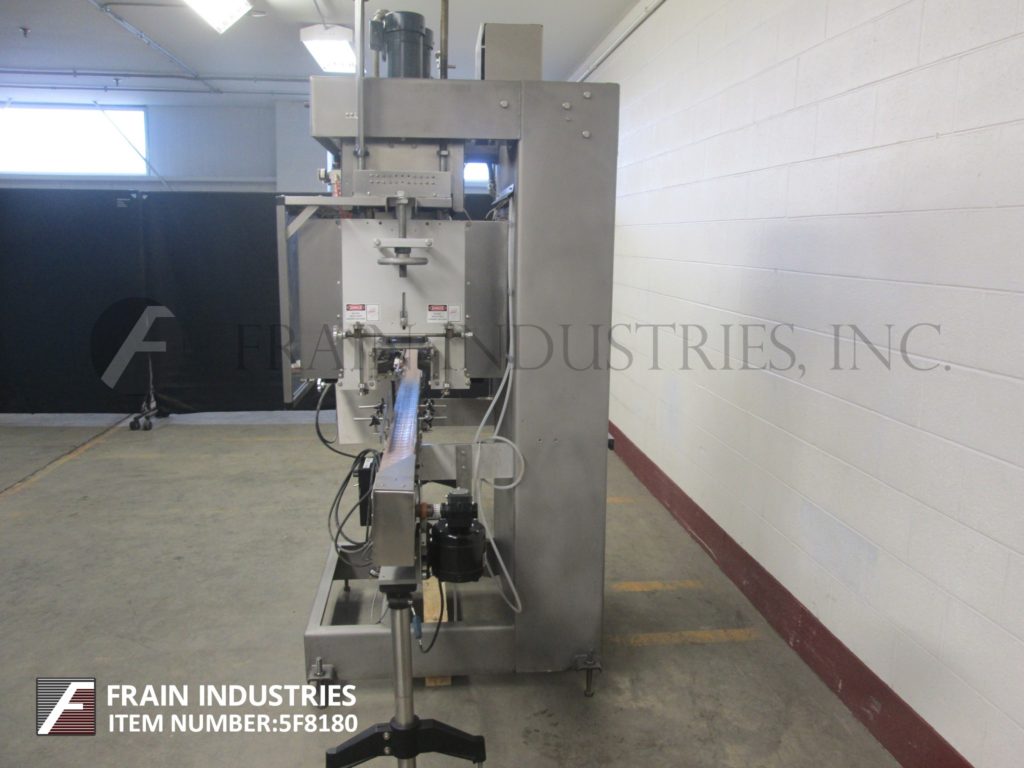

Pack West Model 6BPF-Q-RF-LR-PLC, inline 6-head piston filler. Equipped with 3-1/4" wide indexing conveyor, 30 gallon product hopper with level sensor, six 42 oz pistons and ¾" OD positive cut-off & diving nozzles. AB PLC controller with touch screen, no container / no fill, E-Stop and interlocked safety guarding. Mounted on stainless steel frames with height adjustable legs. Speed dependent on materials, application and machine configuration.
OAD: 100" L x 48" W x 104" H Filler 54" L x 45" W x 72" H Piston Module
Pack West, Model 120 torquer with waterfall style cap elevator / sorter / feeder. Rated from 25 to 150 caps per minute – depending on materials, application and machine configuration. Cap sizes from 28mm to 135mm. Equipped with a 30" wide x 33" long x 32" deep cap hopper, 10½" wide live bottom watterfall conveyor with ¾" high cleats set on 3" centers, adjustable cap chute, 4½" wide x 120" long container conveyor with bump wheel indexing, 1" wide x 24" long single side belt container gripper, (3) sets of spindle-driven quills with (2) sets of air clutch.
OAD: 63"L x 60"W x 101"H (Feeder / Sorter) 120"L x 46"W x 94"H (Capper)
