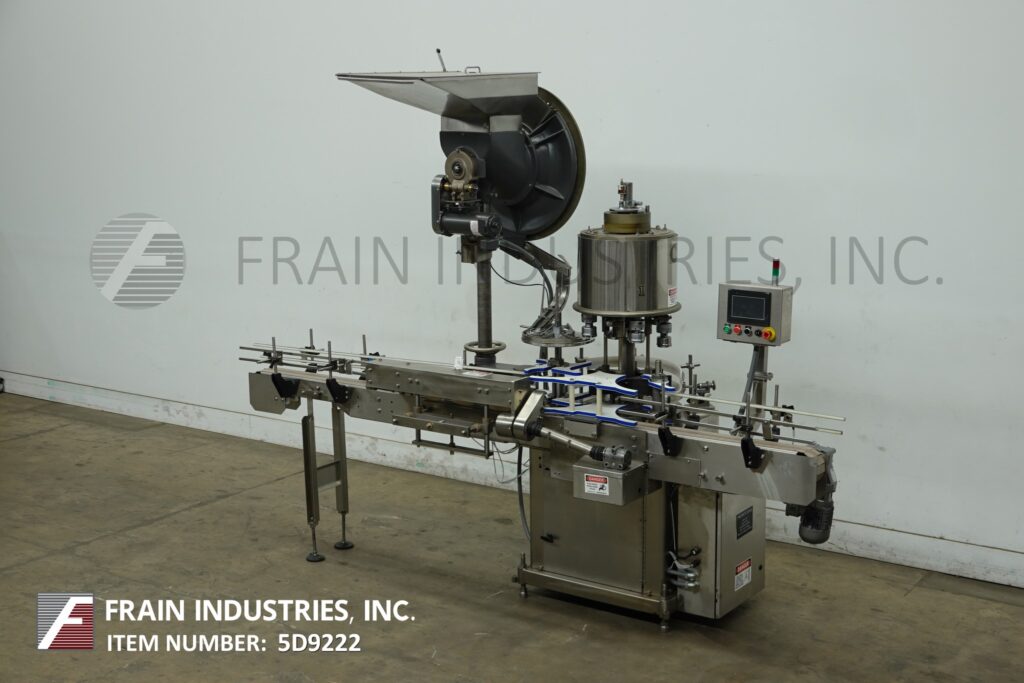

Automatic, stainless steel, 4-head rotary, chuck capper capable of speeds from 40 to 120 caps per minute – depending on cap, container and configuration. Caps size: up to 120mm with correct change parts. Containers: up to 6 1/2" diameter. Equipped with 5" conveyor, worm screw to star wheel in feed, star wheel discharge, cap hopper, cap sorting disc with chute, cap to chuck transfer disc and four chuck stations. Mounted on stainless steel frame with adjustable feet.
OAD: 110"L x 43"W x 85"H
Pneumatic Scale, Complete, automatic, stainless steel, net weigh filling and capping line rated from 20 to 200 containers per minute – depending on materials and application. All 316 stainless steel contact parts. Line consists of Pneumatic Scale 24 head net weigh filler and 8 head capper with 3A Pneumatic Scale cap sorter and is line shaft driven. Container screw feed between filler and capper for positive container handling with positive cut off nozzles, no bottle / no fill, CIP system, 35 gallon jacketed pressure supply tank and interlocked lexan guarding. Control panel has touch screen interface controller. Mounted on heavy duty frame. Last running cough syrup.
OAD: 98" L x 78" W x 102" H
PART OF COMPLETE LINE
12 Head rotary chuck capper rated from 160 to 450 containers per minute – speeds depending on materials and application. Containers size range: up to 4-1/2" in Diameter; up to 6" Oval; up to 14-1/2" in Height. Cap size range: 13mm to 89mm in Diameter. Equipped with 3-1/4" wide by 144" long conveyor, screw to star wheel in feed, container body clamps, integrated rotary disc cap feeder, cap shoot, cap button transfer arm, air chuck heads set on 6-1/2" centers, turret guarding, no bottle / no cap and star wheel discharge. Mounted on B style frame with enamel coating. Change parts required to accommodate size range of container and cap.
OAD: 150"L x 75"W x 95"H

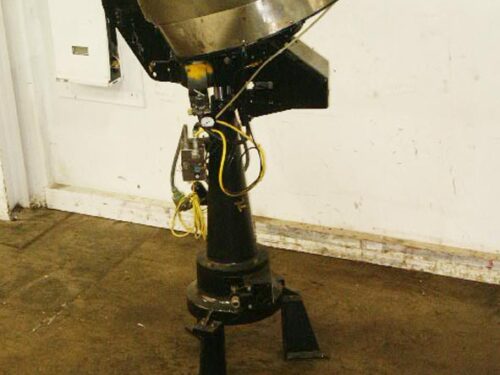

Pneumatic Scale 36" OD stainless steel bowl feeder rated up to 300 containers per minute. Capable of running cap sizes from 15mm to 89mm OD. Equipped with 10" discharge opening using an automatic feed rate metering system for accurate cap supply. Mounted on mild steel base.
OAD: 37" L x 46" W x 75" H
Pneumatic Scale Model TC450-10C Plugger and Hoosier Feeder Company Model FT50 feeder system with amount of containers per minute – depending on materials and application. Maximum plug size 89mm, Maximum container diameter 4.97" Maximum square container with turret pockets 3.93" x 3.93". Equipped with Hoosier Feeder Company Model FT50, with 30 cu ft stainless steel, prefeeder with 26" long x 40" wide x 22" deep, stainless steel product hopper and 104" long x 23" wide incline product feed belt with 1" high cleats set on 6" centers with 51" discharge chute height and 48" diameter stainless steel vibratory feeder bowl with 2" wide x 1" high tracks has low product eye and control panel with feeder and vari speed bowl controls, with start, stop, reset push buttons and statis light bar. Mounted on stainless steel base platform with height adjustable leveling legs.
Pneumatic Scale, Model TC450-10C, plugger equipped with 52" long x 4½" wide container conveyor has 48" long worm screw to star wheel container handling, no container / no cap, (10) pluggers set on 5½" centers to star wheel discharge and (1) 28" long x 4½" wide discharge with (1) 28" long x 4½" wide reject lane conveyor. Remote Control panel has A/B Panelview 1000 HMI touch screen controls and stop, start and e-stop buttons. Mounted on heavy duty base frame with interlock safety door guarding and statis light bar.
OAD: 144"L x 42"W x 84"H (Conveyor) 88"L x 77"W x 57"H (Feeder Bowl) 124"L x 70"W x 92"H (Plugger) 16"L x 90"W x 80"H (Control Panel)
Pneumatic Scale, Model TC450-8, automatic, 8 head rotary chuck capper rated from 24 to 240 containers per minute – depending on materials, application and machine configuration. Cap size: up to 100mm. Container Size: up to 6.25" in Diameter and 4.81x 4.81 square with proper change parts. Equipped with 98" long x 3-1/2" wide container conveyor with 30" long worm screw to star wheel container in feed and cleated cap feeder with 36" x 32" x 20" cap hopper, 100" long x 8" wide belt has 2" high cleats set on 6" centers, cap feed chute,cap pick off, no container / no cap, (8) 100mm friction chucks caps set on 7-1/2" centers to star wheel discharge and 44" long x 3-1/2" wide discharge belt conveyor. Remote control panel has A/B CPU controller with A/B touch pad controls and panelview with set-up, run switch with e-stop. Mounted on heavy duty base frame with interlock safety door guarding and statis light bar.
OAD: 142" L x 68" W x 90" H Capper 56" L x 48" W x 125" H Cap Feeder 58" L x 16" W x 73" H Control Panel
Pneumatic Scale, Model A-Frame, automatic, 8 head rotary chuck capper. Rated from 50 to 240 containers per minute – depending on materials, application and machine configuration. Cap size: up to 89mm. Container Size: up to 6" in Diameter with proper change parts. Equipped with 237" long x 5" wide container conveyor with 54" long worm screw to star wheel container indexing, cap hopper, 36" diameter disc cap sorter, feed chute, cap pick off, no container / no cap, 32" OD rotary turret and (8) friction chucks set on 6¼" centers. Controller has start, stop, e-stop push buttons with touch screen display. Mounted on heavy duty base frame.
OAD: 240" L x 50" W x 90" H
