Ross Machines

Ross Mixer Paste Vertical VB001

• Manufacturer: Ross
• Model Number: VB001
• Frain Number: R30052

Ross, Model VB-001, 1 ft³, 304 stainless steel, jacketed and vacuum rated, vertical cone blender. Vessel dimensions: 22" top diameter; 29" deep cone. Equipped with a clamp down cover, electric cone lift powered by a ½ hp drive, (1) 3¾"OD / 3"ID I-Line style charge port, (1) 2¾"ID sight glass, dual action Nauta mixer with .33 hp arm drive / ½ hp screw drive and 2" NPT bottom discharge valve with 17" clearance (with cone in the up position). Control panel with independent push button start / stop and variable speed control dials for orbital arm and screw and a raise / off / lower switch for the lift.

Jacket: 15 PSIG
Vacuum: 29.5 HG

OAD: 53"L x 36"W x 80"H

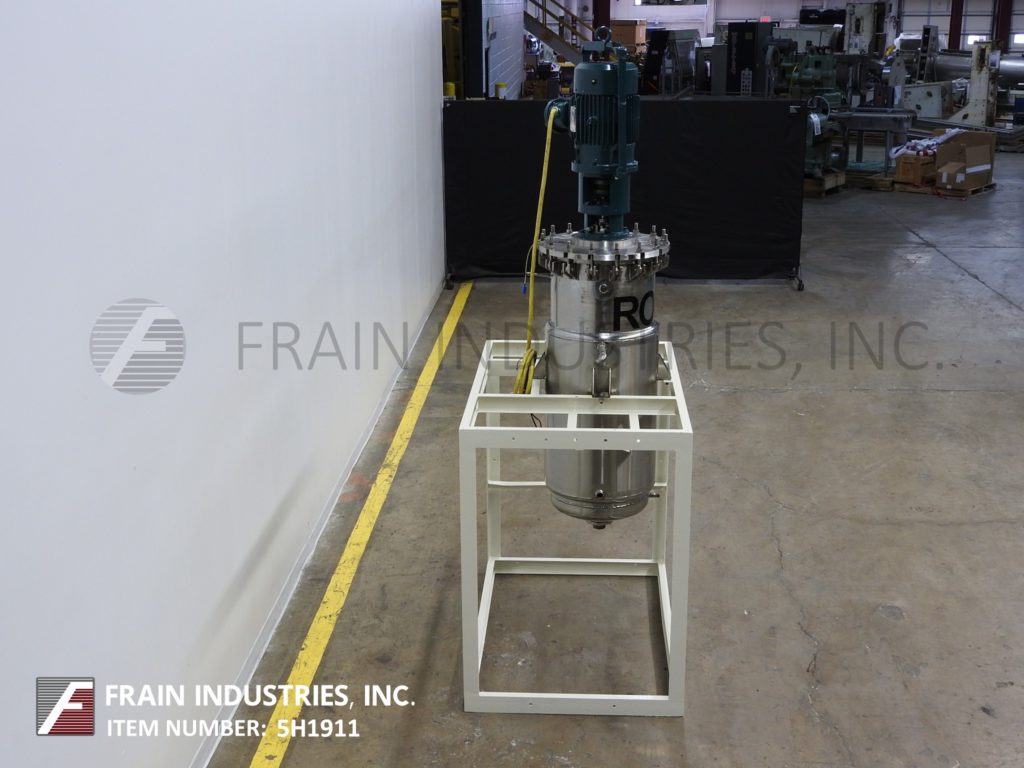

Ross Tank Processors ME510

• Manufacturer: Ross
• Model Number: ME510
• Frain Number: 5H1911

Stainless & Steel Products Co., 50 gallon capacity, 304 stainless steel jacketed process tank. Vessel dimensions: 17¾" diameter with 48" straight wall. Equipped with (4) 1½" wide x 30" long fixed baffles, (1) thermowell, bottom liquid injection ring supplied by a ½" npt connection and top mounted high shear emulsifier.
Ross, Model ME 510, stainless steel, high shear emulsifier. Equipped with a top mounted 10 hp / 3500 rpm drive, (7/8)" slotted disintegrating head and optional downthrust shaft propeller.
Vessel and mixer mounted on a base with a 2" NPT bottom drain and 22" ground clearance.

Top Side Ports:
(1) ¾" NPT
(1) ½" NPT
(1) ¼" NPT

Bottom Side Ports:
(1) 1¼" NPT
(1) ½" NPT

Jacket Ports:
(3) ¾" NPT

MAWP: 40PSI / FV (Vessel)
MAWP: 50 PSI @ 300°F (Jacket)

OAD: 56"L x 36"W x 106"H

Ross Mixer Paste Vertical DPM-40

• Manufacturer: Ross
• Model Number: DPM-40
• Frain Number: R29011

Ross Model DPM-40 Series lll, 40 gallon, 316 stainless steel, sanitary design, atmospheric, double planetary mixer. Equipped with dual planetary mixing blades with 15 hp drive and rated to 8 million cps. Additionally features an 8" hinged sight / charge port with 6" Tri Clover atomizing nozzle port, (2) 2" OD sanitary top and 3" OD light port. PLC and e-stop. Mix can dimensions: 24" in diameter; 24" straight wall. Through put dependent on materials, application and machine configuration.

OAD: 88" L x 60" W x 83" H

Ross Mill Roller (Mill) TRM

• Manufacturer: Ross
• Model Number: TRM
• Frain Number: 5G9745

Ross, Model 4 x 8 TRM, 3-Roll mill with volumes of product per hour – depending on materials and application. Equipped with (3) 4" in diameter x 8" long rollers powered by 1 Hp motor drive, with hand crank gap adjustment, scraper blades and 8" long working roll area. All (3) rolls made of hardened steel. Roller cooling with ¼" NPT inlet port for cooling medium and ¾" NPT outlet. Control panel has push button start, stop and e-stop chain. Mounted on heavy duty base frame.

OAD: 40"L x 28"W x 51"H

Ross Mill Roller (Mill) TRM

• Manufacturer: Ross
• Model Number: TRM
• Frain Number: R25921

Ross, Model 2½" x 5" TRM, 3 Roll laboratory dispersion mill. Roll dimensions: 2½" diameter and 5" in length. 107 RPM back roller, 214 RPM middle roller and 428 RPM front roller. Equipped with piped rollers with (1) 3/8" inlet and (1) 3/4" discharge. (4) handwheels for manual roll spacing adjustment, 3½" long apron with a 2" wide discharge, 5¾" x 9" under roller pan and E-stop chain. Mounted on a 36" x 18" stainless steel table.

OAD: 36"L x 20"W x 45"H

Ross Mixer Powder Ribbon S. S. 42N-25

• Manufacturer: Ross
• Model Number: 42N-25
• Frain Number: R25400

Ross 304 Stainless steel, double ribbon blender. Capacity: 25 ft³ Working; 30 ft³ Total. Trough dimesions: 60" in Length; 29" in Width; 33" in Depth. Equipped with bag break station with lid and 4" High center bottom pneumatic slide gate discharge, start stop control package, and interlocking top covers. 80 Grit finish on the interior and exterior.

Feed Height (with stand) 113"
Discharge Height (with stand) 78"

OAD: 96" L x 44" W x 143"H

Ross Mixer Paste Vertical DSLDM1

• Manufacturer: Ross
• Model Number: DSLDM1
• Frain Number: R21861

1 gallon, double planetary mixer with working capacity of 3/4 gallons (3 liters) & full holding capacity of 1 gallon (3.8 liters). All wetted parts are hastelloy C with #4 finish and external parts 316 S/S. Can with temperature probe, jacket rated at 100 psi designed for full vacuum with three 3" diameter combination light sight port and charge ports and quick release sanitary clamps and electric inter-lock mounted on railing system to move bowls in & out to hydraulic press, hydraulic head and pressure gauge, vertical lift with stirrers & shafts (quick disconnect pins on stirrer shafts diagonally positioned to aid in product movement and circulation). 1 1/4" cove-plug side bottom discharge. All digital control panel equipped with ABB variable speed drive w/digital frequency display, mix motor rpm, temp sensor, dual speed slow & fast, and torque meter. UL tagged. Unit mounted on S/S base.

OAD:66"L x 44"W x 62"H
