Home » Schneider

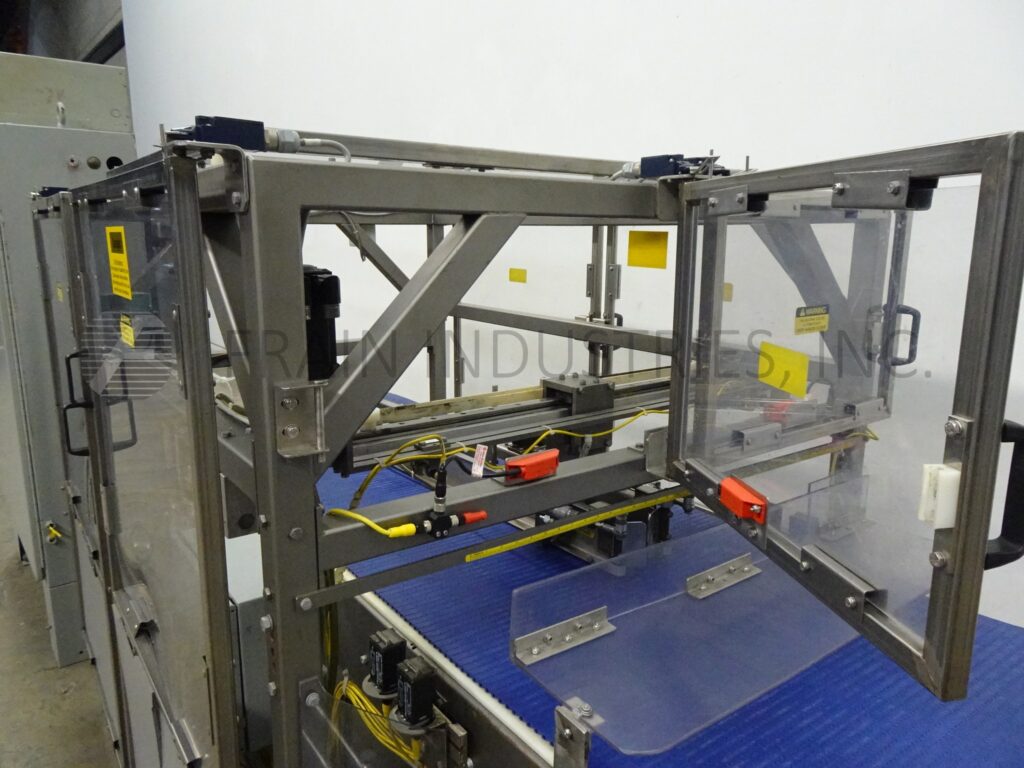

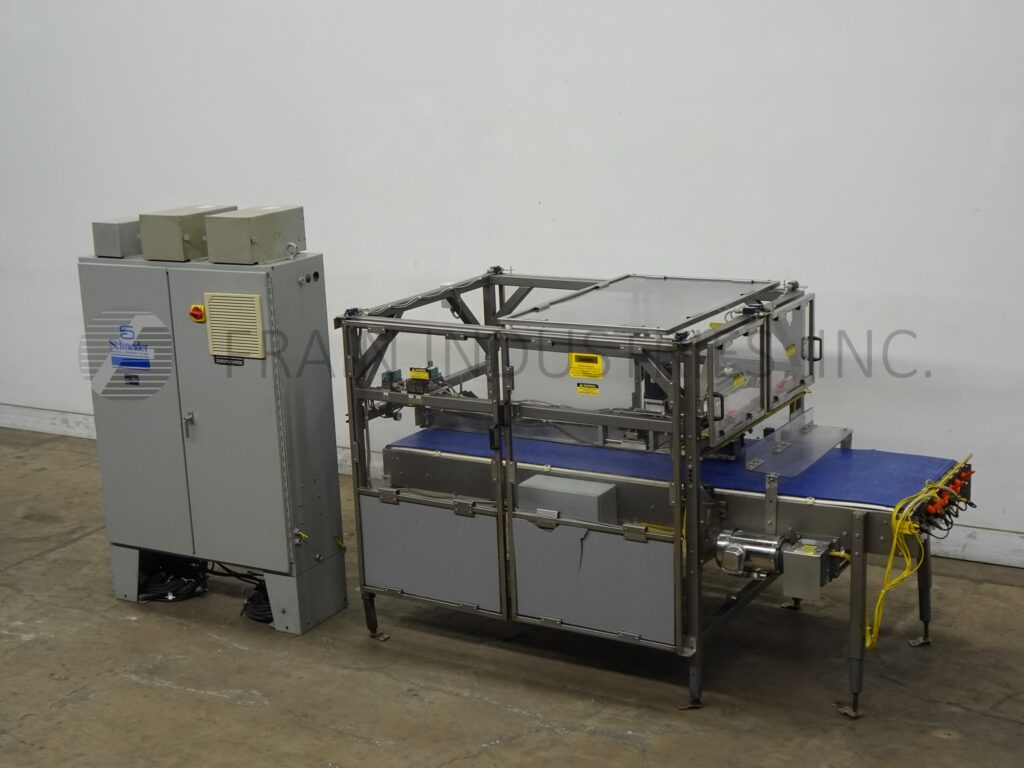

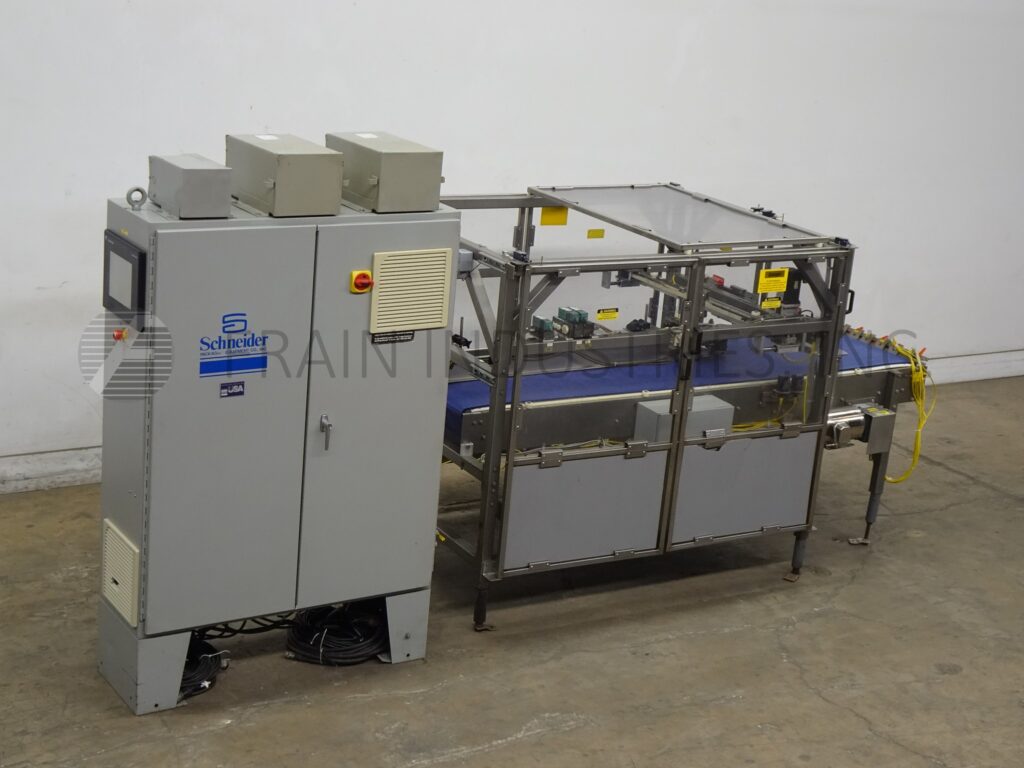

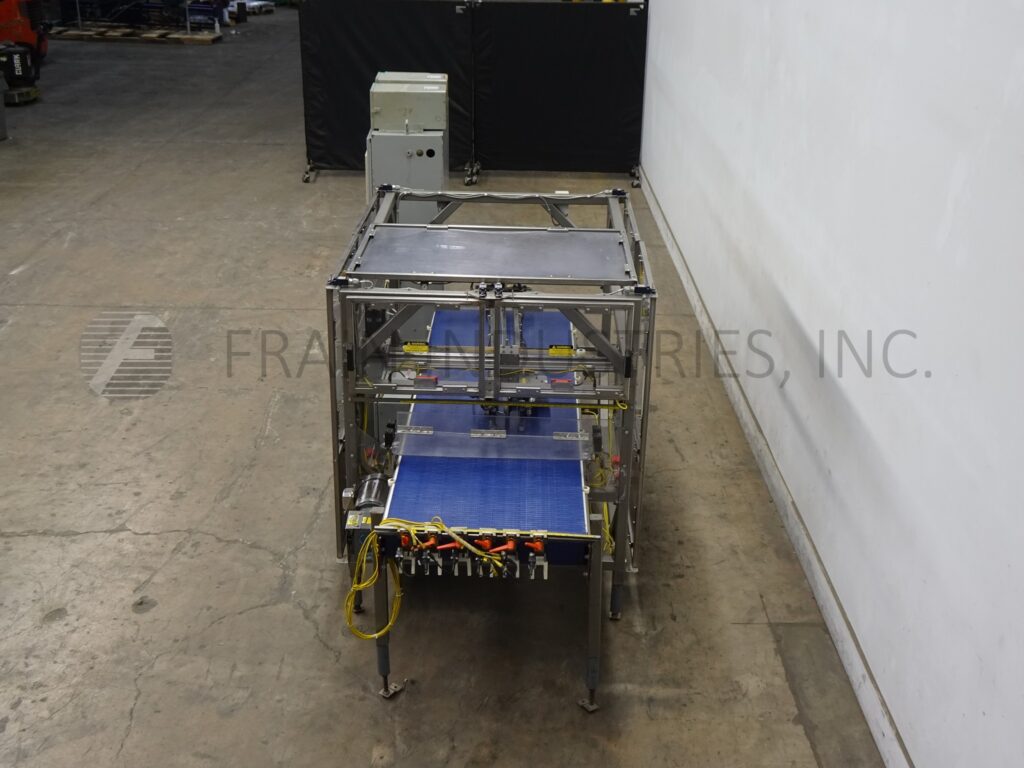

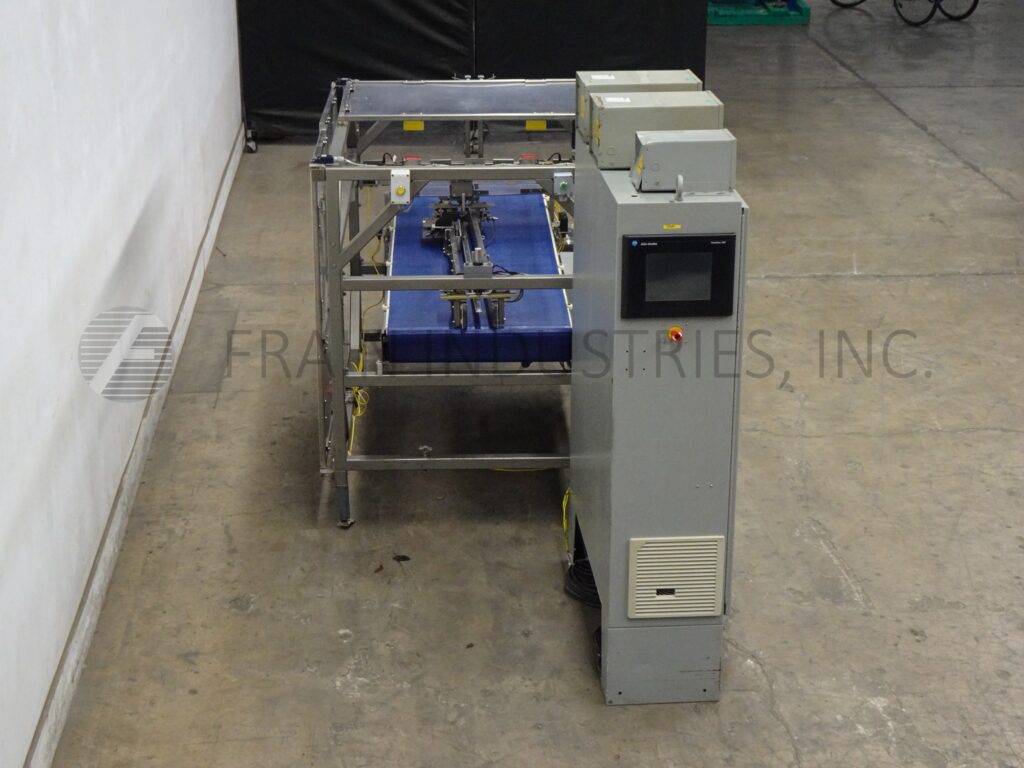

Schneider lane diverter with number of product per hour – depending on materials and application. Equipped with 30" wide x 100" long, belt conveyor and servo controlled laner, with 30" wide x 100" long belt and 34" to 39" infeed / discharge height powered by 1 Hp motor drive and AB servo driven lane diverter. Control panel with AB controller and touch screen HMI.
OAD: 108"L x 56"W x 65"H (Conveyor) 49"L x 20"W x 87"H (Control Cabinet)
Schneider Model Robox, Robotic palletizing system with (5) axis, articulated, rotary joint, servo driven, robotic, pic-n-place arm rated from 1 to 15 cycles per minute with number of product – depending on materials, application, machine configuration and pack pattern. Painted carbon steel construction. Case size range: 6.5" to 22" in length, 4.5" to 16" in width and 3" to 16" in height. Pallet dimensions 48" x 40" x 4.5". Maximum pallet load size: 41" x 48" x 80" and sheet sizes 30" x 30" to 48" x 40" vacuum pickable. with maximum case pick-up weight of 80 lbs. Ambient temperature of 35º F to 100ºF and 95% RH non-condensing. Magazine pallet sheet and layer sheet capable. Fanuc M-7 10iC/50H Robot, with vacuum tooling end arm affector. Over / Under conveyor, has (3000 pound) capacity and 20 second cycle. Double perimeter guard locking doors located along the length of pallet provides operators easy access to pallet and has 80" long infeed conveyor with 30" to 36" infeed height and 0" to 15" discharge height. Control panel has Rockwell Automation Compact GaurdLoix PLC with VersaView 12" touchscreen HMI and statis light bar. UL Compliance, inspection and labeling of main electrical enclosure. Mounted on heavy duty frame.
OAD: 211" L x 97" W x 90" H
Schneider Model Robox, Robotic palletizing system with (5) axis, articulated, rotary joint, servo driven, robotic, pic-n-place arm rated from 1 to 10 cycles per minute with number of product – depending on materials, application, machine configuration and pack pattern. Painted carbon steel construction. Case size range: 6.5" to 22" in length, 4.5" to 16" in width and 3" to 16" in height. Pallet dimensions 48" x 40" x 4.5". Maximum pallet load size: 41" x 48" x 80" and sheet sizes 30" x 30" to 48" x 40" and vacuum pickable. Maximum pick-up weight of 50 kg. or 110 lbs. Ambient working temperature of 35º F to 100ºF and 95% RH non-condensing. Equipped with pallet sheet magazine, layer sheet capable. Fanuc M-7 10iC/50H Robot has end of arm vacuum tooling end affector. Over / Under conveyor, (3,000 pound) capacity and 20 second cycle time, Double (2) locking doors on perimeter guard located along the length of pallet provides operators easy access to pallet and has 80" long in feed conveyor with 30" to 36" in feed height and 0" to 15" discharge height. Control panel has Rockwell Automation Compact GaurdLoix PLC with VersaView 12" touchscreen HMI and statis light bar. UL Compliance, inspection and labeling of main electrical enclosure. Mounted on heavy duty frame.
Adjustable End-of-Arm Tooling Size range: 10.75 x 7.5″ to 18.25″ to 14.75″ with proper change parts
OAD: 211" L x 97" W x 90" H”
