Home » Stephan Machinery Corp
Stephan Machinery Model CHD10011CS stainlesss steel, micro-cut, double cut emulsifier. Equipped with 14-1/2" long x 12-1/2" wide x 17" deep stainless steel product hopper, 10" diameter 2-piece cutting head, feed screw and 4-1/2" OD sanitary discharge. 200 Hp motor drive. Mounted on stainless steel base. Rates dependant on materials, application and machine configuration.
OAD: 66"L x 30"W x 40"H
Stephan Machinery Model MCH20, Stainless steel Microcut emulsifying processor. Rated from 0 to 2,645 lbs of product per hour – depending on materials, application, machine configuration and operator dexterity. Equipped with 26" long x 34" wide x 22" deep product hopper with feed auger into cutting head and has rectangular flange discharge port with 2½" OD / 2" ID Tri-clamp adapter. Knives and auger powered by 20 Hp drive with push button start and stop controls. Mounted on stainless steel frame with casters.
OAD: 37" L x 52" W x 32" H
Stephan Machinery, Model TK150, 150 liter or 39 gallon drum capacity, horizontal mixer rated up to 800 kg of product per hour – depending on materials and application. All stainless steel contact parts. Filling volumes of 30 litres minimum and 100 litres maximum. Chamber dimensions: 22" in Length x 20" in Width x 23" in Depth, with single arm mixing bar. steam injection port, 23" ID hinged swing open lock down front cover with side scrape attachment and 16" x 12" top lock down cover. Control panel has mixing, emptying, closed, start, open, mixing baffle, discharge slide and stop push buttons controls with e-stop. Mounted on painted frame with locking casters.
OAD: 80" L x 36" W x 48" H

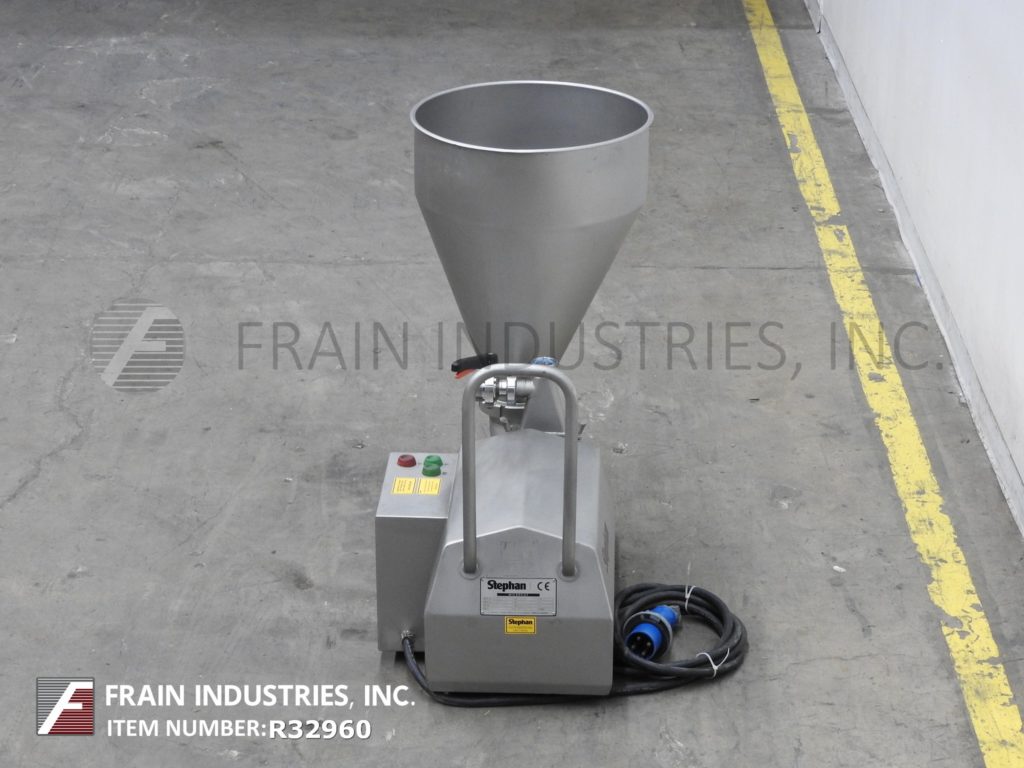

Stephan Model MCH 10/2, horizontal, stainless steel construction, micro-cut, emulsifier capable outputs up to 3000 liters per hour – depending on materials and application. Equipped with 21" diameter x 24" deep, stainless steel product hopper, single cutting head includes feeding screw with 2½"OD / 1¾" ID seated bevel discharge and two speed 9.3 / 12 Hp motor drive. Mounted on stainless steel base with push button start / stop controls. Used for production of emulsions, marinades and sauces.
OAD: 53"L x 28"W x 39"H

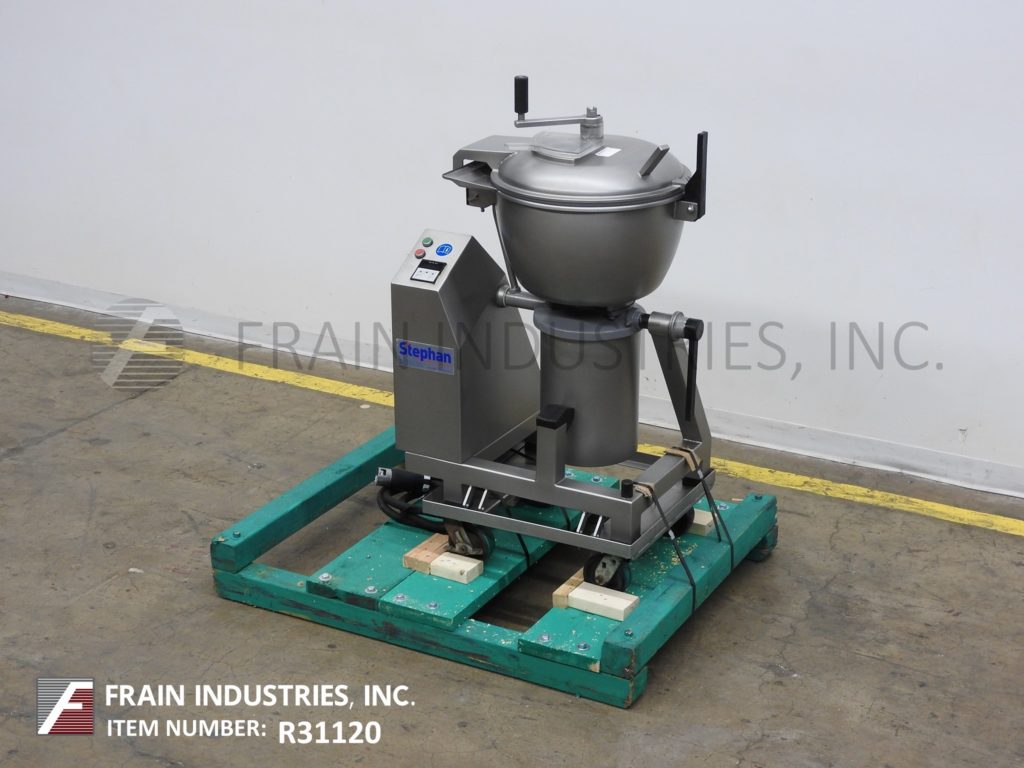

Stephan Machinery, Model VCM-44 A/1, 40 quart vertical bowl chopper. Bowl dimensions: 20" Diameter x 12" Deep. Equipped with hand operated mixing baffle, 4½" long bottom twin chopper / mixing blades, 90° tilt and flip up bolt down cover with safety lock. Powered by a 7½ hp main drive with push button start / stop controls and touch pad display.
OAD: 35"L x 23"W x 54"H

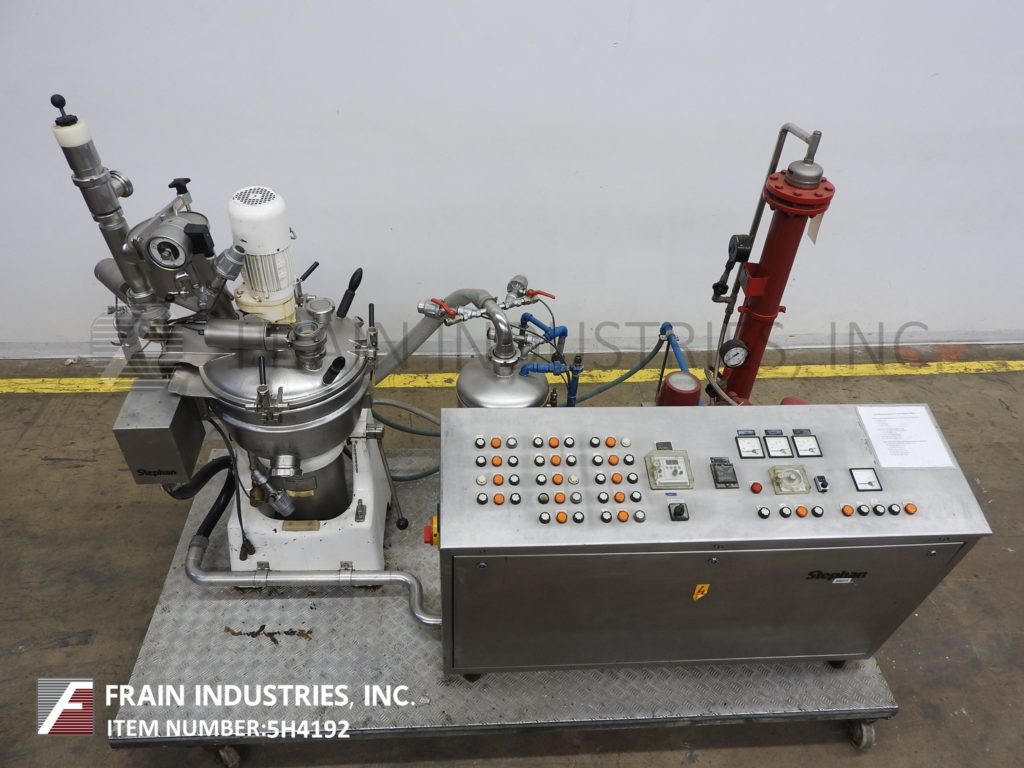

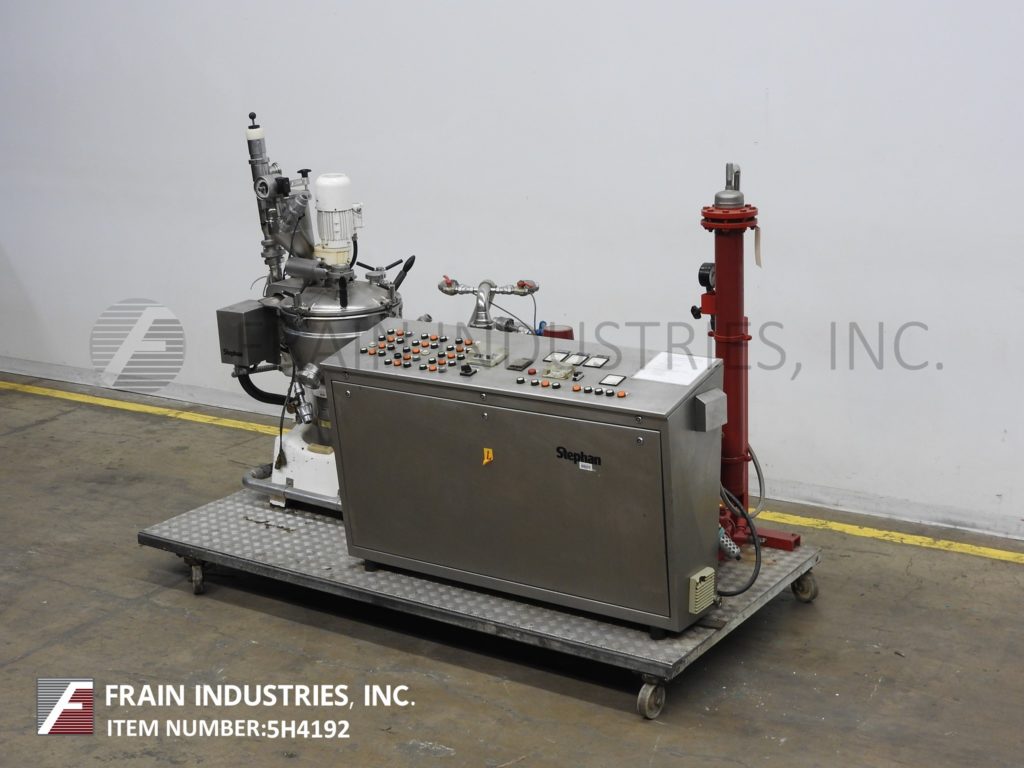

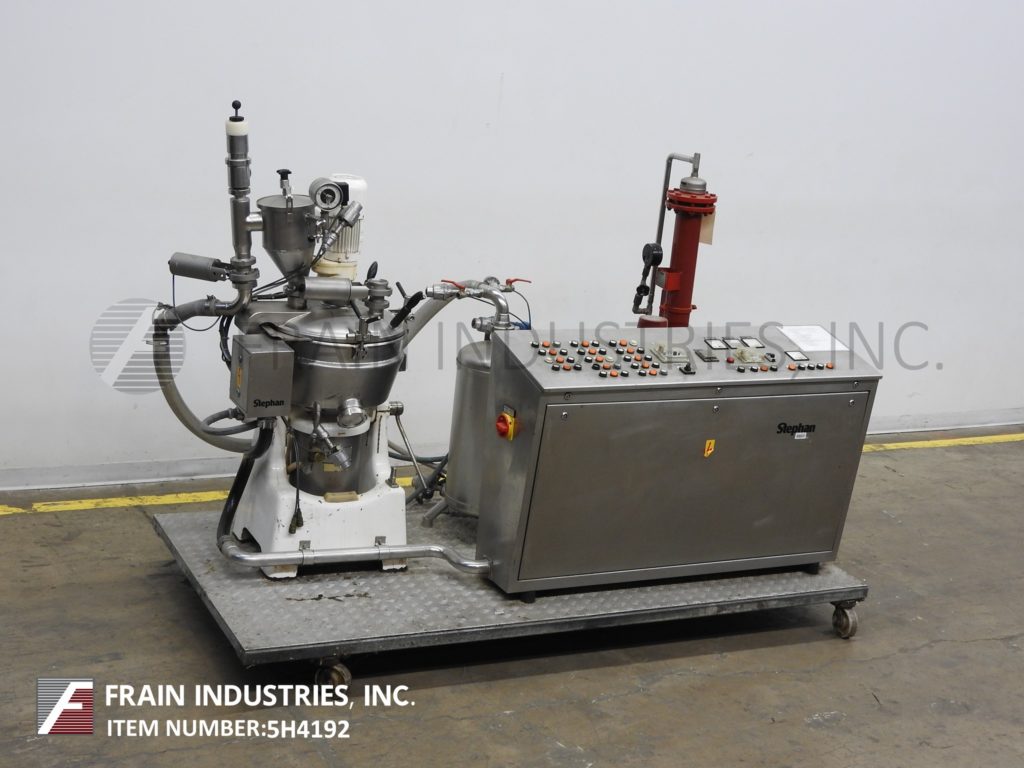

Stephan Model UMHC40E, 40-liter, stainless steel, steam jacketed, pilot plant, vacuum cooker, and cooler with pounds of product per hour – depending on materials, application and machine configuration. Bowl is rated for full vacuum and internal steam pressure rating of 55 psi. Jacket pressure rating of 29 psi. Maximum process temperature of 260° F. Equipped with flip up, bolt down cover, top mounted side scrape agitator, product funnel and vacuum gauge, direct steam injection, chopper timer, temperature probe, serrated blades, side bottom discharge and locking tilt discharge. Auxiliary pieces including vacuum system with vacuum pump, condensation tank, and hot / cold water connections. Control panel has product, water feed, jacket, vacuum, tank and condenser controls with thermostat steam temp and chopper timers. Mounted on a 102" long x 51" wide stainless steel platform. Designed for pilot plant operation and can be run manually, semi-automatic or with pre-determined programs from solid state controller and can produce a wide range of product procedures in one machine such as fine cutting, cooking, blending, emulsifying, de-aerating, sterilizing homogenizing and pasteurizing under vacuum pressure with heating and cooling
OAD: 102” L x 51” W x 76” H
Stephan Machinery, Model TK150, 150 liter capacity stainless steel horizontal mixer. Rated up to 800 kg / hour, 90 kg Per Batch – depending on materials, application and machine configuration. Chamber dimensions: 22.5" diameter x 21"L. Equipped with a 13¾" x 8½" charge port with hinged cover, single arm mixing bar, scrape agitation, steam injection and 15" x 8½" hydraulic slide gate discharge with 28" ground clearance. Control panel with push button start / stop, push button open / close and touch pad display. System includes a 1 hp hydraulic pack and 9Kw steam generator. Mounted on a stainless steel base with casters.
OAD: 82" L x 42" W x 60" H
Stephan Machinery, Model MCH20, stainless steel Microcut emulsifying processor and rated from 0 to 2645 lbs of product per hour – depending on materials, application and machine configuration. Equipped with 5" OD / 3¾" ID I-Line style charge port, feed auger into cutting set and a 2½" OD / 1¾" ID I-Line discharge. Knives and auger powered by a 20 hp drive with on / off switch. Mounted on frame with casters.
OAD: 37"L x 25"W x 46"H
Stephan Machinery, Model MCH20, stainless steel Microcut emulsifying processor. Rated from 0 to 2645 lbs per hour – depending on materials, application and machine configuration. Equipped with 5"OD / 3¾"ID I-Line style charge port, feed auger into cutting set and a 2½" OD / 1¾" ID I-Line discharge. Knives and auger powered by a 20 hp drive with on / off switch.

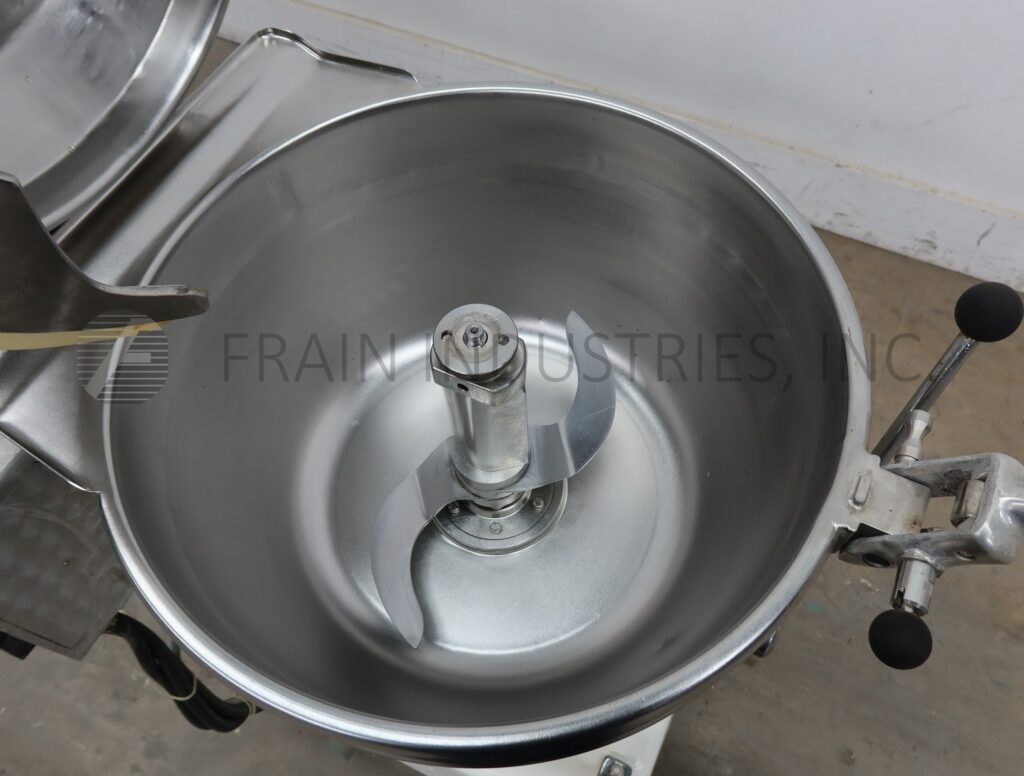

Stephan, Model VCM44E, 40 quart, vertical, bowl chopper / mixer with number of pounds of product per hour – depending on materials, application and machine configuration. Equipped with a 19½" ID x 11" deep stainlees steel mixing bowl, 2½"OD / 2"ID tri-clamp style butterfly valve drain, (2) 7" long bottom chopper / mixing blades, 90° tilt, flip up / bolt down cover, top mounted vacuum pressure gauge and low pressure jacket. ½ Hp top side scrapper motor drive and two speed (1750 / 3500 rpm) ( 8 / 12 ) Hp bottom chopper blade motor drive. Includes a 1½ hp vacuum pump and control package with start / stop, slow / fast, push buttons with digital readout and e-stop.
OAD: 36"L x 25"W x 54"H
Stephan, Model UMM SK-25, 25 liter, vertical, vacuum cooker and chopper with number of pounds of product per hour – depending on materials, application and machine configuration. Equipped with 17" ID x 9½" deep stainlees steel mixing bowl, internal steam jet nozzle, (2) 6" long bottom chopper / mixing blades, 90° tilt, flip up / bolt down cover and low pressure jacket. Manual top handle side scrapper and two speed (1750 / 3500 rpm) (5.3 / 6.7) Hp bottom chopper blade motor drive with speed selection switch. Mounted on (4) leg base frame.
MAWP (Jacket): 29 psi @ 203°FMAWP (Bowl): 21 psi
Jacket Connections: (2) ½" NPTSteam Connection: (1) ½" NPTVacuum Connection: (1) ¾" NPT
OAD: 30"L x 23"W x 51"H
