Home ยป Texwrap

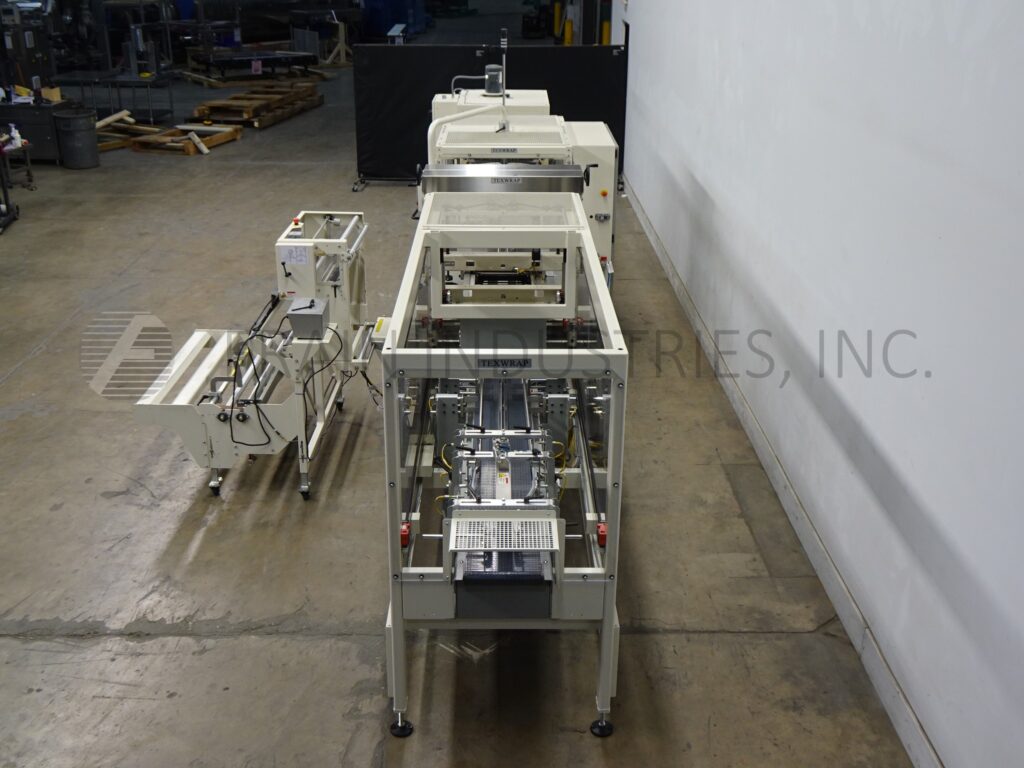

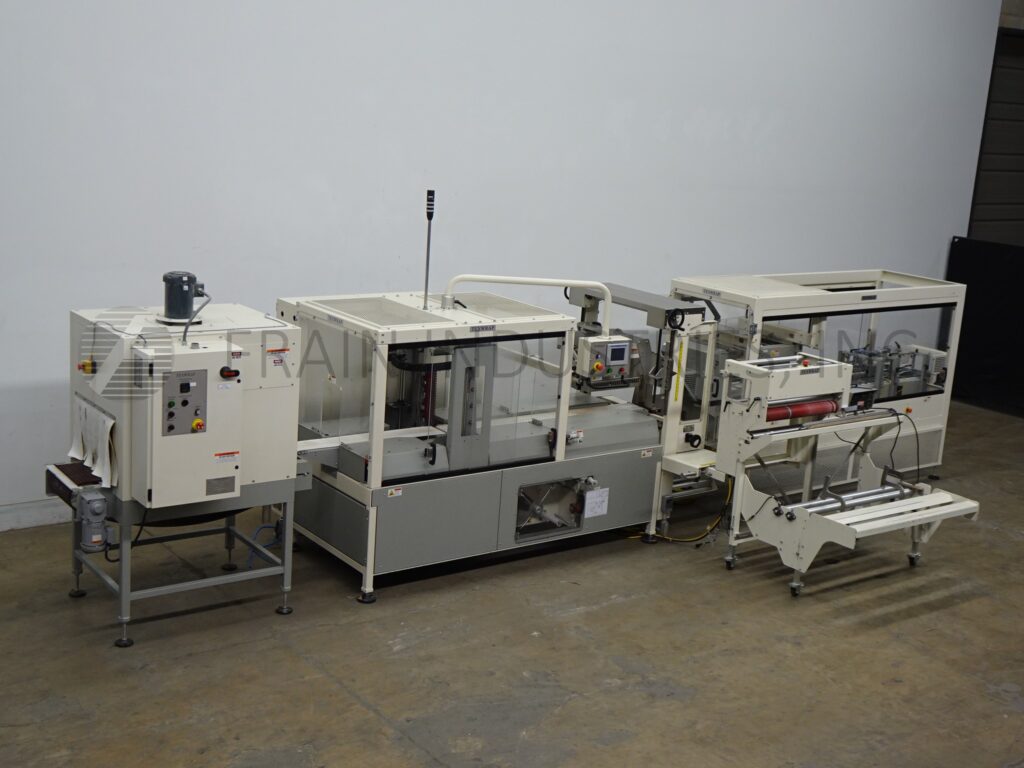

Texwrap Model ST-3322 /1322, automatic L-Bar sealer and shrink tunnel. Package size range: 2" to 32" in Length; 2-3/4" to 19.5" in Width; to 10.5" in Height. Equipped with 46" long x 19" wide in feed conveyor, 22" wide cross seal bar, 33" long side seal bar, closing conveyor with 3 neoprene belt (each 49" long x 6" wide), perf wheel, scrap re-wind and safety guarding. MicroLogix 1400 with swing arm touch pad and E-Stop. Film specifications: center fold film 6" to 28" in Width; to 15" in diameter
Texwrap Model T-1322 single zone shrink tunnel. Total aperture: 13-1/2" in Height; 22" in Width; 42" tunnel Length. Equipped with 15-1/2" wide x 66" long stainless steel mesh conveyor and top mounted blower. Controls for temperature (up to 400° F), conveyor speed and variable velocity air flow. Speed dependent on materials, application, machine configuration and operator dexterity.
OAD Sealer: 100" L x 60" W x 69" HOAD Tunnel: 66" L x 44" W x 80" H
Texwrap, Model STP-914VSTTSR-039102, Automatic, vertical shrink seal system with Model STP shrink tunnel. Rated 10 to 70 cycles per minute with number of product – depending on materials, application and machine configuration. Equipped with 106" long x 12" wide plastic in feed conveyor and overhead servo driven flight bar transfer set on 10" centers, 72" long x 7½" wide vacuum conveyor section with 20" long overhead horizontal heat sealer to vertical sealer with 16" high servo driven seal jaws and 45" long x 7½" discharge conveyor. Film specifications: center fold film 6" to 24" in Width; to 15" in diameter. Mounted on heavy duty frame.
Texwrap Model STP Single zone shrink tunnel. Total aperture: 12" in Height; 14" in Width; 48" in tunnel Length. With 15" wide x 52" long conveyor and top mounted blower. Controls for temperature, conveyor speed and variable velocity air flow. Mounted on heavy duty frame.
OAD: 268" L x 126" W x 90" H SealerOAD: 48" L x 42" W x 72" H Tunnel
Texwrap Model ST-3322 /1322, Automatic L-Bar sealer and shrink tunnel system. Model ST-3322 L-Bar sealer has package size range of: 2" to 32" in Length; 2-3/4" to 19.5" in Width; to 10.5" in Height. Equipped with 46" long x 19" wide in feed conveyor, 22" wide cross seal bar and 33" long side seal bar, closing conveyor with 3 neoprene belt (each 49" long x 6" wide), perf wheel, scrap re-wind and safety guarding. MicroLogix 1400 with swing arm touch pad and E-Stop. Film specifications: center fold film 6" to 28" in Width; to 15" in diameter
Texwrap Model T-1322 single zone shrink tunnel. Total aperture: 13-1/2" in Height; 22" in Width; 42" tunnel Length. Equipped with 15-1/2" wide x 66" long stainless steel mesh conveyor and top mounted blower. Controls for temperature (up to 400° F), conveyor speed and variable velocity air flow. Speeds dependent on materials, application, machine configuration and operator dexterity.
