Home » Thiele

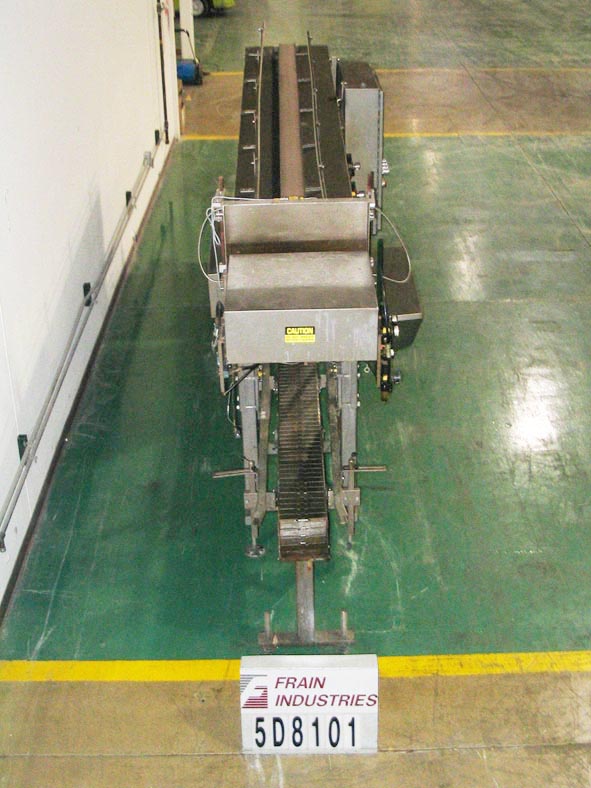

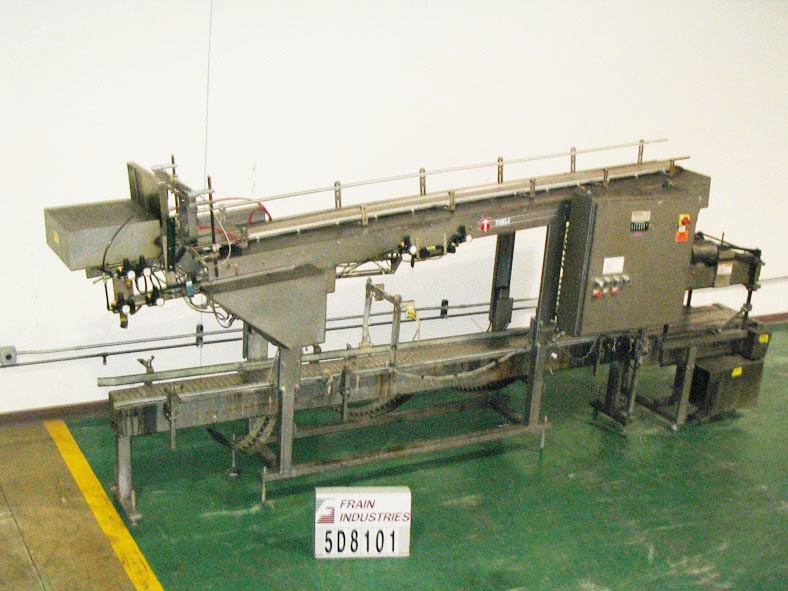

Thiele, model 6128, gross weigh bagging scale system. Capable of weighs from 20 to 110 lbs with accuracy of 1 to 3 oz. Rated up to 12 bags per minute – depending on materials, application, machine configuration and operator dexterity. Equipped with a 23½" wide x 240" long cleated incline feed conveyor with 15" wide x 1" high cleats set on 6" centers with a 115" discharge height, 39" x 39" x 24" deep product hopper with a 8" x 8" feed throat, 55" x 36" platform set 85" off the ground with 40" high guard rails and 10" wide pneumatic bag clamp with 51" ground clearance.
OAD: 268"L x 70"W x 126"H

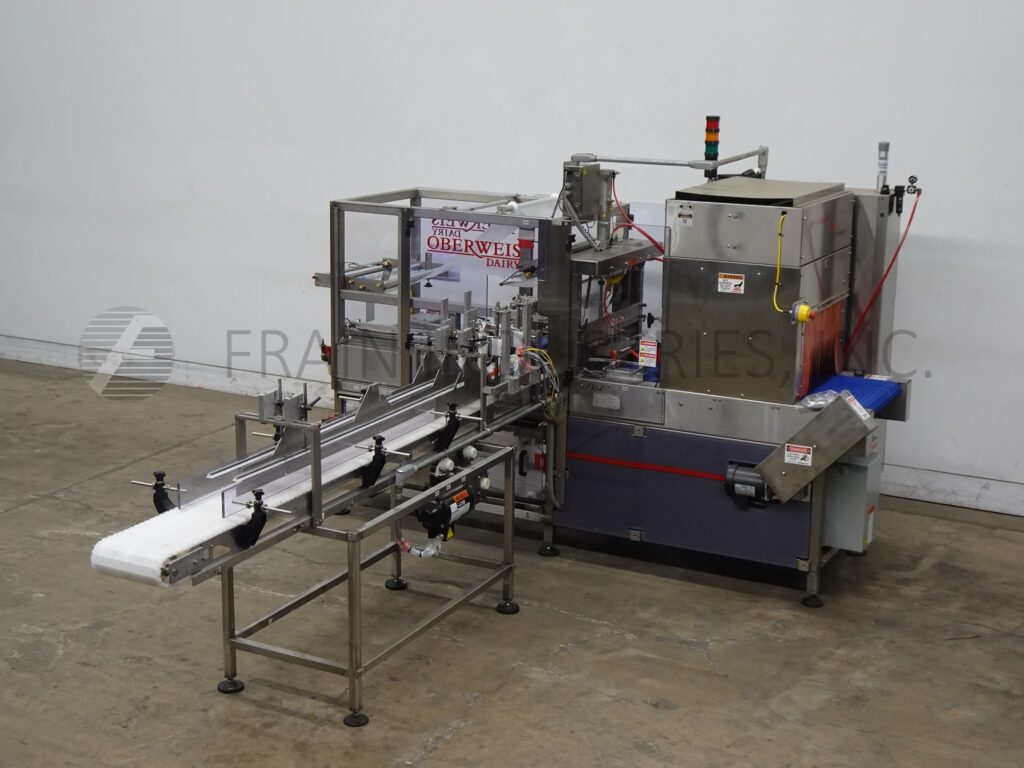

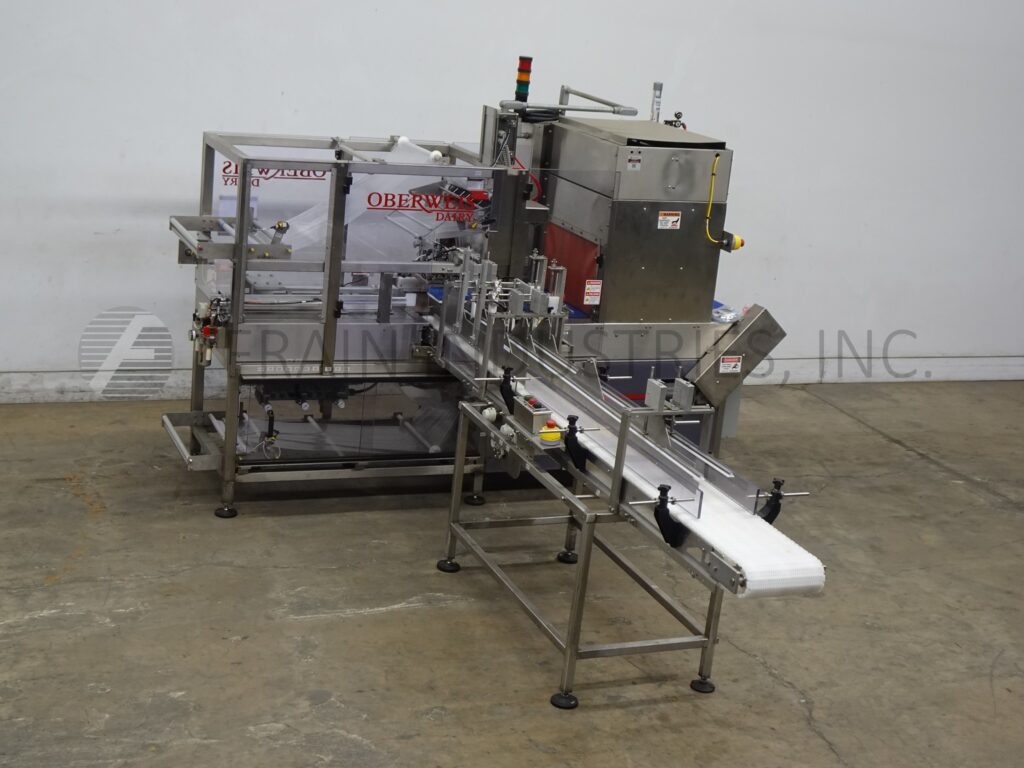

Thiele Technologies, Barry Wehmiller, Model ZB20A right angle shrink bundling system with servo lane in feed. Rated from 5 to 30 bundles per minute – depending on materials, application and machine configuration. Maximum product height: 12"; maximum film width: 20". Equipped with 12" wide x 126" long Intralox in feed conveyor, single product pusher plate, 20" wide hot knife seal bar with 12" vertical travel, tamp bundle hold down, stainless steel shrink tunnel with 24" wide x 16" high aperture and 27" long chamber with 24" wide x 50" long thru belt conveyor. Control panel with an AB controller with AB PanelView Plus 600 touch screen display. All stainless steel frame and enclosure with lexan doors and machine leveling screws and pads.
OAD: 142"L x 157"W x 87"H
2-head rotary hot melt outserter capable of up to 100 cycles per minute. Product size: (1 1/2" – 6") x (1 1/2" – 8"). Features 3 1/2"L pick & place arms, 27"L worm screw in feed, 36"L product magazine, (40" – 52") high product placement, sensor for presence, Equipped with Nordson hot melt glue system, Nordson time interval control, hand crank for height adjustment, barrier guarding with electrical interlocks, and sensor for container presence. Mounted on painted steel frame with casters. Designed to be mounted above conveyor.
OAD: 63"L x 50"W x 86"H
Automatic, 5-gallon plastic pail lidder rated up to 15 buckets per minute – depending on materials and application. Feature lid vacuum pick n place, incline burping press with 15 powered rolls, 12′ long x 7 1/2" wide powered tabletop bucket conveyor, 12′ lid magazine, no container / no lid detection and AB PLC.
OAD: 168"L (14ft) x 40"W x 80"H
Automatic hot melt glue coupon outserter (top placer) rated up to 600ppm – depending on materials and application. Container size range: 1/2" to 5 1/8" in diameter. Equipped with four head rotary vacuum pick & place, 88"L coupon magazine with a chain pusher for coupons (1 1/2" – 3 1/2")W by (1 1/8" – 3 1/2")H, timing worm screw in feed, hot melt glue application system, integrated vacuum pump, A/B PLC and E-stops
OAD: 133"L x 61"W x 81"H
Thiele twin Series 32 high-speed rotary placer can handle literature sizes ranging from 1" x 1" to 6" x 6" at speeds up to 600 placements per minute (each). Tray or plate size ranges from 2" x 2" x 1/4" deep up to 5" x 6" x 1" deep at speeds up to 200 cycles per minute. 4 head rotary placer, line shaft driven, equipped with (16) suctions (8 on each unit) to provide accurate and precise placement, 1/2 Hp vacuum pump and emergency stop button. Units mounted on twin steel height adjustable stands for easy changeover as well as adjustable height screw legs.
OAD: 78" (L) x 56" (W) x 80" (H)
Thiele, Model ZB20A, Automatic, case and tray erector packer, hot melt glue sealer. Rated from 5 to 10 cases per minute – depending on materials and application. Case size range: 6" to 12" long x 10¾" to 19¾" wide x 2" to 6" deep. Equipped with (4) chains adjustable set on 33¾" centers with 5" high lugs, 36" long blank case magazine with (6) suction cup reciprocating vacuum pic n place, single push arm product loader, mechanical flap closers, Nordson hot melt glue system, case compression section Control panel has A/B PLC with A/B touch screen HMI. Mounted on heavy duty frame with interlocking plexy glass safety guarding and statis lights.
OAD: 225" L x 125" W x 101" H
Thiele Model S60, Semi automatic, continous motion, horizontal, hot melt glue cartoner rated from 20 to 100 cartons per minute – depending on materials, application, machine configuration and operator dexterity. Carton size range: 2" to 6-1/2" in Length; 1/2" to 4" in Width; 4-1/2" to 10" in Depth. Equipped with (4) chains adjustable set on 7-1/2" centers with 1" wide x 2-1/2" high lugs, blank carton magazine, (2) head rotary suction cup pic n place, with carton break and 94" long product hand load secton, Nordsen hot melt glue system, vacuum pump, major flap plows, minor flap closers and single belt compression discharge. Control panel has A/B Micrologix controller and A/B VFD with vacuum and vacuum pump switches, speed control dial and start,stop, e-stop push buttons. Mounted on heavy duty frame with interlock safety guarding and height adjustable leveling legs
OAD: 262" L x 60" W x 85" H
Thiele Model S60, Semi automatic, continous motion, horizontal, hot melt glue cartoner rated from 20 to 100 cartons per minute – depending on materials, application, machine configuration and operator dexterity. Equipped with (2) chains fixed set on 7-1/2" centers with white plastic block 3-1/2" wide x 4" high lugs, blank carton magazine, (2) head rotary suction cup pic n place, carton break and carton hold down, 94" long product hand load secton, with Nordsen hot melt glue system, vacuum pump, major flap plows, minor flap closers and single belt compression and discharge. Control panel A/B controller vauum pump on / off and speed switches with start, stop and e-stop push buttons. Mounted on heavy duty frame with height adjustable leveling legs and saftey guarding.
OAD: 224 L x 60" W x 77" H
Thiele, Model T7400A, topsert feeder. Rated from 10 to 400 picks per minute – depending on materials, application and machine configuration. Product size range: 1" to 6" in Width; 1" to 6" in Height and to 1" thick with (4) heads. Equipped with 60" long adjustable width coupon magazine, (4) head rotary vacuum suction cup pick n place, barcode reader, Nordson Problue hot melt glue system and vacuum pump. Control panel has AB controller with touch screen HMI and statis light bar.Mounted on frame with casters and leveling legs.
OAD: 72"L x 54"W x 89"H
Thiele, Model 60S-SP, automatic, continuous motion, stainless steel, horizontal, hot melt glue cartoner. Rated from 60 to 400 cartons per minute – depending on materials and application. Carton size range 1" to 3-1/2" in Length; 1/2" to 3-1/2 in Width; 2-3/4" to 4-1/2" in Depth Equipped with (2) chains and 246" long in feed conveyor with 3-1/2" long x 2" wide x 7-3/8" deep fixed product buckets, auto blank carton magazine, (4) head rotary pic and place, (2) chain carrier system set on 5" centers, with 1-1/2" high x 1/2" wide" lugs, no carton / no product / no product / no carton, barrel cam auto load section, Nordson hot melt glue system, major and minor flap closers, 48" long compression section, interlocking Lexan safety guarding and statis light bar. Control panel has CPU controller with start, stop, e-stop controls. Mounted on heavy duty base frame.
OAD: 310" L x 72" W x 78" H Without In Feed 546" L With In Feed
Thiele, dual lane shrink bundler. Product: up to 8½". Film width: up to 15". Equipped with 90° / right angle infeed, dual pusher plates, dual 16" wide seal bars, dual 15" wide x 21" long transfer conveyors, stainless steel shrink tunnel with 15" high aperture and 48" long chamber. Stainless steel frame with interlocked safety guarding and leveling pads. AB PLC with PanelView. Speeds dependent on materials, application and machine configuration.
OAD: 180"L x 64"W x 96"H
