Waukesha, Model 30, positive displacement pump with 316 stainless steel contact parts. Rated from 1 to 36 gallons of product per minute – depending on materials, application and machine configuration. 450 psi maximum working pressure, temperature range of -40° F to 200° f standard and up to 300° F with hot clearence rotors / stators and viton seals and capable operating both clockwise, or counter clockwise. Equipped with 2" OD / 1½" ID Tri-Clamp style product charge / discharge with 14" ground clearance. Powered by 1½ Hp motor drive with 46.25:1 gear ratio for a current rate of 2.28 gallons per minute.
OAD: 48"L x 14"W x 22"H
Waukesha, Model 45, positive displacement pump with 316 stainless steel contact parts. Rated from 1 to 58 gallons of product per minute – depending on materials, application and machine configuration. 450 psi maximum working pressure, temperature range of -40 Deg F to 200 deg f standard and up to 300 deg F with hot clearence rotors / stators and viton seals and capable operating both clockwise, or counter clockwise. Equipped with 2½" OD / 2" ID Tri-Clamp style product charge / discharge with 13½" ground clearance. Powered by 3 Hp motor drive with 10.89:1 gear ratio for a current rate of 15.79 gallons per minute.
OAD: 55"L x 16"W x 23"H

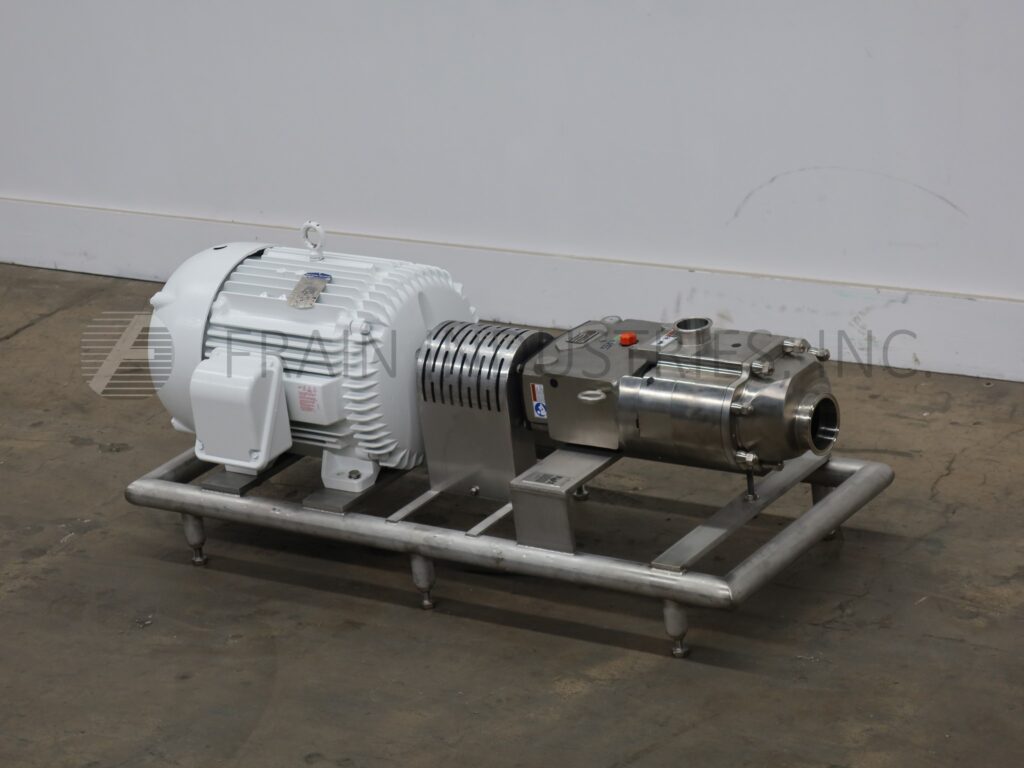

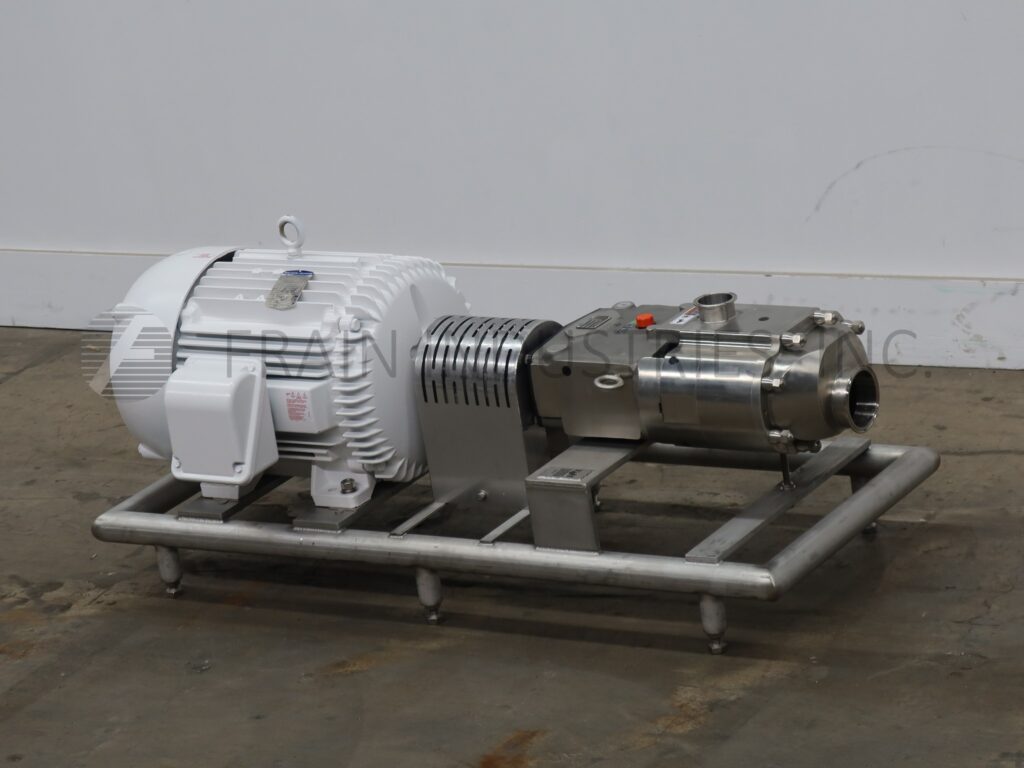

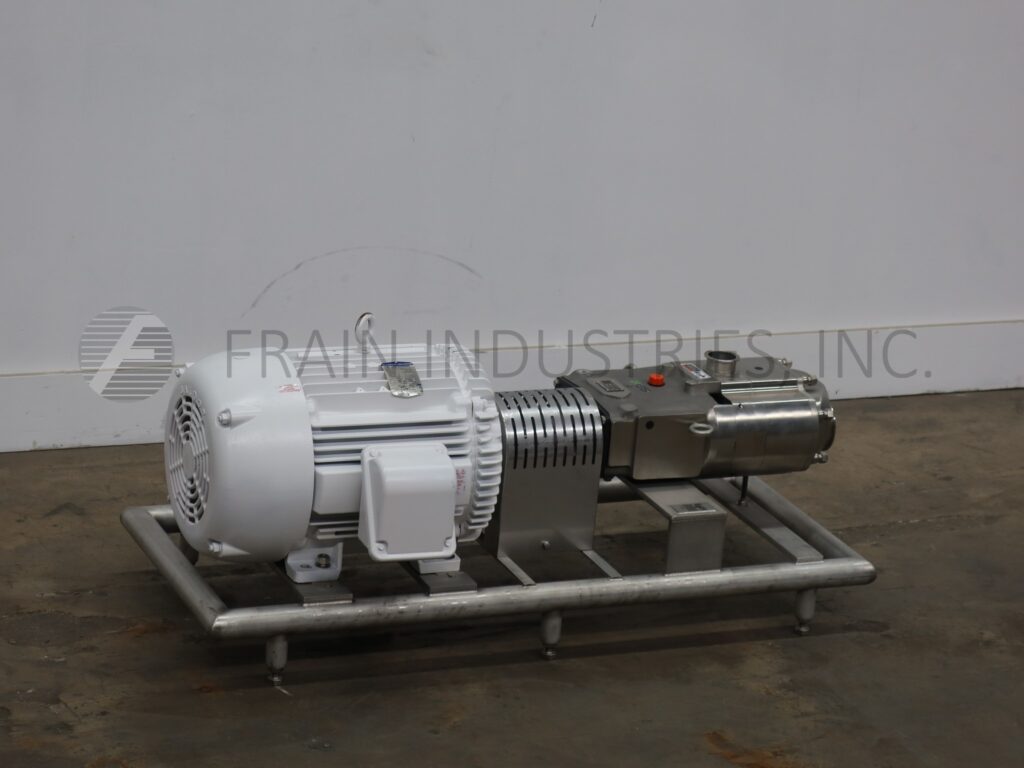

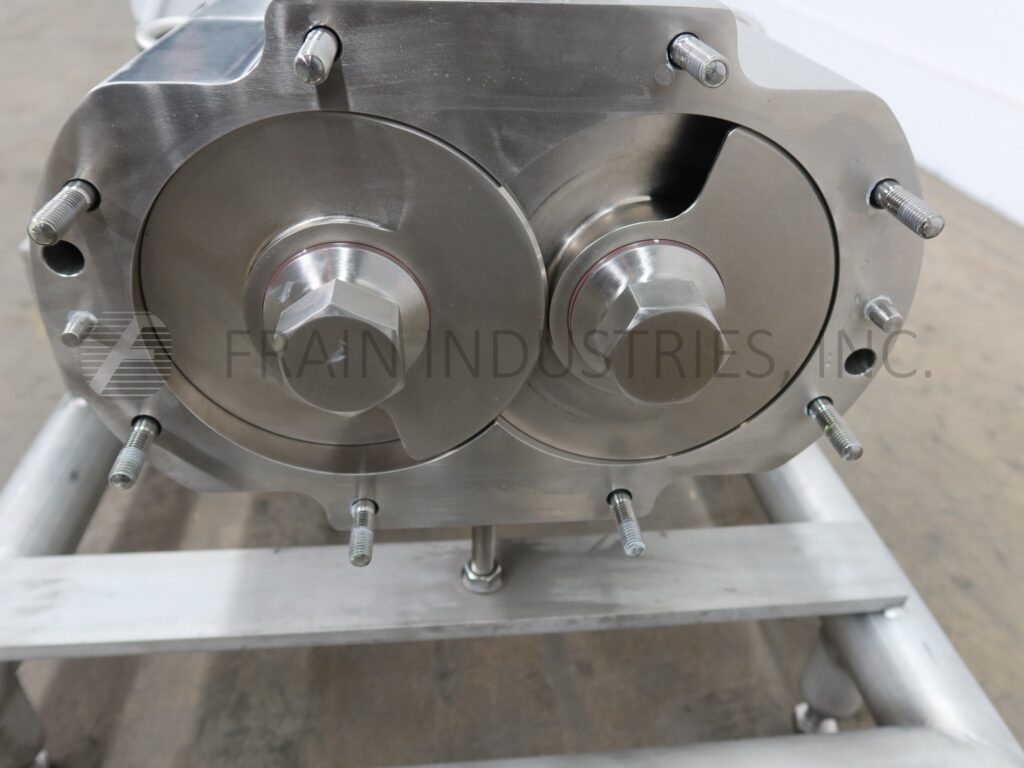

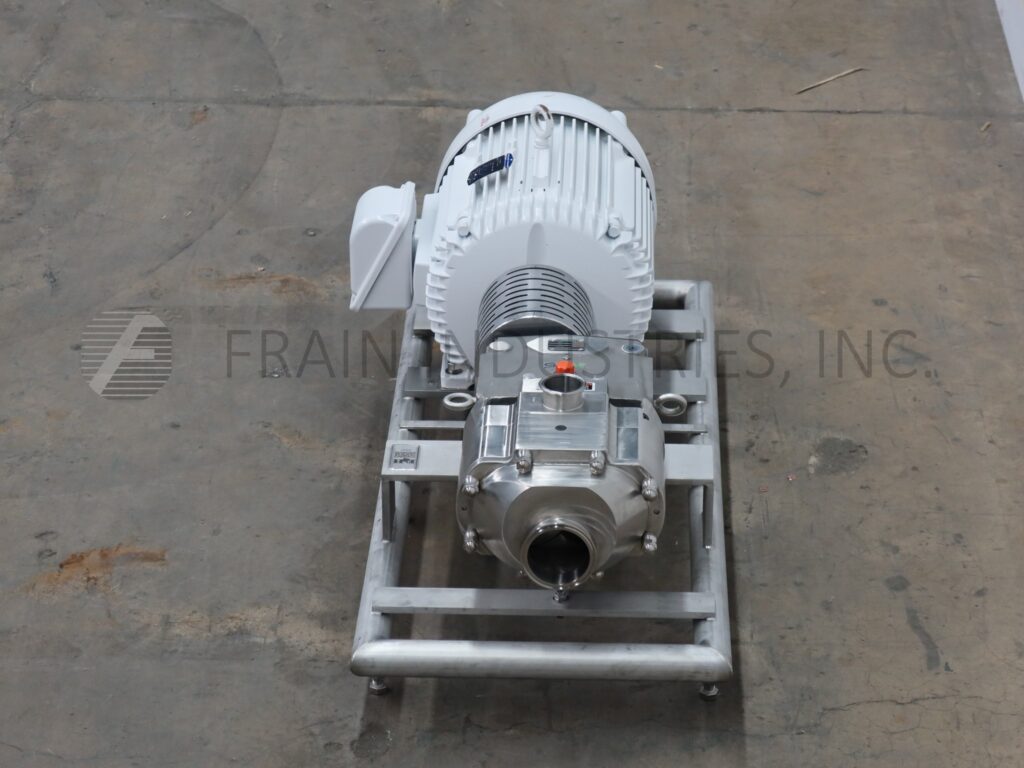

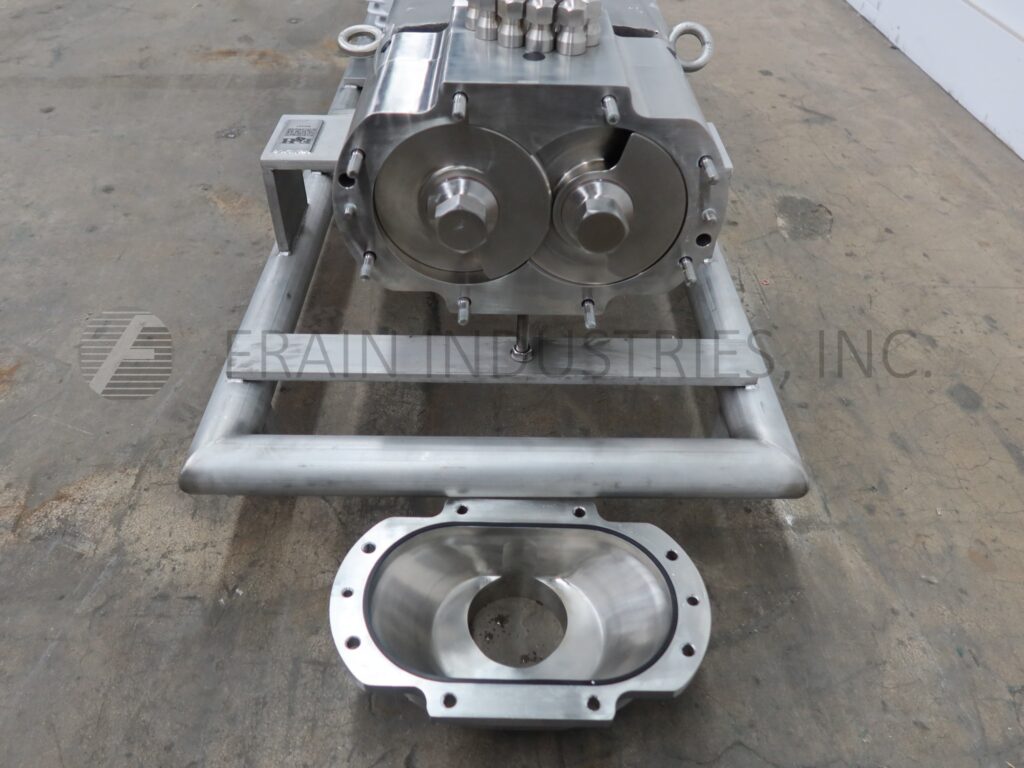

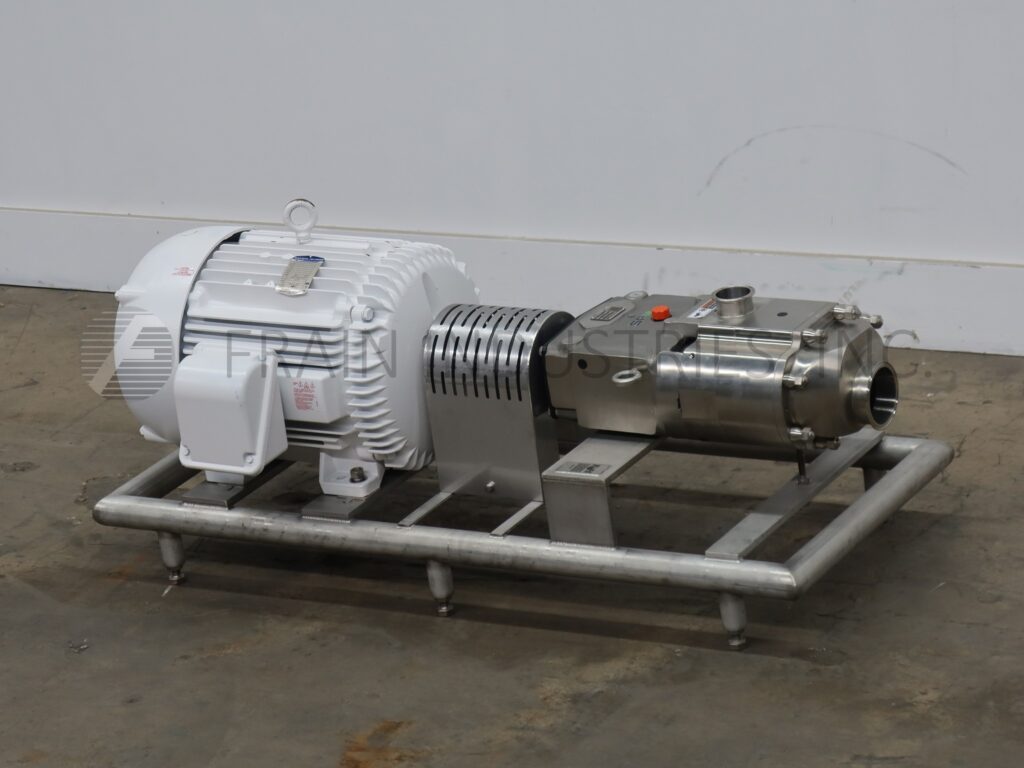

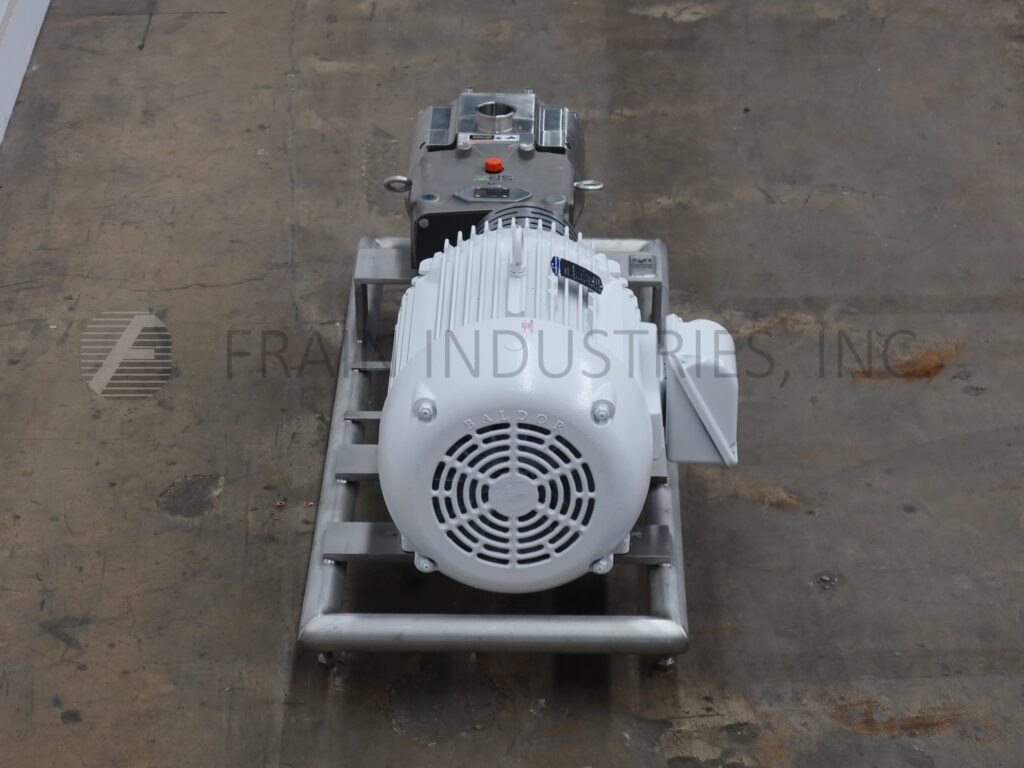

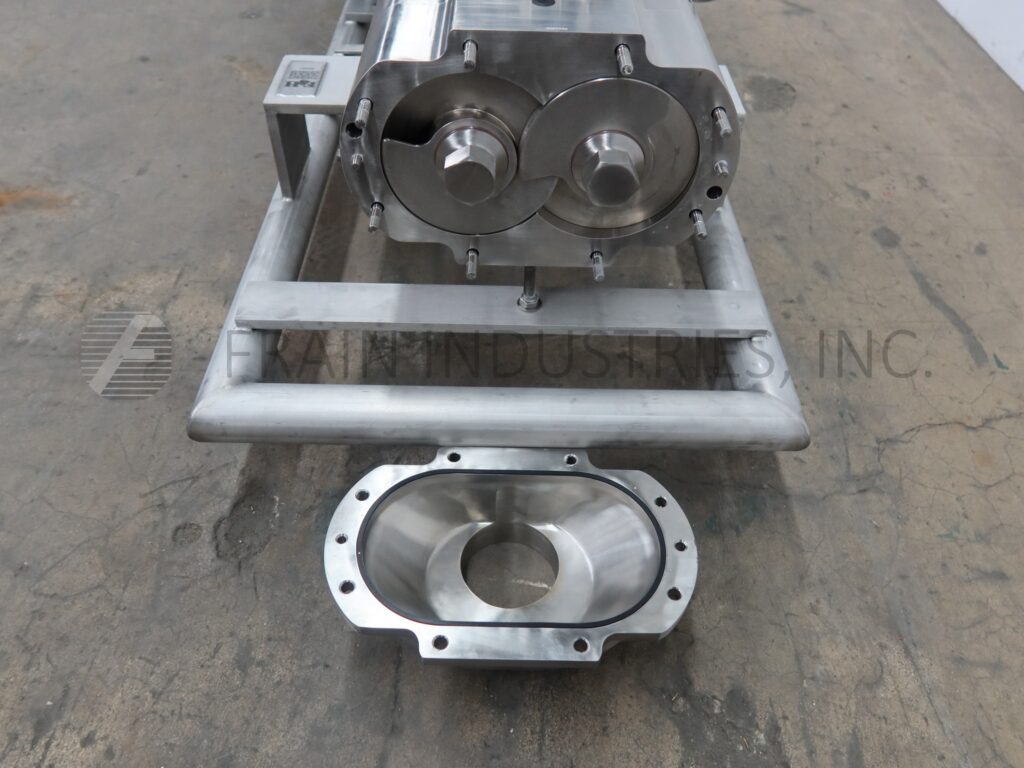

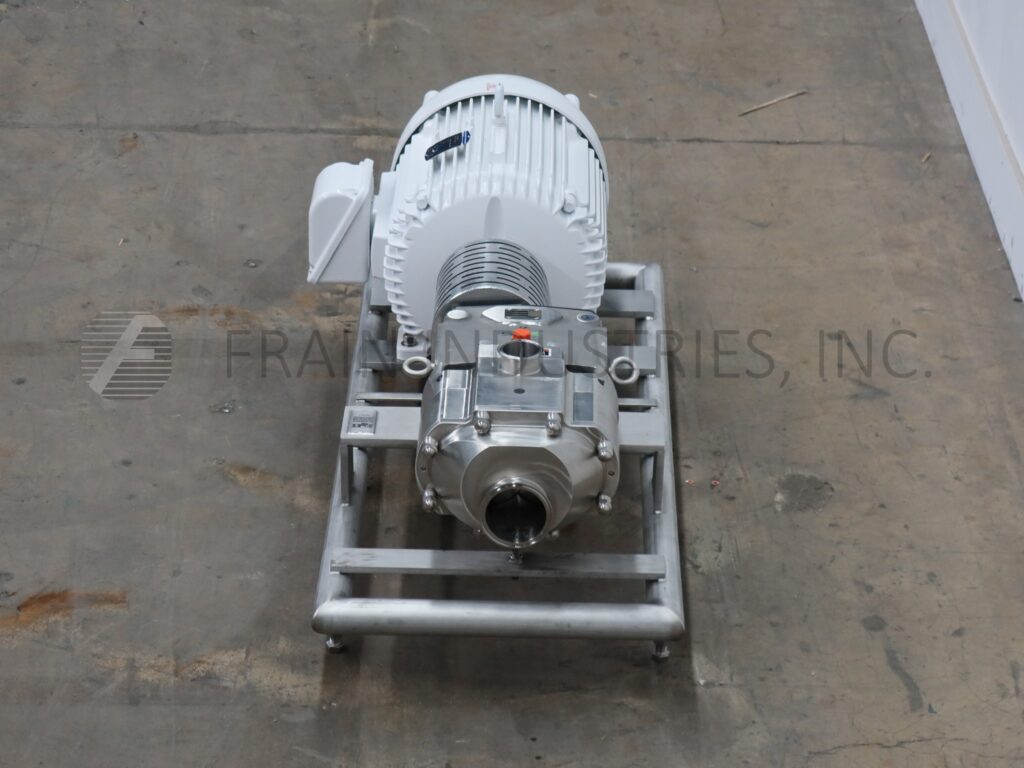

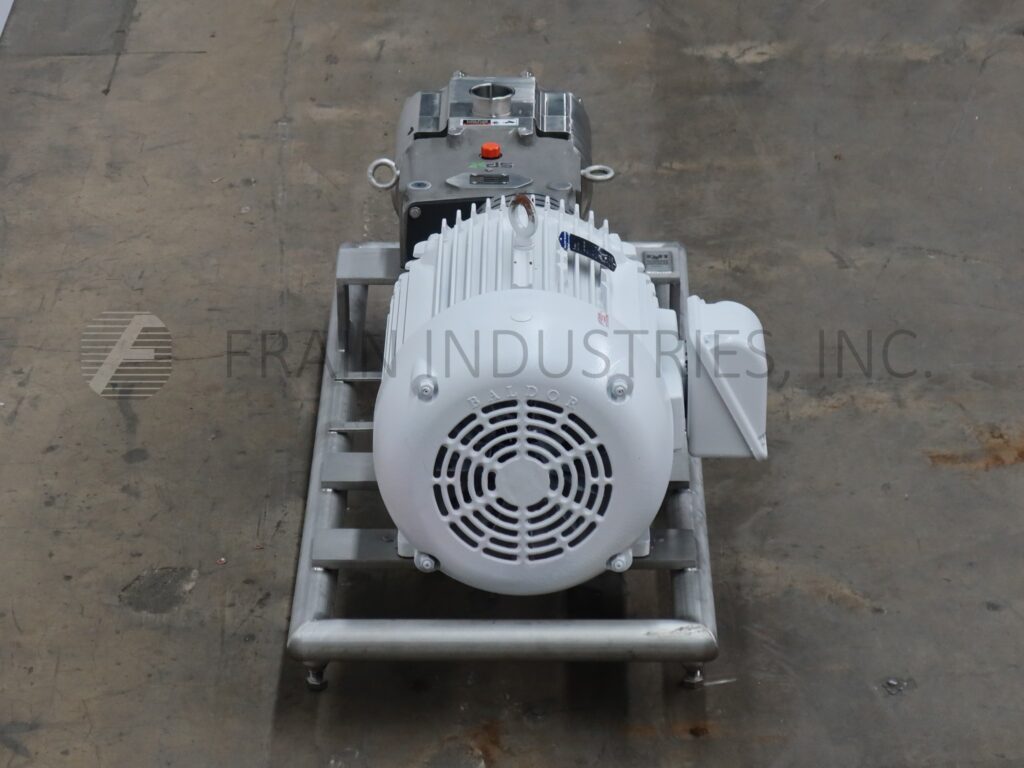

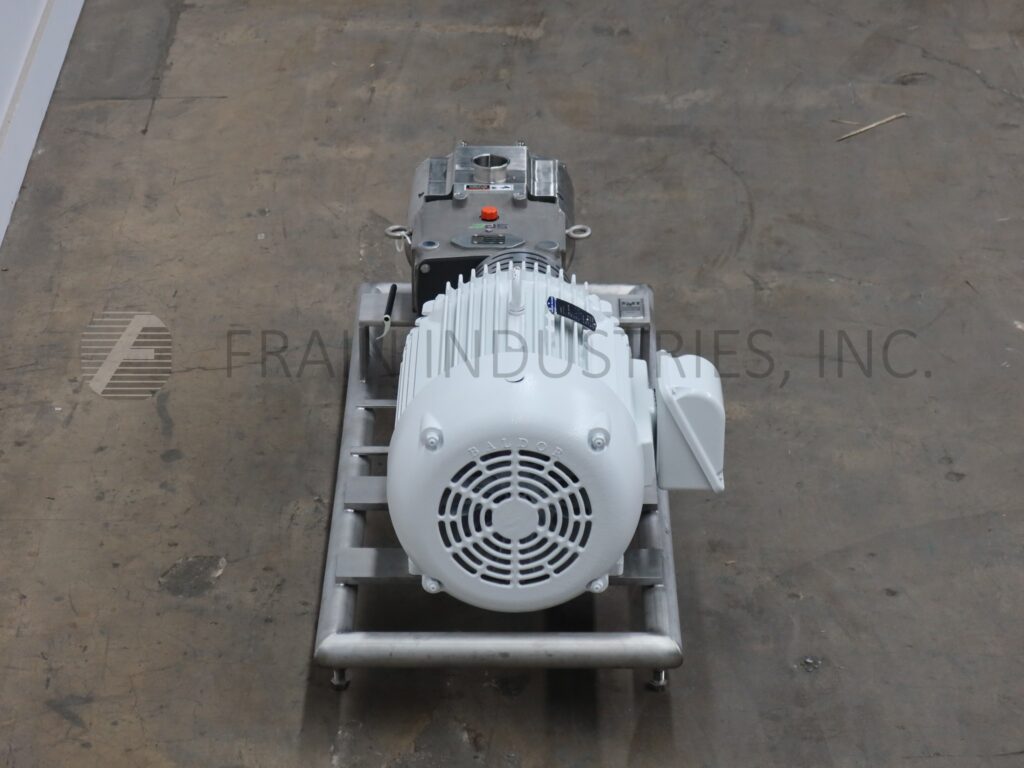

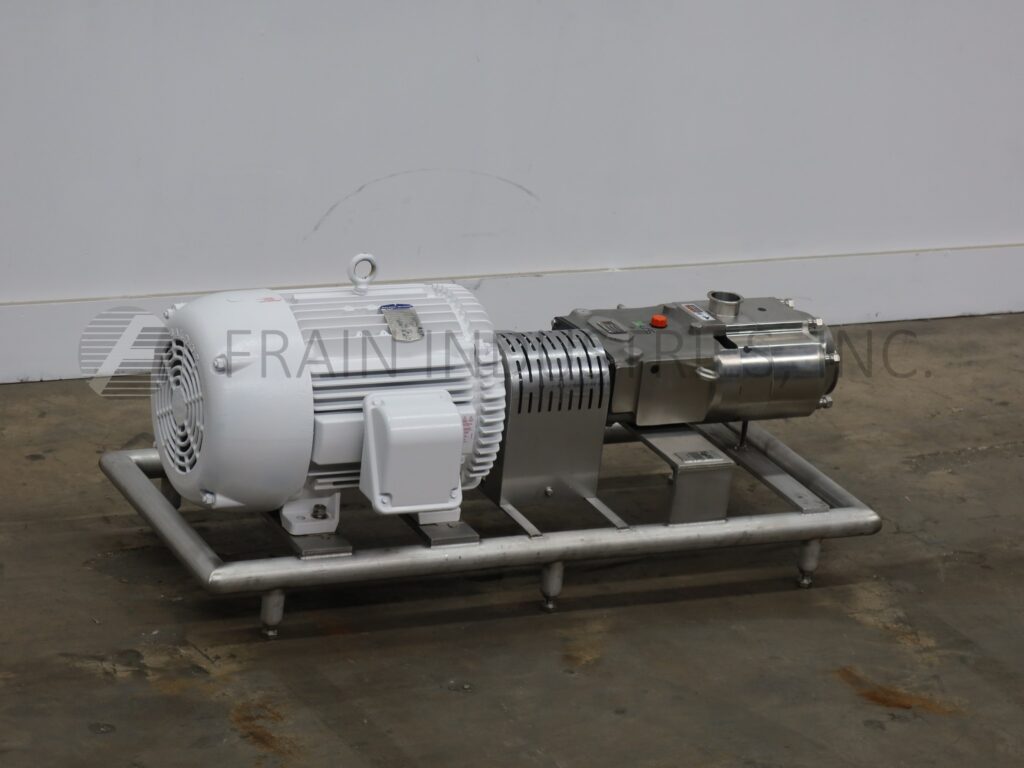

Waukesha, Model 130UTS, positive displacement twin screw pump with 316 stainless steel contact parts. Rated from 1 to 300 gallons of product per minute with current screw pitch and capable of up to 600 gallons per minute – depending on materials, application and machine configuration. 375 psi maximum working pressure, temperature range of -40° F to 300° F. Equipped with 4¾" OD / 4" ID Tri-Clamp style product charge with 11" ground clearance and 3"OD / 2½"ID top discharge with a 20" discharge height. Powered by 20 Hp motor drive for a current rate of 105.6 gallons per minute.
OAD: 59"L x 26"W x 27"H
Waukesha, Model 130UTS, positive displacement twin screw pump with 316 stainless steel contact parts. Rated from 1 to 300 gallons of product per minute with current screw pitch and capable of up to 600 gallons per minute – depending on materials, application and machine configuration. 375 psi maximum working pressure, temperature range of -40° F to 300° F. Equipped with 4¾" OD / 4" ID Tri-Clamp style product charge with 11" ground clearance and 3"OD / 2½"ID top discharge with a 20" discharge height. Powered by 20 Hp motor drive for a current rate of 211.2 gallons per minute.
Waukesha, Model 130UTS, positive displacement twin screw pump with 316 stainless steel contact parts. Rated from 1 to 300 gallons of product per minute with current screw pitch and capable of up to 600 gallons per minute – depending on materials, application and machine configuration. 375 psi maximum working pressure, temperature range of -40° F to 300° F. Equipped with 4¾" OD / 4" ID Tri-Clamp style product charge with 11" ground clearance and 3"OD / 2½"ID top discharge with a 20" discharge height. Powered by 15 Hp motor drive for a current rate of 211.2 gallons per minute.
OAD: 57"L x 26"W x 25"H
Waukesha, 600 gallon 304 S/S, supply tank, and pump system. Tank has 56" dia x 60" straight wall, flat top with cover, dish bottom with 2½" ID triclover center bottom discharge and 14" clearance. 4 leg unit mounted on a (48"L x 48"W) platform. Pump system consists of (3) Waukesha pumps (2) model 30, 30 gpm and (1) model 15, 15 gpm pumps all 316 S/S contact parts. Model 30’s have ¾ HP Baldor motor, 2" OD triclover inlet/outlets, and twin wing rotors, and O-Ring seals. Model15 has ½ HP Baldor motor, 1" OD triclover inlet/outets, twin wing rotors, and O-Ring seals. Pumps mounted on a S/S frame below tank. System would be ideally suited as supply tank to a time/pressure filler. Last used for metering product to MRM Versa filler.
OAD: 92"(L) x 48"(W) x 146"(H)
