Zalkin, stainless steel, 8 head rotary chuck capper and feeder. Rated from 24 to 240 containers per minute – depending on materials, application and machine configuration. Equipped with 28" diameter bowl sorter and feeder, 3½" wide plastic delrin belt conveyor, worm screw to star wheel in feed, (8) head chucks set on 5½" centers and star wheel discharge. Control panel has A/B controller and A/B touch screen HMI. Mounted on heavy duty frames.
OAD: 105"L x 60"W x 90"H

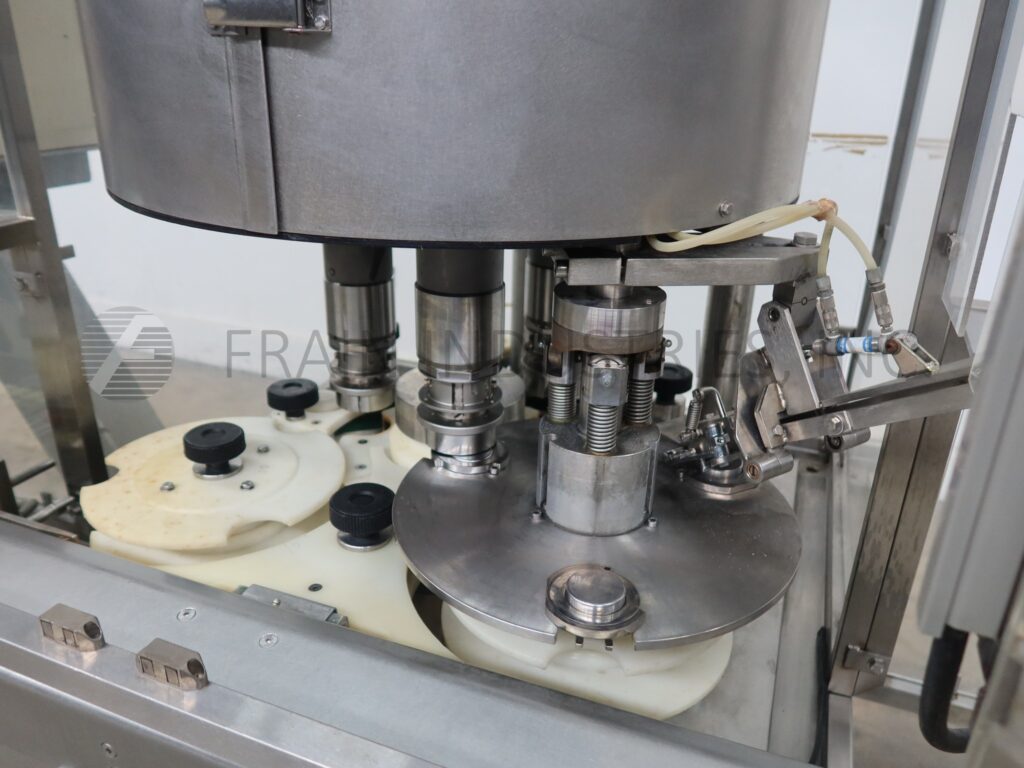

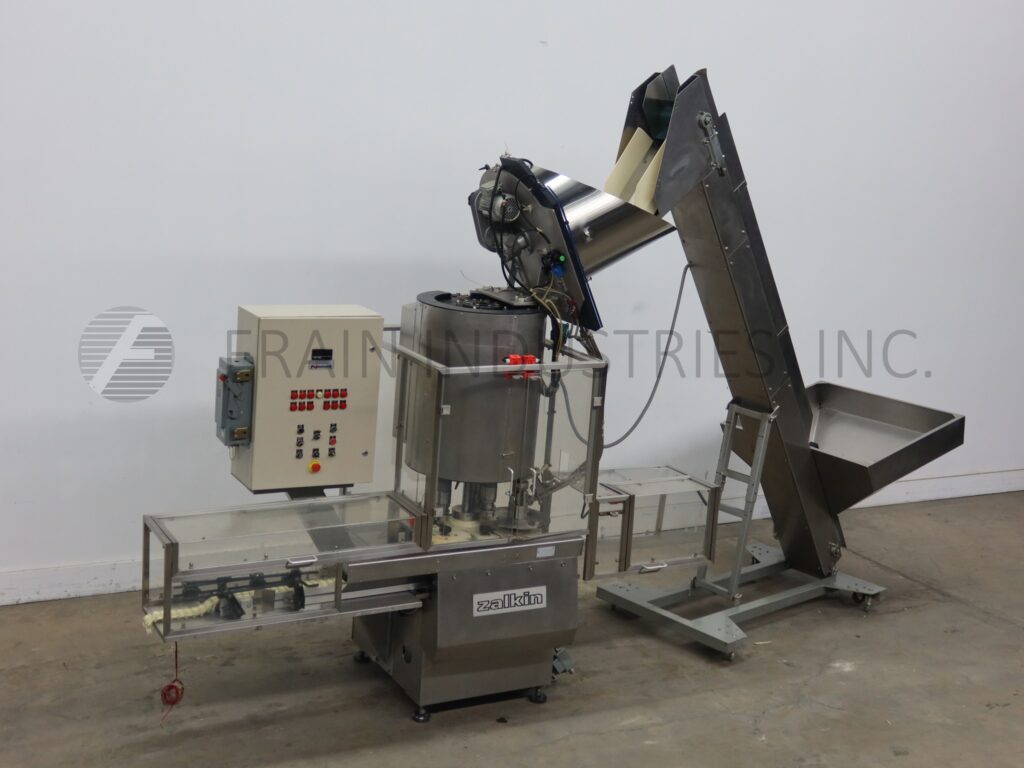

Zalkin, Stainless steel, 3 head rotary chuck capper and feeder. with number of containers per minute and hour – depending on materials, application and machine configuration. Equipped with waterall style cap sorter and feeder with 36" long x 42" wide x 36" deep cap hopper, 22" wide belt conveyor with cleats set on 5¾" centers and has 85" discharge height. Capper equipped with 4½" wide plastic delrin belt conveyor, worm screw to star wheel in feed, (3) head chucks set on 6" centers and star wheel discharge. Control panel has A/B controller and A/B touch screen HMI and start, stop, e-stop push buttons. Mounted on heavy duty frames. Designed to apply aluminium roll-on caps to carbonated or non-carbonated beverages of plastic or metal pre-threaded press-on or push-in caps, pourrers, stoppers, overcaps, stopper corks,rubber plugs and more..
OAD: 82" L x 60" W x 97" H Capper 62" L x 55" W x 107" H Feeder
Zalkin / Fowler Model CASF, automatic, stainless steel, 12 head rotary chuck capper with number of containers per minute – depending on materials and application. Cap and container sizes: per application with proper change parts. Equipped with 140" long x 3-1/2" wide plastic interlock container belt conveyor, has 48" long worm screw to star wheel container indexing with U-Shaped container transfer conveyor to cap chute currently set for 100mm caps, no container / no cap and has (12) frictionless, magnetic clutch chuck cap heads with quick release gripper jaws set on 11" centers to star wheel discharge with 84" long x 3-1/2" wide discharge conveyor. Control panel has strongarm swing arm controller and A/B panelview controller with control power on / off, cycle start, stop, reset cap starter, jog and e-stop push button controls. Mounted on stainless steel base frame with safety guarding doors and statis light bar.
OAD: 140" L x 84" W x 103" H
