Photo of A & B Process Systems Tank SS Single Wall TOPPER
Thumbnail of A & B Process Systems Tank SS Single Wall TOPPER Thumbnail of A & B Process Systems Tank SS Single Wall TOPPER Thumbnail of A & B Process Systems Tank SS Single Wall TOPPER Thumbnail of A & B Process Systems Tank SS Single Wall TOPPER

A & B Process Systems Tank SS Single Wall TOPPER

  Back to All Equipment
Get a Free Quote

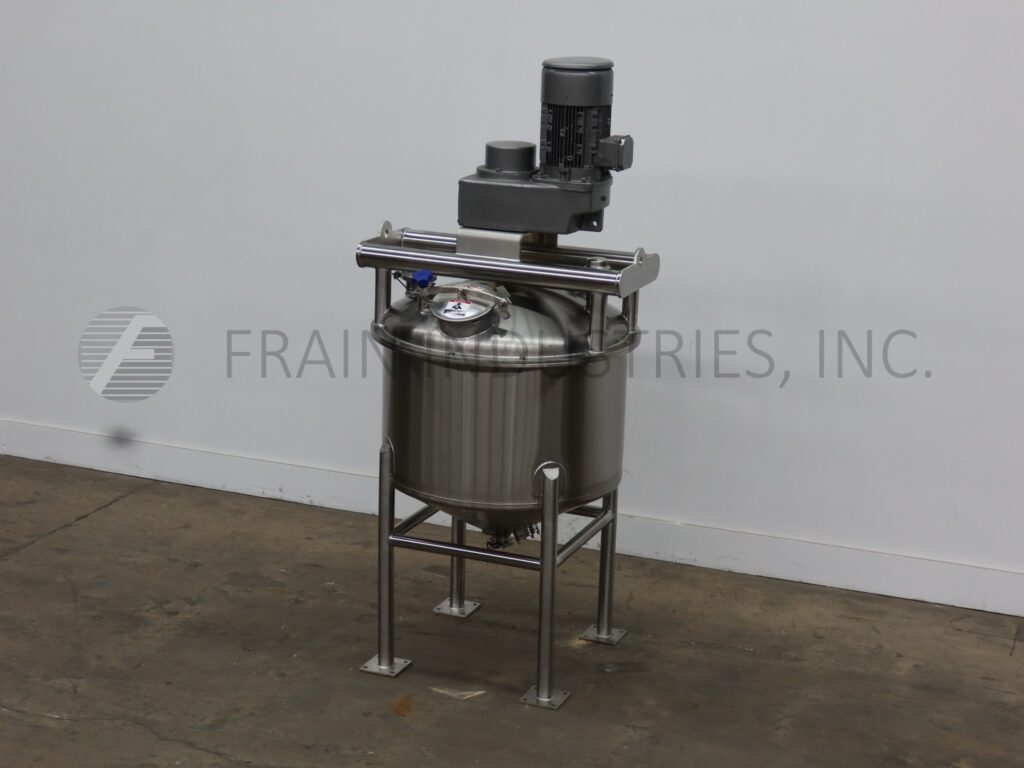

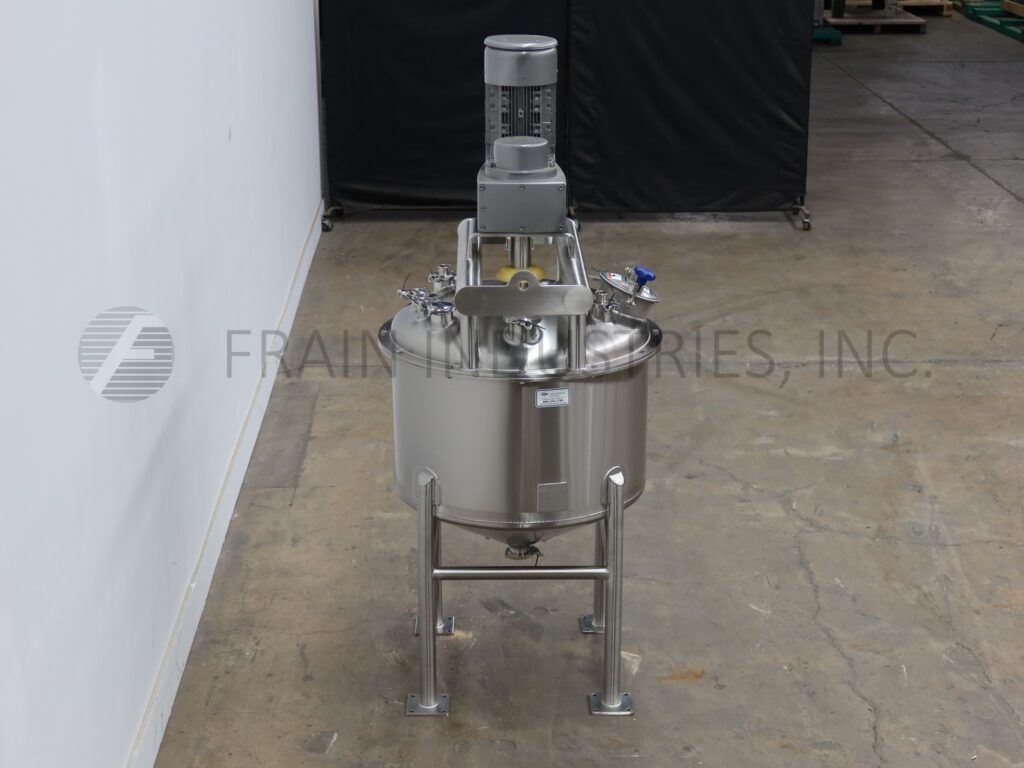

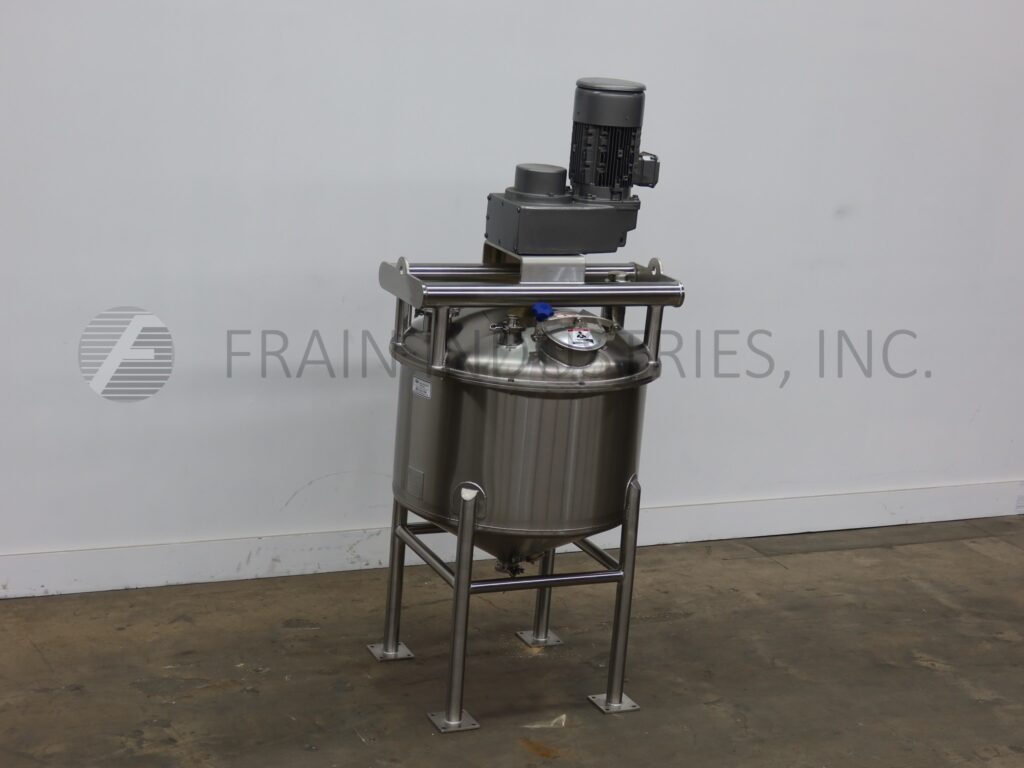

A & B Process Systems, 90 gallon capacity, 304 stainless steel single wall tank. Vessel dimensions: 36" diameter x 30" deep with a 20" straight wall. Equipped with scrape agitation powered by a 7½ hp drive, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri Clamp fitting and thermowell. Cone bottom has 3½" OD / 3" ID tri-clamp center bottom discharge with 18" ground clearance.

Top Access Ports:
(1) 8" diameter manway
(1) 3" diameter open vent
(1) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp

Bottom Access Ports:
(1) 2½"OD / 2"ID Tri-Clamp

OAD: 41"L x 40"W x 93"H
