Alpha Brewing Operations Tank SS JKT 2300 GAL

• Manufacturer: Alpha Brewing Operations
• Model: 2300 GAL
• Category: Stainless Steel Tank
• Subcategory: Stainless Steel Jacketed

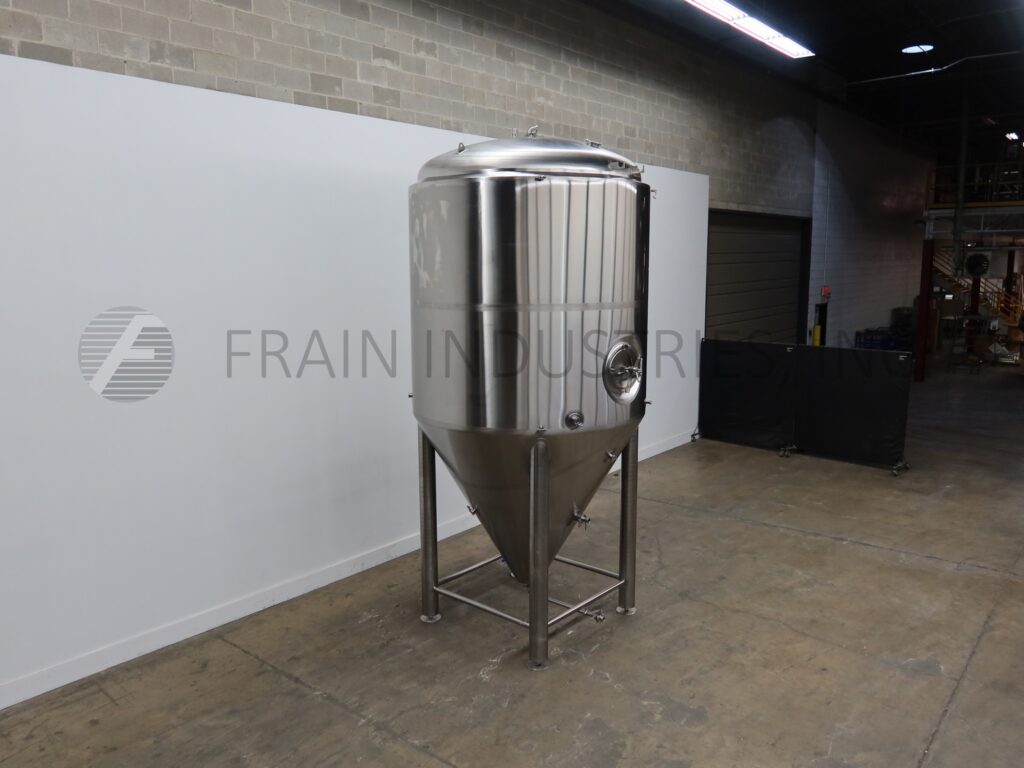

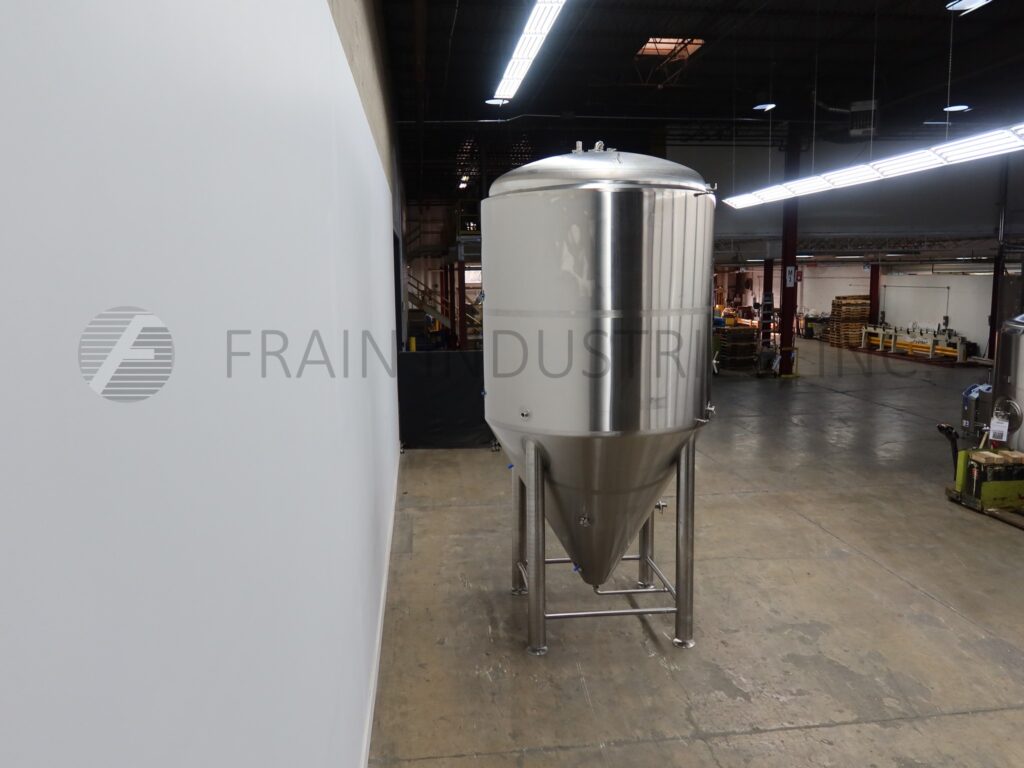

Alpha, 2,300 gallon, 304 stainless steel, jacketed tank. Vessel Dimensions: 79″ diameter x 79″ straight wall with a cone bottom. Equipped with 17″ x 13″ side oval manway with bolt down cover. Tri-clamp discharge with 5″ ground clearance.

Top Port:
(1) 4½” OD x 4″ ID Tri-Clamp
(1) 4″ OD x 3½” ID Tri-Clamp
(1) 2½” OD x 2″ ID Tri-Clamp
(1) 2″ OD x 1½” ID Tri-Clamp

Side Port:
(2) 2″ OD x 1½” ID Tri-Clamp

Bottom Port:
(2) 2″ OD x 1½” ID Tri-Clamp
(1) 3″ OD x 2½” ID Tri-Clamp

Jacket Port:
(6) 1″ NPT

MAWP: 29 PSI (Vessel)
MAWP: 43 PSI (Jacket)

OAD: 88″L x 83″W x 180″H
